7-60 — SEAT BELT (#41072) — 151 parça

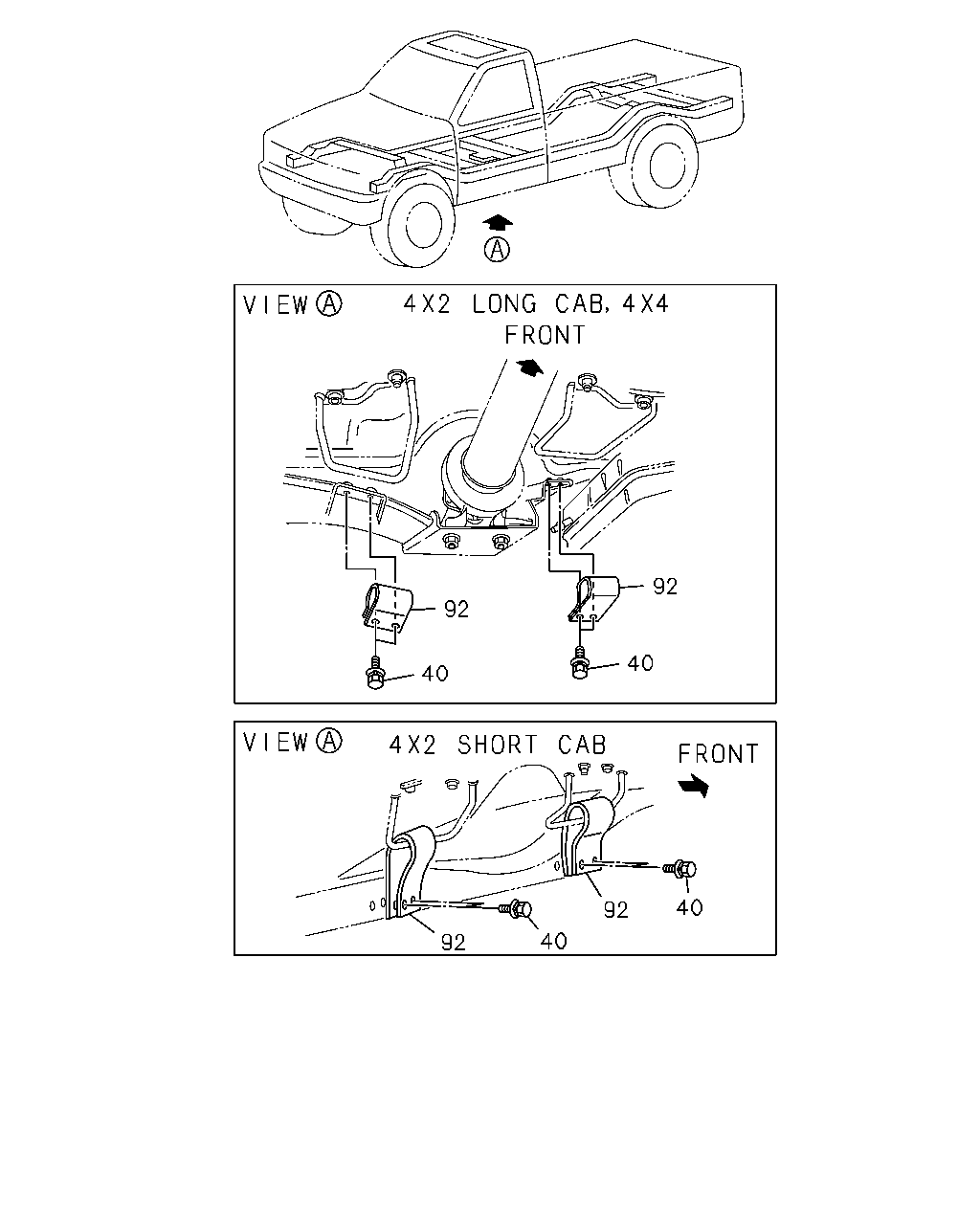

çizim 18478
92 40 40 92 92 40 92 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
40 16.545 BOLT; BRKT,ANCHOR
M8X30 W/LK&PL WASHER 		8-94320-540-1 04 1 9611- ● ● ● ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-94473-965-3 02 1 9611- ● ● ● ● ●
92 16.714 BRACKET; SEAT BELT ANCHOR
16.545 		8-94471-108-2 02 1 9611- ●
92 16.714 BRACKET; SEAT BELT ANCHOR 8-97146-231-0 02 1 9611- ● ●

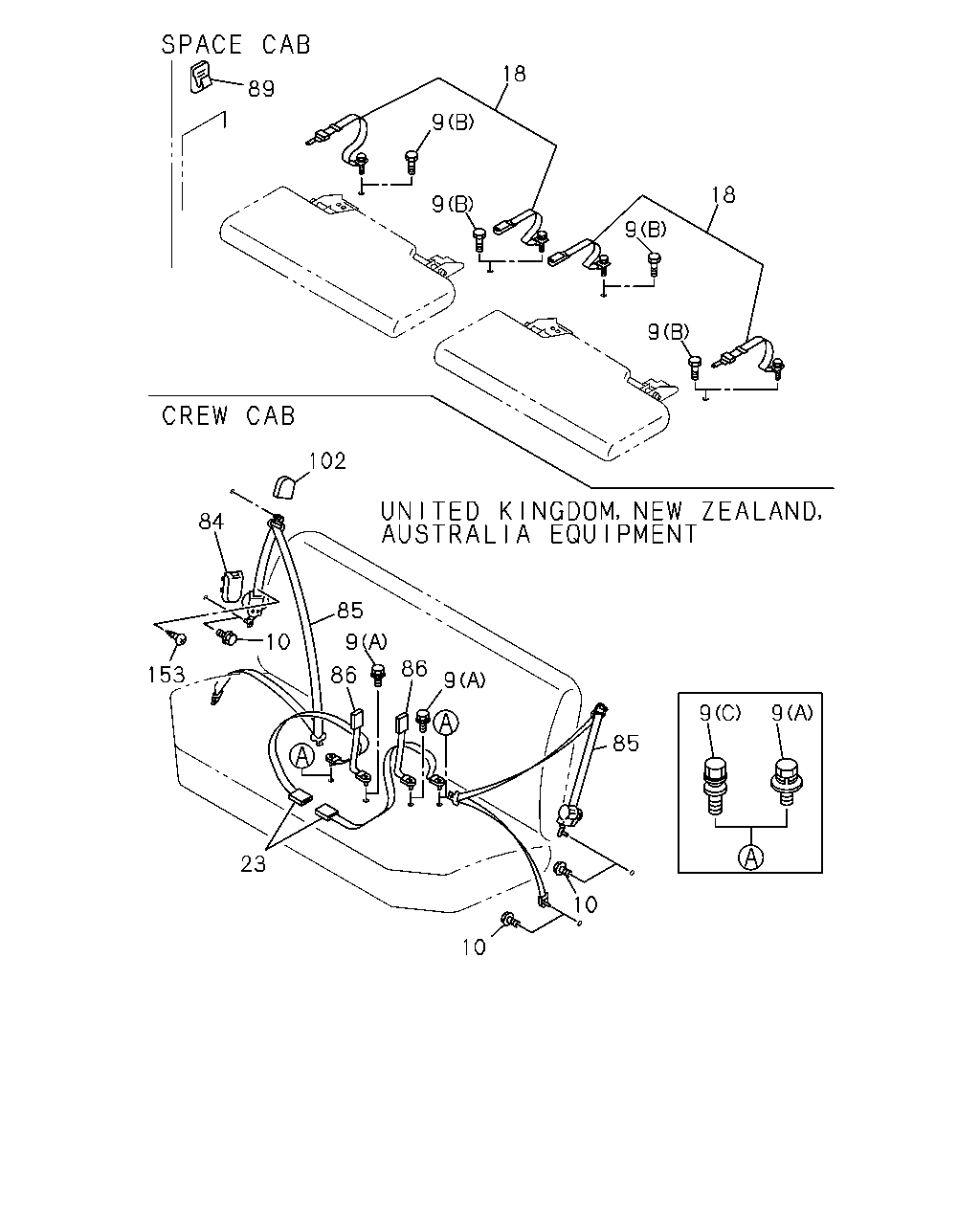

çizim 67235
89 9 18 9 9 18 9 85 9 9 10 10 23 86 86 9 9 85 10 153 84 102
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9611- ● ● ● ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) DARK GRAY 		8-97156-091-2 02 1 9611- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-092-1 02 1 9611- ● ●
23 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) DARK GRAY 		8-97156-092-1 01 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97153-655-5 02 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9611- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-088-3 02 1 9611- ● ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) DARK GRAY 		8-97156-089-1 02 1 9611-9612 ●
85 16.714 BELT; SEAT,RR OUTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) DARK GRAY 		8-97156-089-3 02 1 9701- ● ●
86 16.714 BELT; SEAT,RR INNER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97156-090-0 02 1 9611- ● ●
89 16.714 HOOK; LATCH PLATE,SEAT BELT
GRAY 		8-97154-708-2 02 1 9611- ● ●
102 16.714 COVER; SHOULDER ANCHOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97152-754-1 02 1 9611- ● ●
102 16.714 COVER; SHOULDER ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9611- ●
153 16.714 SCREW; RETRACTOR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) M8X10 		9-03800-810-0 02 1 9611- ● ●

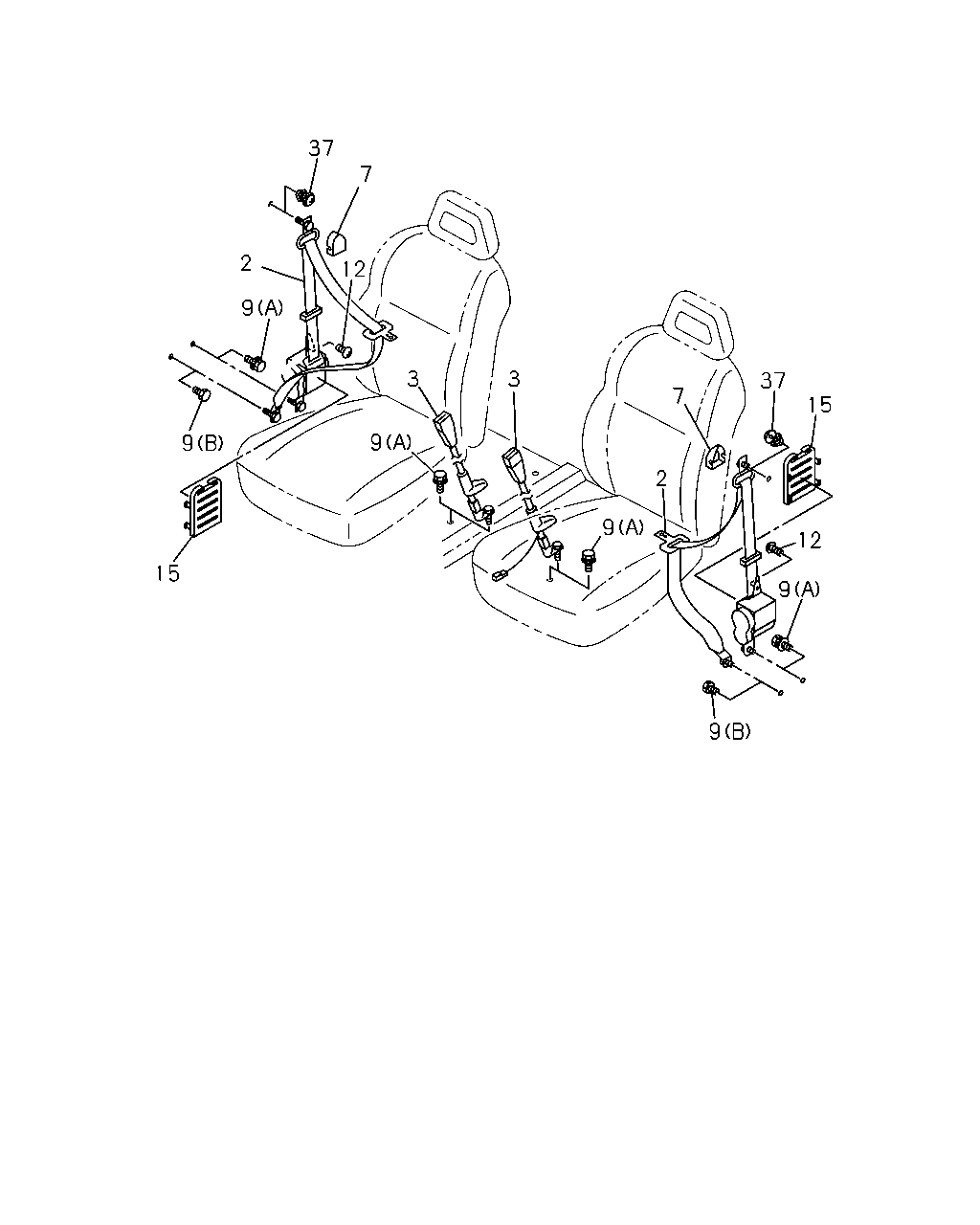

çizim 69638
9 9 12 15 37 7 2 9 3 3 9 15 9 9 2 37 7 12
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-619-2 02 1 9612- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-073-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97156-076-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-618-1 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-620-1 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-072-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-3 02 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-086-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-086-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-081-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-081-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97156-085-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97156-079-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97152-754-1 02 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9611- ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9611- ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9611- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9611- ● ● ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) GRAY 		8-97154-701-3 02 1 9611-9611 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97154-701-3 02 1 9611-9611 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9612- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9611- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9611- ● ● ● ● ● ●
çizim 70127
9 9 37 7 3 9 3 15 7 37 2 9 9 12 14 15 9 12 2 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 16.714 BELT; SEAT,TONGUE SIDE
AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-619-2 02 1 9612- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
EXC. AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-074-4 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-073-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-073-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-076-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> DARK GRAY 		8-97156-076-3 02 1 9611- ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-618-1 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-070-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-078-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97158-620-1 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-072-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-069-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-077-3 02 1 9611- ● ●
2 16.714 BELT; SEAT,TONGUE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-075-3 02 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-086-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-086-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97156-081-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-081-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-085-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97156-085-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-079-1 01 1 9611- ● ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97156-079-1 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-084-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-083-1 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-997-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-997-0 01 1 9611- ● ●
3 16.714 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97157-996-0 01 1 9611- ●
3 16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97157-996-0 01 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
GRAY 		8-97152-754-1 02 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97152-754-1 02 1 9611- ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97152-754-1 02 1 9611- ● ● ● ●
7 16.714 COVER; SHOULDER ANCHOR,FRT SEAT
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97154-700-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9611- ● ● ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
M8X10 		9-03800-810-0 02 1 9611- ● ●
12 16.714 SCREW; RETRACTOR COVER,SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> M8X10 		9-03800-810-0 02 1 9611- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9611-9711 ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97156-068-0 01 1 9611-9711 ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT CENTER<S4D> DARK GRAY 		8-97156-068-0 01 1 9712- ● ● ● ● ● ●
14 16.714 BELT; SEAT,CENTER
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> AUSTRALIA EQUIPMENT(RR3) EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY 		8-97195-766-0 01 1 9712- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) GRAY 		8-97154-701-3 02 1 9611-9611 ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
UNITED KINGDOM EQUIPMENT(EK3) EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97154-701-3 02 1 9611-9611 ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-701-3 02 1 9612- ● ● ● ●
15 16.714 COVER; DUST,FRT SEAT BELT RETRAC
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97154-702-3 02 1 9611- ● ● ● ●
37 16.714 PLUG; SEAT BELT ANCHOR
GRADE STD(RBA) EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 		8-94433-190-0 02 1 9611- ● ● ● ● ● ●

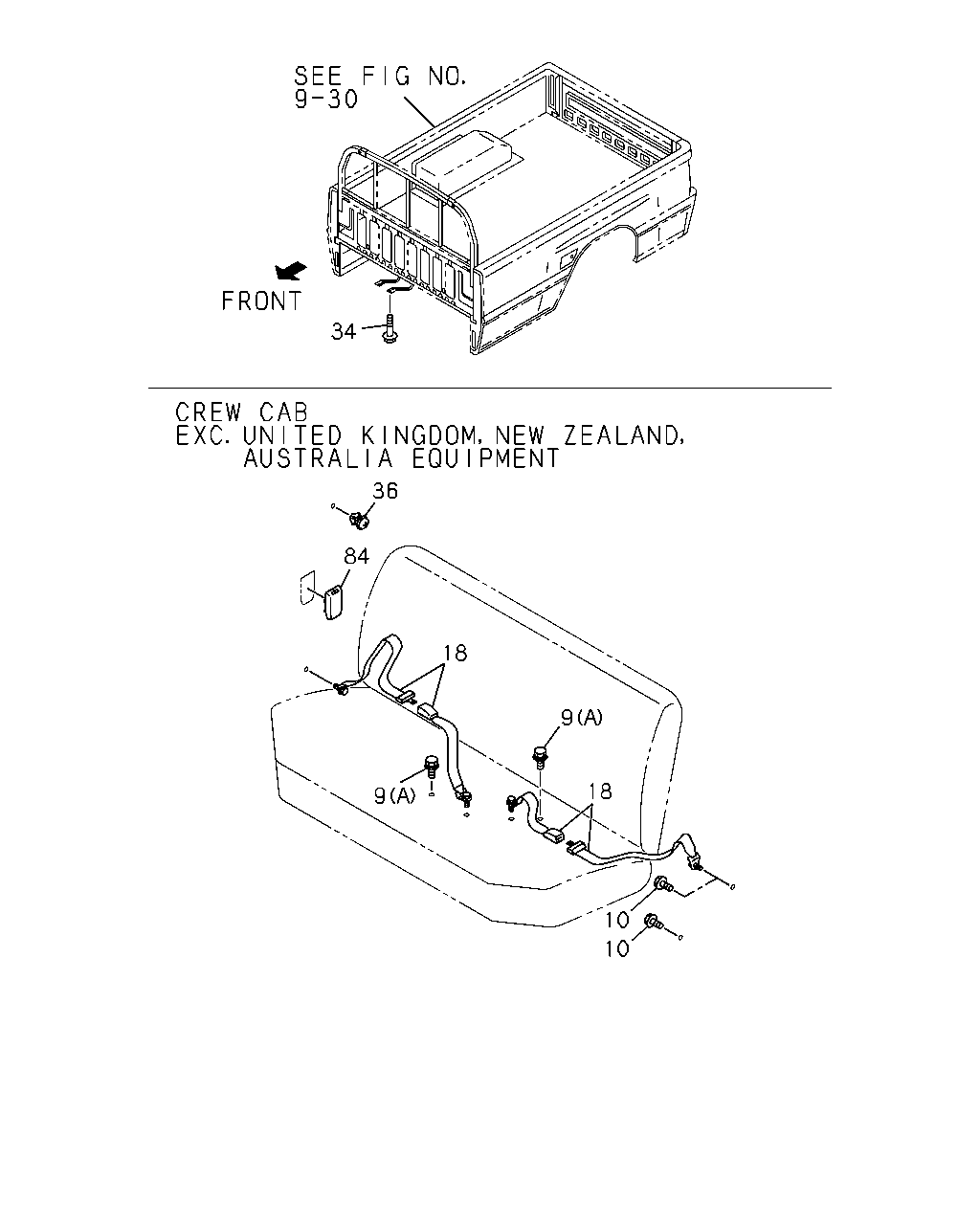

çizim 70163
34 18 9 18 10 10 9 84 36
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. NEW ZEALAND EQUIPMENT(PK5) (B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
(B) 7/16"X14 UNF 		8-97039-648-0 04 1 9611- ●
9 16.714 BOLT; SEAT BELT ANCHOR
14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
AUSTRALIA EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) EXC. SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),SEAT BELT CENTER<S4D> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 02 1 9611- ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 (A) 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> (B) 7/16"X14 UNF 		8-97039-648-0 02 1 9611- ● ● ● ● ● ●
9 16.714 BOLT; SEAT BELT ANCHOR
UNITED KINGDOM EQUIPMENT(EK3) EXC. SEAT BELT CENTER<S4D> (C) 		8-97039-649-0 02 1 9611- ● ● ● ●
10 16.714 BOLT; RETRACTOR
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ●
10 16.714 BOLT; RETRACTOR
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> 14.875 7/16"X22 UNF 		8-94389-890-0 04 1 9611- ● ●
18 16.714 BELT; SEAT,RR
JUMP SEAT<AJ2> NEW ZEALAND EQUIPMENT(PK5) DARK GRAY 		8-97156-091-2 02 1 9611- ●
18 16.714 BELT; SEAT,RR
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) DARK GRAY 		8-97156-092-1 02 1 9611- ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 07.039 		8-94130-273-0 04 1 9611-9711 ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-94198-549-0 04 1 9712-9802 ● ●
34 16.714 BOLT; SEAT BELT ROD
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 		8-94198-549-0 04 1 9803- ● ●
36 09.775 PLUG; DUMMY HOLE,SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) 16.714 		8-94433-190-0 02 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
SEAT BELT FRT 3 POINT W/RETRACTOR<A49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) GRAY 		8-97153-655-5 02 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. SEAT BELT FRT 3 POINT W/RETRAC TOR<A49> GRAY 		8-97153-656-5 02 1 9611- ● ●
84 16.714 COVER; RETRACTOR,RR SEAT BELT
EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97153-656-5 02 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
