◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#41070) — 218 parça
çizim 20219
67 67 28 28
BalonParca AdiParca NoAdetTipApplied Date A B
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 04 1 9611- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 04 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
SPACE CAB(TF**C*) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 10 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 06 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X4 SHORT(TFS**C) M10X19 		8-94427-095-2 04 1 9611- ● ●

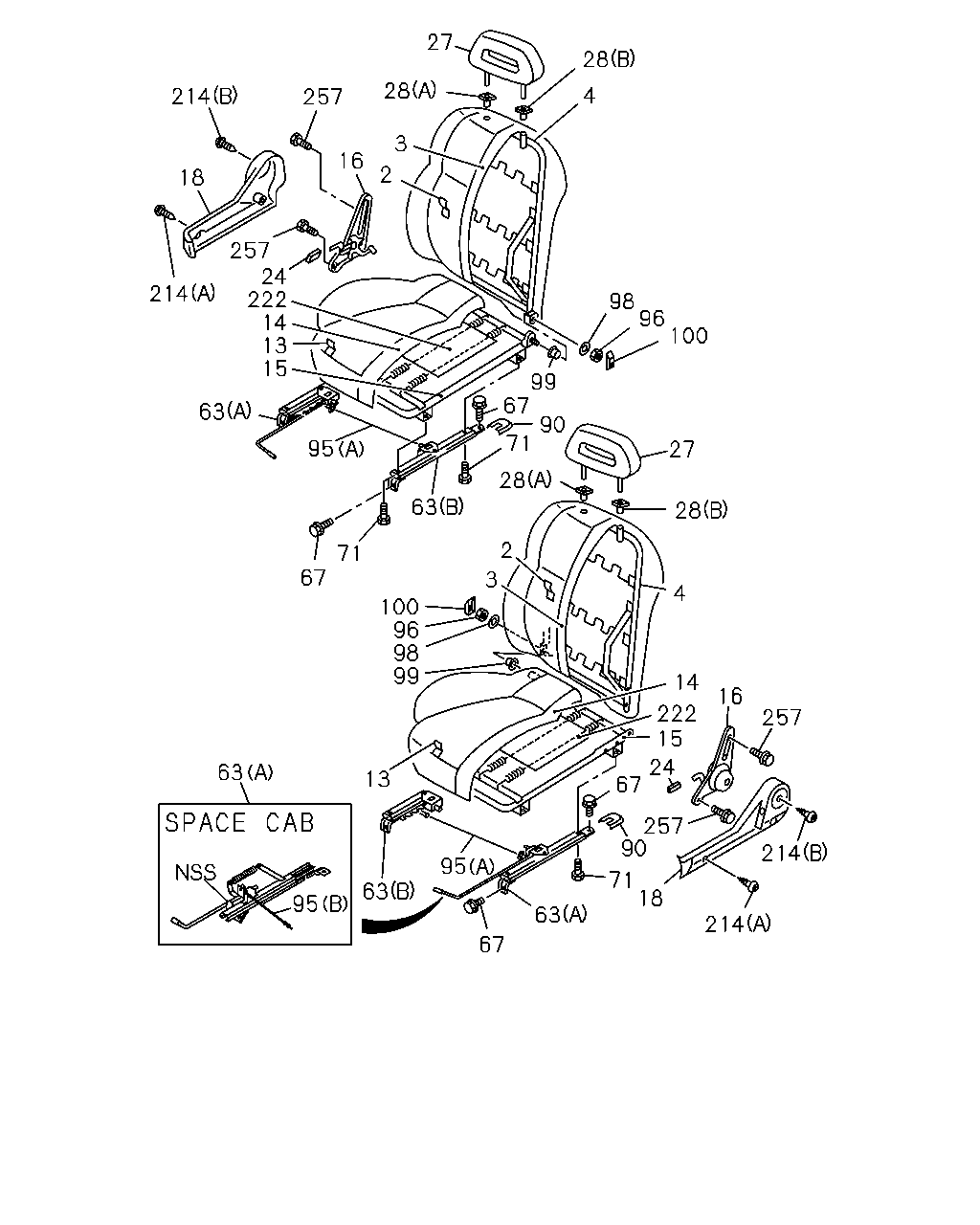

çizim 20220
257 16 3 2 28 27 28 4 98 96 100 99 67 90 71 28 27 28 63 71 67 95 63 15 13 14 222 24 214 257 18 214 100 96 98 99 3 2 4 14 222 15 24 67 257 90 71 18 214 214 257 16 95 63 67 63 13 63 95
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-456-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQU IPMENT(RR3),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-454-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-515-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQU IPMENT(RR3),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-514-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-519-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-518-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-458-1 01 1 9611-9704 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-458-1 01 1 9705- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-517-1 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-416-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-414-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97155-412-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-516-1 01 1 9611- ●
3 16.720 PAD; FRT SEAT BACK
BUCKET SEAT W/RECLINING(S3B) 		8-94328-161-1 02 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) 		8-97137-726-0 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-0 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-775-1 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-774-1 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97014-053-4 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-644-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-405-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-406-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-406-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-504-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-410-1 01 1 9611- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-408-1 01 1 9611- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-505-1 01 1 9611- ● ●
14 16.716 PAD; FRT SEAT CUSHION
BUCKET SEAT W/RECLINING(S3B) 		8-94473-493-4 02 1 9611- ● ●
14 16.716 PAD; FRT SEAT CUSHION
EXC. BUCKET SEAT W/RECLINING(S3B) 		8-97137-927-0 01 1 9611- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) 		8-97039-162-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-871-2 01 1 9611- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-872-2 01 1 9611- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94473-670-3 01 1 9611- ● ●
16 16.682 ADJUSTER ASM; RECLINING
SPACE CAB(TF**C*) 		8-94327-319-2 01 1 9611- ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) 		8-94473-669-2 01 1 9611- ● ●
16 16.682 ADJUSTER ASM; RECLINING
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) 		8-94473-497-2 01 1 9611- ● ●
18 16.682 COVER; RECLINING
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-921-4 01 1 9611- ● ●
18 16.682 COVER; RECLINING
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-913-4 01 1 9611- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-920-0 01 1 9611- ● ●
24 16.682 KNOB; RECLINING,FRT,SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-912-0 01 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97155-404-0 02 1 9611- ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97155-404-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 04 1 9611- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 04 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) DRIVER SEAT 		8-97127-470-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) PASSENGER SEAT 		8-97127-471-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) PASSENGER SEAT 		8-97127-472-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) DRIVER SEAT 		8-97127-473-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) DRIVER SEAT 		8-97128-279-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) PASSENGER SEAT 		8-97128-280-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) DRIVER SEAT 		8-97128-281-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) PASSENGER SEAT 		8-97128-282-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97130-689-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97130-691-0 01 1 9611- ●
67 16.682 BOLT; FRT SEAT TO BODY
SPACE CAB(TF**C*) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 10 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 06 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X4 SHORT(TFS**C) M10X19 		8-94427-095-2 04 1 9611- ● ●
71 16.682 BOLT; ADJ TO SEAT
BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 9611- ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 9611- ● ●
90 16.682 COVER; SEAT ADJ BRKT
SPACE CAB(TF**C*) 16.714 GRAY 		8-97150-709-2 04 1 9611- ● ●
90 16.682 COVER; SEAT ADJ BRKT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 04 1 9611- ● ●
90 16.682 COVER; SEAT ADJ BRKT
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 02 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BUCKET SEAT W/RECLINING(S3B) (A) 		8-94473-502-0 02 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
EXC. BUCKET SEAT W/RECLINING(S3B) (C) 		8-94473-469-2 01 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-949-0 01 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 9611- ● ●
96 16.716 NUT; LK,HINGE
BUCKET SEAT W/RECLINING(S3B) 11.377 M8 FLANGE 		8-94152-886-0 02 1 9611- ● ●
98 16.716 WASHER; HINGE
BUCKET SEAT W/RECLINING(S3B) 11.377 ID=8.4 OD=20 		8-94408-413-0 02 1 9611- ● ●
99 16.716 BUSHING; SEAT BACK
BUCKET SEAT W/RECLINING(S3B) 11.377 		8-94408-414-0 02 1 9611- ● ●
100 16.686 COVER; HINGE
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-914-0 02 1 9611- ● ●
100 16.686 COVER; HINGE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-062-1 01 1 9611- ● ●
100 16.686 COVER; HINGE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-061-1 01 1 9611- ● ●
214 16.682 SCREW; SIDE COVER
BUCKET SEAT W/RECLINING(S3B) 16.802 (A) M5X16 TAPPING W/PL WASHER 		0-74310-516-0 04 1 9611- ● ●
214 16.682 SCREW; SIDE COVER
BUCKET SEAT W/RECLINING(S3B) (B) 		8-94478-733-0 02 1 9611- ● ●
222 16.716 SUPPORT; PAD
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BUCKET SEAT W/RECLINING(S3B) 		8-94325-179-1 01 1 9611-9702 ● ●
257 16.682 BOLT; RECLINING DEVICE
BUCKET SEAT W/RECLINING(S3B) M10X20 W/LK WASHER 		8-94317-654-0 08 1 9611- ● ●

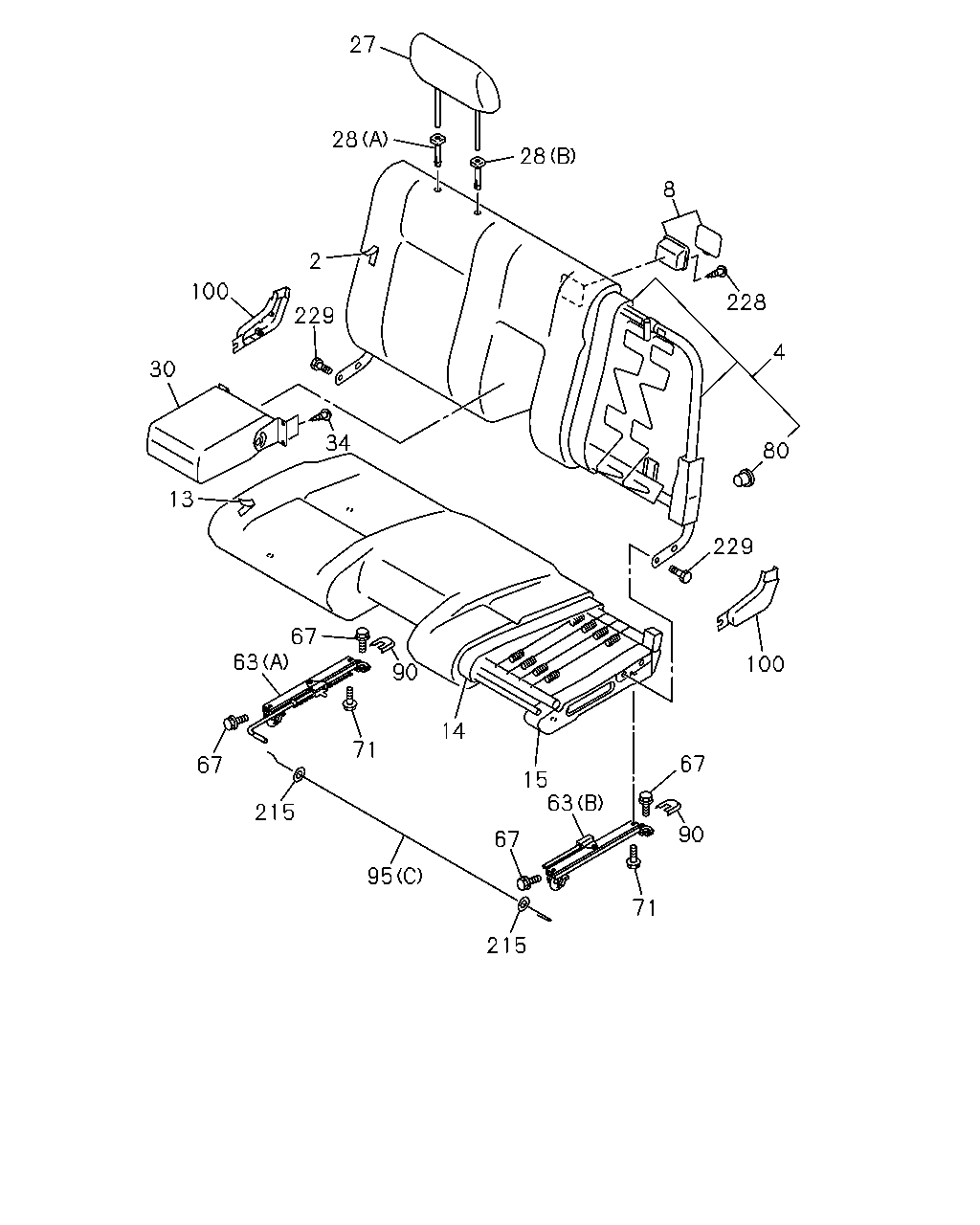

çizim 69637
28 27 28 8 228 4 80 229 100 67 90 71 63 15 67 215 95 215 67 71 14 90 67 63 13 34 229 2 100 30
BalonParca AdiParca NoAdetTipApplied Date A B
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-456-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQU IPMENT(RR3),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-454-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97156-515-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) EXC. BENCH SEAT W/HEAD REST VINYL(A54), UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQU IPMENT(RR3),BUCKET SEAT W/RECLINING(S3B), BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-514-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-519-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-518-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SINGLE CAB LONG(TFB*SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-458-1 01 1 9611-9704 ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-458-1 01 1 9705- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-517-1 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-416-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-414-0 01 1 9611- ● ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97155-412-1 01 1 9611- ●
2 16.724 COVER; TRIM,FRT SEAT,BACK
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-516-1 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) 		8-97137-726-0 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97137-726-0 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-775-1 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94317-774-1 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9611- ● ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-94441-860-5 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97014-053-4 01 1 9611- ●
4 16.720 FRAME ASM; FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97071-644-1 01 1 9611- ●
8 16.120 TRAY ASM; ASH,FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) GRAY 		8-97150-683-1 01 1 9611- ●
8 16.120 TRAY ASM; ASH,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97150-683-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-405-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-406-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-406-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-504-1 01 1 9611- ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-410-1 01 1 9611- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97155-408-1 01 1 9611- ● ●
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97156-505-1 01 1 9611- ● ●
14 16.716 PAD; FRT SEAT CUSHION
BUCKET SEAT W/RECLINING(S3B) 		8-94473-493-4 02 1 9611- ● ●
14 16.716 PAD; FRT SEAT CUSHION
EXC. BUCKET SEAT W/RECLINING(S3B) 		8-97137-927-0 01 1 9611- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-159-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) 		8-97039-162-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 		8-97039-162-0 01 1 9611- ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-871-2 01 1 9611- ● ●
15 16.716 FRAME; CUSHION,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) 		8-94441-872-2 01 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-911-1 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97152-911-1 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
4X2 CREW CAB(TFB*W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) GRAY 		8-97155-404-0 02 1 9611- ● ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT W/HEAD REST VINYL(A54) GRAY 		8-97155-404-0 02 1 9611- ●
27 16.718 REST; HD,FRT SEAT
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97155-404-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST VINYL(A54) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SPACE CAB(TF**C*) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
SINGLE CAB(TF**S*) BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 02 1 9611- ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) GRAY 		8-97152-906-0 04 1 9611- ● ●
28 16.718 HOLDER; GUIDE,HD REST
CREW CAB(TF**W*) BENCH SEAT W/HEAD REST VINYL(A54),BUCKET SEAT W/RECLINING(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) GRAY 		8-97152-907-0 04 1 9611- ● ●
30 16.720 REST ASM; ARM,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97155-417-0 01 1 9611-9710 ●
30 16.720 REST ASM; ARM,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-459-0 01 1 9711- ●
30 16.720 REST ASM; ARM,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-537-0 01 1 9611- ●
34 16.724 SCREW; ARMREST,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75140-003-0 04 1 9711-9711 ●
34 16.724 SCREW; ARMREST,FRT SEAT
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) 		1-75140-003-0 04 1 9712- ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) DRIVER SEAT 		8-97127-470-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (B) PASSENGER SEAT 		8-97127-471-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) PASSENGER SEAT 		8-97127-472-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
SPACE CAB(TF**C*) (A) DRIVER SEAT 		8-97127-473-1 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) DRIVER SEAT 		8-97128-279-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (B) PASSENGER SEAT 		8-97128-280-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) DRIVER SEAT 		8-97128-281-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) (A) PASSENGER SEAT 		8-97128-282-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (B) 		8-97130-689-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) (B) 		8-97130-689-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 9611- ● ●
63 16.682 ADJUSTER; SEAT SLIDE
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB SHORT(TFS5SC) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) (A) 		8-97130-691-0 01 1 9611- ●
63 16.682 ADJUSTER; SEAT SLIDE
BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) EXC. AUSTRALIA EQUIPMENT(RR3) (A) 		8-97130-691-0 01 1 9611- ●
67 16.682 BOLT; FRT SEAT TO BODY
SPACE CAB(TF**C*) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 08 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 10 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 06 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. BUCKET SEAT W/RECLINING(S3B) M10X19 		8-94427-095-2 04 1 9611- ● ●
67 16.682 BOLT; FRT SEAT TO BODY
4X4 SHORT(TFS**C) M10X19 		8-94427-095-2 04 1 9611- ● ●
71 16.682 BOLT; ADJ TO SEAT
BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 08 1 9611- ● ●
71 16.682 BOLT; ADJ TO SEAT
EXC. BUCKET SEAT W/RECLINING(S3B) 11.377 M8X22 W/LK WASHER 		8-94171-739-0 04 1 9611- ● ●
80 16.686 RUBBER; STOPPER
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 9611- ●
80 16.686 RUBBER; STOPPER
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 9611- ●
80 16.686 RUBBER; STOPPER
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 16.715 		8-94388-310-0 02 1 9611- ●
90 16.682 COVER; SEAT ADJ BRKT
SPACE CAB(TF**C*) 16.714 GRAY 		8-97150-709-2 04 1 9611- ● ●
90 16.682 COVER; SEAT ADJ BRKT
CREW CAB(TF**W*) BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 04 1 9611- ● ●
90 16.682 COVER; SEAT ADJ BRKT
CREW CAB(TF**W*) EXC. BUCKET SEAT W/RECLINING(S3B) 16.714 GRAY 		8-97150-709-2 02 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
BUCKET SEAT W/RECLINING(S3B) (A) 		8-94473-502-0 02 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
EXC. BUCKET SEAT W/RECLINING(S3B) (C) 		8-94473-469-2 01 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-949-0 01 1 9611- ● ●
95 16.682 WIRE; EXT,SEAT ADJ
SPACE CAB(TF**C*) (B) 		8-97041-948-0 01 1 9611- ● ●
100 16.686 COVER; HINGE
BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97152-914-0 02 1 9611- ● ●
100 16.686 COVER; HINGE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-062-1 01 1 9611- ● ●
100 16.686 COVER; HINGE
EXC. BUCKET SEAT W/RECLINING(S3B) GRAY 		8-97156-061-1 01 1 9611- ● ●
215 16.682 WASHER; PL,CONT CABLE
EXC. BUCKET SEAT W/RECLINING(S3B) 04.930 ID=4.3 OD=10 		9-09160-604-0 02 1 9611- ● ●
228 16.714 SCREW; KNOB
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9611- ●
228 16.714 SCREW; KNOB
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) 08.977 M4X16 TAPPING OVAL-HEAD 		0-70580-416-0 02 1 9611- ●
229 16.716 BOLT; HINGE,FRT SEAT
SINGLE CAB(TF**S*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B),BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 9611- ●
229 16.716 BOLT; HINGE,FRT SEAT
SINGLE CAB LONG(TF**SF) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 9611- ●
229 16.716 BOLT; HINGE,FRT SEAT
SINGLE CAB(TF**S*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 02 1 9611- ●
229 16.716 BOLT; HINGE,FRT SEAT
CREW CAB(TF**W*) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),BUCKET SEAT W/RECLININ G(S3B) M10X26 		8-94473-683-0 04 1 9611- ●
229 16.716 BOLT; HINGE,FRT SEAT
4X2 CREW CAB(TFB*W*) BENCH SEAT W/HEAD REST MOQUETTE FABRIC(6SC) M10X26 		8-94473-683-0 04 1 9611- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
