7-40 — INSTRUMENT PANEL AND BOX (#41066) — 116 parça

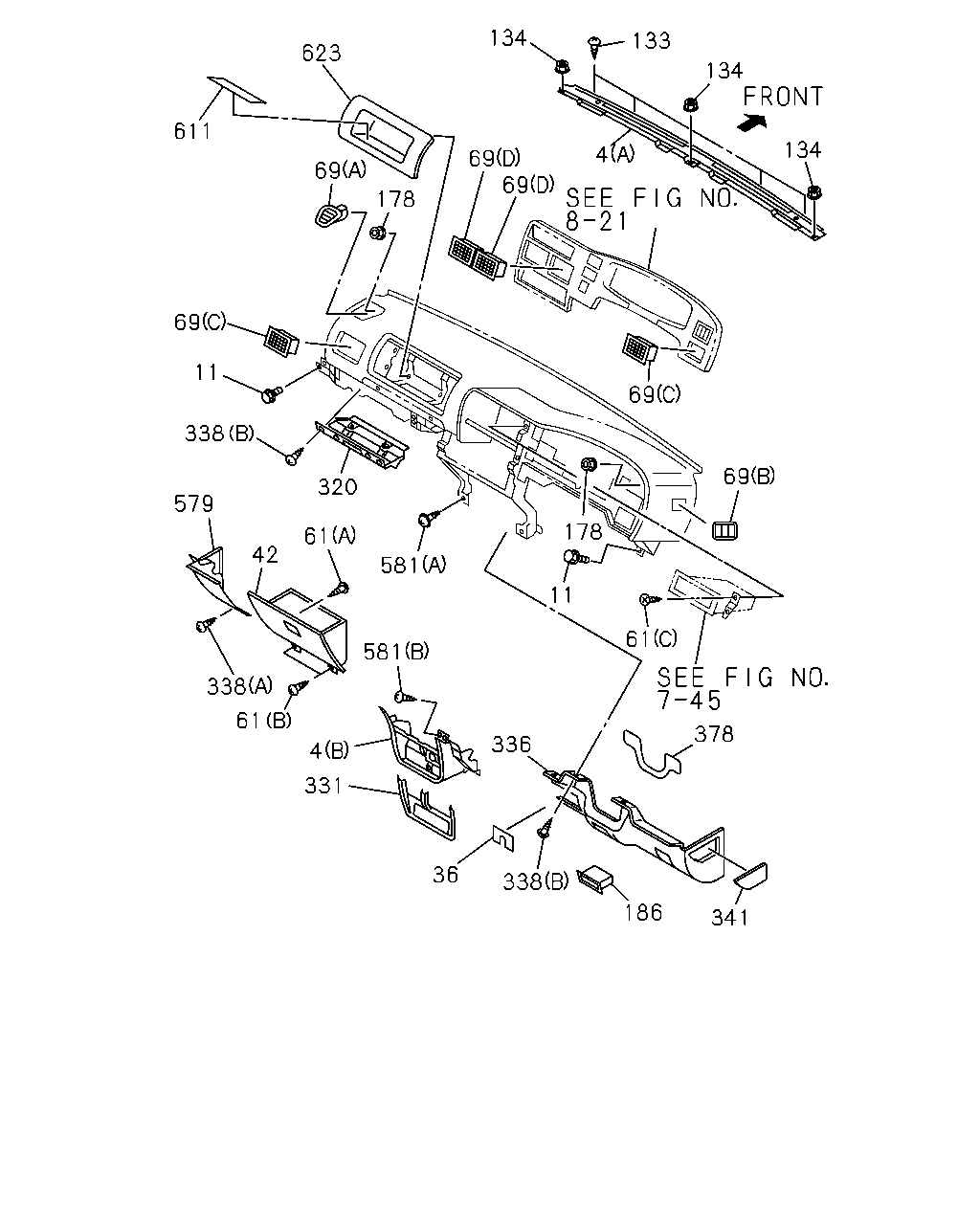

çizim 20218
623 611 69 178 69 69 134 133 134 4 134 69 69 178 11 61 378 186 341 36 338 336 331 4 61 338 581 581 61 42 579 338 320 11 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
4 16.080 COVER; INST PNL
(A) 		8-97101-621-3 01 1 9611-9612 ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
EXC. VENTILATION RAM AIR(6TN) (A) 		8-97101-621-3 01 1 9701- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
VENTILATION RAM AIR(6TN) (A) 		8-97142-696-0 01 1 9701- ● ● ● ● ● ● ● ●
4 16.080 COVER; INST PNL
(B) GRAY 		8-97154-484-2 01 1 9611- ● ● ● ● ● ● ● ●
11 16.090 BOLT; INST PNL
08.015 M6X20 W/WASHER 		8-94112-987-1 08 1 9611- ● ● ● ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRAY 		8-97156-098-0 01 1 9611-9704 ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-098-0 01 1 9611-9704 ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-098-0 01 1 9705- ● ● ● ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-098-0 01 1 9705- ● ●
36 09.743 BEZEL; INST SIDE CLUSTER
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-098-0 01 1 9705- ●
42 16.100 BOX; GLOVE,INST PNL
GRAY 		8-97152-826-2 01 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.115 (B) M5X16 		8-94279-312-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
(A) M4X14 TAPPING 		8-97111-555-0 02 1 9611- ● ● ● ● ● ● ● ●
61 16.100 SCREW; GLOVE BOX
16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ●
61 16.100 SCREW; GLOVE BOX
EXC. INST PANEL FOR DIN E SIZE AUDI O(7QL) 16.085 (C) M5X16 TAPPING 		9-09829-323-1 04 1 9611- ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) GRAY 		8-97152-702-3 01 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) GRAY 		8-97152-703-0 01 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) 16.070 (D) BLACK 		8-94388-773-3 02 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
VENTILATION RAM AIR(6TN) (C) BLACK 		8-97152-701-1 02 1 9611- ● ● ● ● ● ● ● ●
69 09.264 GRILLE; SIDE,AIR OUTLET
EXC. VENTILATION RAM AIR(6TN) (C),(D) BLACK 		8-97152-701-1 04 1 9611- ● ● ● ● ● ● ● ●
133 16.081 SCREW; COVER,INST PNL
08.155 M6X16 		8-94479-534-0 05 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
178 16.085 NUT; INST PANEL
07.833 M6 W/DISHED WASHER 		8-94170-192-0 03 1 9611- ● ● ● ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97806-851-2 01 1 9611-9704 ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) BLACK 		8-97806-851-2 01 1 9611-9704 ● ●
186 09.264 GRILLE; LAP VENTILATOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) BLACK 		8-97806-851-2 01 1 9705- ● ● ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) BLACK 		8-97806-851-2 01 1 9705- ● ●
186 09.264 GRILLE; LAP VENTILATOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-97806-851-2 01 1 9705- ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) BLACK 		8-97123-442-0 01 1 9611-9704 ● ● ●
186 09.264 GRILLE; LAP VENTILATOR
UNITED KINGDOM EQUIPMENT(EK3) BLACK 		8-97123-442-0 01 1 9611-9704 ● ●
186 09.264 GRILLE; LAP VENTILATOR
6VD1 ENG(RLV) BLACK 		8-97123-442-0 01 1 9705- ● ●
186 09.264 GRILLE; LAP VENTILATOR
BLACK 		8-97123-442-0 01 1 9705- ●
186 09.264 GRILLE; LAP VENTILATOR
UNITED KINGDOM EQUIPMENT(EK3) BLACK 		8-97123-442-0 01 1 9705- ● ●
186 09.264 GRILLE; LAP VENTILATOR
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) BLACK 		8-97123-442-0 01 1 9705- ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) BLACK 		8-97123-442-0 01 1 9705- ●
186 09.264 GRILLE; LAP VENTILATOR
GRADE LS(RBD) BLACK 		8-97123-442-0 01 1 9705- ●
320 16.081 COVER; GLOVE BOX
GRAY 		8-97150-599-4 01 1 9611- ● ● ● ● ● ● ● ●
331 09.743 CLUSTER; INST SIDE 8-97133-025-2 01 1 9611- ● ● ● ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97156-096-2 01 1 9611-9704 ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-096-2 01 1 9611-9704 ● ●
336 16.081 COVER; INST PANEL SIDE
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRAY 		8-97156-096-2 01 1 9705- ● ● ● ● ●
336 16.081 COVER; INST PANEL SIDE
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97156-096-2 01 1 9705- ● ●
336 16.081 COVER; INST PANEL SIDE
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97156-096-2 01 1 9705- ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-941-2 01 1 9611-9704 ● ● ●
336 16.081 COVER; INST PANEL SIDE
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97153-941-2 01 1 9611-9704 ● ●
336 16.081 COVER; INST PANEL SIDE
6VD1 ENG(RLV) GRAY 		8-97153-941-2 01 1 9705- ● ●
336 16.081 COVER; INST PANEL SIDE
GRAY 		8-97153-941-2 01 1 9705- ●
336 16.081 COVER; INST PANEL SIDE
UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97153-941-2 01 1 9705- ● ●
336 16.081 COVER; INST PANEL SIDE
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97153-941-2 01 1 9705- ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97153-941-2 01 1 9705- ●
336 16.081 COVER; INST PANEL SIDE
GRADE LS(RBD) GRAY 		8-97153-941-2 01 1 9705- ●
338 16.081 SCREW; COVER
16.115 (A) M5X16 		8-94279-312-0 01 1 9611- ● ● ● ● ● ● ● ●
338 16.081 SCREW; COVER
16.085 (B) M5X16 TAPPING 		9-09829-323-1 12 1 9611- ● ● ● ● ● ● ● ●
341 16.110 LID; FUSE BOX
GRAY 		8-97153-942-2 01 1 9611- ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL 8-97120-129-0 01 1 9611-9802 ● ● ● ● ● ● ● ●
378 09.743 SEAL; INST PANEL
6VD1 ENG(RLV) 		8-97120-129-0 01 1 9803- ● ●
378 09.743 SEAL; INST PANEL 8-97120-129-0 01 1 9803- ●
378 09.743 SEAL; INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97120-129-0 01 1 9803- ● ●
378 09.743 SEAL; INST PANEL
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97120-129-0 01 1 9803- ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97120-129-0 01 1 9803- ●
378 09.743 SEAL; INST PANEL
GRADE LS(RBD) 		8-97120-129-0 01 1 9803- ●
579 16.080 COVER; INST PNL
GRAY 		8-97152-705-1 01 1 9611- ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.222 (A) M5X16 TAPPING W/PL WASHER 		0-74315-516-0 02 1 9611-9801 ● ● ● ● ● ● ● ●
581 09.744 SCREW
15.100 (A) M5X16 TAPPING W/PL WASHER 		0-74115-516-0 02 1 9802- ● ● ● ● ● ● ● ●
581 09.744 SCREW
16.115 (B) M5X16 		8-94279-312-0 07 1 9611- ● ● ● ● ● ● ● ●
611 16.081 SHEET
4JB1 ENG(RLF),4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97154-848-0 01 1 9712- ● ●
611 16.081 SHEET
4JB1 ENG(RLF),4ZE1 ENG(RLJ) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97154-848-0 01 1 9712- ● ● ● ●
611 16.081 SHEET
6VD1 ENG(RLV) GRAY 		8-97154-848-0 01 1 9712- ● ● ● ●
623 16.100 BOX; UTILITY
GRAY 		8-97154-858-0 01 1 9611- ● ● ● ● ● ● ● ●

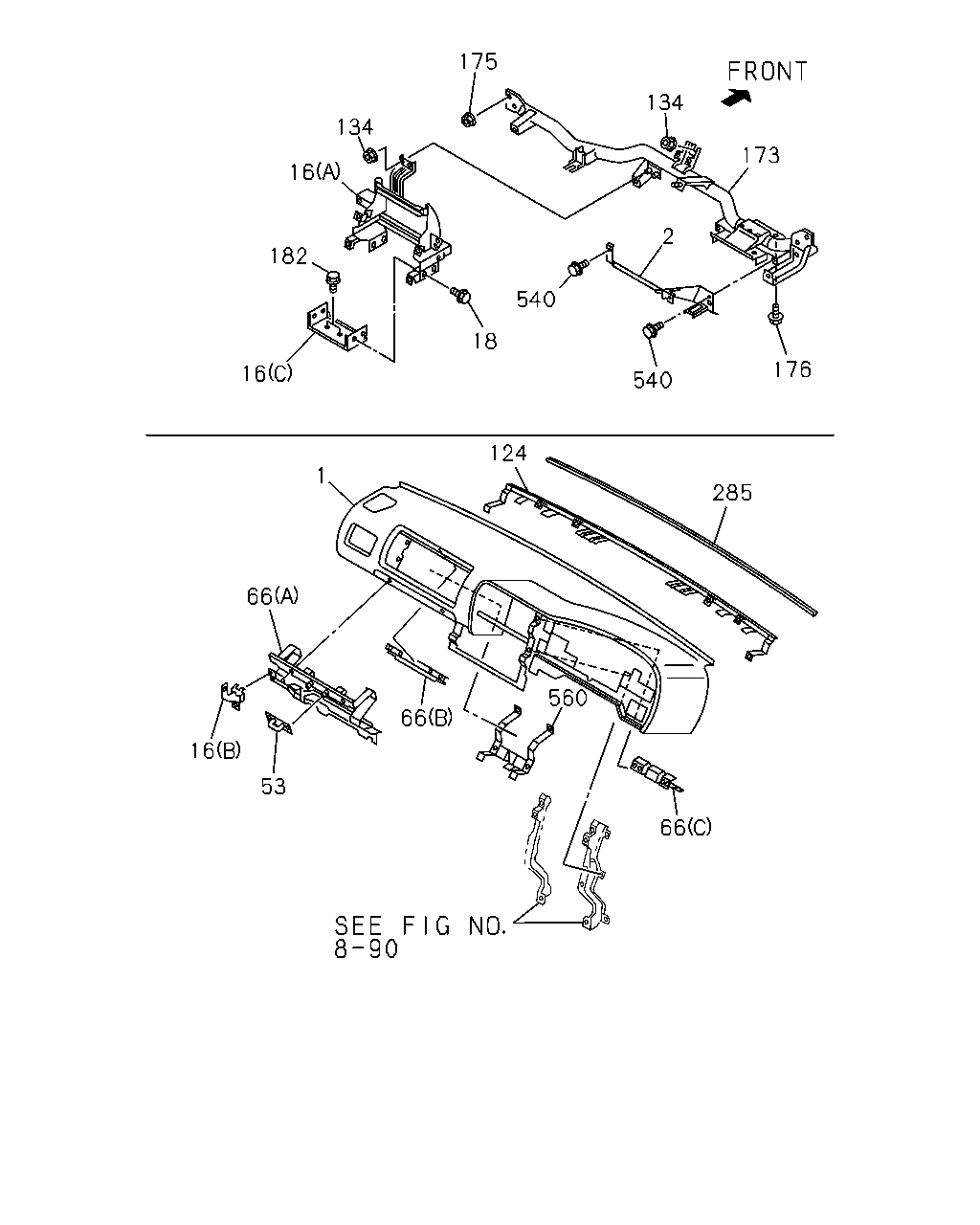

çizim 69839
175 134 16 182 16 18 540 2 540 176 173 134 124 1 66 16 53 66 560 66 285
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.080 PANEL; INST
GRAY 		8-97154-859-1 01 1 9611- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97101-851-5 01 1 9611-9710 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR 8-97187-498-0 01 1 9711-9802 ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97187-498-0 01 1 9803- ● ● ● ● ● ● ● ●
2 16.081 REINFORCEMENT; INST PNL,LWR
6VD1 ENG(RLV) 		8-97101-851-5 01 1 9803- ● ● ● ●
16 16.085 BRACKET; INST PNL
(C) 		8-97112-446-1 01 1 9611- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
02.510 (B) 		8-97120-886-0 01 1 9611- ● ● ● ● ● ● ● ●
16 16.085 BRACKET; INST PNL
(A) 		8-97132-076-0 01 1 9611- ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
12.809 M6X16 FLANGE 		0-28280-616-0 04 1 9611-9612 ● ● ● ● ● ● ● ●
18 16.085 BOLT; BRKT
08.080 M6X16 FLANGE 		8-97803-298-0 04 1 9701- ● ● ● ● ● ● ● ●
53 16.115 STRIKER; GLOVE BOX 8-97125-756-0 01 1 9611- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(B) 		8-97114-724-1 01 1 9611-9712 ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(C) 		8-97114-725-0 01 1 9611- ● ● ● ● ● ● ● ●
66 16.085 REINFORCEMENT; INST PANEL
(A) 		8-97134-475-1 01 1 9611- ● ● ● ● ● ● ● ●
124 16.081 REINFORCEMENT; INST PNL,UPR 8-97134-515-0 01 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
134 16.081 NUT; FRT COVER,INST PANEL
07.833 M6 FLANGE 		8-97063-399-0 03 1 9611- ● ● ● ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97115-515-0 01 1 9611-9704 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-515-0 01 1 9611-9704 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97115-515-0 01 1 9705-9710 ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97115-515-0 01 1 9705-9710 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97115-515-0 01 1 9705-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97187-519-0 01 1 9711- ● ● ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97187-519-0 01 1 9711- ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97187-519-0 01 1 9711- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97101-610-4 01 1 9611-9704 ● ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97101-610-4 01 1 9611-9704 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97101-610-4 01 1 9705-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97101-610-4 01 1 9705-9710 ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4ZE1 ENG(RLJ) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97101-610-4 01 1 9705-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97101-610-4 01 1 9705-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97101-610-4 01 1 9705-9710 ●
173 16.081 BEAM ASM; CROSS,INST PANEL
6VD1 ENG(RLV) 		8-97187-555-0 01 1 9711- ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL 8-97187-555-0 01 1 9711- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97187-555-0 01 1 9711- ● ●
173 16.081 BEAM ASM; CROSS,INST PANEL
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97187-555-0 01 1 9711- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97187-555-0 01 1 9711- ●
173 16.081 BEAM ASM; CROSS,INST PANEL
GRADE LS(RBD) 		8-97187-555-0 01 1 9711- ●
175 16.085 NUT; CROSS BEAM
09.011 M8 W/LK WASHER 		8-97065-435-0 04 1 9611- ● ● ● ● ● ● ● ●
176 16.085 BOLT; CROSS BEAM
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9611- ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
10.230 M6X16 FLANGE 		8-94380-676-1 02 1 9611-9708 ● ● ● ● ● ● ● ●
182 16.085 BOLT; BRKT,INST PANEL
08.080 M6X16 FLANGE 		8-97803-298-0 02 1 9709- ● ● ● ● ● ● ● ●
285 16.085 FINISHER; INST PANEL 8-97142-524-0 01 1 9611- ● ● ● ● ● ● ● ●
540 16.085 BOLT; REINFORCEMENT
08.015 M6X20 W/WASHER 		8-94112-987-1 02 1 9611- ● ● ● ● ● ● ● ●
560 16.085 BRACKET 8-97166-913-0 01 1 9611- ● ● ● ● ● ● ● ●
