◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-30 - LOCK CYLINDER SET ▶
7-30 — LOCK CYLINDER SET (#41065) — 42 parça

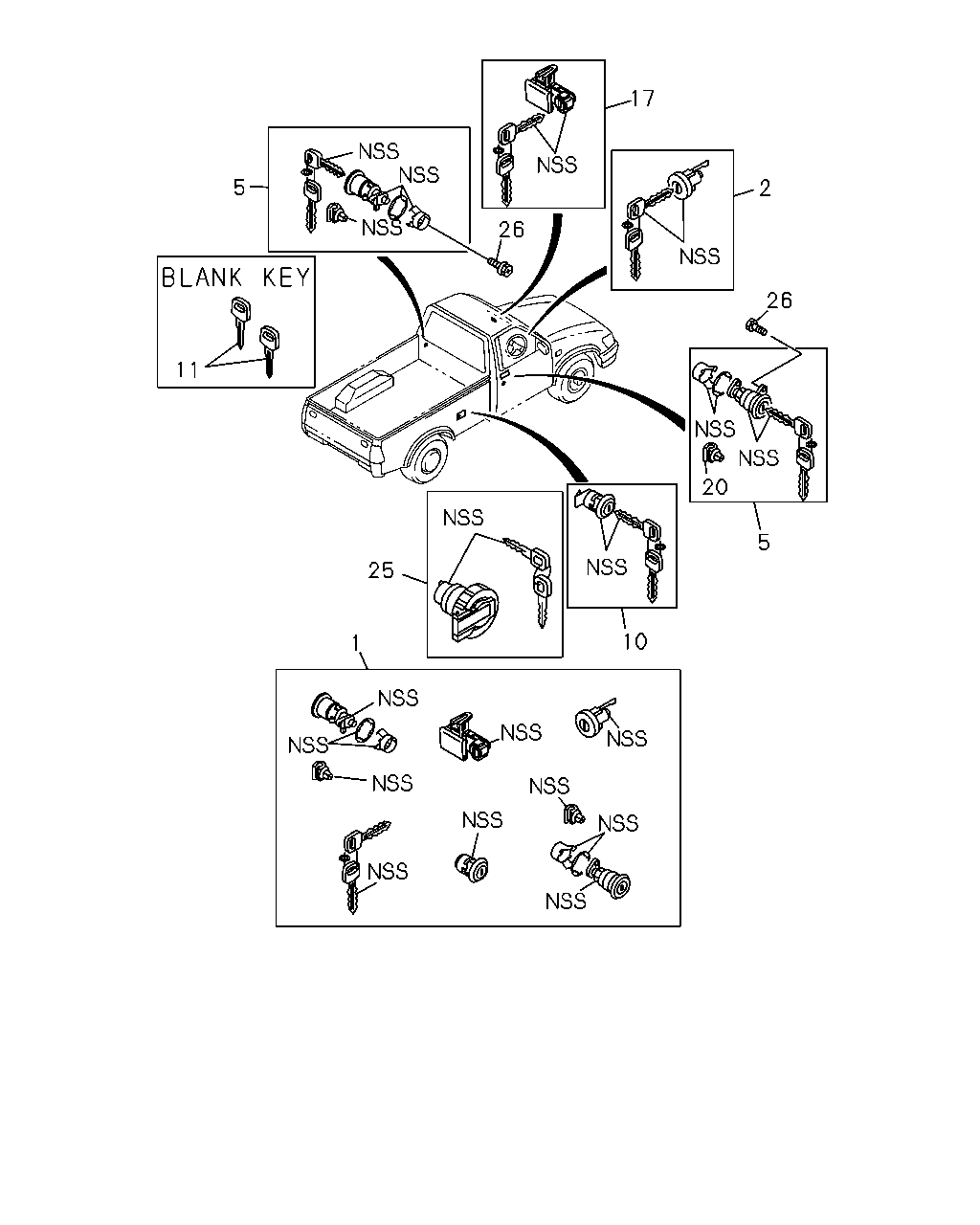

çizim 72207
5 26 17 2 26 20 5 10 25 1 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 02.188 CYLINDER SET; CAR LOCK
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97154-715-1 01 1 9611- ● ● ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) ,RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) GRAY 		8-97154-716-1 01 1 9611- ● ● ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) GRAY 		8-97154-714-1 01 1 9611- ● ● ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) GRAY 		8-97154-717-1 01 1 9611- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) GRAY 		8-97154-719-1 01 1 9611- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4ZE1 ENG(RLJ),6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) GRAY 		8-97154-718-1 01 1 9611- ● ● ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) GRAY 		8-97154-720-0 01 1 9611- ● ● ● ●
1 02.188 CYLINDER SET; CAR LOCK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) GRAY 		8-97154-722-0 01 1 9611- ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
AUSTRALIA EQUIPMENT(RR3) 		8-97104-707-0 01 1 9611- ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-97110-657-0 01 1 9611- ● ● ● ● ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK 8-97110-657-0 01 1 9611- ● ●
2 02.188 BARREL ASM; W/KEY,STRG LOCK
UNITED KINGDOM EQUIPMENT(EK3) 		8-97123-116-0 01 1 9611- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) 		8-94320-976-2 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
AUSTRALIA EQUIPMENT(RR3) 		8-94320-975-2 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94320-980-2 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-94320-980-2 01 1 9611- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94320-979-2 01 1 9611- ● ● ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK 8-94320-979-2 01 1 9611- ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-781-0 01 1 9611- ● ● ● ●
5 16.328 CYLINDER ASM; DOOR LOCK
UNITED KINGDOM EQUIPMENT(EK3) 		8-97040-780-0 01 1 9611- ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		8-94320-981-3 01 1 9611- ● ● ● ● ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 		8-97016-039-2 01 1 9611- ● ● ● ● ● ●
10 12.945 CYLINDER ASM; W/KEY,FUEL FILLER
UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) 		8-97042-990-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
WO/NOTCH 		8-94320-972-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
EXC. UNITED KINGDOM EQUIPMENT(EK3) WO/NOTCH 		8-94320-972-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
W/NOTCH 		8-94320-973-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
EXC. UNITED KINGDOM EQUIPMENT(EK3) W/NOTCH 		8-94320-973-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
UNITED KINGDOM EQUIPMENT(EK3) WO/NOTCH 		8-97045-966-0 01 1 9611- ● ● ● ●
11 02.187 KEY; BLANK
UNITED KINGDOM EQUIPMENT(EK3) W/NOTCH 		8-97045-967-0 01 1 9611- ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
AUSTRALIA EQUIPMENT(RR3) 		5-87410-573-0 01 1 9611- ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3) 		5-87410-585-0 01 1 9611- ● ● ● ● ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO 5-87410-585-0 01 1 9611- ● ●
17 16.110 CYLINDER ASM; W/KEY,GLOVE BOX LO
UNITED KINGDOM EQUIPMENT(EK3) 		5-87410-587-0 01 1 9611- ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 YELLOW 		8-97040-452-0 01 1 9611- ● ● ● ● ● ● ● ●
20 16.328 SNAP; DOOR LOCK CYL
10.474 BROWN 		8-97040-453-0 01 1 9611- ● ● ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) ,RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-94320-983-2 01 1 9611- ● ● ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK (S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-94320-984-2 01 1 9611- ● ● ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) DARK RED 		8-97016-167-2 01 1 9611- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4ZE1 ENG(RLJ),6VD1 ENG(RLV) AUSTRALIA EQUIPMENT(RR3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) DARK RED 		8-97016-040-2 01 1 9611- ● ● ● ● ● ●
25 03.028 CAP; FUEL TANK,W/KEY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 		8-97042-991-0 01 1 9611- ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X10 FLANGE 		8-97100-047-0 02 1 9611-9706 ● ● ● ● ● ● ● ●
26 16.328 BOLT; KEY CYL,DOOR
M6X8 FLANGE 		8-97175-668-0 02 1 9707- ● ● ● ● ● ● ● ●
