7-01 — EMBLEM AND NAME PLATE (#41062) — 54 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	01.303 PLATE; NAME 4JB1 ENG(RLF) (A)	8-97115-470-0	01	1	9611-	●	●
38	01.303 PLATE; NAME 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-470-0	01	1	9611-	●
38	01.303 PLATE; NAME 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 6VD1 ENG(RLV) (B)	8-97179-790-0	02	1	9712-	●	●

267 257 265 256 268 254 266 253 92 92 92 255 42 66 56 59 59 59 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	16.507 DECAL; RR QUARTER SPACE CAB(TF*C)	8-97135-089-0	02	1	9611-	●	●
56	08.147 DECAL; BODY SIDE LETTERING ISUZU RED(6FS)	8-97022-699-0	02	1	9611-	●	●
56	08.147 DECAL; BODY SIDE LETTERING ISUZU WHITE(S5N)	8-97022-698-0	02	1	9611-	●	●
59	01.303 DECAL; TAIL GATE BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IR ON GRAY MET(782),BODY COLOR IRON GRAY MET(849) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) EXC. HONG KONG EQUIPMENT(PQ1) (B) GRAY	8-97082-224-0	01	1	9611-9711	●
59	01.303 DECAL; TAIL GATE BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IR ON GRAY MET(782),BODY COLOR IRON GRAY MET(849) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. HONG KONG EQUIPMENT(PQ1) (B) GRAY	8-97082-224-0	01	1	9712-	●
59	01.303 DECAL; TAIL GATE BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CREAM WHITE/IRON GRAYMET(776),BODY COLOR AA YELLOW(804) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK SILVER	8-97082-225-0	01	1	9611-9711	●
59	01.303 DECAL; TAIL GATE BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CREAM WHITE/IRON GRAYMET(776),BODY COLOR AA YELLOW(804) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S) EXC. HONG KONG EQUIPMENT(PQ1) (B) DARK SILVER	8-97082-225-0	01	1	9712-	●
59	01.303 DECAL; TAIL GATE BEDFORD MARK<RS3> (A)	8-94416-755-0	01	1	9611-9704	●	●
59	01.303 DECAL; TAIL GATE BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IR ON GRAY MET(782),BODY COLOR IRON GRAY MET(849) DECAL-CHEVROLET TAIL GATE(X82) (D) LIGHT SILVER	8-94476-922-0	01	1	9611-	●	●
59	01.303 DECAL; TAIL GATE BODY COLOR MARINE BLUE(722),BODY COLOR MARINE BLUE/IRON GRAY MET(726),BODY COLOR RADIANT RED(756),BODY COLOR RADIANT RED/IR ON GRAY MET(782),BODY COLOR IRON GRAY MET(849) DECAL-ISUZU TAIL GATE(EX9) (C) LIGHT SILVER	8-97001-857-1	01	1	9611-	●	●
59	01.303 DECAL; TAIL GATE BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CREAM WHITE/IRON GRAYMET(776),BODY COLOR AA YELLOW(804) DECAL-CHEVROLET TAIL GATE(X82) (D) DARK SILVER	8-94476-923-0	01	1	9611-	●	●
59	01.303 DECAL; TAIL GATE BODY COLOR TRITON BLUE MICA(725),BODY COLOR CREAM WHITE(752),BODY COLOR LT.SILVER MET(753),BODY COLOR CREAM WHITE/IRON GRAYMET(776),BODY COLOR AA YELLOW(804) DECAL-ISUZU TAIL GATE(EX9) (C) DARK SILVER	8-97001-858-1	01	1	9611-	●	●
66	17.505 DECAL; SIDE PANEL LETTERING CHEVROLET WHITE(S7E)	8-94318-467-0	02	1	9611-	●	●
92	08.147 DECAL; RR END UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97149-382-1	01	1	9611-	●
92	08.147 DECAL; RR END 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>, RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) 01.303 (C)	8-97139-234-1	01	1	9611-9711	●	●
92	08.147 DECAL; RR END 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL S IDE LOCK INNER & OUTER HOOK(7TM) 01.303 (C)	8-97139-234-1	01	1	9712-	●	●
92	08.147 DECAL; RR END 4X4(TFS***) EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 01.303 (B)	8-97141-969-0	01	1	9611-9711	●	●
92	08.147 DECAL; RR END 4X4(TFS***) EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL W ALL SIDE LOCK INNER & OUTER HOOK(7TM) 01.303 (B)	8-97141-969-0	01	1	9712-	●	●
92	08.147 DECAL; RR END 4X4(TFS***) UNITED KINGDOM EQUIPMENT(EK3) EXC. RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ) 01.303 (B)	8-97141-969-0	01	1	9712-	●	●
253	01.303 DECAL; 2.5D 4JA1 ENG(RLE) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALLSIDE LOCK OUTER HOOK(S7S),RR BODY DBL WA LL SIDE LOCK INNER HOOK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97139-234-1	01	1	9611-	●	●
254	01.303 DECAL; 2.8D TURBO 4JB1 ENG(RLF) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALLSIDE LOCK OUTER HOOK(S7S),RR BODY DBL WA LL SIDE LOCK INNER HOOK(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3)	8-97139-236-0	01	1	9611-	●	●
255	01.303 DECAL; "4X4" 4X4(TFS***) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3)	8-97141-969-0	01	1	9611-	●	●
255	01.303 DECAL; "4X4" 4X4(TFS***) HONG KONG EQUIPMENT(PQ1) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97141-969-0	01	1	9611-	●
256	01.303 DECAL; "2.3" 4ZD1 ENG(LW3) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALLSIDE LOCK OUTER HOOK(S7S),RR BODY DBL WA LL SIDE LOCK INNER HOOK(7LZ)	8-97139-233-1	01	1	9611-	●	●
257	01.303 DECAL; "2.6" 4ZE1 ENG(RLJ) RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALLSIDE LOCK OUTER HOOK(S7S),RR BODY DBL WA LL SIDE LOCK INNER HOOK(7LZ) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97139-235-0	01	1	9611-	●	●
265	01.303 DECAL; "2.6" 4ZE1 ENG(RLJ) EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ)	8-97139-235-0	01	1	9611-9711	●	●
265	01.303 DECAL; "2.6" 4ZE1 ENG(RLJ) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLEWALL SIDE LOCK OUTER HOOK(S7S),RR BODY D BL WALL SIDE LOCK INNER HOOK(7LZ),RR BODYDBL WALL SIDE LOCK INNER & OUTER HOOK(7TM)	8-97139-235-0	01	1	9712-	●	●
266	01.303 DECAL; "2.8D TURBO" 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6>, RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ)	8-97139-236-0	01	1	9611-9711	●	●
266	01.303 DECAL; "2.8D TURBO" 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3),RR BODY FLAT BED<RS6>,RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOOK(7LZ),RR BODY DBL WALL S IDE LOCK INNER & OUTER HOOK(7TM)	8-97139-236-0	01	1	9712-	●	●
267	01.303 DECAL; "DI" 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LOCK INNER HOO K(7LZ) EXC. HONG KONG EQUIPMENT(PQ1)	8-97149-384-1	01	1	9611-	●
268	01.303 DECAL; "2.3" 4ZD1 ENG(LW3) EXC. RR BODY FLAT BED<RS6>,RR BODY DOUBLEWALL SIDE LOCK OUTER HOOK(S7S)	8-97139-233-1	01	1	9611-	●	●

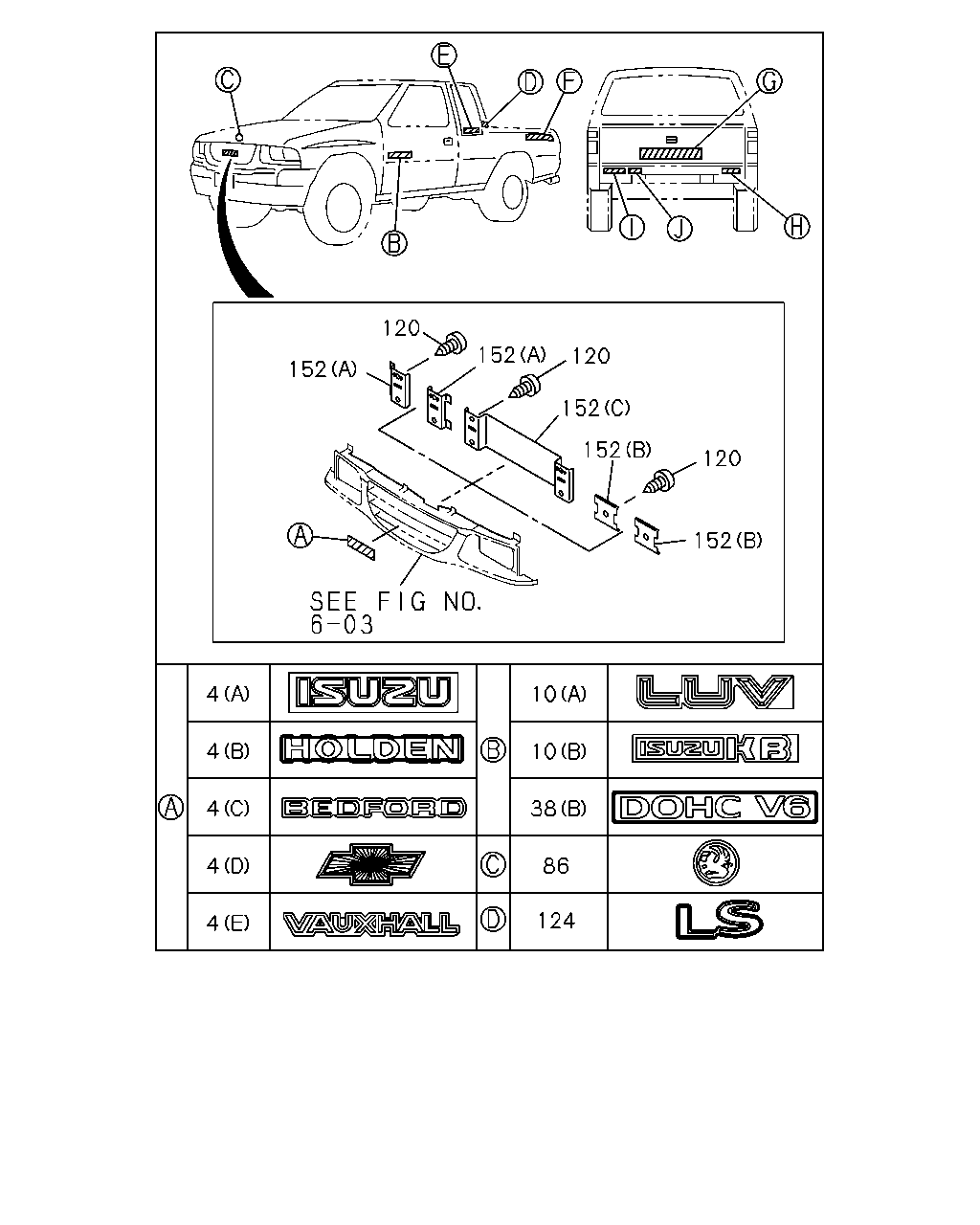

120 120 152 152 152 120 152 152 10 10 38 86 124 4 4 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	01.303 EMBLEM; RAD GRILLE UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1) (E)	8-97147-754-3	01	1	9611-	●
4	01.303 EMBLEM; RAD GRILLE LONG(TF***F) BEDFORD MARK<RS3> EXC. UNITED KINGDOM EQUIPMENT(EK3) (C)	8-97085-092-0	01	1	9611-9704	●
4	01.303 EMBLEM; RAD GRILLE CHEVROLET MARK<YL6> (D)	8-97805-998-2	01	1	9611-	●	●
4	01.303 EMBLEM; RAD GRILLE NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) (B)	8-97134-569-0	01	1	9611-	●	●
4	01.303 EMBLEM; RAD GRILLE EXC. UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> (A)	8-97096-933-2	01	1	9611-	●	●
4	01.303 EMBLEM; RAD GRILLE UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) (A)	8-97096-933-2	01	1	9611-	●
10	01.303 EMBLEM; DOOR CHEVROLET MARK<YL6> 08.147 (A)	8-94233-256-2	02	1	9611-	●	●
10	01.303 EMBLEM; DOOR NAME PLATE ISUZU KB<6PU> (B)	8-97022-693-1	02	1	9611-	●	●
38	01.303 PLATE; NAME 4JB1 ENG(RLF) (A)	8-97115-470-0	01	1	9611-	●	●
38	01.303 PLATE; NAME 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97115-470-0	01	1	9611-	●
38	01.303 PLATE; NAME 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 6VD1 ENG(RLV) (B)	8-97179-790-0	02	1	9712-	●	●
86	08.808 EMBLEM; SYMBOL,BODY FRT UNITED KINGDOM EQUIPMENT(EK3) EXC. HONG KONG EQUIPMENT(PQ1)	8-97147-801-0	01	1	9611-	●
120	01.303 SCREW; MARK UNITED KINGDOM EQUIPMENT(EK3) 08.900 M5X16	8-94380-268-0	08	1	9611-9705	●
120	01.303 SCREW; MARK CHEVROLET MARK<YL6> 08.900 M5X16	8-94380-268-0	02	1	9611-	●	●
120	01.303 SCREW; MARK EXC. CHEVROLET MARK<YL6> 08.900 M5X16	8-94380-268-0	04	1	9611-	●	●
124	08.147 PLATE; NAME EXC. NEW ZEALAND EQUIPMENT(PK5), AUSTRALIAEQUIPMENT(RR3) 16.507	8-97805-215-2	02	1	9611-		●
152	01.303 RETAINER; MARK UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97114-836-0	01	1	9611-9705	●
152	01.303 RETAINER; MARK UNITED KINGDOM EQUIPMENT(EK3) (A)	8-97114-835-0	01	1	9611-9705	●
152	01.303 RETAINER; MARK CHEVROLET MARK<YL6> (B)	8-97805-219-3	02	1	9611-	●	●
152	01.303 RETAINER; MARK EXC. CHEVROLET MARK<YL6> (C)	8-97175-941-0	01	1	9611-	●	●
