Sayfa 6-75 - Isuzu EPC

6-75 — MAT AND CARPET (#41055) — 156 parça

222 221

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	221	16.800 DAMPER; FLOOR CREW CAB(TF*W) 4JA1 ENG(RLE),4JB1 ENG(RLF) 16.545	8-97139-100-1	01	1	9611-	●	●
	222	16.800 BOLT; DAMPER CREW CAB(TF*W) 16.549 M8X29.5 W/LK+PL WASHER	8-94279-218-0	02	1	9611-	●	●

36 33 3 28 150 140 99 140 99 150 3 28 3 33 33 6 6 150 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	16.850 CARPET; FLOOR,FRT 4X2(TFB***) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-554-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 LONG(TFB**F) 4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-555-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63>,DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-560-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) DRIVER SIDE FOOT REST<7NU> EXC. RR CONSOLE<D63> DARK GRAY	8-97154-561-2	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-558-1	01	1	9611-9704	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-558-2	01	1	9705-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS*SF) 4JB1 ENG(RLF) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-558-2	01	1	9705-		●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> FRONT CONSOLE<D55> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-367-3	01	1	9611-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SPACE CAB(TFSC) EXC. UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-367-3	01	1	9611-		●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) UP GRADE PACKAGE(7MA) DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-563-1	01	1	9611-9711	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 6VD1 ENG(RLV) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> UP GRADE PACKAGE(7MA) DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-563-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> UP GRADE PACKAGE(7MA) DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-563-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4ZE1 ENG(RLJ),6VD1 ENG(RLV) FLOOR CARPET<B30> RR CONSOLE<D63> UP GRADE PACKAGE(7MA) DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-563-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> RR CONSOLE<D63> UP GRADE PACKAGE(7MA) EXC. DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-553-1	01	1	9611-9711	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> UP GRADE PACKAGE(7MA) EXC. DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-553-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> RR CONSOLE<D63> UP GRADE PACKAGE(7MA) EXC. DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-553-2	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> DRIVER SIDE FOOT REST<7NU> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-368-2	01	1	9611-9704	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> FRONT CONSOLE<D55> RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-368-2	01	1	9611-9704	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 LONG(TFS**F) FLOOR CARPET<B30> RR CONSOLE<D63> AUSTRALIA EQUIPMENT(RR3) EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-368-2	01	1	9705-9711	●	●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) FLOOR CARPET<B30> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-368-3	01	1	9712-	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-368-3	01	1	9712-		●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97158-492-0	01	1	9611-9709	●	●
1	16.850 CARPET; FLOOR,FRT 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. FRONT CONSOLE<D55>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU>	8-97195-974-1	01	1	9710-	●	●
1	16.850 CARPET; FLOOR,FRT A/T AISIN(RMD) FLOOR CARPET<B30> RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-556-2	01	1	9611-		●
1	16.850 CARPET; FLOOR,FRT 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB LONG(TFB5SF) A/T AISIN(RMD) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) DRIVER SIDE FOOT REST<7NU> EXC. RR CONSOLE<D63> DARK GRAY	8-97154-562-2	01	1	9611-		●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR CARPET<B30> FLOOR REMOTE SHIFT<M11> EXC. BUCKET SEAT W/RECLINING(S3B),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-557-2	01	1	9611-		●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) A/T THM(RMQ) FLOOR CARPET<B30> RR CONSOLE<D63> UP GRADE PACKAGE(7MA) DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97158-496-2	01	1	9712-		●
1	16.850 CARPET; FLOOR,FRT 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) A/T THM(RMQ) FLOOR CARPET<B30> RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. UP GRADE PACKAGE(7MA) DARK GRAY	8-97159-159-2	01	1	9712-		●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) JUMP SEAT<AJ2> 16.850 (C)	8-94321-035-0	03	1	9611-		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9611-9801	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT A/T AISIN(RMD) (B)	8-97132-019-0	01	1	9611-9801		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9802-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT A/T AISIN(RMD),A/T THM(RMQ) (B)	8-97132-019-0	01	1	9802-		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97115-875-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	04	1	9611-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-	●	●
36	16.550 INSULATION; PAD,DASH INNER	8-97111-431-1	01	1	9611-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-	●	●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-1	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR 6VD1 ENG(RLV) (C)	8-97174-032-0	01	1	9712-		●

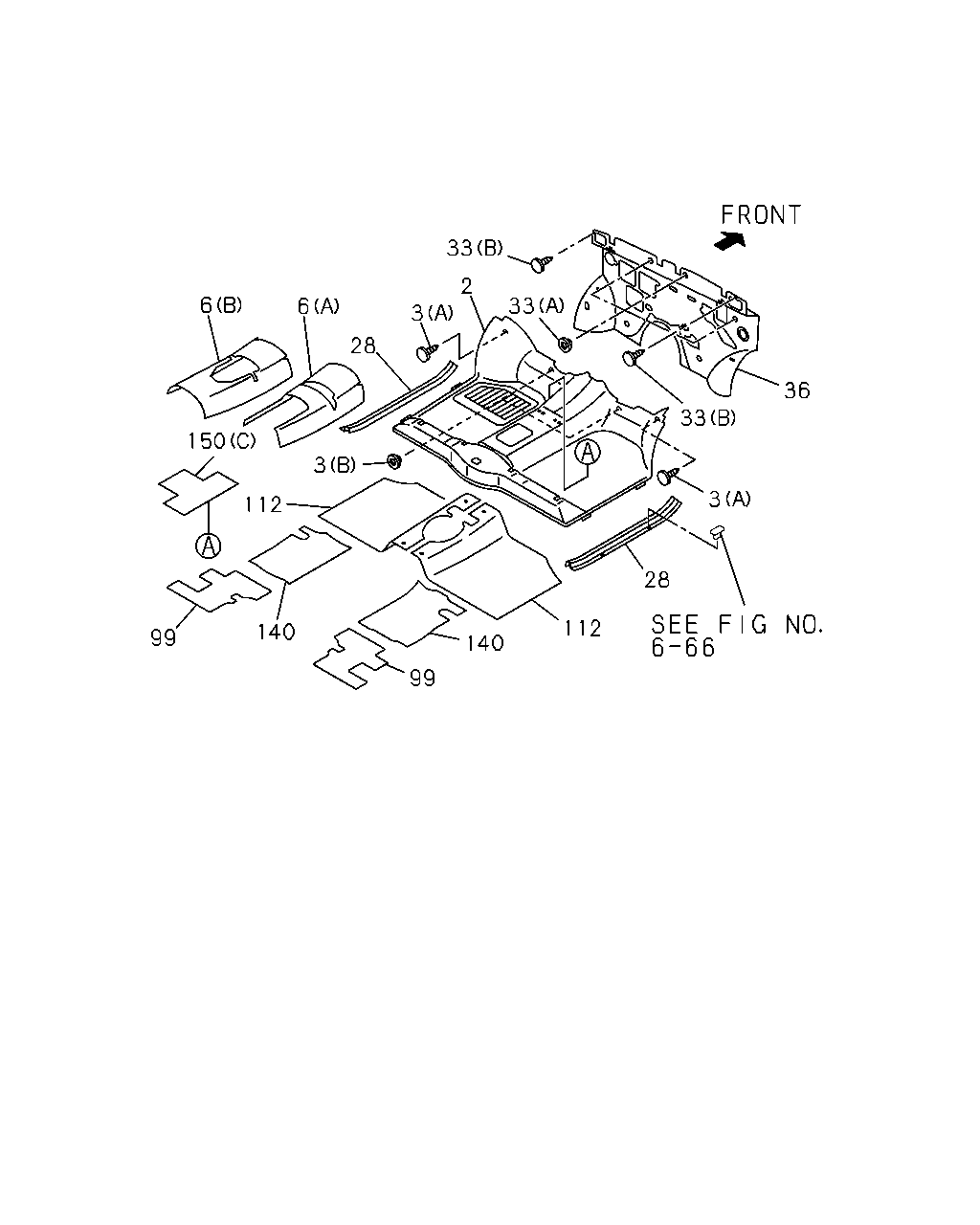

33 3 2 28 33 6 6 150 112 3 33 36 3 28 112 140 99 140 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.800 MAT; FLOOR 4X2 LONG(TFB**F) FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-571-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) FLOOR REMOTE SHIFT<M11> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63>, DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-569-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-568-2	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11>,DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97157-782-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11>,BUCKET SEAT W/RECLINING(S3B),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-564-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-570-2	01	1	9611-9704	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-570-2	01	1	9705-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS*SF) 4JB1 ENG(RLF) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-570-2	01	1	9705-		●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-565-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SHORT(TFS**C) DARK GRAY	8-97155-370-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-370-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 LONG(TFS**F) RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9611-9704	●	●
2	16.800 MAT; FLOOR 4X4 SPACE CAB(TFSC) RR CONSOLE<D63> AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9705-9711	●
2	16.800 MAT; FLOOR 4X4 SPACE CAB(TFS5CF) 4X4 CREW CAB(TFS5WF) RR CONSOLE<D63> AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9705-9711		●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS*SF) 4ZE1 ENG(RLJ) AUSTRALIA EQUIPMENT(RR3) EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9705-9711		●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 6VD1 ENG(RLV) RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9712-	●	●
2	16.800 MAT; FLOOR 4X4 SPACE CAB(TFSC) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9712-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS*SF) 4ZE1 ENG(RLJ),6VD1 ENG(RLV) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9712-		●
2	16.800 MAT; FLOOR 4X4 CREW CAB(TFSW) RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97155-373-2	01	1	9712-		●
2	16.800 MAT; FLOOR 4X4 LONG(TFS**F) FRONT CONSOLE<D55> RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-372-2	01	1	9611-9711	●	●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 6VD1 ENG(RLV) FRONT CONSOLE<D55> RR CONSOLE<D63> FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-372-2	01	1	9712-	●	●
2	16.800 MAT; FLOOR 4X4 SPACE CAB(TFSC) EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-372-2	01	1	9712-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) FRONT CONSOLE<D55> RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97155-372-2	01	1	9712-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,RR CONSOLE<D63>,DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97157-783-1	01	1	9611-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97154-566-2	01	1	9611-9709	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) RR CONSOLE<D63> EXC. FLOOR CARPET<B30>,FRONT CONSOLE<D55> ,UP GRADE PACKAGE(7MA),DRIVER SIDE FOOT REST<7NU> DARK GRAY	8-97195-976-0	01	1	9710-	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-371-1	01	1	9611-9704	●	●
2	16.800 MAT; FLOOR 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-371-1	01	1	9705-	●
2	16.800 MAT; FLOOR 4X2 SPACE CAB(TFB5CF) 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) A/T AISIN(RMD) DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-572-1	01	1	9611-		●
2	16.800 MAT; FLOOR 4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) A/T THM(RMQ) RR CONSOLE<D63> DRIVER SIDE FOOT REST<7NU> EXC. FLOOR CARPET<B30>,UP GRADE PACKAGE(7MA) DARK GRAY	8-97195-383-0	01	1	9712-		●
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) JUMP SEAT<AJ2> 16.850 (C)	8-94321-035-0	03	1	9611-		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9611-9801	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT A/T AISIN(RMD) (B)	8-97132-019-0	01	1	9611-9801		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT FLOOR REMOTE SHIFT<M11> (B)	8-97132-019-0	01	1	9802-	●	●
6	16.110 DEADENER; FLOOR GEAR BOX FRT A/T AISIN(RMD),A/T THM(RMQ) (B)	8-97132-019-0	01	1	9802-		●
6	16.110 DEADENER; FLOOR GEAR BOX FRT 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> (A)	8-97115-875-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-689-2	01	1	9611-	●	●
28	16.870 PLATE; SILL,FRT GRAY	8-97152-688-2	01	1	9611-	●	●
33	16.550 CLIP; INSULATION (A) H=10.5	8-94441-810-0	04	1	9611-	●	●
33	16.550 CLIP; INSULATION (B) BROWN	8-94476-811-0	02	1	9611-	●	●
36	16.550 INSULATION; PAD,DASH INNER	8-97111-431-1	01	1	9611-	●	●
99	16.110 DEADENER; FLOOR NOISE INSULATION PACK 2<7MW>	8-97111-457-1	02	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30> BLACK	8-97124-459-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR FLOOR REMOTE SHIFT<M11> EXC. FLOOR CARPET<B30> BLACK	8-97124-456-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11> BLACK	8-97124-458-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR 4X2(TFB***) M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR CARPET<B30>,FLOOR REMOTE SHIFT<M11> BLACK	8-97124-455-0	01	1	9611-	●	●
112	16.575 INSULATION; PAD,FRT FLOOR A/T AISIN(RMD) EXC. FLOOR CARPET<B30>	8-97124-457-0	01	1	9611-		●
112	16.575 INSULATION; PAD,FRT FLOOR A/T THM(RMQ) EXC. FLOOR CARPET<B30>	8-97179-683-0	01	1	9712-		●
112	16.575 INSULATION; PAD,FRT FLOOR 4X2(TFB***) A/T AISIN(RMD),A/T THM(RMQ) EXC. FLOOR CARPET<B30>	8-97124-460-0	01	1	9611-		●
140	16.570 DEADENER; DASH LWR PANEL	8-97115-876-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-1	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR 6VD1 ENG(RLV) (C)	8-97174-032-0	01	1	9712-		●

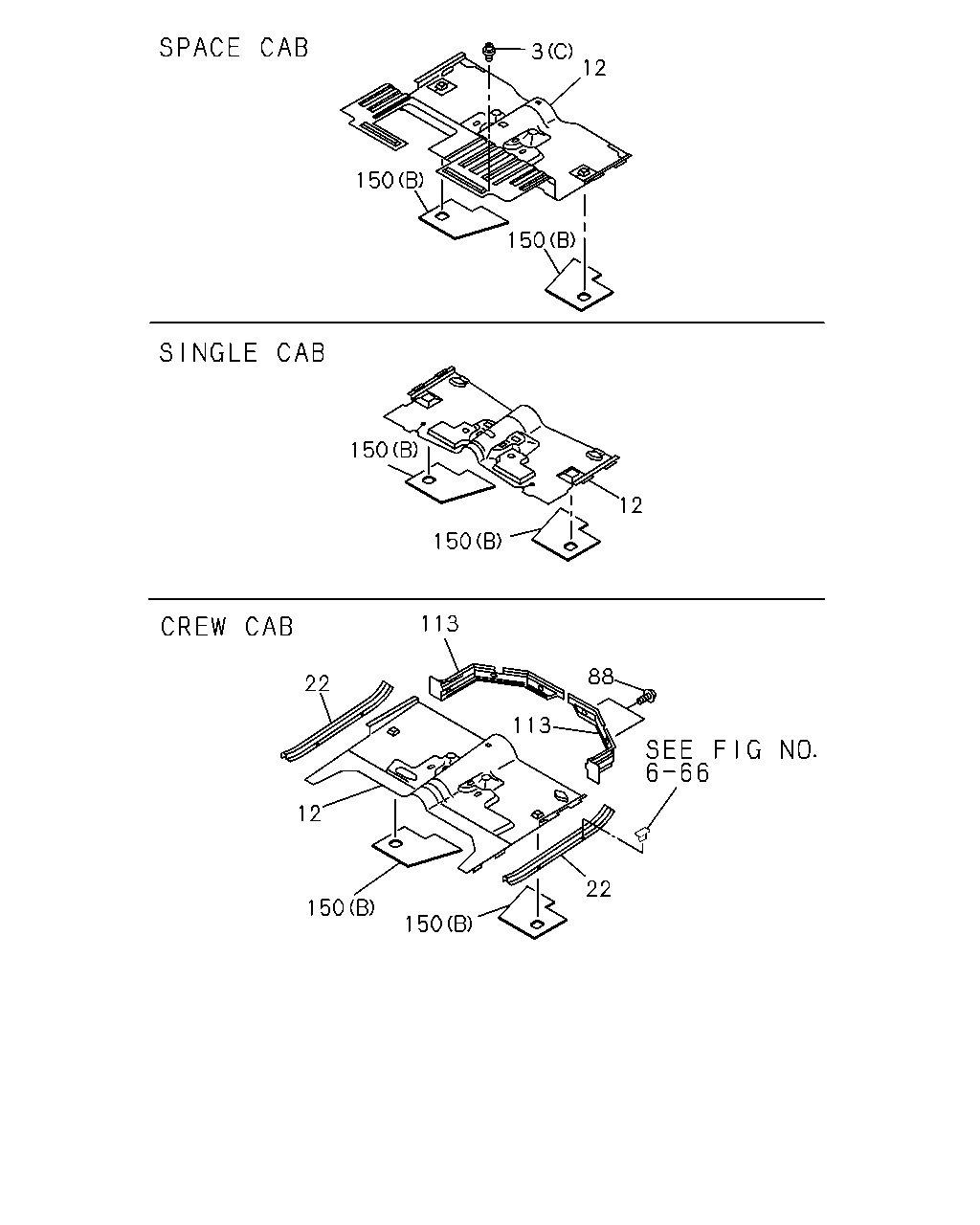

150 150 12 22 113 113 22 88 12 150 150 150 12 3 150

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) JUMP SEAT<AJ2> 16.850 (C)	8-94321-035-0	03	1	9611-		●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> RR CONSOLE<D63> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> DARK GRAY	8-97154-591-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> RR CONSOLE<D63> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-039-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,RR CONSOLE<D63>, NOISEINSULATION PACK 2<7MW> DARK GRAY	8-97154-590-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,RR CONSOLE<D63> DARK GRAY	8-97156-038-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> FLOOR CARPET<B30> RR CONSOLE<D63> DARK GRAY	8-97154-593-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> FLOOR CARPET<B30> EXC. RR CONSOLE<D63> DARK GRAY	8-97154-592-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> DARK GRAY	8-97155-151-0	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> BUCKET SEAT W/RECLINING(S3B) EXC. RR CONSOLE<D63> DARK GRAY	8-97155-151-0	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-150-0	01	1	9611-9704	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-150-0	01	1	9705-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-152-0	01	1	9611-9711	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB(TFBS) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97155-152-0	01	1	9712-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 SINGLE CAB LONG(TFB*SF) 6VD1 ENG(RLV) FLOOR CARPET<B30> DARK GRAY	8-97154-582-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SINGLE CAB LONG(TFS*SF) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-582-0	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) FLOOR CARPET<B30> EXC. BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-588-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-589-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X2 CREW CAB(TFBW) 6VD1 ENG(RLV) FLOOR CARPET<B30> DARK GRAY	8-97153-625-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 CREW CAB(TFSW) FLOOR CARPET<B30> RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97153-625-1	01	1	9611-	●	●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> DARK GRAY	8-97154-583-0	01	1	9611-		●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> DARK GRAY	8-97156-040-0	01	1	9611-		●
12	16.850 CARPET; FLOOR,RR 4X4 SPACE CAB(TFSC) JUMP SEAT<AJ2> FLOOR CARPET<B30> DARK GRAY	8-97154-584-1	01	1	9611-		●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97153-651-1	07	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97155-011-1	01	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97155-010-1	01	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> 16.545 (A)	8-97141-928-0	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR FLOOR CARPET<B30> NOISE INSULATION PACK 2<7MW> (B)	8-97141-929-1	02	1	9611-	●	●
150	16.585 INSULATION; HEAT,FLOOR 6VD1 ENG(RLV) (C)	8-97174-032-0	01	1	9712-		●

3 15 15 15 15 113 113 88 15 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	16.800 CLIP; CARPET FIX 16.550 (B) H=10.5	8-94441-810-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX (A) DARK GRAY	8-97152-683-0	02	1	9611-	●	●
3	16.800 CLIP; CARPET FIX SPACE CAB(TF*C) JUMP SEAT<AJ2> 16.850 (C)	8-94321-035-0	03	1	9611-		●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) DARK GRAY	8-97154-577-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR CREW CAB(TF*W) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97158-338-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SPACE CAB(TFBC) JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-576-5	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SPACE CAB(TFBC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30>,RR CONSOLE<D63> DARK GRAY	8-97154-575-5	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB LONG(TFB*SF) 6VD1 ENG(RLV) EXC. FLOOR CARPET<B30> (A) DARK GRAY	8-97154-578-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SINGLE CAB LONG(TFS*SF) RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30> (A) DARK GRAY	8-97154-578-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 CREW CAB(TFBW) 6VD1 ENG(RLV) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-579-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 CREW CAB(TFSW) RR CONSOLE<D63> BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-579-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97157-033-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SHORT(TFS**C) (B) DARK GRAY	8-97157-033-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) EXC. FLOOR CARPET<B30>,BUCKET SEAT W/RECLINING(S3B) (B) DARK GRAY	8-97157-032-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SHORT(TFS**C) (B) DARK GRAY	8-97157-032-1	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE) ,4JB1 ENG(RLF),4ZE1 ENG(RLJ) BUCKET SEAT W/RECLINING(S3B) EXC. FLOOR CARPET<B30>,RR CONSOLE<D63> (A) DARK GRAY	8-97155-154-0	01	1	9611-	●	●
15	16.800 MAT; FLOOR REAR 4X4 SPACE CAB(TFSC) JUMP SEAT<AJ2> EXC. FLOOR CARPET<B30> DARK GRAY	8-97154-581-1	01	1	9611-		●
15	16.800 MAT; FLOOR REAR 4X4 SPACE CAB(TFSC) EXC. JUMP SEAT<AJ2>,FLOOR CARPET<B30> DARK GRAY	8-97154-580-0	01	1	9611-		●
22	16.870 PLATE; SILL,RR CREW CAB(TF*W) GRAY	8-97153-630-0	02	1	9611-	●	●
88	16.155 CLIP; TRIM COVER,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97153-651-1	07	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97155-011-1	01	1	9611-	●	●
113	16.155 COVER; TRIM,RR SEAT RISER CREW CAB(TF*W) AUSTRALIA EQUIPMENT(RR3) GRAY	8-97155-010-1	01	1	9611-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
