◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#41054) — 184 parça

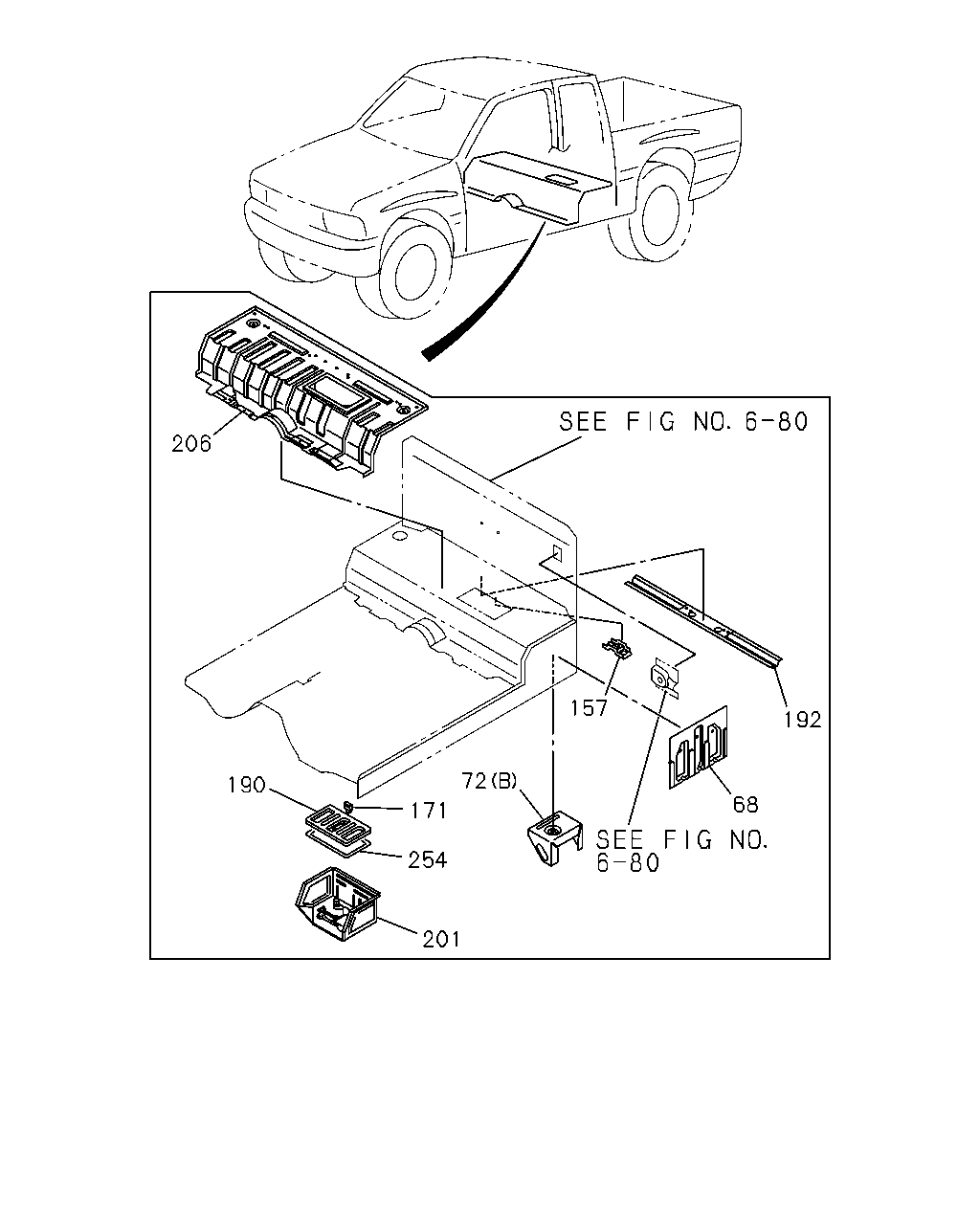

çizim 18286
68 192 157 72 171 254 201 190 206
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9611- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9611- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9611- ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 9611- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 9611- ● ●
157 16.520 BRACKET; TOOL BOX LID 8-94455-757-0 01 1 9611- ● ●
171 16.520 FASTENER; TOOL BOX LID 8-94328-345-0 03 1 9611- ● ●
190 16.520 LID; TOOL BOX 8-94455-755-1 01 1 9611- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9611- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9611- ● ●
201 16.520 PANEL ASM; TOOL BOX 8-94454-049-2 01 1 9611- ● ●
206 16.545 PANEL; FLOOR BOARD RR 8-94454-040-3 01 1 9611- ● ●
254 16.520 SEAL; TOOL BOX LID 8-94456-785-1 01 1 9611- ● ●

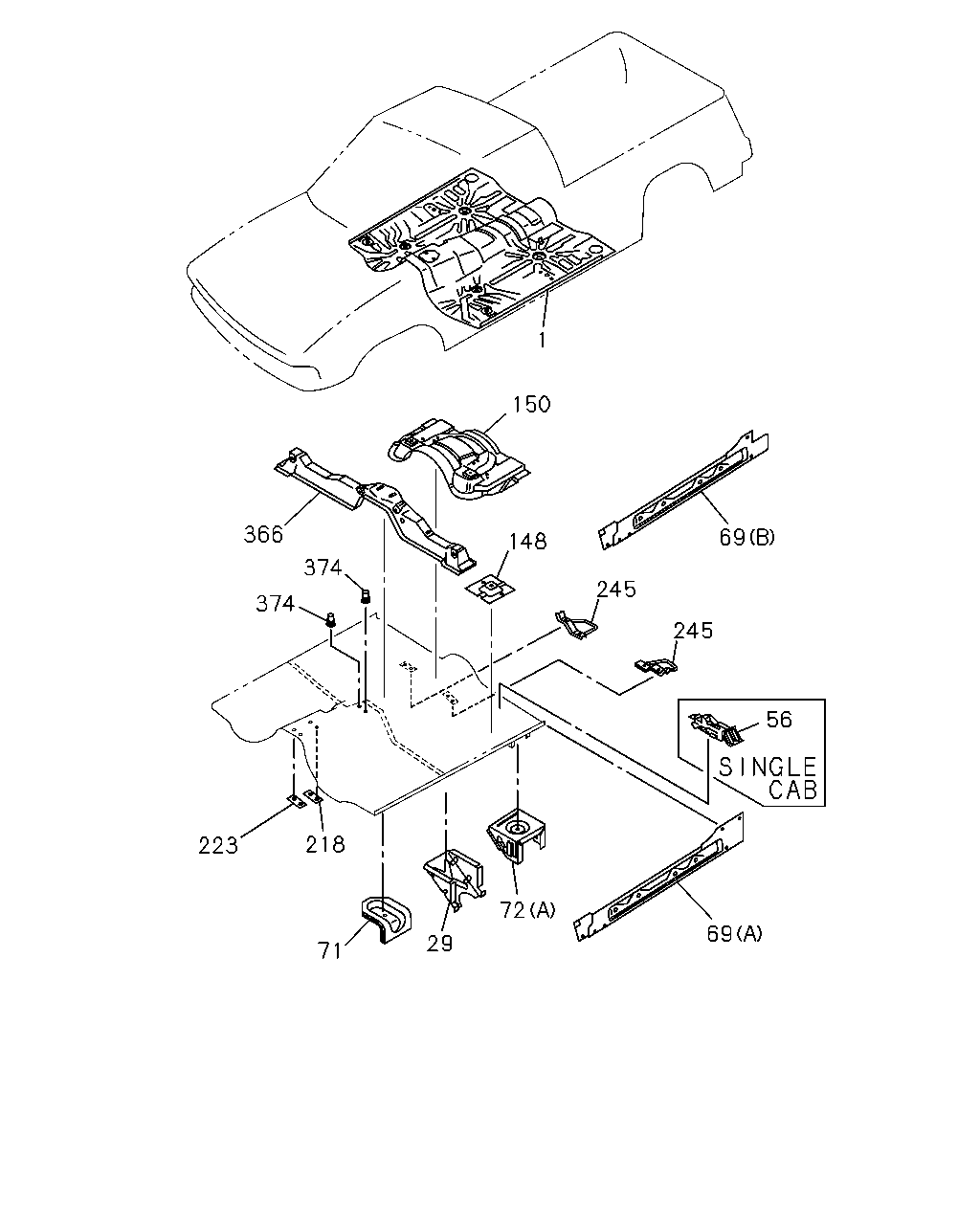

çizim 66884
150 148 69 1 245 245 374 366 374 218 223 71 29 69 56 72
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9611-9704 ● ● ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) 		8-97012-956-0 01 1 9611-9704 ● ● ●
1 16.545 PANEL; FLOOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97012-956-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9705- ● ● ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) 		8-97012-956-0 01 1 9705- ● ● ●
1 16.545 PANEL; FLOOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97012-956-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97012-956-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-955-0 01 1 9611- ● ● ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9611-9704 ●
1 16.545 PANEL; FLOOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94359-283-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-94359-283-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94359-283-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9705- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9611- ● ● ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9611- ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9611- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9611- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9611- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9611- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9611- ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 9611- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 9611- ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9611- ● ● ● ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-0 01 1 9611-9704 ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-535-0 01 1 9611-9704 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97013-535-1 01 1 9705- ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-535-1 01 1 9705- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97013-535-1 01 1 9705- ●
218 04.008 PATCH; A/T CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97800-803-1 01 1 9611- ● ● ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
A/T AISIN(RMD) 		8-97800-803-1 01 1 9611- ● ● ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9611- ● ● ● ● ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-128-3 01 1 9611-9704 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-128-3 01 1 9611-9704 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-128-3 01 1 9705- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-128-3 01 1 9705- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94471-128-3 01 1 9705- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-127-1 01 1 9611-9704 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-127-1 01 1 9611-9704 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-127-1 01 1 9705- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-127-1 01 1 9705- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94471-127-1 01 1 9705- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-132-1 01 1 9611- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-131-1 01 1 9611- ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9611- ● ● ● ● ● ● ● ●
374 16.545 NUT; FLOOR
FLOOR REMOTE SHIFT<M11> 16.570 M8 POP NUT 		8-94279-538-0 02 1 9611- ● ● ● ● ● ● ● ●
374 16.545 NUT; FLOOR
A/T AISIN(RMD) 16.570 M8 POP NUT 		8-94279-538-0 02 1 9611- ● ● ●

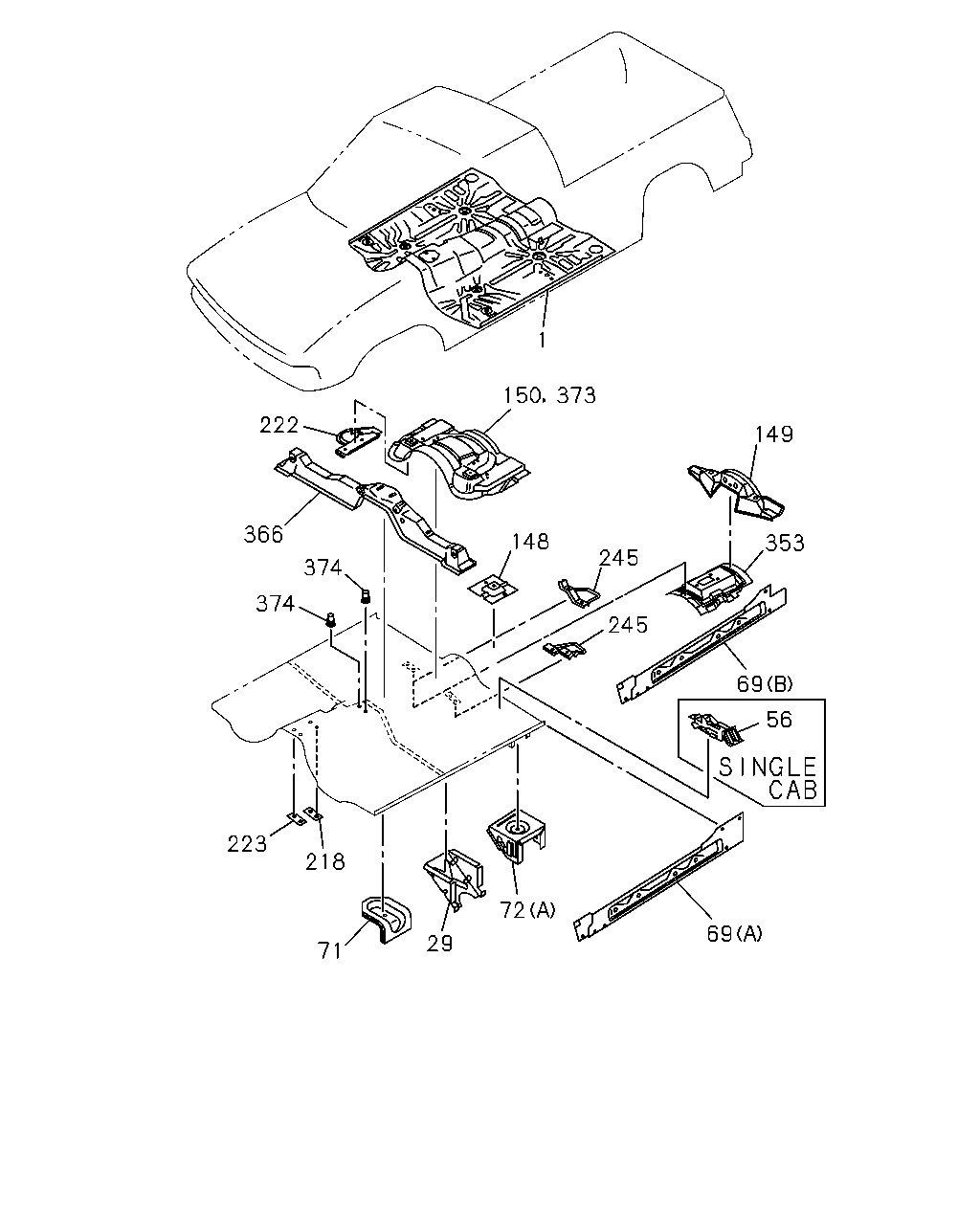

çizim 70204
150 373 1 222 366 374 374 223 218 71 29 72 69 56 69 245 245 148 353 149
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 16.545 PANEL; FLOOR
FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9611-9704 ● ● ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) 		8-97012-956-0 01 1 9611-9704 ● ● ●
1 16.545 PANEL; FLOOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97012-956-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) FLOOR REMOTE SHIFT<M11> 		8-97012-956-0 01 1 9705- ● ● ● ● ●
1 16.545 PANEL; FLOOR
A/T AISIN(RMD) 		8-97012-956-0 01 1 9705- ● ● ●
1 16.545 PANEL; FLOOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97012-956-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97012-956-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) EXC. FLOOR REMOTE SHIFT<M11> 		8-97012-955-0 01 1 9611- ● ● ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9611-9704 ●
1 16.545 PANEL; FLOOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94359-283-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9611-9704 ● ●
1 16.545 PANEL; FLOOR
6VD1 ENG(RLV) 		8-94359-283-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR 8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
UNITED KINGDOM EQUIPMENT(EK3) 		8-94359-283-0 01 1 9705- ● ●
1 16.545 PANEL; FLOOR
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94359-283-0 01 1 9705- ●
1 16.545 PANEL; FLOOR
GRADE LS(RBD) 		8-94359-283-0 01 1 9705- ●
29 16.545 GUSSET 8-94359-305-0 02 1 9611- ● ● ● ● ● ● ● ●
56 08.820 BRACKET; JACK 8-94473-876-1 01 1 9611- ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-733-4 01 1 9611- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(A) 		8-94455-732-4 01 1 9611- ● ● ● ● ● ● ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-385-0 01 1 9611- ● ●
69 16.545 PANEL; ROCKER INNER
(B) 		8-94343-384-0 01 1 9611- ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-298-1 01 1 9611- ● ● ● ● ● ● ● ●
71 16.545 BRACKET; CAB MTG,CENTER 8-94359-297-1 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-497-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(A) 		8-97803-496-0 01 1 9611- ● ● ● ● ● ● ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-047-0 01 1 9611- ● ●
72 16.545 BRACKET; CAB MTG,RR
(B) 		8-94454-046-0 01 1 9611- ● ●
148 16.674 BRACKET; SEAT 8-94435-642-0 02 1 9611- ● ● ● ● ● ● ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9611-9704 ●
149 16.545 BRACKET; SEAT BELT ROD
UNITED KINGDOM EQUIPMENT(EK3) 		8-97112-416-2 01 1 9611-9704 ● ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9611-9704 ● ●
149 16.545 BRACKET; SEAT BELT ROD
6VD1 ENG(RLV) 		8-97112-416-2 01 1 9705- ● ●
149 16.545 BRACKET; SEAT BELT ROD 8-97112-416-2 01 1 9705- ●
149 16.545 BRACKET; SEAT BELT ROD
UNITED KINGDOM EQUIPMENT(EK3) 		8-97112-416-2 01 1 9705- ● ●
149 16.545 BRACKET; SEAT BELT ROD
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97112-416-2 01 1 9705- ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97112-416-2 01 1 9705- ●
149 16.545 BRACKET; SEAT BELT ROD
GRADE LS(RBD) 		8-97112-416-2 01 1 9705- ●
150 16.545 BRACKET; SEAT BELT,ANCHOR 8-97013-535-0 01 1 9611-9704 ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-535-0 01 1 9611-9704 ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97013-535-1 01 1 9705- ● ● ● ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97013-535-1 01 1 9705- ● ●
150 16.545 BRACKET; SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97013-535-1 01 1 9705- ●
218 04.008 PATCH; A/T CONT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97800-803-1 01 1 9611- ● ● ● ● ● ● ● ●
218 04.008 PATCH; A/T CONT LEVER
A/T AISIN(RMD) 		8-97800-803-1 01 1 9611- ● ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9611-9704 ●
222 16.545 PATCH; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94199-260-2 01 1 9611-9704 ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9611-9704 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-260-2 01 1 9705- ● ●
222 16.545 PATCH; BRKT 8-94199-260-2 01 1 9705- ●
222 16.545 PATCH; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94199-260-2 01 1 9705- ● ●
222 16.545 PATCH; BRKT
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94199-260-2 01 1 9705- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94199-260-2 01 1 9705- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-260-2 01 1 9705- ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9611-9704 ●
222 16.545 PATCH; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94199-259-2 01 1 9611-9704 ● ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9611-9704 ● ●
222 16.545 PATCH; BRKT
6VD1 ENG(RLV) 		8-94199-259-2 01 1 9705- ● ●
222 16.545 PATCH; BRKT 8-94199-259-2 01 1 9705- ●
222 16.545 PATCH; BRKT
UNITED KINGDOM EQUIPMENT(EK3) 		8-94199-259-2 01 1 9705- ● ●
222 16.545 PATCH; BRKT
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94199-259-2 01 1 9705- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-94199-259-2 01 1 9705- ●
222 16.545 PATCH; BRKT
GRADE LS(RBD) 		8-94199-259-2 01 1 9705- ●
223 16.650 PATCH; CONSOLE BOX 8-94447-561-0 01 1 9611- ● ● ● ● ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-128-3 01 1 9611-9704 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-128-3 01 1 9611-9704 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-128-3 01 1 9705- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-128-3 01 1 9705- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94471-128-3 01 1 9705- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-127-1 01 1 9611-9704 ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-127-1 01 1 9611-9704 ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-94471-127-1 01 1 9705- ● ● ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
GRADE STD(RBA) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94471-127-1 01 1 9705- ● ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR
4JB1 ENG(RLF) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-94471-127-1 01 1 9705- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-132-1 01 1 9611- ●
245 16.545 ROD; FRT SEAT BELT,ANCHOR 8-94471-131-1 01 1 9611- ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9611-9704 ●
353 16.545 REINFORCEMENT; HAND BRAKE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97801-237-2 01 1 9611-9704 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9611-9704 ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
6VD1 ENG(RLV) 		8-97801-237-2 01 1 9705- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE 8-97801-237-2 01 1 9705- ●
353 16.545 REINFORCEMENT; HAND BRAKE
UNITED KINGDOM EQUIPMENT(EK3) 		8-97801-237-2 01 1 9705- ● ●
353 16.545 REINFORCEMENT; HAND BRAKE
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97801-237-2 01 1 9705- ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97801-237-2 01 1 9705- ●
353 16.545 REINFORCEMENT; HAND BRAKE
GRADE LS(RBD) 		8-97801-237-2 01 1 9705- ●
366 16.674 BAR ASM; FRT SEAT MTG 8-97079-422-0 01 1 9611- ● ● ● ● ● ● ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9611-9704 ●
373 16.545 REINFORCEMENT; SEAT BELT
UNITED KINGDOM EQUIPMENT(EK3) 		8-97112-251-2 01 1 9611-9704 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9611-9704 ● ●
373 16.545 REINFORCEMENT; SEAT BELT
6VD1 ENG(RLV) 		8-97112-251-2 01 1 9705- ● ●
373 16.545 REINFORCEMENT; SEAT BELT 8-97112-251-2 01 1 9705- ●
373 16.545 REINFORCEMENT; SEAT BELT
UNITED KINGDOM EQUIPMENT(EK3) 		8-97112-251-2 01 1 9705- ● ●
373 16.545 REINFORCEMENT; SEAT BELT
4ZE1 ENG(RLJ),6VD1 ENG(RLV) GRADE LS(RBD) AUSTRALIA EQUIPMENT(RR3) 		8-97112-251-2 01 1 9705- ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97112-251-2 01 1 9705- ●
373 16.545 REINFORCEMENT; SEAT BELT
GRADE LS(RBD) 		8-97112-251-2 01 1 9705- ●
374 16.545 NUT; FLOOR
FLOOR REMOTE SHIFT<M11> 16.570 M8 POP NUT 		8-94279-538-0 02 1 9611- ● ● ● ● ● ● ● ●
374 16.545 NUT; FLOOR
A/T AISIN(RMD) 16.570 M8 POP NUT 		8-94279-538-0 02 1 9611- ● ● ●

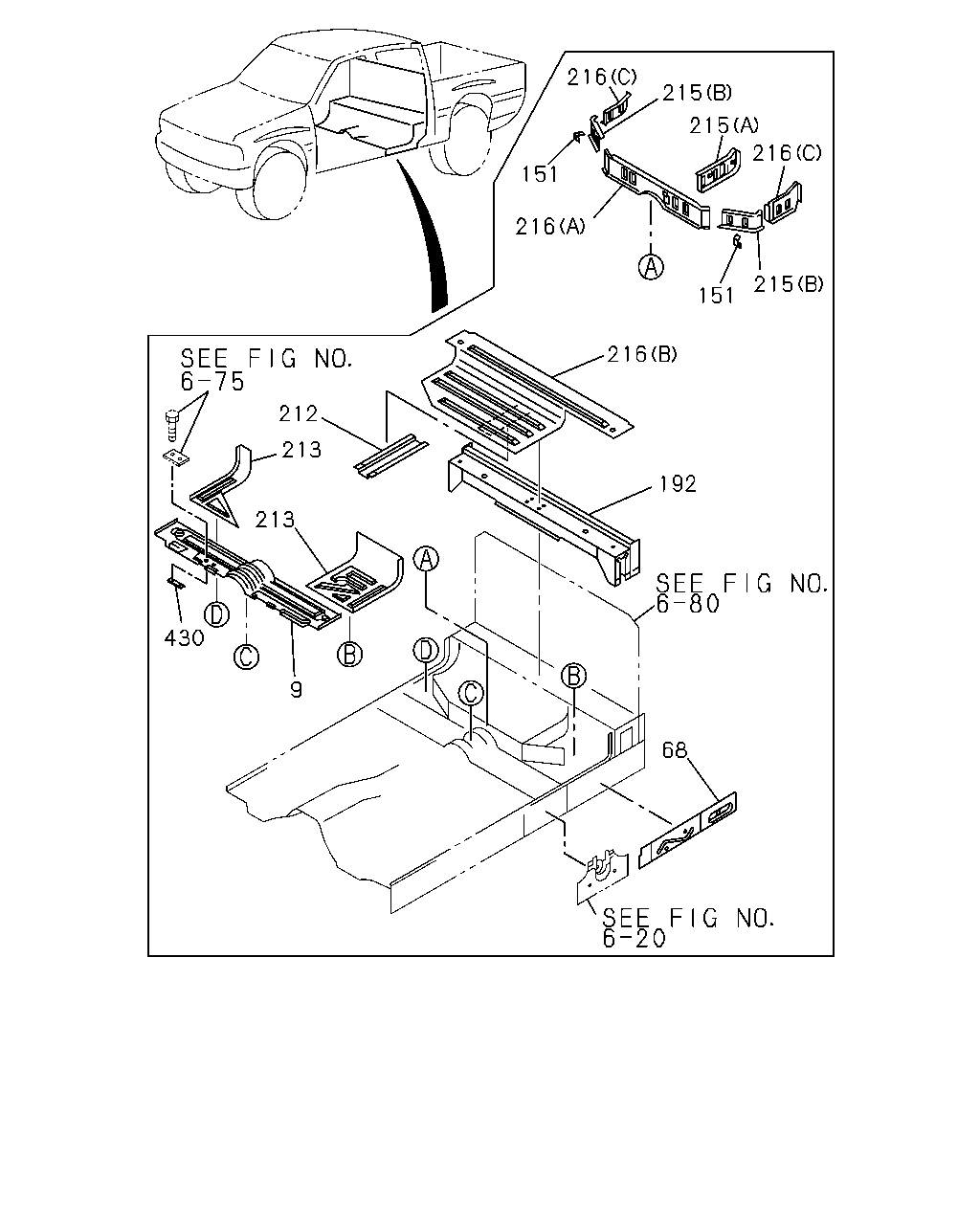

çizim 70912
151 216 216 215 215 216 215 151 216 192 68 430 9 213 213 212
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 16.545 PANEL; RR FLOOR,FRT 8-97139-102-0 01 1 9611- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-055-3 02 1 9611- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-358-1 01 1 9611- ● ●
68 16.570 PANEL; ROCKER INNER,CENTER
16.545 		8-94454-357-1 01 1 9611- ● ●
151 16.670 BRACKET; SEAT CUSHION STOPPER 8-94454-355-0 02 1 9611- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-041-0 01 1 9611- ● ●
192 16.545 MEMBER; RR FLOOR PANEL 8-94454-344-0 01 1 9611- ● ●
212 16.670 PANEL; REINF,SEAT RISER UPR 8-94473-966-0 01 1 9611- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-97070-586-2 01 1 9611- ● ●
213 16.545 PANEL; RR FLOOR SIDE 8-94454-325-0 01 1 9611- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(A) 		8-97070-581-1 01 1 9611- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-585-0 01 1 9611- ● ●
215 16.670 PANEL; SEAT RISER,CENTER
(B) 		8-97070-584-0 01 1 9611- ● ●
216 16.670 PANEL; SEAT RISER
(A) 		8-94454-332-0 01 1 9611- ● ●
216 16.670 PANEL; SEAT RISER
(B) 		8-94454-338-1 01 1 9611- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-317-1 01 1 9611- ● ●
216 16.670 PANEL; SEAT RISER
(C) 		8-97132-316-0 01 1 9611- ● ●
430 16.545 PATCH; DUMPER 8-97139-101-0 01 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
