6-47 — MUD GUARD AND INSULATOR (#41047) — 60 parça

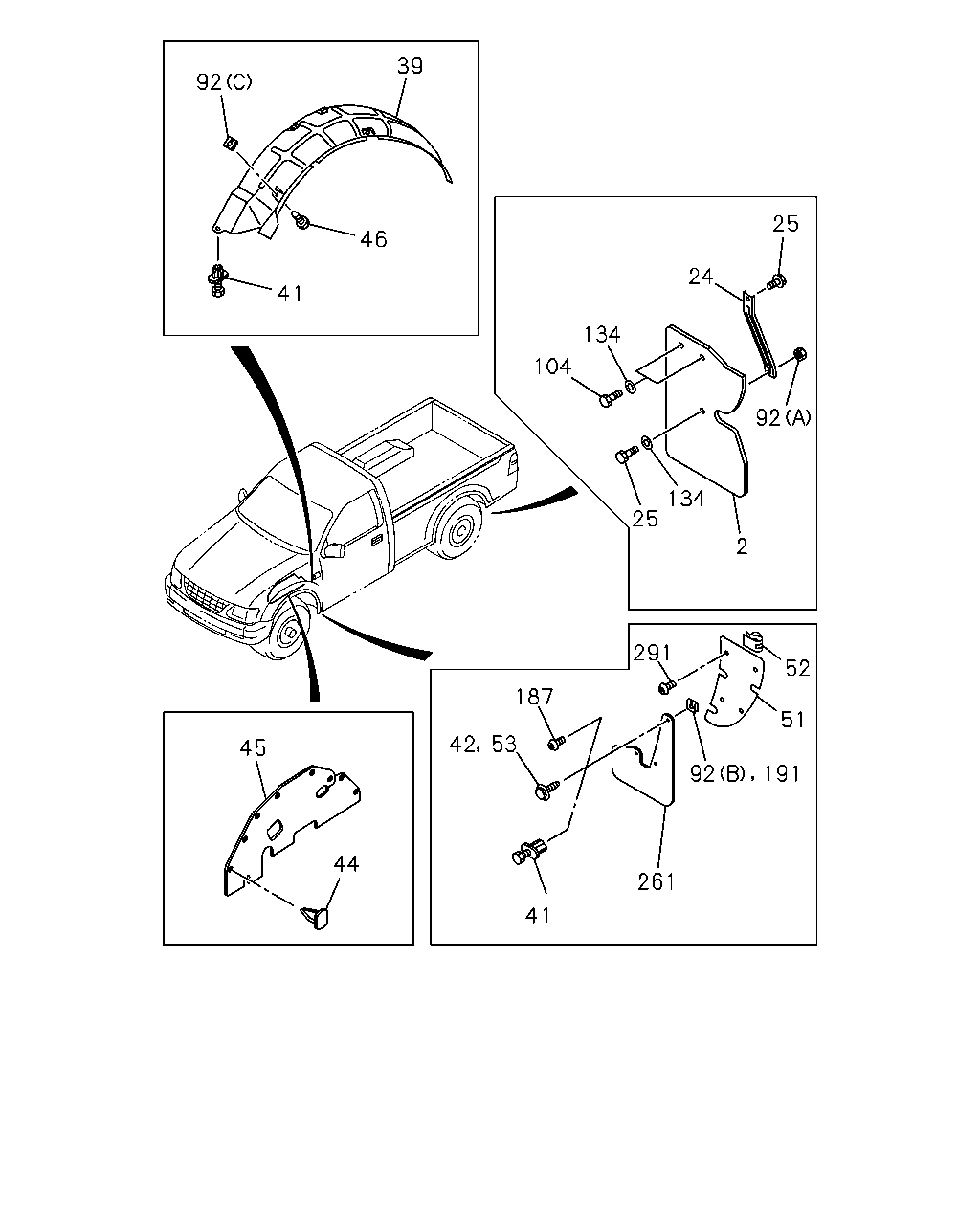

çizim 70056
41 46 39 92 104 134 24 25 92 2 134 25 291 187 42 53 41 261 92 191 51 52 45 44
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-531-1 02 1 9611-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97142-531-1 02 1 9611-9712 ● ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97142-531-1 02 1 9611-9712 ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-531-1 02 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQU IPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97142-531-1 02 1 9801- ● ● ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MUD FLAP<VH4> RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97142-531-1 02 1 9801- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-514-1 01 1 9611-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-514-1 01 1 9611-9712 ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-514-1 01 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-514-1 01 1 9801- ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-513-1 01 1 9611-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-513-1 01 1 9611-9712 ●
2 08.154 COVER; MUD,TIRE RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-513-1 01 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-513-1 01 1 9801- ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-530-1 02 1 9611-9712 ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97142-530-1 02 1 9611-9712 ● ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97142-530-1 02 1 9611-9712 ● ● ●
2 08.154 COVER; MUD,TIRE RR
6VD1 ENG(RLV) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) 		8-97142-530-1 02 1 9801- ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> CHEVROLET MARK<YL6> 		8-97142-530-1 02 1 9801- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. HONG KONG EQUIPMENT(PQ1) 		8-97142-530-1 02 1 9801- ● ● ●
2 08.154 COVER; MUD,TIRE RR
MUD FLAP<VH4> RR BODY DBL WALL SIDE LOCK INNER & OUTER HOOK(7TM) 		8-97142-530-1 02 1 9801- ● ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-516-1 01 1 9611- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-516-1 01 1 9611- ● ●
2 08.154 COVER; MUD,TIRE RR
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ) MUD FLAP<VH4> EXC. UNITED KINGDOM EQUIPMENT(EK3), NEW ZEALAND EQUIPMENT(PK5), AUSTRALIA EQUIPMENT(RR3),CHEVROLET MARK<YL6> 		8-97142-515-1 01 1 9611- ● ● ● ●
2 08.154 COVER; MUD,TIRE RR
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1) MUD FLAP<VH4> 		8-97142-515-1 01 1 9611- ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 16.100 		8-94328-186-0 01 1 9611- ● ● ● ● ● ● ● ●
24 08.155 PLATE; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 		8-94328-185-0 01 1 9611- ● ● ● ● ● ● ● ●
25 08.155 BOLT; PLATE TO MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
FRONT 		8-97111-843-2 01 1 9611- ● ● ● ● ● ● ● ●
39 08.131 LINER; FENDER
FRONT 		8-97111-842-2 01 1 9611- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9611- ● ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
RR BODY FLAT BED<RS6> MUD FLAP<VH4> 08.154 		8-94221-150-0 18 1 9611- ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> 08.154 		8-94221-150-0 12 1 9611- ● ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
AUSTRALIA EQUIPMENT(RR3) MUD FLAP<VH4> 08.154 		8-94221-150-0 12 1 9611- ● ● ● ● ● ●
41 08.155 RIVET; INNER LINER
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 08.154 		8-94221-150-0 12 1 9611- ●
41 08.155 RIVET; INNER LINER
AUSTRALIA EQUIPMENT(RR3) EXC. MUD FLAP<VH4> 08.154 		8-94221-150-0 14 1 9611- ● ● ● ● ● ●
42 08.155 BOLT; INNER LINER TO FENDER
AUSTRALIA EQUIPMENT(RR3) EXC. MUD FLAP<VH4> 		8-97032-653-0 04 1 9611- ● ● ● ● ● ●
44 08.154 CLIP; ANCHOR
OD=22 L=10.7 		8-94215-211-0 16 1 9611- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-996-2 01 1 9611- ● ● ● ● ● ● ● ●
45 08.153 COVER; MUD,FENDER SKIRT 8-97038-997-2 01 1 9611- ● ● ● ● ● ● ● ●
46 08.155 SCREW; INNER LINER
M6X20 W/PL WASHER TAPPING 		8-94321-767-1 04 1 9611- ● ● ● ● ● ● ● ●
51 08.155 PROTECTOR; INNER LINER,FENDER
AUSTRALIA EQUIPMENT(RR3) 		8-97111-845-0 01 1 9611- ● ● ● ● ● ●
51 08.155 PROTECTOR; INNER LINER,FENDER
AUSTRALIA EQUIPMENT(RR3) 		8-97111-844-0 01 1 9611- ● ● ● ● ● ●
52 08.155 CLIP; PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 02.510 		8-94279-056-0 04 1 9611-9711 ● ● ● ● ● ●
52 08.155 CLIP; PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 08.143 		8-94334-769-0 04 1 9712- ● ● ● ● ● ●
53 08.155 BOLT; MUD COVER STAY
AUSTRALIA EQUIPMENT(RR3) MUD FLAP<VH4> 		8-97032-653-0 06 1 9611- ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
(C) ID=5.2 H=10 		8-97032-135-0 04 1 9611- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
MUD FLAP<VH4> EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> (B) ID=5.2 H=10 		8-97032-135-0 06 1 9611- ● ● ● ● ● ● ● ●
92 08.155 NUT; MUD COVER
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 07.633 (A) M8 FLANGE 		0-91150-108-0 02 1 9611- ● ● ● ● ● ● ● ●
104 08.214 BOLT; BRKT
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 17.507 M8X22 		8-97104-889-0 04 1 9611- ● ● ● ● ● ● ● ●
134 08.155 WASHER; PL
RR BODY DOUBLE WALL SIDE LOCK OUTER HOOK(S7S),RR BODY DBL WALL SIDE LO CK INNER HOOK(7LZ),RR BODY DBL WALLSIDE LOCK INNER & OUTER HOOK(7TM) MUD FLAP<VH4> 07.633 ID=8.4 OD=22 		9-09164-708-0 06 1 9611- ● ● ● ● ● ● ● ●
187 08.155 SCREW; FENDER COVER
MUD FLAP<VH4> EXC. AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> M6X20 W/PL WASHER TAPPING 		8-94321-767-1 06 1 9611- ● ● ● ● ● ● ● ●
191 08.155 NUT; SPECIAL,FENDER
AUSTRALIA EQUIPMENT(RR3) MUD FLAP<VH4> 02.510 		8-94279-056-0 02 1 9611-9711 ● ● ● ● ● ●
191 08.155 NUT; SPECIAL,FENDER
AUSTRALIA EQUIPMENT(RR3) MUD FLAP<VH4> 08.143 		8-94334-769-0 02 1 9712- ● ● ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97166-253-1 02 1 9611-9711 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) MUD FLAP<VH4> EXC. RR BODY FLAT BED<RS6> 		8-97166-253-1 02 1 9712- ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-252-1 02 1 9611-9711 ● ● ● ●
261 08.155 RUBBER; FRT,MUD GUARD
6VD1 ENG(RLV) MUD FLAP<VH4> 		8-97166-252-1 02 1 9712- ● ●
261 08.155 RUBBER; FRT,MUD GUARD
MUD FLAP<VH4> 		8-97166-252-1 02 1 9712- ● ● ● ●
291 16.570 SCREW; PROTECTOR
AUSTRALIA EQUIPMENT(RR3) 08.155 M6X16 		8-94479-534-0 04 1 9611- ● ● ● ● ● ●
