◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50725 - TFR/TFS-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#41045) — 51 parça

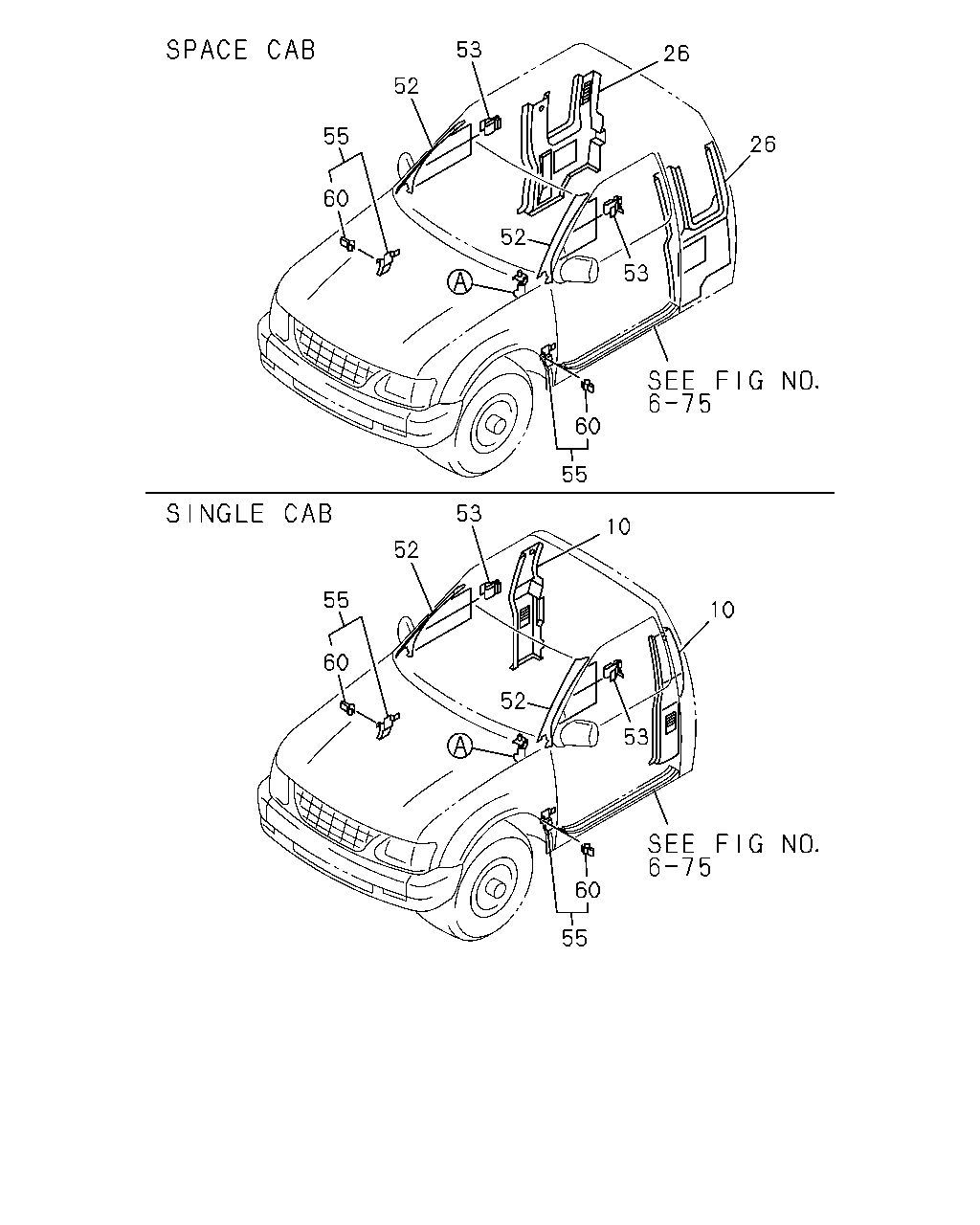

çizim 70017
55 53 52 60 10 10 53 52 55 60 55 60 53 52 60 55 52 53 26 26
BalonParca AdiParca NoAdetTipApplied Date A B
10 16.578 TRIM; B-POST
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97154-634-2 01 1 9611- ●
10 16.578 TRIM; B-POST
4X2 SINGLE CAB SHORT(TFB5SC) 4X2 SINGLE CAB LONG(TFB5SF) 4X4 SINGLE CAB LONG(TFS5SF) GRAY 		8-97154-633-2 01 1 9611- ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY 		8-97156-053-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> NOISE INSULATION PACK 2<7MW> EXC. REAR DEFOGGER<C49> GRAY 		8-97156-052-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY 		8-97156-057-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> GRAY 		8-97156-056-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-652-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> REAR DEFOGGER<C49> EXC. NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-654-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-651-3 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) JUMP SEAT<AJ2> EXC. REAR DEFOGGER<C49>,NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-650-3 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-649-3 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49>, NOISE INSULATION PACK 2<7MW> GRAY 		8-97154-648-3 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY 		8-97156-055-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2>,REAR DEFOGGER<C49> GRAY 		8-97156-054-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY 		8-97154-653-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) REAR DEFOGGER<C49> EXC. JUMP SEAT<AJ2>,NOISE INSULATION PACK2<7MW> GRAY 		8-97154-655-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY 		8-97156-059-0 01 1 9611- ● ●
26 16.578 COVER; TRIM,RR COMPT SIDE
SPACE CAB(TF**C*) REAR DEFOGGER<C49> NOISE INSULATION PACK 2<7MW> EXC. JUMP SEAT<AJ2> GRAY 		8-97156-058-0 01 1 9611- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-700-0 01 1 9611- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-699-0 01 1 9611- ● ●
53 16.165 RETAINER; TRIM,FRT PILLAR
10.056 		8-94117-873-3 06 1 9611- ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY 		8-97154-608-0 01 1 9611- ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY 		8-97155-005-0 01 1 9611- ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD 8-94321-034-0 04 1 9611- ● ●

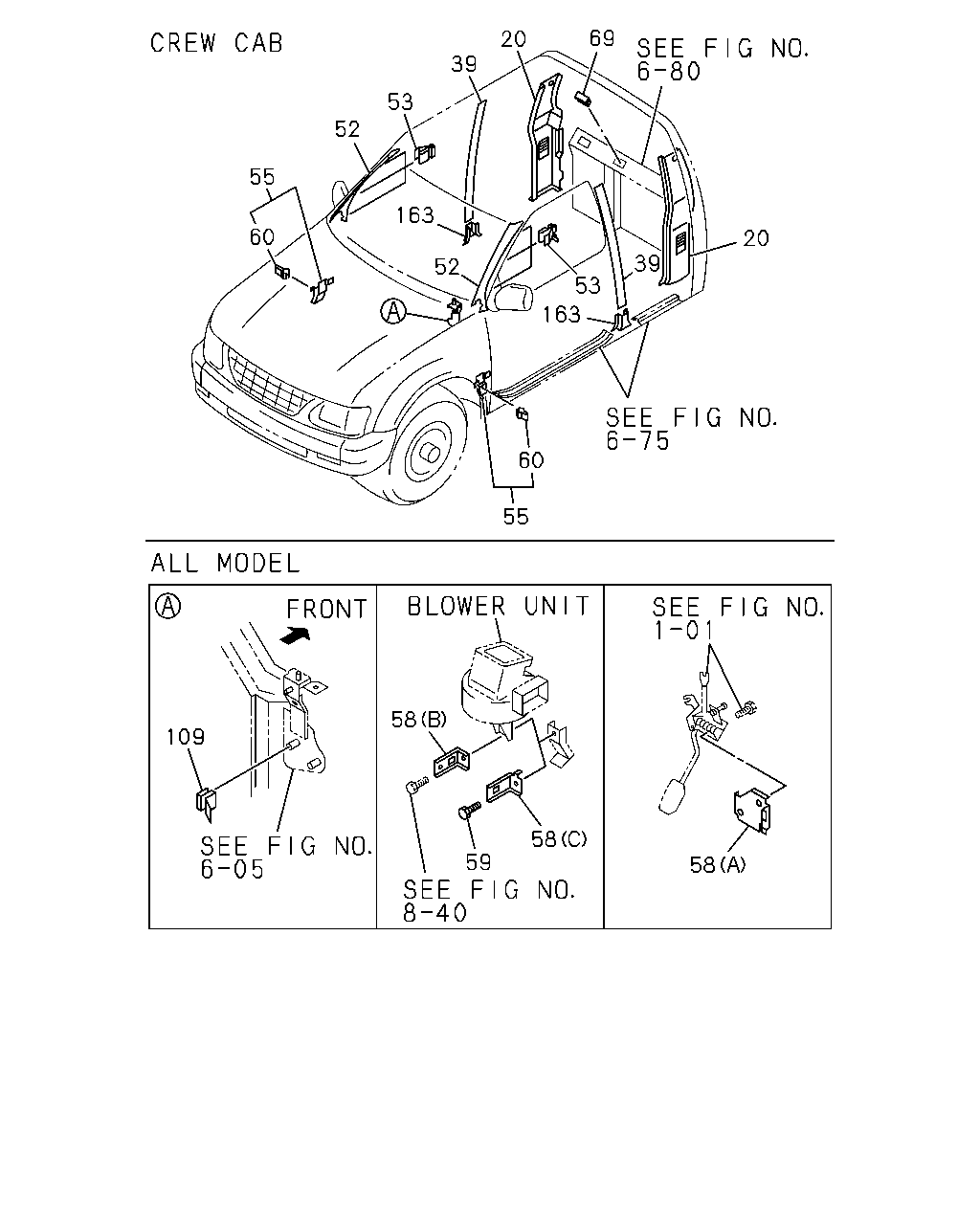

çizim 70101
55 60 163 53 39 20 52 163 52 53 39 20 69 55 60 109 58 59 58 58
BalonParca AdiParca NoAdetTipApplied Date A B
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97158-334-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97158-334-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3) GRAY 		8-97158-333-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) REAR DEFOGGER<C49> UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALANDEQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97158-333-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY 		8-97158-330-0 01 1 9611- ● ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5) EXC. REAR DEFOGGER<C49> GRAY 		8-97158-330-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) UNITED KINGDOM EQUIPMENT(EK3),AUSTRALIA EQUIPMENT(RR3) EXC. REAR DEFOGGER<C49> GRAY 		8-97158-329-0 01 1 9611- ● ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> NEW ZEALAND EQUIPMENT(PK5) EXC. REAR DEFOGGER<C49> GRAY 		8-97158-329-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) EXC. REAR DEFOGGER<C49>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97158-332-0 01 1 9611- ●
20 16.165 COVER; TRIM,RR PILLAR
CREW CAB(TF**W*) EXC. REAR DEFOGGER<C49>,NEW ZEALAND EQUIPMENT(PK5),AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97158-331-0 01 1 9611- ●
39 16.575 COVER; TRIM,CENTER PILLAR
CREW CAB(TF**W*) AUSTRALIA EQUIPMENT(RR3) GRAY 		8-97154-629-0 02 1 9611- ●
39 16.575 COVER; TRIM,CENTER PILLAR
CREW CAB(TF**W*) GRAY 		8-97154-629-0 02 1 9611- ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-700-0 01 1 9611- ● ●
52 16.165 COVER; TRIM,FRT PILLAR
GRAY 		8-97152-699-0 01 1 9611- ● ●
53 16.165 RETAINER; TRIM,FRT PILLAR
10.056 		8-94117-873-3 06 1 9611- ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY 		8-97154-608-0 01 1 9611- ● ●
55 16.166 PAD; TRIM,DASH SIDE
GRAY 		8-97155-005-0 01 1 9611- ● ●
58 16.551 BRACKET
(A) 		8-97135-482-0 01 1 9611- ● ●
58 16.551 BRACKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) 		8-97132-075-0 01 1 9611- ● ●
58 16.551 BRACKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) 		8-97132-074-0 01 1 9611- ● ●
59 16.560 BOLT; DASH SIDE TRIM BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 16.085 M6X16 		8-94220-097-0 01 1 9611- ● ●
60 16.166 CLIP; ANCHOR,TRIM PAD 8-94321-034-0 04 1 9611- ● ●
69 16.585 PLUG; HOLE
CREW CAB(TF**W*) EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97012-841-1 03 1 9611- ●
109 16.225 CLIP; DOOR FINISHER 8-97175-995-0 01 1 9611- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
CREW CAB(TF**W*) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-631-1 01 1 9611- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
CREW CAB(TF**W*) SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-630-1 01 1 9611- ● ●
163 16.575 COVER; TRIM,CENTER PILLAR,LWR
CREW CAB(TF**W*) EXC. SEAT BELT FRT 3 POINT W/RETRACTOR<A49> GRAY 		8-97154-632-1 02 1 9611- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
