6-05 — FRONT PANEL (#41035) — 36 parça

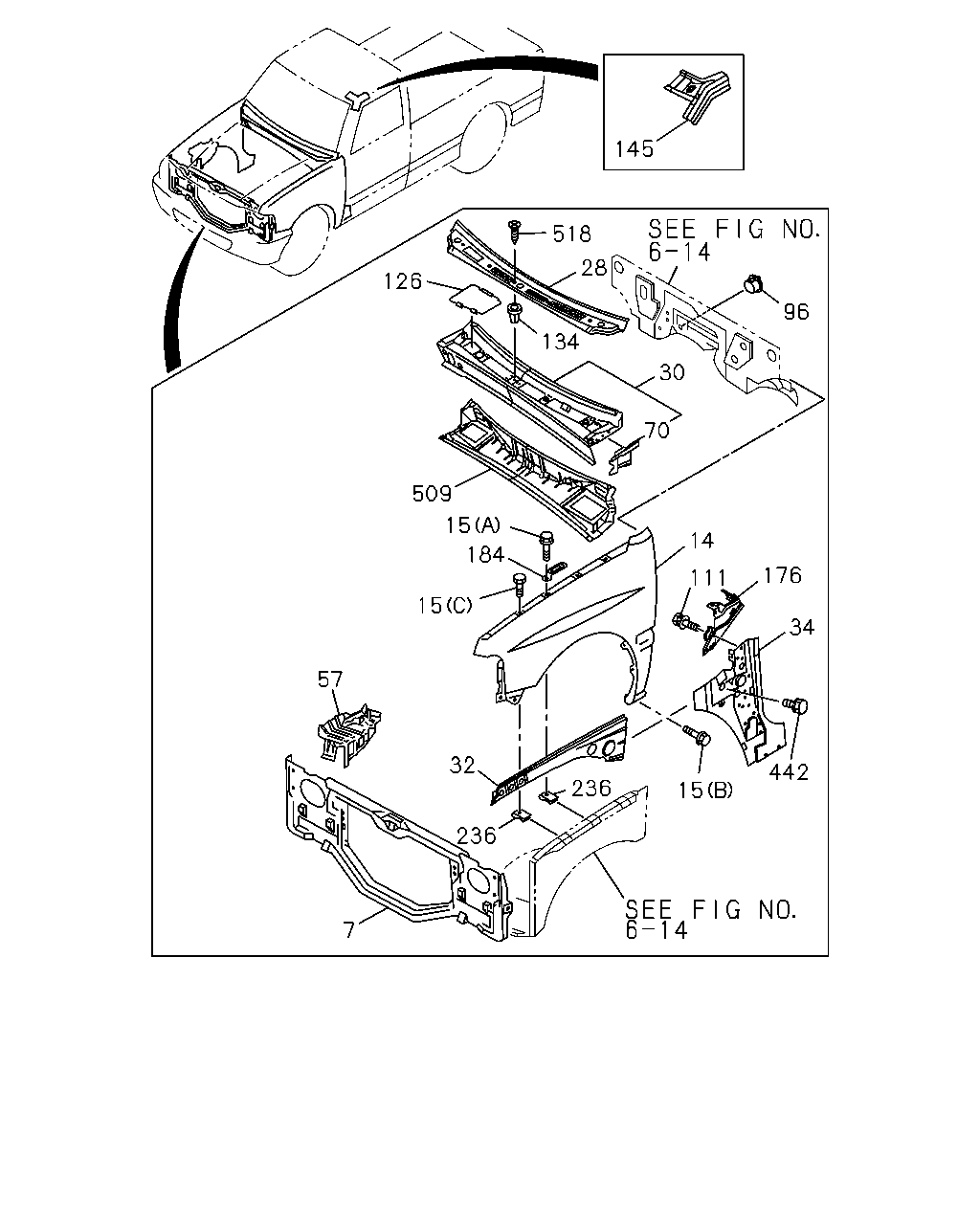

çizim 70001
145 518 126 28 134 30 70 509 184 15 14 34 15 111 176 15 442 236 236 32 57 7 96
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
7 01.271 PANEL; DEFLECTOR 8-97104-243-1 01 1 9611-9701 ● ● ● ● ● ● ● ●
7 01.271 PANEL; DEFLECTOR 8-97170-898-0 01 1 9702- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT 8-97111-812-9 01 1 9611- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT
ANTENNA<U73> 		8-97107-982-9 01 1 9611- ● ● ● ● ● ● ● ●
14 08.130 FENDER; FRT
EXC. ANTENNA<U73> 		8-97111-813-9 01 1 9611- ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(A) M6X16 		0-28800-616-0 02 1 9611- ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(B) M6X16 W/PL WASHER 		8-94199-279-1 02 1 9611-9802 ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
16.545 (B) M6X20 W/PL WASHER 		8-97808-622-0 02 1 9803- ● ● ● ● ● ● ● ●
15 08.143 BOLT; FENDER
(C) M6X12 W/PL WASHER 		8-94232-078-0 14 1 9611- ● ● ● ● ● ● ● ●
28 16.125 COVER; DASH COWL 8-97142-701-3 01 1 9611- ● ● ● ● ● ● ● ●
30 16.125 PANEL; COWL UPR 8-97013-017-0 01 1 9611- ● ● ● ● ● ● ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-329-1 01 1 9611- ● ● ● ● ● ● ● ●
32 08.155 REINFORCEMENT; COWL SIDE,ENG ROO 8-97078-328-1 01 1 9611- ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97132-033-1 01 1 9611- ● ● ● ● ● ● ● ●
34 16.570 PANEL; DASH SIDE 8-97132-032-1 01 1 9611- ● ● ● ● ● ● ● ●
57 02.333 TRAY; BATTERY 8-97084-957-3 01 1 9611- ● ● ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-660-4 01 1 9611- ● ● ● ● ● ● ● ●
70 16.551 PANEL ASM; COWL SIDE 8-94435-659-4 01 1 9611- ● ● ● ● ● ● ● ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL 8-97806-829-0 01 1 9611-9708 ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL
GRADE LS(RBD) 		8-97806-829-0 01 1 9611-9708 ● ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL
UNITED KINGDOM EQUIPMENT(EK3) 		8-97806-829-0 01 1 9611-9708 ● ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL
6VD1 ENG(RLV) 		8-97806-829-0 01 1 9709- ● ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL 8-97806-829-0 01 1 9709- ●
96 16.125 PLUG; DUMMY HOLE,COWL PANEL
GRADE LS(RBD) UNITED KINGDOM EQUIPMENT(EK3) 		8-97806-829-0 01 1 9709- ● ●
111 16.550 BOLT; INST SUPPORT BAR
M8X16 W/LK&PL WASHER 		8-94310-730-0 08 1 9611- ● ● ● ● ● ● ● ●
126 12.800 COVER; COWL HOLE
VENTILATION RAM AIR(6TN) 		8-97104-480-0 01 1 9611- ● ● ● ● ● ● ● ●
134 16.125 GROMMET; SCREW,COVER TO BODY
02.679 D=7.9X7.9 L=20 M5 		8-94441-539-0 05 1 9611- ● ● ● ● ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-358-3 01 1 9611- ● ● ● ● ● ●
145 16.570 GUSSET; FRT PILLAR,UPR 8-94455-357-3 01 1 9611- ● ● ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-97101-487-0 01 1 9611- ● ● ● ● ● ● ● ●
176 16.550 BRACKET; INST SUPPORT BAR 8-97101-486-1 01 1 9611- ● ● ● ● ● ● ● ●
184 08.143 CLIP; REST,FENDER 8-94443-017-1 02 1 9611- ● ● ● ● ● ● ● ●
236 08.143 NUT; CLIP FENDER 8-94334-769-0 10 1 9611- ● ● ● ● ● ● ● ●
442 16.570 BOLT; SEAL,DASH SIDE
03.342 M6X16 		8-97012-496-0 01 1 9611- ● ● ● ● ● ● ● ●
509 16.550 PANEL; DASH 8-97102-039-1 01 1 9611- ● ● ● ● ● ● ● ●
518 16.125 SCREW; BRKT,COWL COVER
M5X19 		8-97142-720-1 05 1 9611- ● ● ● ● ● ● ● ●
