Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-25 - INLET MANIFOLD
▶

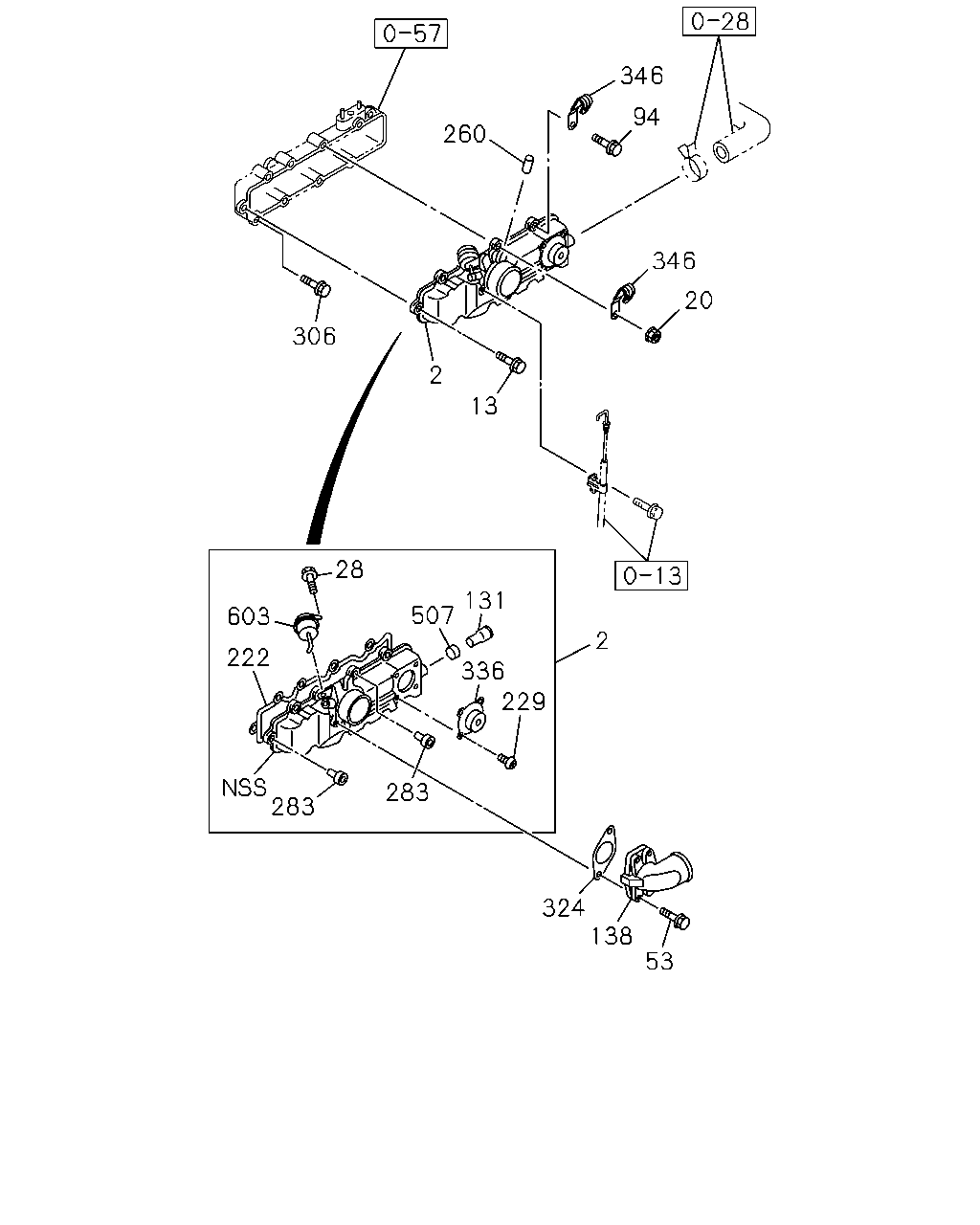

0-25 — INLET MANIFOLD
(#41019) — 26 parça
346
94
260
346
20
306
2
13
28
131
507
603
2
222
336
229
283
283
324
138
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
03.407 COVER; INL
8-97146-866-2
01
1
0505-
13
03.275 BOLT; INL MANIF
M8X30 FLANGE
0-28080-830-0
08
1
0505-0512
13
03.275 BOLT; INL MANIF
00.206 M8X30 FLANGE
0-28050-830-0
08
1
0601-
20
03.275 NUT; INL MANIF
07.633 M8 FLANGE
0-91150-108-0
02
1
0505-0602
20
03.275 NUT; INL MANIF
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
28
03.278 BOLT; CHAMBER
01.428 M6X12 FLANGE
0-28080-612-0
02
1
0505-0512
28
03.278 BOLT; CHAMBER
03.162 M6X12 FLANGE
0-28050-612-0
02
1
0601-
53
03.602 BOLT; INL PIPE
04.686 M8X30 FLANGE
0-28680-830-0
02
1
0505-0512
53
03.602 BOLT; INL PIPE
03.403 M8X30 FLANGE
0-28650-830-0
02
1
0601-
94
02.559 BOLT
03.275 M8X30 FLANGE
0-28080-830-0
02
1
0505-0512
94
02.559 BOLT
00.206 M8X30 FLANGE
0-28050-830-0
02
1
0601-
131
03.278 PIPE; PCV,INL
8-97102-601-0
01
1
0505-
138
03.265 PIPE; INL
8-97180-566-2
01
1
0505-
222
03.270 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97084-938-2
01
1
0505-
229
03.278 SCREW; VENTILATION VLV
06.321 M4X8 W/LK WASHER
9-03910-408-0
04
1
0505-0604
229
03.278 SCREW; VENTILATION VLV
00.662 M4X8 W/LK WASHER
0-36220-408-0
04
1
0605-
260
03.278 CAP; RUBBER
01.780 ID=4
8-94217-809-0
01
1
0505-
283
03.265 RUBBER
OD=23
8-97105-689-6
10
1
0505-
306
03.265 BOLT; VLV
01.540 M8X45 FLANGE
0-28080-845-0
05
1
0505-0512
306
03.265 BOLT; VLV
09.173 M8X45 FLANGE
0-28050-845-0
05
1
0601-
324
03.407 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-97180-546-1
01
1
0505-
336
03.415 VALVE; VENTILATION
8-97119-887-0
01
1
0505-
346
02.559 CLIP; ENG HARNESS
00.446 ID=12 B=14 ID=8.5
5-09700-350-0
03
1
0505-0801
346
02.559 CLIP; ENG HARNESS
03.671 ID=12 VINYL CHLORIDE
8-97367-984-1
03
1
0802-
507
03.415 ORIFICE
8-97088-649-0
01
1
0505-
603
03.278 CHAMBER; THROTTLE
8-97204-780-0
01
1
0505-
