◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#4101) — 221 parça

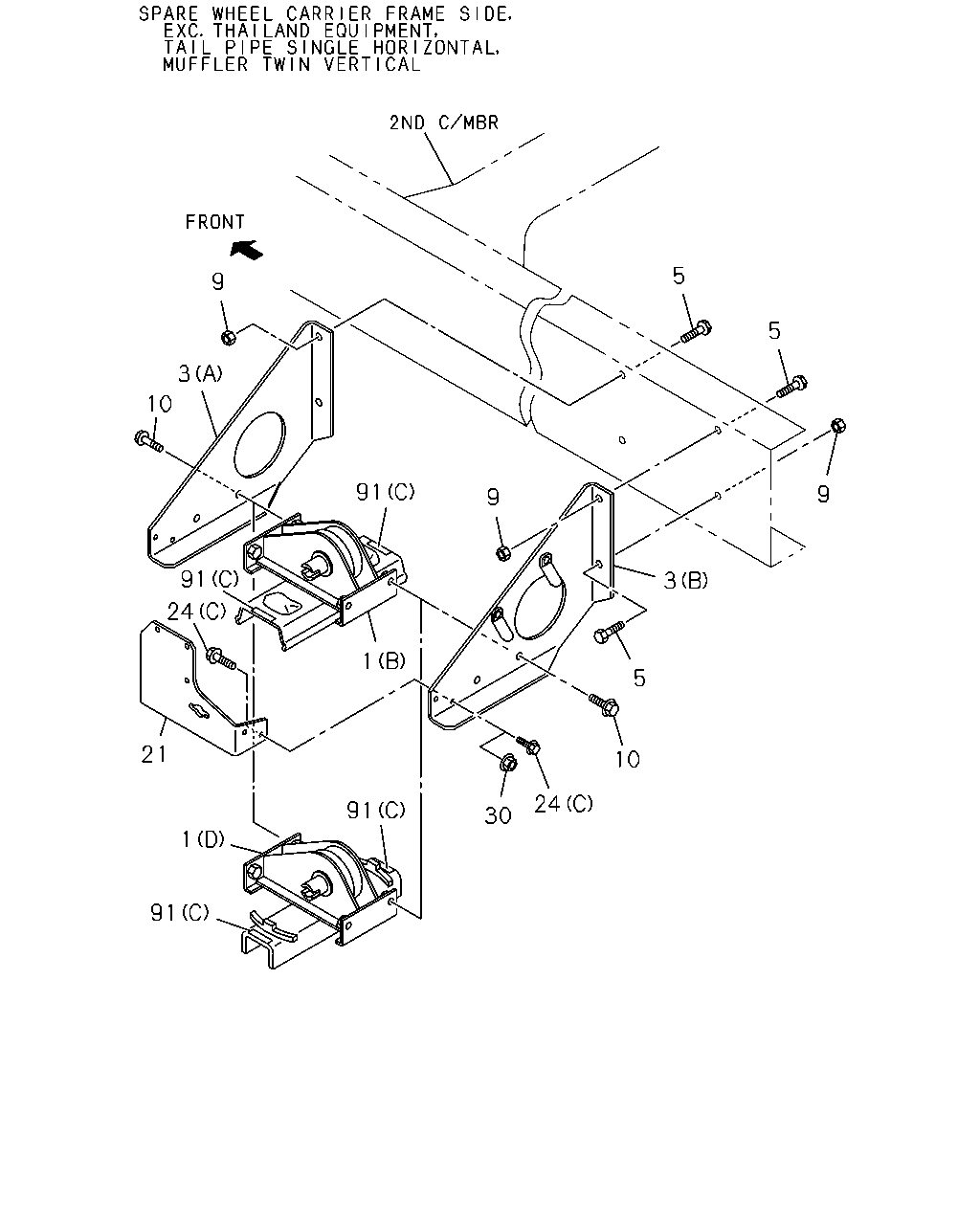

çizim 38891
5 9 5 3 10 91 9 9 91 3 24 1 5 21 10 24 91 30 1 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-218-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (C) 		1-53630-218-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (B) 		1-53631-323-1 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-53631-323-1 01 1 9711-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,DISC WHEEL AL<SDM> (B) 		1-53631-323-1 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (A) 		1-53631-324-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-53631-324-0 01 1 9711-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,DISC WHEEL AL<SDM> (A) 		1-53631-324-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
THAILAND EQUIPMENT(PM9) (C) 		1-53631-393-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-53631-393-0 01 1 9711-9805 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (C) 		1-53631-393-0 01 1 9806-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (C) 		1-53631-393-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
THAILAND EQUIPMENT(PM9) (D) 		1-53631-389-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (D) 		1-53631-389-0 01 1 9711-9805 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (D) 		1-53631-389-0 01 1 9806-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (D) 		1-53631-389-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53631-434-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (D) 		1-53631-388-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-53631-326-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-53631-325-1 01 1 9905- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 04 1 9911- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28081-235-0 04 1 9603-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28681-235-0 04 1 9607-9710 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 FLANGE 		0-28681-235-0 04 1 9711-9902 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 04 1 9903-9904 ● ●
5 BOLT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28081-235-0 06 1 9603-9606 ● ●
5 BOLT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28681-235-0 06 1 9607-9710 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 FLANGE 		0-28681-235-0 06 1 9711-9805 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 9806-9902 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9903-9904 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 04 1 9905-9910 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 06 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 03 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 04 1 9603-9710 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9711-9904 ● ●
9 NUT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 06 1 9603-9606 ● ●
9 NUT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 03 1 9607-9710 ● ●
9 NUT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 03 1 9711-9805 ● ●
9 NUT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 9806-9904 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) 		1-53631-328-0 01 1 9603-9710 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-328-0 01 1 9711-9903 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-428-0 01 1 9904-9904 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-428-0 01 1 9905- ● ●
21 BRACKET; SPARE TIRE HANGER
THAILAND EQUIPMENT(PM9) 		1-53631-128-1 01 1 9603-9710 ● ●
21 BRACKET; SPARE TIRE HANGER
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-128-1 01 1 9711-9805 ● ●
21 BRACKET; SPARE TIRE HANGER
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9806-9904 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-128-1 01 1 9905- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9711-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28081-225-0 02 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28681-225-0 02 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9711-9805 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9806-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9905- ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE 		0-91150-108-0 04 1 9904-9904 ● ●
30 NUT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M8 FLANGE 		0-91150-108-0 04 1 9905- ● ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (A) 		1-53639-039-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-040-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53639-042-0 02 1 9905-0012 ●

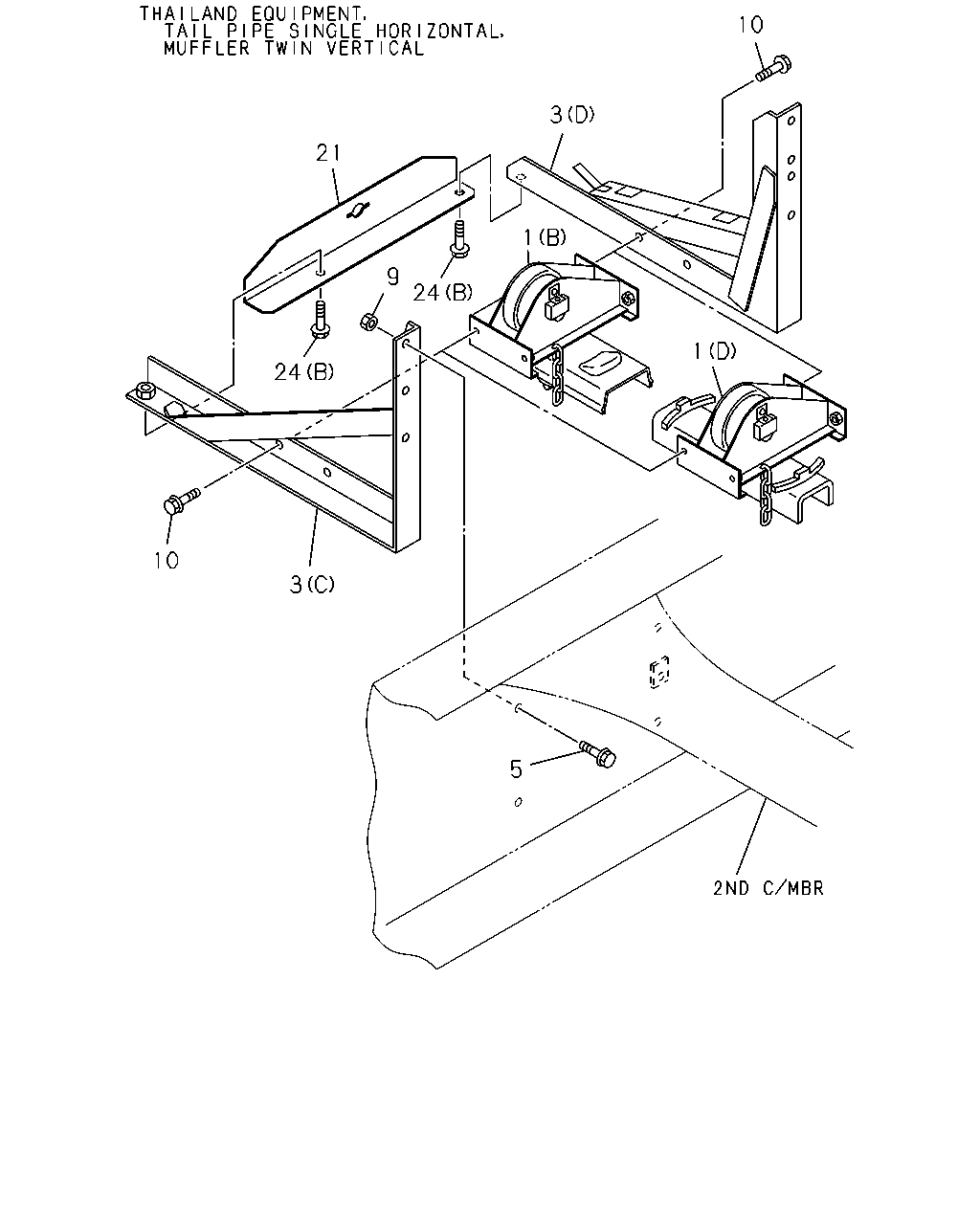

çizim 40657
10 3 21 1 9 24 1 24 10 3 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-218-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (C) 		1-53630-218-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (B) 		1-53631-323-1 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-53631-323-1 01 1 9711-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,DISC WHEEL AL<SDM> (B) 		1-53631-323-1 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (A) 		1-53631-324-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-53631-324-0 01 1 9711-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,DISC WHEEL AL<SDM> (A) 		1-53631-324-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
THAILAND EQUIPMENT(PM9) (C) 		1-53631-393-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (C) 		1-53631-393-0 01 1 9711-9805 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (C) 		1-53631-393-0 01 1 9806-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (C) 		1-53631-393-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
THAILAND EQUIPMENT(PM9) (D) 		1-53631-389-0 01 1 9603-9710 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> (D) 		1-53631-389-0 01 1 9711-9805 ● ●
3 BRACKET; TIRE CARRIER,FRT
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (D) 		1-53631-389-0 01 1 9806-9904 ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. DISC WHEEL AL<SDM> (D) 		1-53631-389-0 01 1 9905- ● ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53631-434-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (D) 		1-53631-388-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (A) 		1-53631-326-0 01 1 9905- ●
3 BRACKET; TIRE CARRIER,FRT
SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (B) 		1-53631-325-1 01 1 9905- ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 04 1 9911- ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28081-235-0 04 1 9603-9606 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28681-235-0 04 1 9607-9710 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 FLANGE 		0-28681-235-0 04 1 9711-9902 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 04 1 9903-9904 ● ●
5 BOLT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28081-235-0 06 1 9603-9606 ● ●
5 BOLT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12X35 FLANGE 		0-28681-235-0 06 1 9607-9710 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> M12X35 FLANGE 		0-28681-235-0 06 1 9711-9805 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X35 FLANGE 		0-28681-235-0 06 1 9806-9902 ● ●
5 BOLT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 06 1 9903-9904 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> M12X40 FLANGE 		0-28681-240-0 04 1 9905-9910 ● ●
5 BOLT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12X40 FLANGE 		0-28681-240-0 06 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 03 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9911- ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 04 1 9603-9710 ● ●
9 NUT; BRKT TO FRAME
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 04 1 9711-9904 ● ●
9 NUT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 06 1 9603-9606 ● ●
9 NUT; BRKT TO FRAME
THAILAND EQUIPMENT(PM9) M12 		9-99110-512-0 03 1 9607-9710 ● ●
9 NUT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> M12 		9-99110-512-0 03 1 9711-9805 ● ●
9 NUT; BRKT TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> M12 		9-99110-512-0 03 1 9806-9904 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607- ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) 		1-53631-328-0 01 1 9603-9710 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-328-0 01 1 9711-9903 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-428-0 01 1 9904-9904 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-428-0 01 1 9905- ● ●
21 BRACKET; SPARE TIRE HANGER
THAILAND EQUIPMENT(PM9) 		1-53631-128-1 01 1 9603-9710 ● ●
21 BRACKET; SPARE TIRE HANGER
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-128-1 01 1 9711-9805 ● ●
21 BRACKET; SPARE TIRE HANGER
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-53631-128-1 01 1 9806-9904 ● ●
21 BRACKET; SPARE TIRE HANGER
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53631-128-1 01 1 9905- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9711-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28081-225-0 02 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28681-225-0 02 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9711-9805 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9806-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9905- ● ●

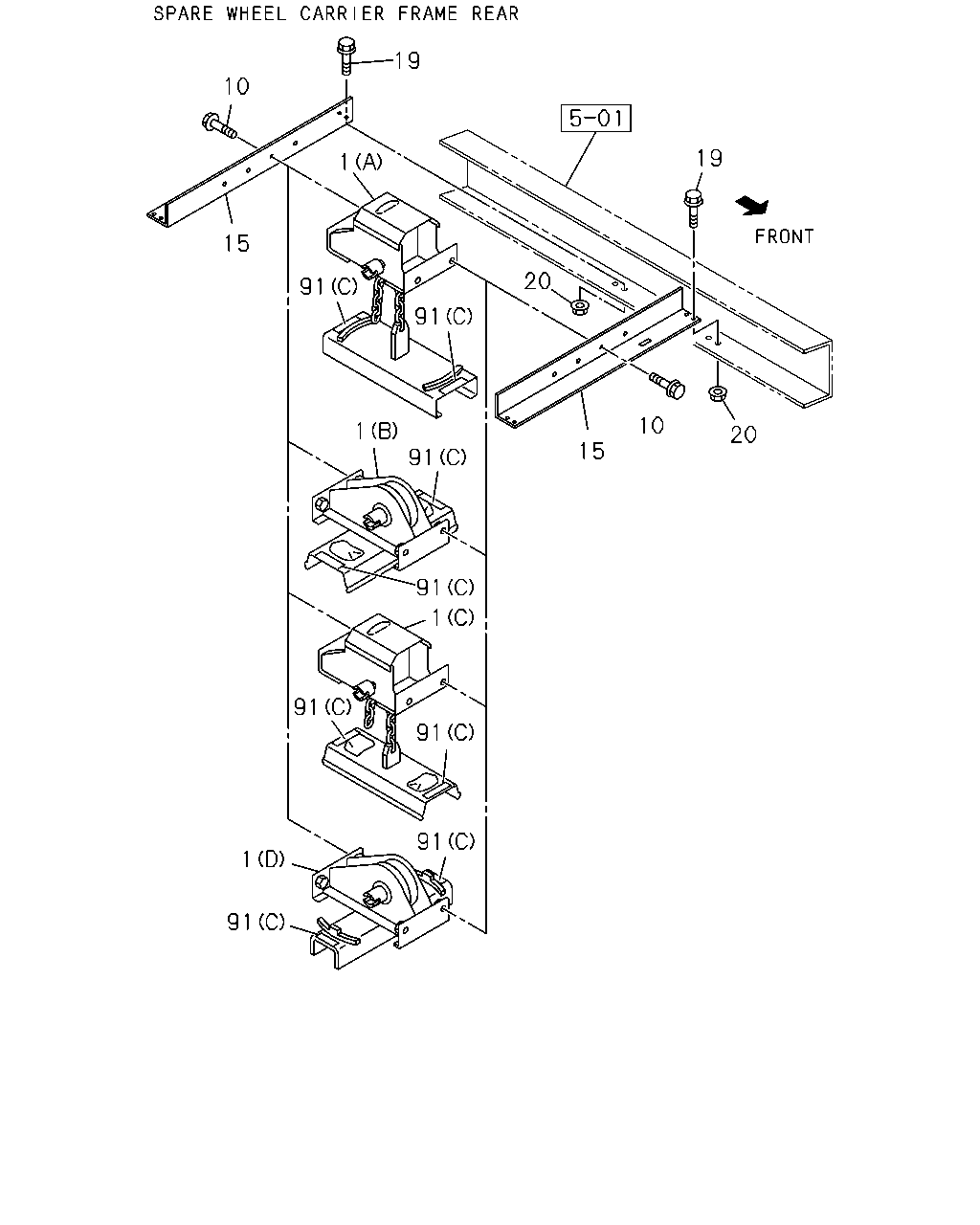

çizim 40693
19 10 19 1 15 20 91 91 10 1 20 15 91 91 1 91 91 91 1 91
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-218-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (C) 		1-53630-218-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9905- ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE 		0-28081-225-0 04 1 9603-9606 ● ●
10 BOLT; TIRE HANGER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE 		0-28681-230-0 04 1 9607- ● ●
15 MEMBER; CROSS,SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> 		1-53631-395-1 02 1 9603-0004 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53631-395-1 02 1 9603-0004 ●
15 MEMBER; CROSS,SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM> 		1-53631-395-1 02 1 0005-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,DISC WHEEL AL<SDM> 		1-53631-395-1 02 1 0005-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> EXC. DISC WHEEL AL<SDM> 		1-53631-395-1 02 1 0101- ●
15 MEMBER; CROSS,SPARE TIRE
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		1-53631-455-0 02 1 0005-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53631-455-0 02 1 0005-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> 		1-53631-455-0 02 1 0101- ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> DISC WHEEL AL<SDM> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53631-454-0 02 1 0005-0012 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53631-394-0 02 1 9603-0004 ●
15 MEMBER; CROSS,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,DISC WHEEL AL<SDM> 		1-53631-394-0 02 1 0005-0012 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9603-9606 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE 		0-28081-035-0 08 1 9603-9606 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X40 FLANGE 		0-28681-040-0 08 1 9607-9607 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X40 FLANGE 		0-28681-040-0 08 1 9607-9607 ●
19 BOLT; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE 		0-28081-035-0 08 1 9608- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 11.00R20<85X>,RR TIRE 11.00-20<97X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X35 FLANGE 		0-28081-035-0 08 1 9608- ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X25 FLANGE 		0-28081-025-0 08 1 9603-9606 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X30 FLANGE 		0-28681-030-0 08 1 9607-9607 ●
19 BOLT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> RR TIRE 10.00R20<87X>,RR TIRE 10.00-20<96X> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M10X25 FLANGE 		0-28081-025-0 08 1 9608- ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 		9-09110-510-0 08 1 9603-9606 ●
20 NUT; C/MBR
SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE 		0-91150-210-0 08 1 9607- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (A) 		1-53639-039-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-040-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53639-042-0 02 1 9905-0012 ●

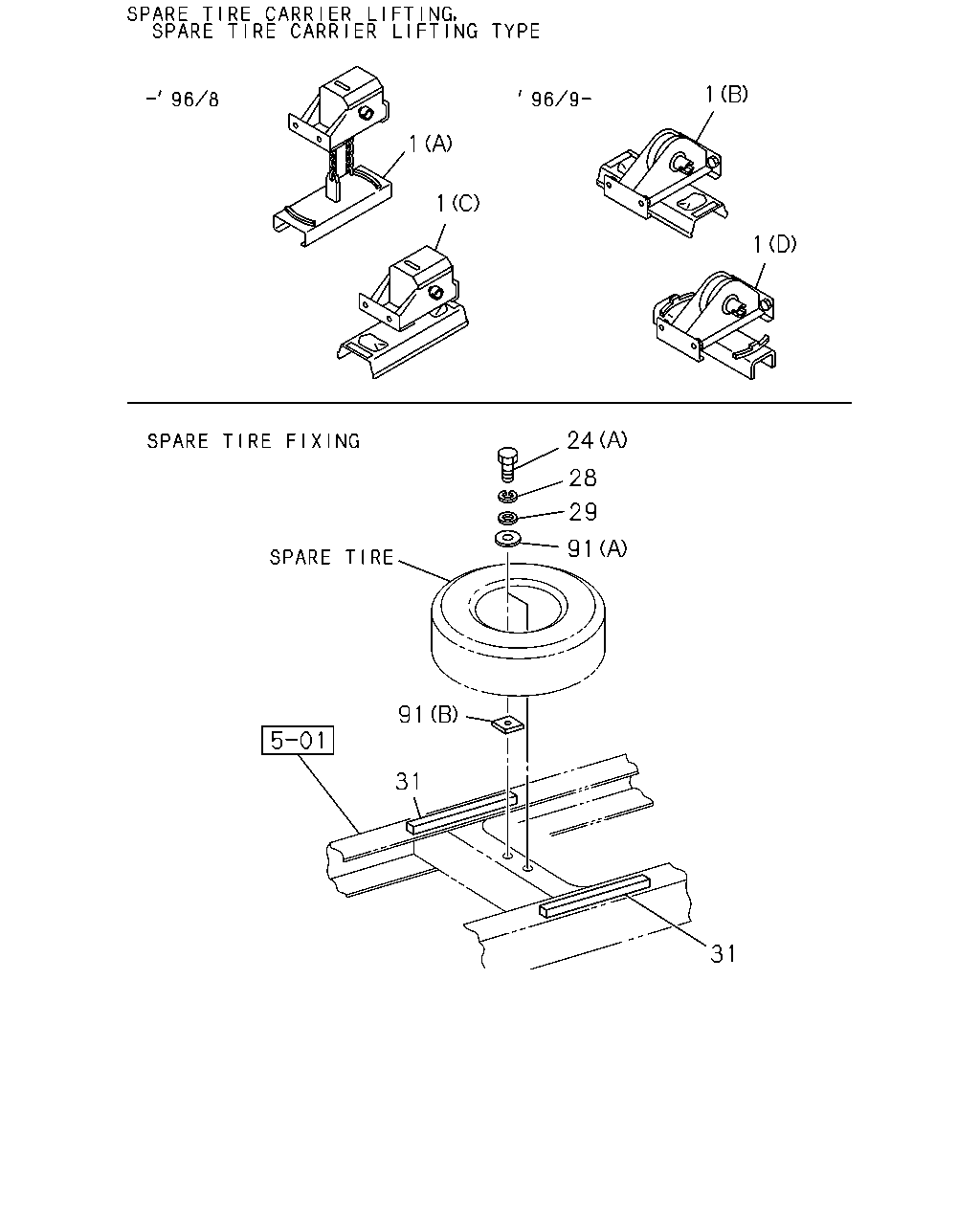

çizim 43426
1 1 1 1 24 28 29 91 91 31 31
BalonParca AdiParca NoAdetTipApplied Date A B
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (C) 		1-53630-218-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 02 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (A) 		1-53630-217-0 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> WHEEL 8STUD 7.50VX20 165-13<Q62> (B) 		1-53630-208-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> (B) 		1-53630-208-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8> EXC. WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> (D) 		1-53630-210-1 01 1 9905- ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (C) 		1-53630-218-0 02 1 9603-9608 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9609-9904 ● ●
1 HANGER ASM; TIRE FT
WHEEL 8.25X22.5 165-13<QM6>,WHEEL 8STUD 7.50VX20 165-13<Q62> SPARE TIRE CARRIER LIFTING TYPE VAR2<RF6> (B) 		1-53630-208-1 02 1 9905- ● ●
24 BOLT; SPARE TIRE
SPARE TIRE FIXING<RE3> (A) M14X100 		0-20801-400-0 02 1 9603- ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28080-825-0 04 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. THAILAND EQUIPMENT(PM9) (C) M8X25 FLANGE 		0-28680-825-0 04 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9711-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (C) M8X25 FLANGE 		0-28680-825-0 04 1 9905- ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28081-225-0 02 1 9603-9606 ● ●
24 BOLT; SPARE TIRE
THAILAND EQUIPMENT(PM9) (B) M12X25 FLANGE 		0-28681-225-0 02 1 9607-9710 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9711-9805 ● ●
24 BOLT; SPARE TIRE
TAIL PIPE SINGLE HORIZONTAL<NC2> SPARE WHEEL CARRIER FRAME SIDE<P13> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9806-9904 ● ●
24 BOLT; SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2> (B) M12X25 FLANGE 		0-28681-225-0 02 1 9905- ● ●
28 WASHER; LK,SPARE TIRE
SPARE TIRE FIXING<RE3> ID=14.2 		9-09150-614-0 02 1 9603- ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-414-0 02 1 9603-9608 ● ●
29 WASHER; PL,BRKT,HANGER
SPARE TIRE FIXING<RE3> ID=15 OD=52 		9-09164-814-0 02 1 9609- ● ●
31 SPACER; HANGER BRKT
SPARE TIRE FIXING<RE3> 		1-53637-007-0 02 1 9603- ● ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (A) 		1-53639-039-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE TIRE FIXING<RE3> DISC WHEEL AL<SDM> (B) 		1-53639-040-0 02 1 9905- ●
91 PAD; TIRE CARRIER
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> DISC WHEEL AL<SDM> (C) 		1-53639-042-0 02 1 9905-0012 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
