Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-33 - FAN AND FAN BELT
▶
0-33 — FAN AND FAN BELT
(#41000) — 33 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
◀

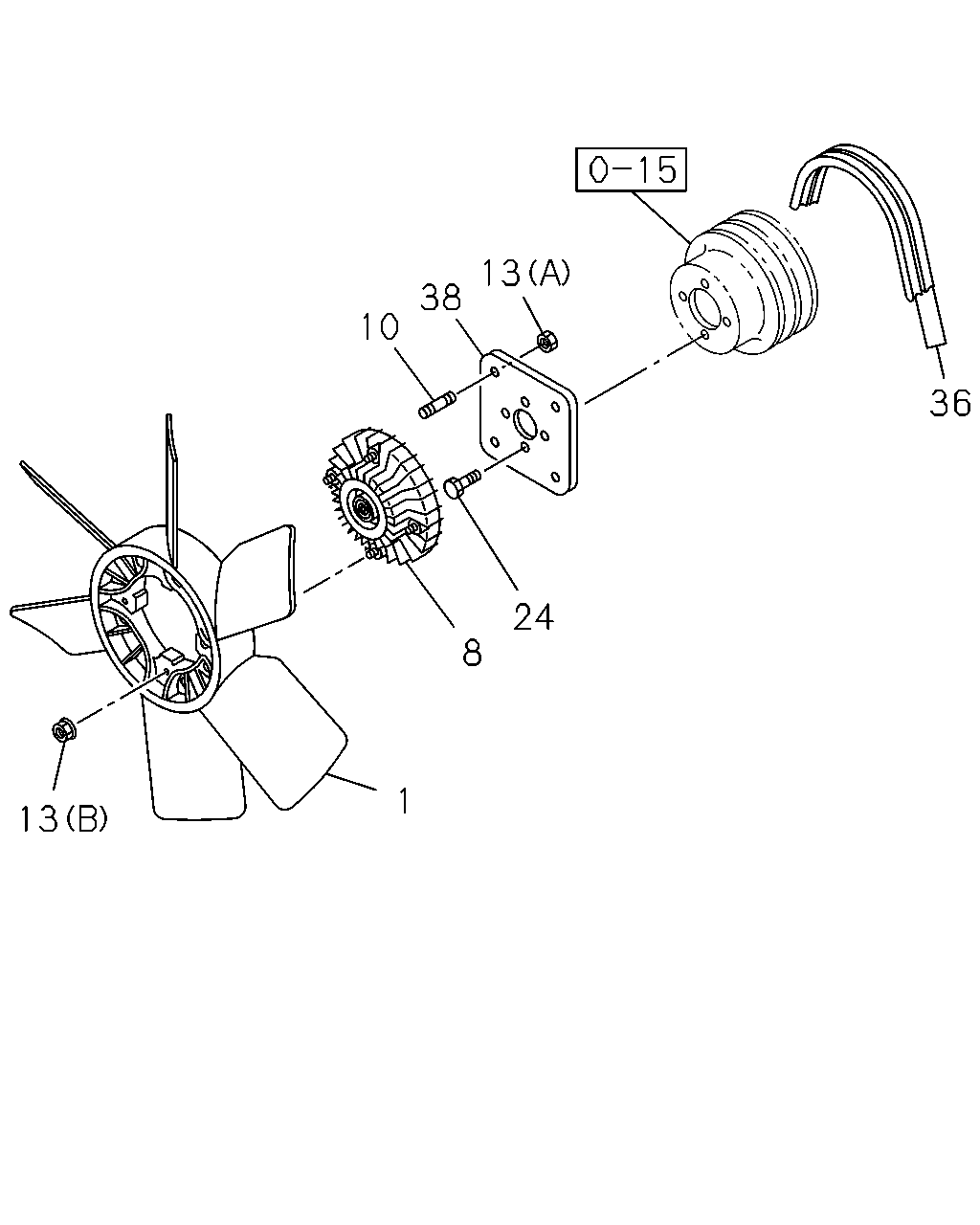

[033A] COOLING FAN (19 parça)

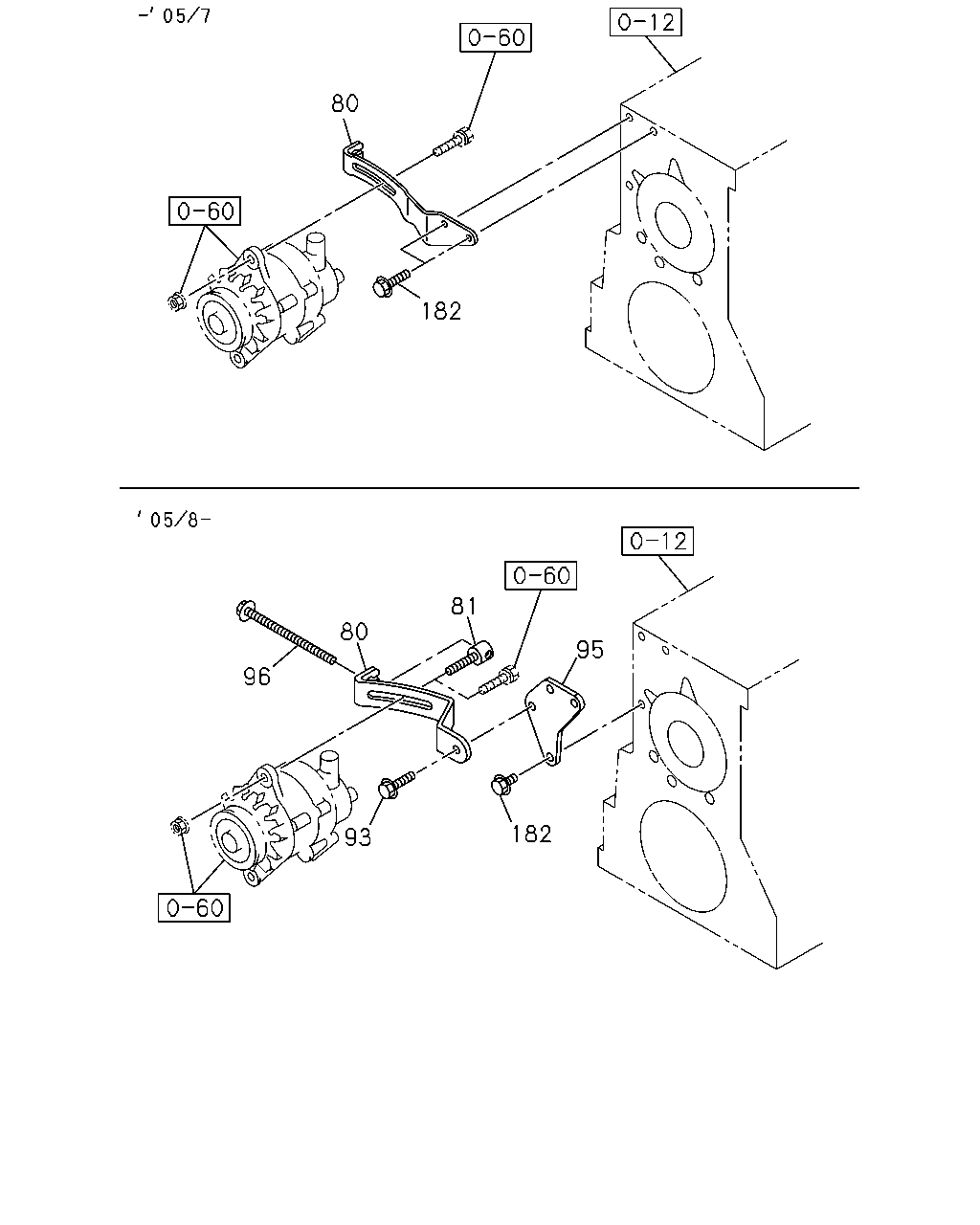

[033A] FIXING;GENERATOR (14 parça)
▶
13
38
10
36
24
8
1
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
FAN; COOLING
5-13662-012-1
01
1
0504-0609
●
1
FAN; COOLING
5-13662-012-1
01
1
0610-
●
8
CLUTCH; COOLING FAN
8-97148-797-0
01
1
0504-0609
●
8
CLUTCH; COOLING FAN
8-97148-797-0
01
1
0610-
●
10
STUD; FAN CLU TO PLATE
M8X20 L=32
9-04110-820-0
04
1
0504-0604
●
10
STUD; FAN CLU TO PLATE
M8X20 L=32
0-41010-820-0
04
1
0605-0609
●
10
STUD; FAN CLU TO PLATE
M8X20 L=32
0-41010-820-0
04
1
0610-
●
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91150-108-0
04
1
0504-0602
●
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91180-108-0
04
1
0603-0609
●
13
NUT; COOLING FAN
(A) M8 FLANGE
0-91180-108-0
04
1
0610-
●
13
NUT; COOLING FAN
(B) M6 FLANGE
5-09440-004-0
04
1
0504-0609
●
13
NUT; COOLING FAN
(B) M6 FLANGE
5-09440-004-0
04
1
0610-
●
24
BOLT; FAN
M8X18 FLANGE
0-28080-818-0
04
1
0504-0609
●
24
BOLT; FAN
M8X18 FLANGE
0-28080-818-0
04
1
0610-
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0504-0609
●
36
BELT; COOLING FAN
1 SET=2 PIECE(8971801810)
8-97180-199-1
01
1
0610-
●
36
BELT; COOLING FAN
BEST VALUE PARTS
5-87610-098-0
01
1
0610-
●
38
SPACER; FAN
8-97108-643-0
01
1
0504-0609
●
38
SPACER; FAN
8-97108-643-0
01
1
0610-
●
80
182
81
80
95
96
182
93
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
80
PLATE; ADJ
8-97164-089-2
01
1
0504-0507
●
80
PLATE; ADJ
8-97172-415-0
01
1
0508-0609
●
80
PLATE; ADJ
8-97172-415-0
01
1
0610-
●
81
PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60)
8-97257-223-0
01
1
0610-
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE
0-28681-025-0
01
1
0508-0512
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE
0-28651-025-0
01
1
0601-0609
●
93
BOLT; ADJ PLATE BRKT
M10X25 FLANGE
0-28651-025-0
01
1
0610-
●
95
BRACKET; ADJ PLATE
8-97037-510-0
01
1
0508-0609
●
95
BRACKET; ADJ PLATE
8-97037-510-0
01
1
0610-
●
96
BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) M8X130 FLANGE
8-97172-720-1
01
1
0610-
●
182
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
02
1
0504-0507
●
182
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
03
1
0508-0512
●
182
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
03
1
0601-0609
●
182
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
03
1
0610-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
