◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#4100) — 29 parça

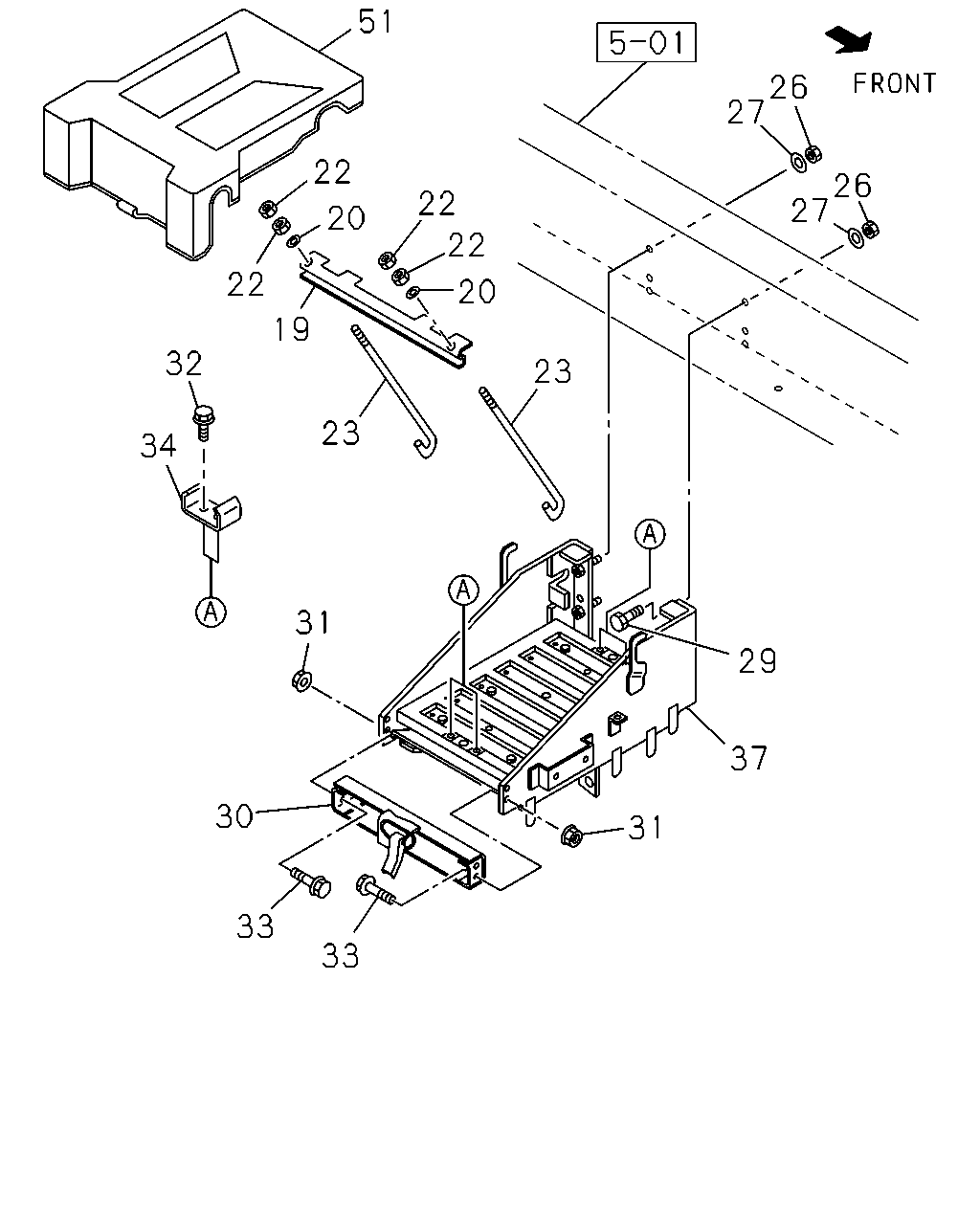

çizim 43553
51 26 27 22 26 27 22 22 22 20 19 32 23 23 34 31 29 37 30 31 33 33
BalonParca AdiParca NoAdetTipApplied Date A B
19 STAY; BATTERY 1-53618-039-2 01 1 9603- ● ●
20 WASHER; PL,STAY
ID=8.4 OD=22 		9-09164-708-0 02 1 9603- ● ●
22 NUT; STAY
M8 		9-09110-508-0 04 1 9603-9606 ● ●
22 NUT; STAY
M8 FLANGE 		0-91150-108-0 04 1 9607-9812 ● ●
22 NUT; STAY
M8 		9-09110-408-0 04 1 9901- ● ●
23 BOLT; STAY
L=250 		1-53616-109-0 02 1 9603-9904 ● ●
23 BOLT; STAY
L=250 		1-53616-108-0 02 1 9905- ● ●
26 NUT; BRKT
M14 		9-99110-514-0 04 1 9603- ● ●
27 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 04 1 9603- ● ●
29 BOLT; BRKT TO FRAME
M14X40 		0-20801-440-0 02 1 9603- ● ●
30 PLATE; BATTERY 1-53619-086-0 01 1 9603- ● ●
31 NUT; PLATE
M8 		9-09110-508-0 04 1 9603-9606 ● ●
31 NUT; PLATE
M8 FLANGE 		0-91150-108-0 04 1 9607- ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 9603-9606 ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X20 FLANGE 		0-28680-820-0 04 1 9607-9912 ● ●
32 BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE 		0-28080-816-0 04 1 0001- ● ●
33 BOLT; PLATE TO BRKT
M8X16 FLANGE 		0-28080-816-0 04 1 9603-9606 ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9607- ● ●
34 SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> 		1-53619-084-0 02 1 9603- ● ●
37 BRACKET; BATTERY
THAILAND EQUIPMENT(PM9) 		1-53610-130-0 01 1 9603-9810 ● ●
37 BRACKET; BATTERY
TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53610-130-0 01 1 9811-9904 ● ●
37 BRACKET; BATTERY
THAILAND EQUIPMENT(PM9) 		1-53610-130-0 01 1 9905-9905 ●
37 BRACKET; BATTERY
MUFFLER TWIN VERTICAL<NBS>,SILENCER SINGLE VERTICAL<N28> 		1-53610-130-0 01 1 9906- ●
37 BRACKET; BATTERY
MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> 		1-53610-130-0 01 1 9906- ●
37 BRACKET; BATTERY
EXC. THAILAND EQUIPMENT(PM9) 		1-53610-131-1 01 1 9603-9810 ● ●
37 BRACKET; BATTERY
EXC. TAIL PIPE SINGLE HORIZONTAL<NC2> 		1-53610-131-1 01 1 9811-9904 ● ●
37 BRACKET; BATTERY
EXC. THAILAND EQUIPMENT(PM9) 		1-53610-131-1 01 1 9905-9905 ● ●
37 BRACKET; BATTERY
EXC. MUFFLER TWIN VERTICAL<NBS>,TAIL PIPE SINGLE HORIZONTAL<NC2>,SILENCER SINGLE VERTICAL<N28> 		1-53610-131-1 01 1 9906- ● ●
51 COVER; BATTERY 1-53612-040-1 01 1 9603- ● ●
