Sayfa 3-78 - Isuzu EPC

3-78 — FIXING PARTS; AIR PIPING (#41) — 669 parça

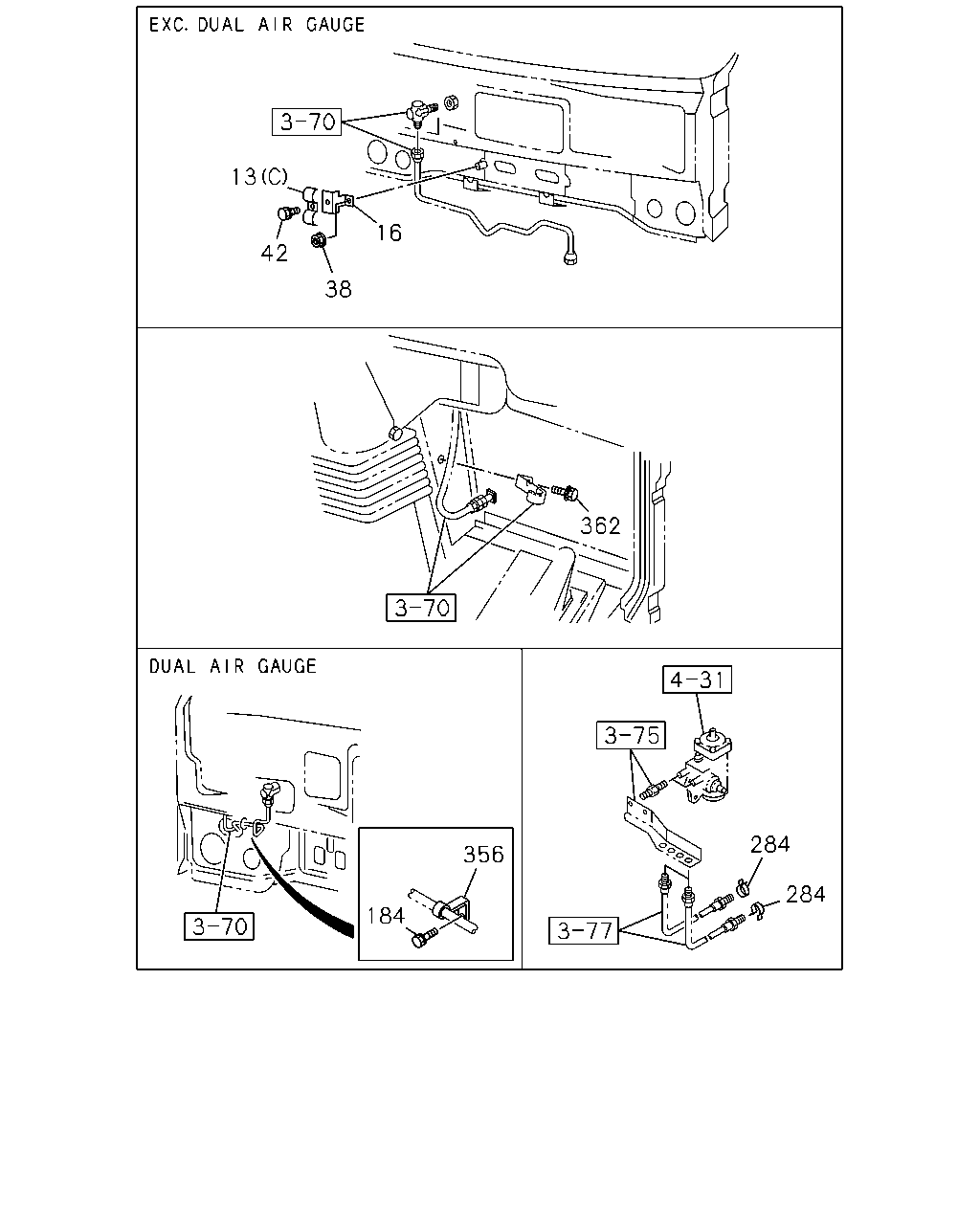

13 16 42 38 362 284 356 284 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE A/T<X9D> EXC. DUAL AIR GAUGE<UG2> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE ISUZU M/T<X9A> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE (C) ID=5 & 8	5-09700-165-0	01	1	9202-		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
16	BRACKET; PIPE CLIP A/T<X9D> EXC. DUAL AIR GAUGE<UG2>	1-47465-168-1	01	1	9202-9207	●
16	BRACKET; PIPE CLIP ISUZU M/T<X9A>	1-47465-168-1	01	1	9202-9207	●
16	BRACKET; PIPE CLIP A/T<X9D> EXC. DUAL AIR GAUGE<UG2>	1-47465-168-1	01	1	9208-	●
16	BRACKET; PIPE CLIP ISUZU M/T<X9A>	1-47465-168-1	01	1	9208-	●
16	BRACKET; PIPE CLIP	1-47465-168-1	01	1	9208-		●
38	NUT; BRKT M6 FLANGE	1-09984-141-0	01	1	9202-	●	●
42	BOLT; CLIP,AIR PIPE A/T<X9D> EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-9207	●
42	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9202-9207	●
42	BOLT; CLIP,AIR PIPE A/T<X9D> EXC. DUAL AIR GAUGE<UG2> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-	●
42	BOLT; CLIP,AIR PIPE ISUZU M/T<X9A> M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-	●
42	BOLT; CLIP,AIR PIPE M6X20 W/LK&PL WASHER	1-09980-493-0	01	1	9208-		●
184	BOLT; PIPE CLIP DUAL AIR GAUGE<UG2> M6X16 W/LK&PL WASHER	1-09980-497-0	01	1	9202-	●	●
284	CLIP; FLEX HOSE ID=18 & 18	8-94323-068-0	02	1	9202-	●	●
356	CLIP; AIR PIPE DUAL AIR GAUGE<UG2> ID=6 H=20 L=20	9-09527-005-0	01	1	9202-	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9202-9204	●	●
362	BOLT; FLEX HOSE CLIP M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●

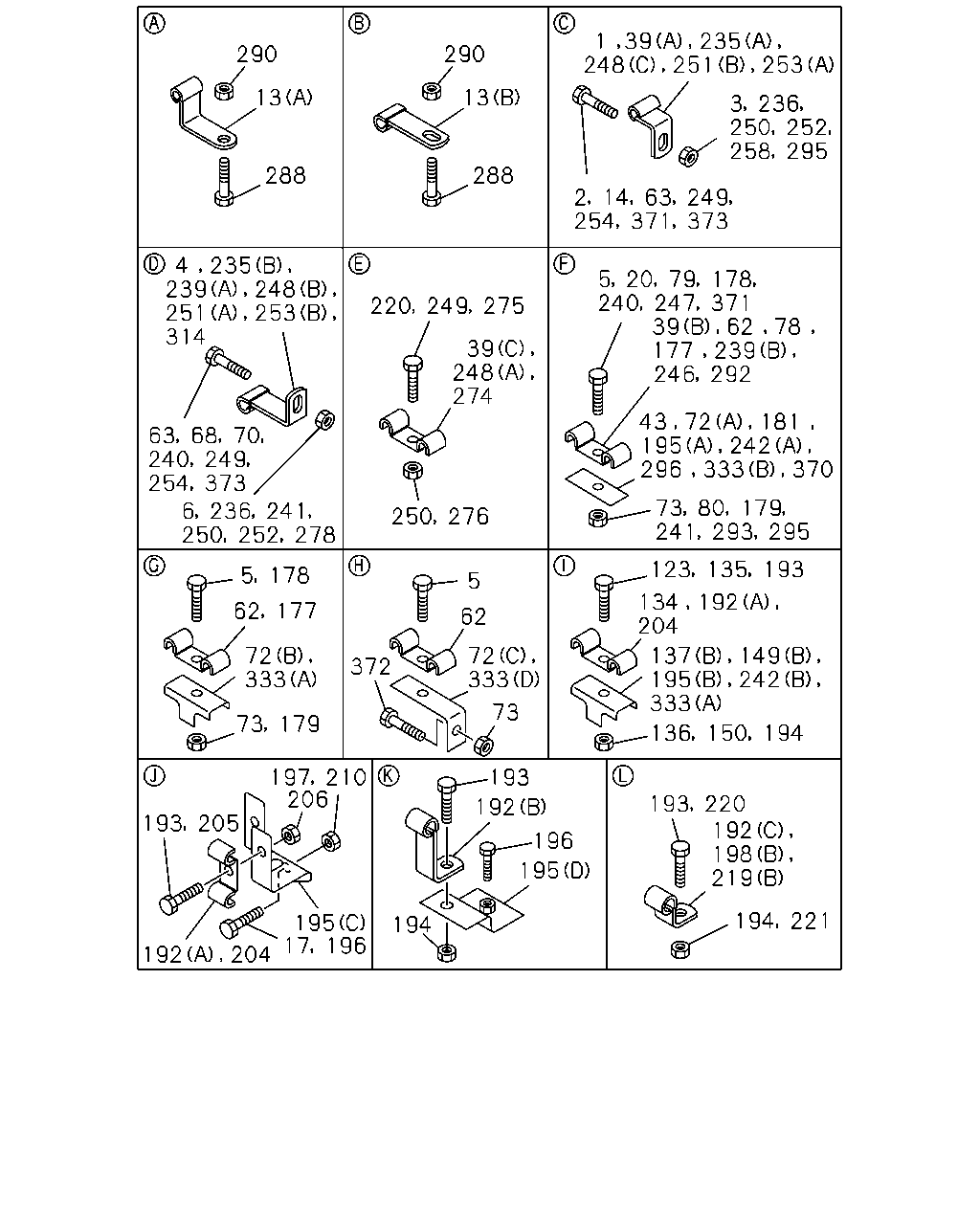

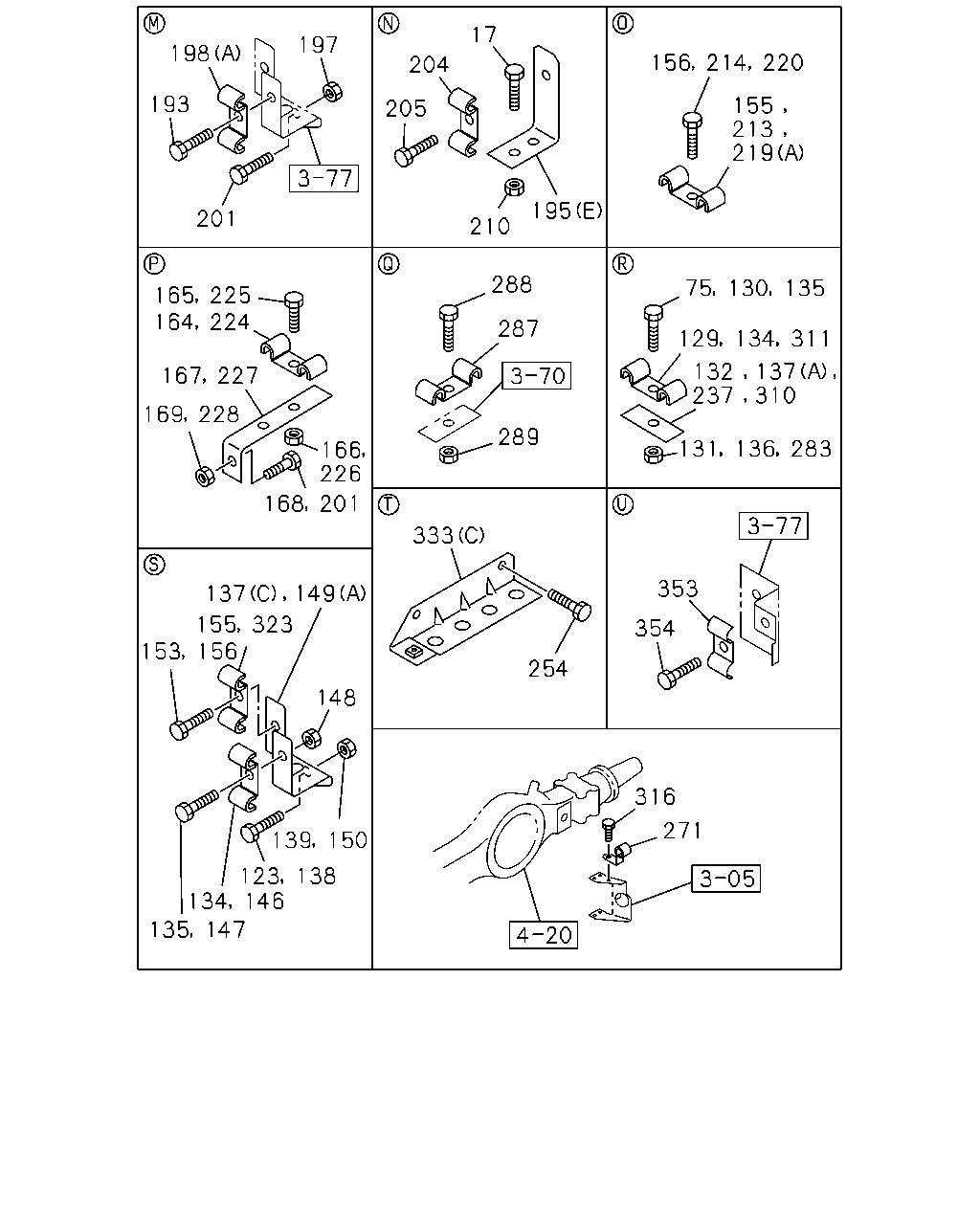

17 197 198 156 214 220 204 193 155 213 219 205 195 201 210 288 75 13 130 225 224 165 164 287 129 134 311 132 237 137 310 167 227 169 228 289 131 136 283 166 226 201 168 333 353 137 149 155 156 323 354 153 254 148 316 271 139 150 123 146 138 134 135 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE A/T<X9D> EXC. DUAL AIR GAUGE<UG2> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE ISUZU M/T<X9A> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE (C) ID=5 & 8	5-09700-165-0	01	1	9202-		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
17	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
17	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
17	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
17	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
75	BOLT; CLIP EXC. DUAL AIR GAUGE<UG2> M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9211-	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9211-		●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9211-		●
129	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
129	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9207	●	●
129	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9208-9210	●	●
129	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9211-		●
130	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9208-9210	●	●
130	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-		●
130	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
130	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
130	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9210	●	●
130	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9211-	●	●
131	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
132	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9202-	●	●
134	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9202-9207	●
134	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9208-	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9208-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9208-	●	●
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9210	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9210	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9211-	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9211-		●
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-9210	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9211-		●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●
135	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●
135	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
135	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
136	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9208-	●
136	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●
136	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9202-9207	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9208-	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-47475-427-1	01	1	9208-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9202-	●	●
137	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9202-9207	●	●
137	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9208-9210	●	●
137	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9211-		●
138	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
138	BOLT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9205-9207	●	●
138	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9208-9210	●	●
138	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9211-		●
138	BOLT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
138	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
139	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
139	NUT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9202-9207	●	●
139	NUT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9208-9210	●	●
139	NUT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	03	1	9211-		●
146	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9208-	●	●
146	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	04	1	9208-	●	●
146	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
146	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-	●	●
147	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	03	1	9208-	●	●
147	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
147	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
147	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
147	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-	●	●
147	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9208-	●	●
148	NUT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9208-9210	●	●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9208-9210	●	●
149	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	02	1	9211-	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9211-		●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9211-		●
150	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●	●
150	NUT; CLIP BRKT EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9208-9208	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9209-9210	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9211-	●
150	NUT; CLIP BRKT EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9211-		●
153	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
153	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
153	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-	●	●
155	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●
155	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●
155	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
155	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-9210	●	●
155	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9211-		●
155	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9202-9207	●	●
155	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9208-	●	●
156	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	03	1	9202-9204	●	●
156	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
164	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-9207	●
164	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9208-	●
165	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●
165	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-9207	●
165	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●
166	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●
166	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●
167	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-730-0	01	1	9202-9207	●
167	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-730-0	01	1	9208-	●
168	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●
168	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9205-9207	●
168	BOLT; CLIP BRKT WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9208-	●
169	NUT; CLIP BRKT WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●
169	NUT; CLIP BRKT WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	05	1	9202-9204	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	05	1	9205-	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
195	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP (D) 45X55	1-47475-460-1	01	1	9202-	●	●
195	BRACKET; PIPE CLIP (E)	1-47475-746-2	01	1	9202-	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=50	1-47475-299-2	01	1	9208-	●	●
195	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9202-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-	●	●
198	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
198	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●	●
198	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 L=20 H=20	5-09700-351-0	01	1	9202-	●	●
201	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28010-820-0	01	1	9202-9204	●	●
201	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	01	1	9205-	●	●
201	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
201	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●	●
201	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9208-	●	●
204	CLIP; AIR PIPE 11X11	1-09700-739-0	03	1	9202-9207	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9208-9208	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	03	1	9209-9210	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9211-	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	03	1	9211-		●
204	CLIP; AIR PIPE 11X7	1-09700-740-0	02	1	9202-9207	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	02	1	9209-	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	02	1	9209-	●	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	04	1	9208-9208	●	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9209-9210	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9211-	●
204	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	04	1	9211-	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9211-		●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 9X11	1-09700-747-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 9X11	1-09700-747-0	02	1	9209-	●	●
204	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	04	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	04	1	9209-	●	●
204	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	04	1	9209-	●	●
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
205	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9209-9210	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9211-		●
205	BOLT; PIPE CLIP M8X35 FLANGE	0-28010-835-0	03	1	9202-9204	●	●
205	BOLT; PIPE CLIP M8X35 FLANGE	0-28080-835-0	05	1	9205-	●	●
205	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9208-9208	●	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9209-9210	●	●
205	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9211-	●
205	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9211-	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9211-		●
210	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9202-	●	●
213	CLIP; AIR PIPE ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9207	●	●
213	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9208	●	●
213	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9208	●	●
213	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9209-	●	●
213	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
213	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-9208	●	●
213	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-9208	●	●
213	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9209-	●	●
213	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
213	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-9208	●	●
213	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-9208	●	●
213	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9209-	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
214	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
214	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
214	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
214	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9209-	●	●
219	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9208-	●	●
219	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-	●	●
219	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●	●
220	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
220	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9209-9210	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9211-		●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
224	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9207	●	●
224	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-	●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
225	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-9207	●	●
225	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
226	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●	●
226	NUT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
227	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-47475-730-0	01	1	9202-	●	●
228	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-	●	●
237	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9208-	●	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
271	CLIP; AIR PIPE FIX REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=8 H=20 L=20	1-09700-604-0	01	1	9501-	●	●
283	NUT; CLIP EXC. DUAL AIR GAUGE<UG2> M8	9-09110-408-0	01	1	9202-	●	●
287	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	9202-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
289	NUT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-	●	●
310	BRACKET; PIPE CLIP EXC. DUAL AIR GAUGE<UG2> L=50	1-47475-299-2	01	1	9202-	●	●
311	CLIP; AIR PIPE EXC. DUAL AIR GAUGE<UG2> ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-	●	●
316	BOLT; CLIP FINAL GEAR 13.5"<B3Z> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9501-	●	●
316	BOLT; CLIP FINAL GEAR 15.5"<B2X> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	01	1	9202-	●	●
316	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9202-9412	●	●
316	BOLT; CLIP FINAL GEAR 14.5"<B2V> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9501-	●	●
323	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
323	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-	●	●
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	02	1	9208-9208	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	02	1	9209-	●	●
333	BRACKET; BRK AIR PIPE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-79738-157-2	01	1	9309-	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	03	1	9208-	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	01	1	9208-	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> (C)	1-79738-179-1	01	1	9202-9308	●	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-79738-179-1	01	1	9309-	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> (C)	1-79738-179-1	01	1	9309-		●
333	BRACKET; BRK AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9202-9308	●	●
333	BRACKET; BRK AIR PIPE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9309-	●
333	BRACKET; BRK AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9309-		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) L=60	1-47475-455-0	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	01	1	9209-		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	02	1	9209-		●
353	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=9 & 9 L=15 & 15	1-09700-061-0	02	1	9202-	●	●
354	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M6X12 W/LK WASHER	0-50040-612-0	02	1	9202-	●	●

290 290 13 13 288 288 249 373 314 220 249 275 39 248 274 181 250 276 123 135 193 5 178 5 134 204 192 62 177 62 72 333 137 149 333 72 333 372 73 73 179 136 150 194 206 193 193 220 192 198 219 192 193 205 196 195 194 221 195 194 192 204 1 39 235 248 251 253 3 236 250 252 258 295 2 14 63 254 371 4 235 239 248 251 253 63 68 70 240 249 254 373 6 236 241 250 252 278 5 20 79 178 240 247 371 39 62 78 177 239 246 292 43 72 195 242 296 333 370 73 80 179 241 293 295 195 242 197 210 17 196

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=6 H=20 L=20	1-09700-603-0	01	1	9202-9202	●
2	BOLT; CLIP FIX EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●
2	BOLT; CLIP FIX EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●
3	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9202	●
4	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) D=9 T=45	5-09700-021-0	01	1	9202-9207	●	●
5	BOLT; PIPE CLIP M8X40	0-28010-840-0	03	1	9202-9204	●	●
5	BOLT; PIPE CLIP M8X40 FLANGE	0-28080-840-0	03	1	9205-	●	●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
5	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
6	NUT; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●	●
13	CLIP; AIR PIPE A/T<X9D> EXC. DUAL AIR GAUGE<UG2> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE ISUZU M/T<X9A> (C) ID=5 & 8	5-09700-165-0	01	1	9202-	●
13	CLIP; AIR PIPE (C) ID=5 & 8	5-09700-165-0	01	1	9202-		●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (B) ID=7 L=40	9-09524-675-0	01	1	9202-	●
13	CLIP; AIR PIPE EXHAUST BRAKE<NF8> (A) ID=7 L=38 H=21	1-09700-916-0	01	1	9202-	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
14	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
17	BOLT; CLIP BRKT M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
17	BOLT; CLIP BRKT M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
17	BOLT; CLIP BRKT M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
17	BOLT; CLIP BRKT M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●
20	BOLT; CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
20	BOLT; CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
20	BOLT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
20	BOLT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
39	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9202-9207	●
39	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9202-9207		●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	02	1	9208-	●
39	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=16 & 7 L=21 & 17	1-09700-675-0	03	1	9208-	●	●
39	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9202-9207	●	●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9208-	●	●
39	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (C) ID=16 & 7 L=21 & 17	1-09700-675-0	04	1	9208-	●	●
39	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9207		●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9207		●
39	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9208-		●
43	PLATE; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9202-9207	●	●
43	PLATE; CLIP,AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9208-	●	●
62	CLIP; AIR PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	9202-	●	●
62	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9202-	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
63	BOLT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9208-	●	●
68	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
68	BOLT; CLIP,AIR PIPE M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
70	BOLT; CLIP,AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
72	BRACKET; PIPE CLIP (B)	1-47475-427-1	03	1	9202-	●	●
72	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9202-	●	●
72	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) L=60	1-47476-217-0	02	1	9202-9207	●	●
73	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-	●	●
78	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	9202-9207	●	●
78	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9208-9209	●	●
78	CLIP; AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9210-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7> M8X16 FLANGE	0-28080-816-0	02	1	9205-	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
79	BOLT; PIPE CLIP AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
79	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●
80	NUT; CLIP,AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-	●	●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9205-9207	●	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9208-9210	●	●
123	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	02	1	9211-	●
123	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9211-		●
123	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	02	1	9211-		●
134	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9202-9207	●
134	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9208-	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9208-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	03	1	9208-	●	●
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9210	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9208-9210	●	●
134	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9211-	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9211-		●
134	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-9210	●	●
134	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9211-		●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●
135	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
135	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●
135	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
135	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	9205-	●	●
136	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9208-	●
136	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●
136	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9202-9207	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9208-	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-47475-427-1	01	1	9208-	●	●
137	BRACKET; PIPE CLIP WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●
137	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9202-	●	●
137	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9202-9207	●	●
137	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9208-9210	●	●
137	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	03	1	9211-		●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9208-9210	●	●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9208-9210	●	●
149	BRACKET; PIPE CLIP (A) M8 W/NUT	1-47475-439-2	02	1	9211-	●
149	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9211-		●
149	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) M8 W/NUT	1-47475-439-2	02	1	9211-		●
150	NUT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-9207	●	●
150	NUT; CLIP BRKT EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9208-9208	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9209-9210	●	●
150	NUT; CLIP BRKT M8	9-09110-408-0	02	1	9211-	●
150	NUT; CLIP BRKT EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9211-		●
177	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9207	●	●
177	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9208-	●	●
177	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	9208-	●	●
177	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
178	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9205-9207	●	●
178	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
178	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
178	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9208-	●	●
179	NUT; PIPE CLIP M8	9-09110-408-0	01	1	9202-9207	●	●
179	NUT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
179	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
179	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8	9-09110-408-0	02	1	9208-	●	●
181	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9202-9207	●	●
181	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9208-	●	●
181	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9208-	●	●
181	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) L=50	1-47475-299-2	02	1	9208-	●	●
192	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=45 L=25	1-09700-866-0	01	1	9202-9207	●
192	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=45 L=25	1-09700-866-0	01	1	9208-	●
192	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9202-9207	●
192	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=11 H=20 L=20	5-09700-351-0	02	1	9208-	●
192	CLIP; AIR PIPE (A) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	03	1	9202-	●	●
192	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
192	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	04	1	9208-	●	●
192	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-	●	●
192	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9208-	●	●
192	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9207	●	●
192	CLIP; AIR PIPE (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●	●
192	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9202-9207	●	●
192	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ISUZU M/T<X9A> EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9208-	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	05	1	9202-9204	●	●
193	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	05	1	9205-	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40	0-28010-840-0	01	1	9202-9204	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9205-9207	●	●
193	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
193	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
193	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-	●	●
194	NUT; PIPE CLIP M8	9-09110-408-0	05	1	9202-	●	●
195	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP (C) M8 W/NUT	1-47475-439-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP (D) 45X55	1-47475-460-1	01	1	9202-	●	●
195	BRACKET; PIPE CLIP (E)	1-47475-746-2	01	1	9202-	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9202-9207	●	●
195	BRACKET; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	02	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) L=50	1-47475-299-2	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) (A) L=50	1-47475-299-2	01	1	9208-	●	●
195	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-	●	●
195	BRACKET; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9202-9207	●	●
195	BRACKET; PIPE CLIP (B)	1-47475-427-1	02	1	9202-	●	●
196	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
196	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
196	BOLT; CLIP BRKT AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
196	BOLT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28010-820-0	03	1	9202-9204	●	●
196	BOLT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	03	1	9205-9207	●	●
196	BOLT; CLIP BRKT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X25 FLANGE	0-28080-825-0	03	1	9208-	●	●
196	BOLT; CLIP BRKT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	03	1	9208-	●	●
197	NUT; CLIP BRKT M8	9-09110-408-0	03	1	9202-	●	●
198	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
198	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●	●
198	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 L=20 H=20	5-09700-351-0	01	1	9202-	●	●
204	CLIP; AIR PIPE 11X11	1-09700-739-0	03	1	9202-9207	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9208-9208	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	03	1	9209-9210	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	03	1	9211-	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	03	1	9211-		●
204	CLIP; AIR PIPE 11X7	1-09700-740-0	02	1	9202-9207	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	02	1	9209-	●	●
204	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	02	1	9209-	●	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	04	1	9208-9208	●	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9209-9210	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9211-	●
204	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X11	1-09700-739-0	04	1	9211-	●
204	CLIP; AIR PIPE EXC. AUSTRALIA EQUIPMENT(RR3) 11X11	1-09700-739-0	04	1	9211-		●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 9X11	1-09700-747-0	02	1	9208-9208	●	●
204	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) 9X11	1-09700-747-0	02	1	9209-	●	●
204	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	04	1	9208-9208	●	●
204	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), AUSTRALIA EQUIPMENT(RR3) 11X7	1-09700-740-0	04	1	9209-	●	●
204	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 11X7	1-09700-740-0	04	1	9209-	●	●
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
205	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
205	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9209-9210	●	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●
205	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9211-		●
205	BOLT; PIPE CLIP M8X35 FLANGE	0-28010-835-0	03	1	9202-9204	●	●
205	BOLT; PIPE CLIP M8X35 FLANGE	0-28080-835-0	05	1	9205-	●	●
205	BOLT; PIPE CLIP M8X30 FLANGE	0-28080-830-0	01	1	9205-	●	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9208-9208	●	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9209-9210	●	●
205	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9211-	●
205	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	04	1	9211-	●
205	BOLT; PIPE CLIP EXC. AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	04	1	9211-		●
206	NUT; PIPE CLIP M8	9-09110-408-0	03	1	9202-	●	●
210	NUT; CLIP BRKT M8	9-09110-408-0	04	1	9202-	●	●
219	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=11 H=20 L=20	5-09700-351-0	01	1	9208-	●	●
219	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	9208-	●	●
219	CLIP; AIR PIPE EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9202-9207	●	●
219	CLIP; AIR PIPE AUSTRALIA EQUIPMENT(RR3) EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	02	1	9208-	●	●
220	BOLT; PIPE CLIP M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
220	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	02	1	9205-9207	●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9208-9208	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9209-9210	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9211-	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) M8X16 FLANGE	0-28080-816-0	02	1	9211-		●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
220	BOLT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
220	BOLT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
221	NUT; PIPE CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9207	●	●
221	NUT; PIPE CLIP AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9208-	●	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9207	●
235	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9208-	●	●
235	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9208-	●	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	01	1	9202-9207	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	01	1	9208-	●
235	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-9207	●	●
235	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9202-9208	●	●
236	NUT; CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9209-	●	●
239	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) D=9 T=45	5-09700-021-0	01	1	9202-9208	●	●
239	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) D=9 T=45	5-09700-021-0	01	1	9209-	●	●
239	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	01	1	9208-	●	●
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	01	1	9205-	●	●
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9208-9210	●	●
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9211-	●
240	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X40 FLANGE	0-28080-840-0	01	1	9211-		●
241	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) L=50	1-47475-299-2	01	1	9202-	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9208-9210	●	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9211-	●
242	BRACKET; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B)	1-47475-427-1	01	1	9211-		●
246	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	9202-	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
247	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	04	1	9208-	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	01	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	01	1	9208-	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-9208	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. NEW ZEALAND EQUIPMENT(PK5) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-9208	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9209-9210	●	●
248	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9209-9210	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9211-	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (C) ID=8 H=20 L=20	1-09700-604-0	01	1	9211-		●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9208-9210	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9211-		●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9202-9207	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9208-9210	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9208-9210	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> AUSTRALIA EQUIPMENT(RR3) ISUZU M/T<X9A> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9208-9210	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXHAUST BRAKE<NF8> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PTO CONTROL<SV6> EXC. EXHAUST BRAKE<NF8>,BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=7 & 9 L=17.5 & 17.5	1-09700-746-0	02	1	9211-	●	●
248	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	04	1	9202-9207	●	●
248	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	04	1	9208-9208	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (C) ID=8 H=20 L=20	1-09700-604-0	04	1	9208-9208	●	●
248	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9209-	●	●
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28010-816-0	02	1	9202-9204	●	●
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X16 FLANGE	0-28080-816-0	02	1	9205-	●	●
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	04	1	9202-9204	●	●
249	BOLT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	04	1	9205-	●	●
250	NUT; PIPE CLIP M8	9-09110-408-0	06	1	9202-9210	●	●
251	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3),BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9208-9208	●
251	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=8 H=20 L=20	1-09700-604-0	03	1	9209-	●
251	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) D=9 T=45	5-09700-021-0	02	1	9202-9208	●	●
251	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) D=9 T=45	5-09700-021-0	02	1	9209-	●	●
251	CLIP; AIR PIPE WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. AUSTRALIA EQUIPMENT(RR3) (B) ID=8 H=20 L=20	1-09700-604-0	02	1	9208-	●	●
252	NUT; PIPE CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9208-	●
252	NUT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	02	1	9202-	●	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9202-9207	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-9208	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-9208	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) D=9 T=45	5-09700-021-0	02	1	9202-9207	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9208-9208	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9208-9208	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (B) D=9 T=45	5-09700-021-0	02	1	9209-9210	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (B) D=9 T=45	5-09700-021-0	02	1	9211-	●
253	CLIP; AIR PIPE WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	02	1	9202-	●	●
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9202-9204	●	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	04	1	9205-9207	●	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9208-	●	●
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9208-	●	●
253	CLIP; AIR PIPE WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9205-9207	●	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9205-9207	●	●
253	CLIP; AIR PIPE REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) ID=8 H=20 L=20	1-09700-604-0	03	1	9205-9207	●	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9208-9210	●
253	CLIP; AIR PIPE WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (A) ID=8 H=20 L=20	1-09700-604-0	01	1	9211-	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28010-825-0	03	1	9202-9204	●	●
254	BOLT; PIPE CLIP M8X25 FLANGE	0-28080-825-0	03	1	9205-	●	●
254	BOLT; PIPE CLIP M6X16 W/LK&PL WASHER	1-09980-492-0	02	1	9202-	●	●
258	NUT; PIPE CLIP REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8	9-09110-408-0	03	1	9205-	●	●
274	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 13 L=17 & 18	1-09700-748-0	01	1	9208-	●	●
274	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	9202-	●	●
275	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
275	BOLT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-9207	●	●
275	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	01	1	9208-	●	●
276	NUT; PIPE CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-	●	●
278	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9202-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28010-816-0	01	1	9202-9204	●	●
288	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	01	1	9205-	●	●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28010-820-0	01	1	9202-9204		●
288	BOLT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8X20 FLANGE	0-28080-820-0	01	1	9205-		●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	02	1	9202-	●
290	NUT; CLIP,AIR PIPE EXHAUST BRAKE<NF8> M8	9-09110-408-0	01	1	9202-		●
292	CLIP; AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=11 & 7 L=17.5 & 17.5	1-09700-740-0	01	1	9202-9205	●	●
292	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	9202-	●	●
292	CLIP; AIR PIPE EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	9202-	●	●
293	NUT; CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	01	1	9202-9205	●	●
293	NUT; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8	9-09110-408-0	02	1	9202-	●	●
295	NUT; CLIP,AIR PIPE M8	9-09110-408-0	03	1	9202-	●	●
296	BRACKET; CLIP BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	01	1	9202-9205	●	●
296	BRACKET; CLIP EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) L=50	1-47475-299-2	02	1	9202-	●	●
314	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	03	1	9202-	●	●
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	02	1	9208-9208	●
333	BRACKET; BRK AIR PIPE (A)	1-47475-427-1	02	1	9209-	●	●
333	BRACKET; BRK AIR PIPE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-79738-157-2	01	1	9309-	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AIR DRYER<PS7>,AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	03	1	9208-	●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	01	1	9208-	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> (C)	1-79738-179-1	01	1	9202-9308	●	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (C)	1-79738-179-1	01	1	9309-	●
333	BRACKET; BRK AIR PIPE DUAL AIR GAUGE<UG2> (C)	1-79738-179-1	01	1	9309-		●
333	BRACKET; BRK AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9202-9308	●	●
333	BRACKET; BRK AIR PIPE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>,DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9309-	●
333	BRACKET; BRK AIR PIPE EXC. DUAL AIR GAUGE<UG2> (C)	1-79738-164-2	01	1	9309-		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) (D) L=60	1-47475-455-0	01	1	9202-	●	●
333	BRACKET; BRK AIR PIPE AIR DRYER<PS7> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	1-47475-427-1	01	1	9209-		●
333	BRACKET; BRK AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. AUSTRALIA EQUIPMENT(RR3) (B) L=50	1-47475-299-2	02	1	9209-		●
370	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	9208-	●	●
371	BOLT; CLIP,AIR PIPE M8X40 FLANGE	0-28080-840-0	02	1	9208-	●	●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28010-825-0	01	1	9202-9204	●	●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9205-9207	●	●
371	BOLT; CLIP,AIR PIPE AUSTRALIA EQUIPMENT(RR3) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X25 FLANGE	0-28080-825-0	01	1	9208-	●	●
371	BOLT; CLIP,AIR PIPE BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X16 FLANGE	0-28080-816-0	02	1	9202-	●	●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
372	BOLT; CLIP BRKT WHEEL BASE 4200MM(42W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) NEW ZEALAND EQUIPMENT(PK5) BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M8X20 FLANGE	0-28080-820-0	02	1	9205-9207	●	●
373	BOLT; PIPE CLIP WHEEL BASE 3700MM(37W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	03	1	9208-	●
373	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28010-825-0	02	1	9202-9204	●	●
373	BOLT; PIPE CLIP WHEEL BASE 4200MM(42W),WHEEL BASE 4800MM(48W) REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE	0-28080-825-0	02	1	9205-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
