◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-20 - TIMING GEAR CASE AND FLYWHEEL HOUSING ▶
0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#40992) — 71 parça

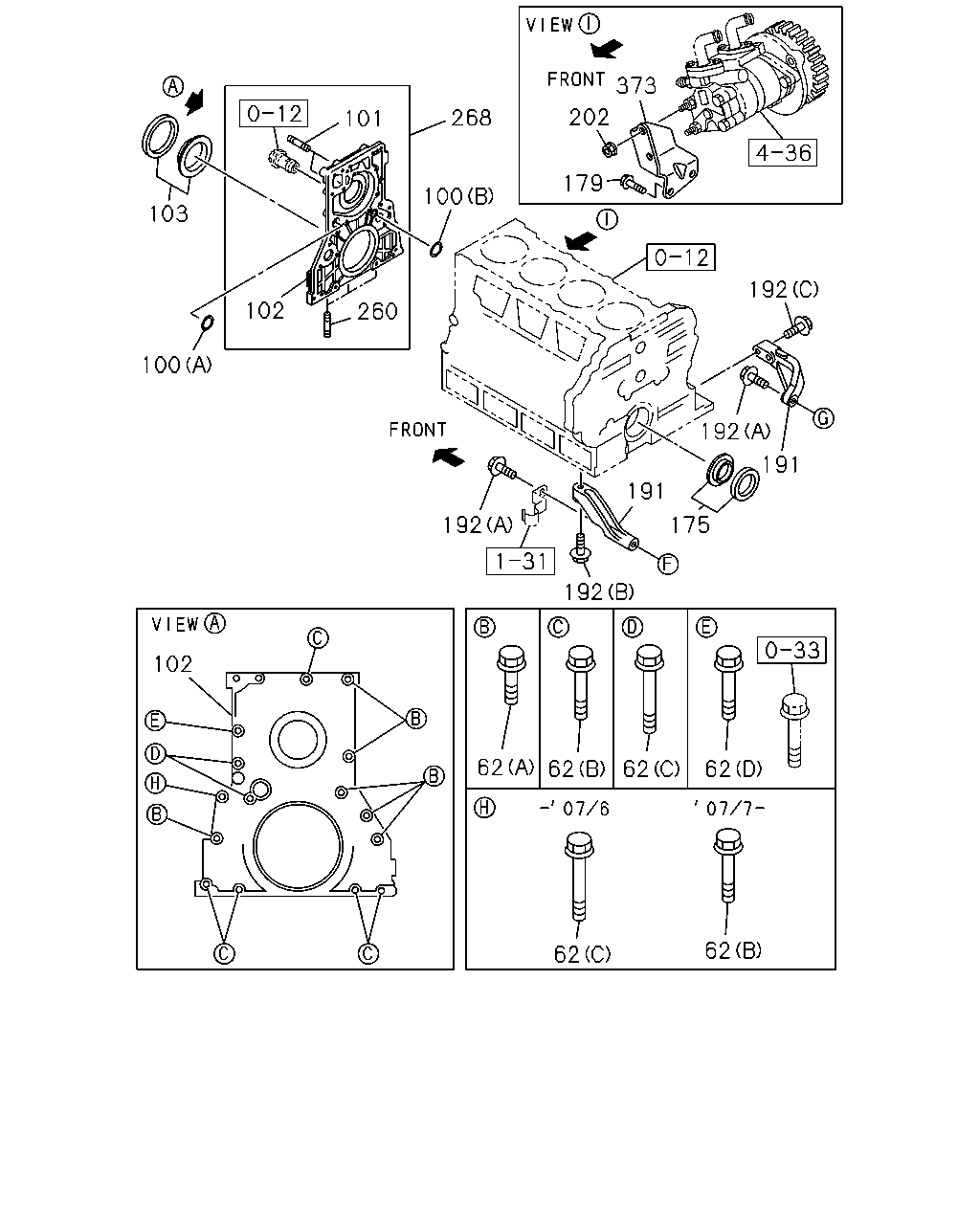

çizim 55986
373 202 268 101 179 100 103 192 102 260 100 192 191 191 192 175 192 102 62 62 62 62 62 62
BalonParca AdiParca NoAdetTipApplied Date A B
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0504-0512 ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-0609 ●
62 BOLT; COVER
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0610- ●
62 BOLT; COVER
(D) M8X30 FLANGE 		0-28680-830-0 01 1 0504-0507 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28680-835-0 05 1 0504-0512 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 05 1 0601-0609 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 05 1 0610-0706 ●
62 BOLT; COVER
(B) M8X35 FLANGE 		0-28650-835-0 06 1 0707- ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 03 1 0504-0609 ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 03 1 0610-0706 ●
62 BOLT; COVER
(C) M8X65 FLANGE 		1-09044-072-1 02 1 0707- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0504-0609 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1 		8-97028-748-1 01 1 0610- ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0504-0609 ●
100 GASKET; FRT COVER
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8 		9-09561-318-0 01 1 0610- ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 0504-0609 ●
101 STUD; WATER PUMP
LOWER M8X18 L=29 		8-97028-541-0 01 1 0610- ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		9-04110-818-0 01 1 0504-0604 ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 0605-0609 ●
101 STUD; WATER PUMP
UPPER M8X18 L=30 		0-41010-818-0 01 1 0610- ●
102 RETAINER; FRT
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> 		8-98081-351-1 01 1 0911- ●
102 RETAINER; FRT 8-97148-938-1 01 1 0504-0609 ●
102 RETAINER; FRT 8-97148-938-1 01 1 0610-0706 ●
102 RETAINER; FRT 8-98039-932-2 01 1 0707-0910 ●
102 RETAINER; FRT
HEATER & DEFROSTER(C41) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-98039-932-2 01 1 0911- ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0504-0609 ●
103 SEAL; OIL,CR/SHF,FRT
ALSO INCLUDED IN GASKET SET(ENGINE). ID=109 OD=137 		8-97329-780-0 01 1 0610- ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0504-0609 ●
175 SEAL; OIL,CR/SHF,RR
ALSO INCLUDED IN GASKET SET(ENGINE). ID=104 OD=139 		8-97602-379-0 01 1 0610- ●
179 BOLT; BRKT
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> M10X18 FLANGE 		0-28181-018-0 02 1 0911- ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0504-0609 ●
191 STAY; FLYWHEEL HSG 8-97167-292-0 01 1 0610- ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0504-0609 ●
191 STAY; FLYWHEEL HSG 8-97167-291-0 01 1 0610- ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28181-250-0 02 1 0504-0512 ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 02 1 0601-0609 ●
192 BOLT; STAY TO HSG
(A) M12X50 FLANGE 		0-28151-250-0 02 1 0610- ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28181-200-0 01 1 0504-0512 ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0601-0609 ●
192 BOLT; STAY TO HSG
(B) M12X100 FLANGE 		0-28151-200-0 01 1 0610- ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28181-040-0 02 1 0504-0512 ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 0601-0609 ●
192 BOLT; STAY TO HSG
(C) M10X40 FLANGE 		0-28151-040-0 02 1 0610- ●
202 NUT; BRKT
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE 		0-91180-108-0 01 1 0911- ●
260 STUD; OIL PAN
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> M8X20 L=32 		0-41010-820-0 03 1 0911-1002 ●
260 STUD; OIL PAN
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> M8X20 L=32 		0-41010-820-0 04 1 1003- ●
268 COVER; FRT
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> 		8-98096-851-1 01 1 0911- ●
268 COVER; FRT 8-97148-937-1 01 1 0504-0609 ●
268 COVER; FRT 8-97148-937-3 01 1 0610-0910 ●
268 COVER; FRT
HEATER & DEFROSTER(C41) EXC. HYDRO BRAKE BOOSTER<7QQ> 		8-97148-937-3 01 1 0911- ●
373 BRACKET; PUMP
HEATER & DEFROSTER(C41) HYDRO BRAKE BOOSTER<7QQ> 		8-97149-333-0 01 1 0911- ●

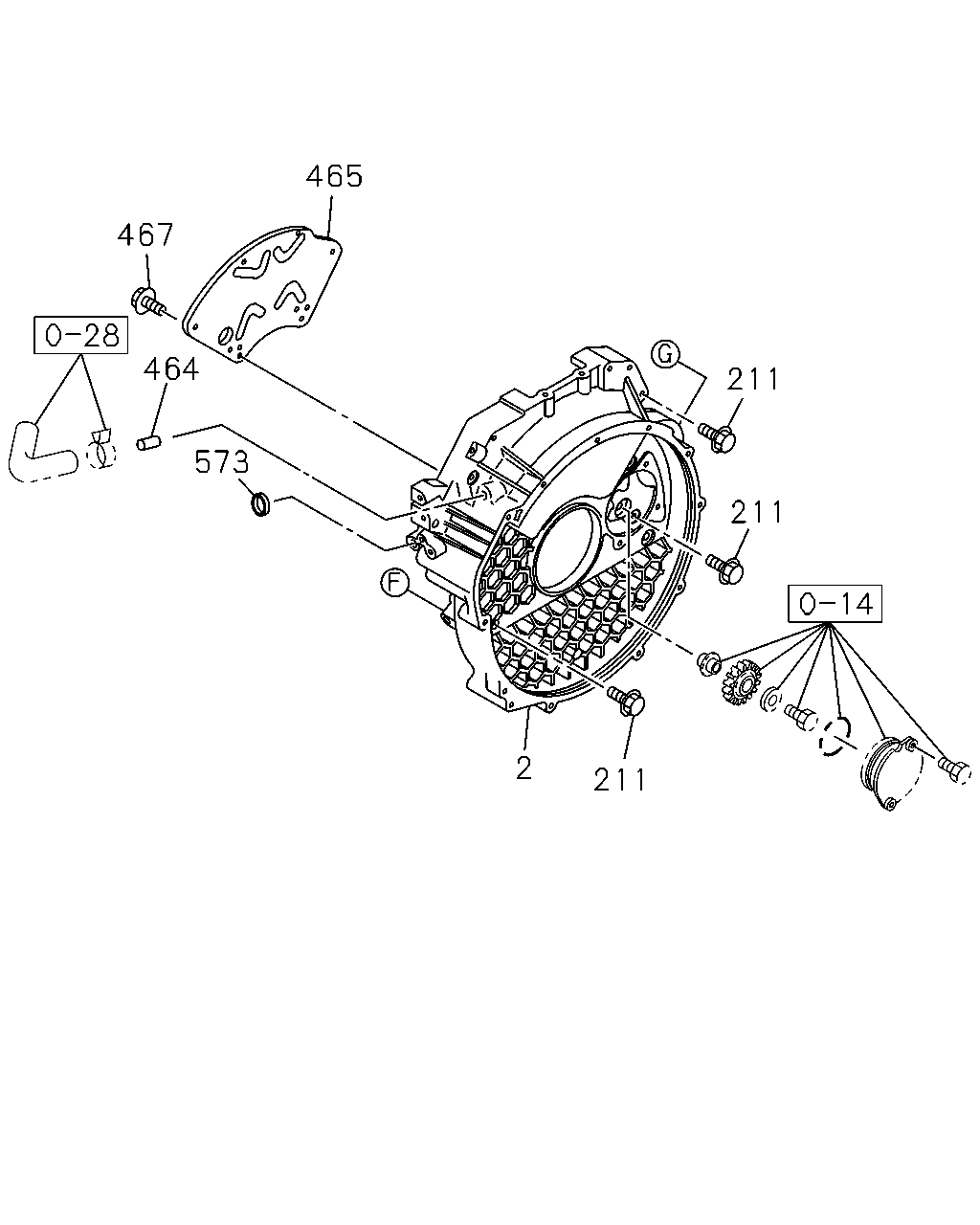

çizim 56246
465 467 464 211 573 211 2 211
BalonParca AdiParca NoAdetTipApplied Date A B
2 HOUSING; FLYWHEEL 8-97364-901-1 01 1 0504-0609 ●
2 HOUSING; FLYWHEEL 8-97364-901-5 01 1 0610- ●
211 BOLT; HSG
M10X40 FLANGE 		0-28781-040-0 01 1 0504-0512 ●
211 BOLT; HSG
M10X40 FLANGE 		0-28751-040-0 01 1 0601-0609 ●
211 BOLT; HSG
M10X40 FLANGE 		0-28751-040-0 01 1 0610- ●
211 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0504-0609 ●
211 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-97114-779-0 11 1 0610-1102 ●
211 BOLT; HSG
M12X70 FLANGE, W/PL WASHER 		8-98179-087-1 11 1 1103- ●
211 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0504-0609 ●
211 BOLT; HSG
M12X30 FLANGE 		8-97135-419-0 01 1 0610- ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0504-0609 ●
464 PIPE; PCV,FLYWHEEL HSG 8-94373-246-3 01 1 0610- ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0504-0609 ●
465 PLATE; FLYWHEEL HSG 8-97363-823-0 01 1 0610- ●
467 BOLT; PLATE
M6X10 FLANGE 		0-28080-610-0 06 1 0504-0507 ●
467 BOLT; PLATE
M6X10 		0-20800-610-0 06 1 0508-0609 ●
467 BOLT; PLATE
M6X10 		0-20800-610-0 06 1 0610-0805 ●
467 BOLT; PLATE
M6X10 		8-98030-649-0 06 1 0806- ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 0504-0609 ●
573 CUP; SEALING
OD=19 		8-94150-231-0 01 1 0610- ●
