0-12 — CYLINDER BLOCK (#40988) — 62 parça

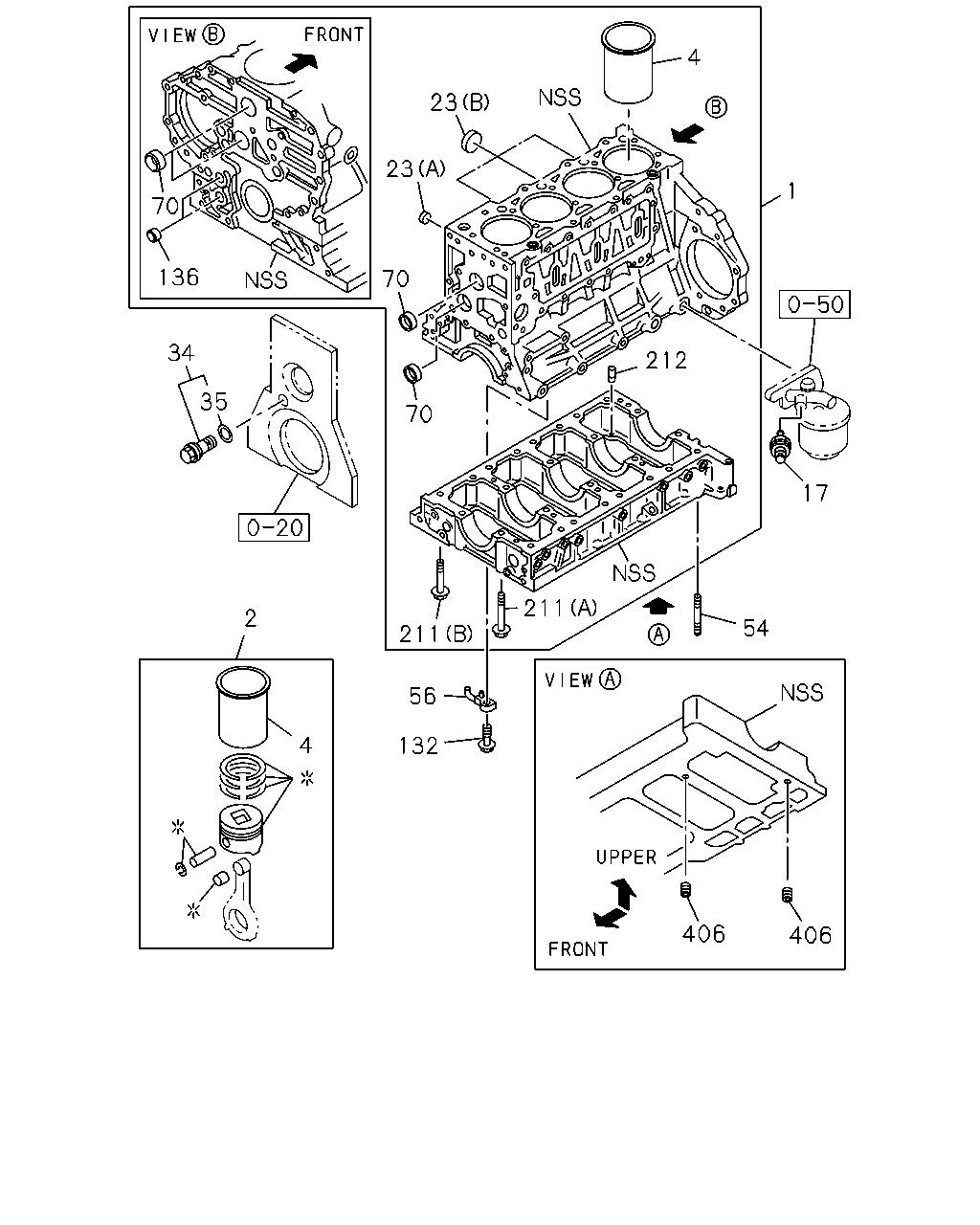

çizim 56242
4 23 70 23 1 136 70 34 212 35 70 17 211 2 54 211 56 4 132 406 406
BalonParca AdiParca NoAdetTipApplied Date A B
1 BLOCK ASM; CYL 8-97148-885-4 01 1 0504-0609 ●
1 BLOCK ASM; CYL 8-97148-885-6 01 1 0610-1209 ●
1 BLOCK ASM; CYL 8-98204-531-0 01 1 1210- ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0504-0609 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87813-744-1 04 1 0610-0706 ●
2 LINER SET; ENG CYL
GRADE=1X 		5-87815-147-2 04 1 0707- ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0504-0609 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87813-745-1 04 1 0610-0706 ●
2 LINER SET; ENG CYL
GRADE=3X 		5-87815-148-2 04 1 0707- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-0 04 1 0504-0609 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=AX 		8-97176-723-1 04 1 0610- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-0 04 1 0504-0609 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=CX 		8-97176-724-1 04 1 0610- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-0 04 1 0504-0609 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=AX 		8-97176-725-1 04 1 0610- ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-0 04 1 0504-0609 ●
4 LINER; C/BL
ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=CX 		8-97176-726-1 04 1 0610- ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0504-0609 ●
17 SWITCH; OIL PRESSURE 8-97176-230-0 01 1 0610- ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0504-0609 ●
23 CUP; SEALING,C/BL FRT & RR
(A) OD=25 		1-09600-016-0 01 1 0610- ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0504-0609 ●
23 CUP; SEALING,C/BL FRT & RR
(B) OD=45 		8-97036-550-1 03 1 0610- ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0504-0609 ●
34 VALVE; OIL RELIEF 8-94386-047-1 01 1 0610-0706 ●
34 VALVE; OIL RELIEF 8-97328-859-0 01 1 0707- ●
35 GASKET; RELIEF VLV
ALSO INCLUDED IN GASKET SET(ENGINE). ID=23.3 		8-94173-412-0 01 1 0610- ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0504-0609 ●
54 STUD; OIL PAN TO BLOCK
M8X20 L=38 		8-97021-431-0 03 1 0610- ●
56 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0504-0609 ●
56 JET; OIL,PISTON COOLING 8-94399-166-0 04 1 0610- ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0504-0609 ●
70 CUP; SEALING,FRT & RR
OD=25 		1-09600-016-0 01 1 0610- ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0504-0609 ●
70 CUP; SEALING,FRT & RR
OD=40 		8-97096-824-0 04 1 0610- ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0504-0609 ●
132 VALVE; CHECK,OIL
M10X18.5 		1-13161-012-0 04 1 0610-0704 ●
132 VALVE; CHECK,OIL
M10X18.5 		8-97329-618-0 04 1 0705- ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-0 02 1 0504-0609 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-94393-596-1 02 1 0610-0812 ●
136 BUSHING; DRIVE SHAFT,OIL PUMP 8-98091-566-0 02 1 0901- ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0504-0609 ●
211 BOLT; CRANKCASE
(B) M10X82 		8-94399-553-2 17 1 0610- ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0504-0609 ●
211 BOLT; CRANKCASE
(A) M14X115 W/FLANGE 		8-97077-638-0 10 1 0610- ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0504-0609 ●
212 PIN; CRANKCASE
OD=10 L=20 		8-97135-423-0 02 1 0610- ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 0504-0609 ●
406 PLUG; CRANK CASE
PT3/8 		5-09605-005-0 02 1 0610- ●

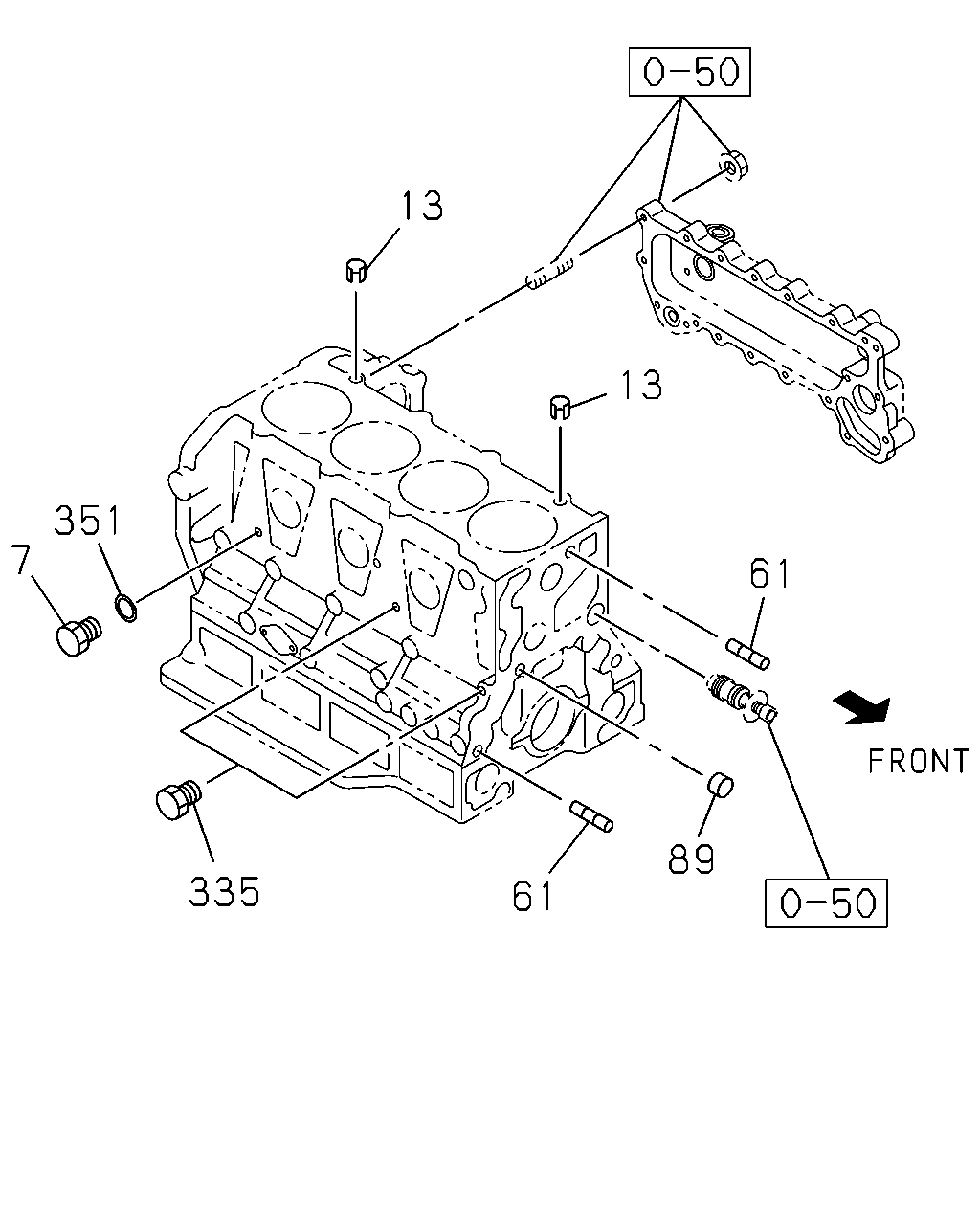

çizim 100861
13 13 351 7 61 89 335 61
BalonParca AdiParca NoAdetTipApplied Date A B
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0504-0609 ●
7 PLUG; WATER DRAIN
M10X10 		8-97352-537-0 01 1 0610- ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0504-0609 ●
13 DOWEL; C/BL TO HD
OD=18.15 		8-94399-688-1 02 1 0610- ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0504-0609 ●
61 PIN; STRAIGHT
L=22 		8-94483-674-0 04 1 0610- ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0504-0609 ●
89 CUP; SEALING,OIL GALLERY
OD=20 		9-11129-128-0 03 1 0610- ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0504-0609 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97018-606-0 02 1 0610-0712 ●
335 PLUG; C/BL,SIDE
M14X16.5 		8-97329-617-0 02 1 0801- ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0504-0609 ●
351 GASKET; COCK,WATER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2 		1-09630-083-0 01 1 0610- ●
