Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
9 - Tools
▶
9-01 - TOOLS
▶
9-01 — TOOLS
(#40983) — 24 parça
◀

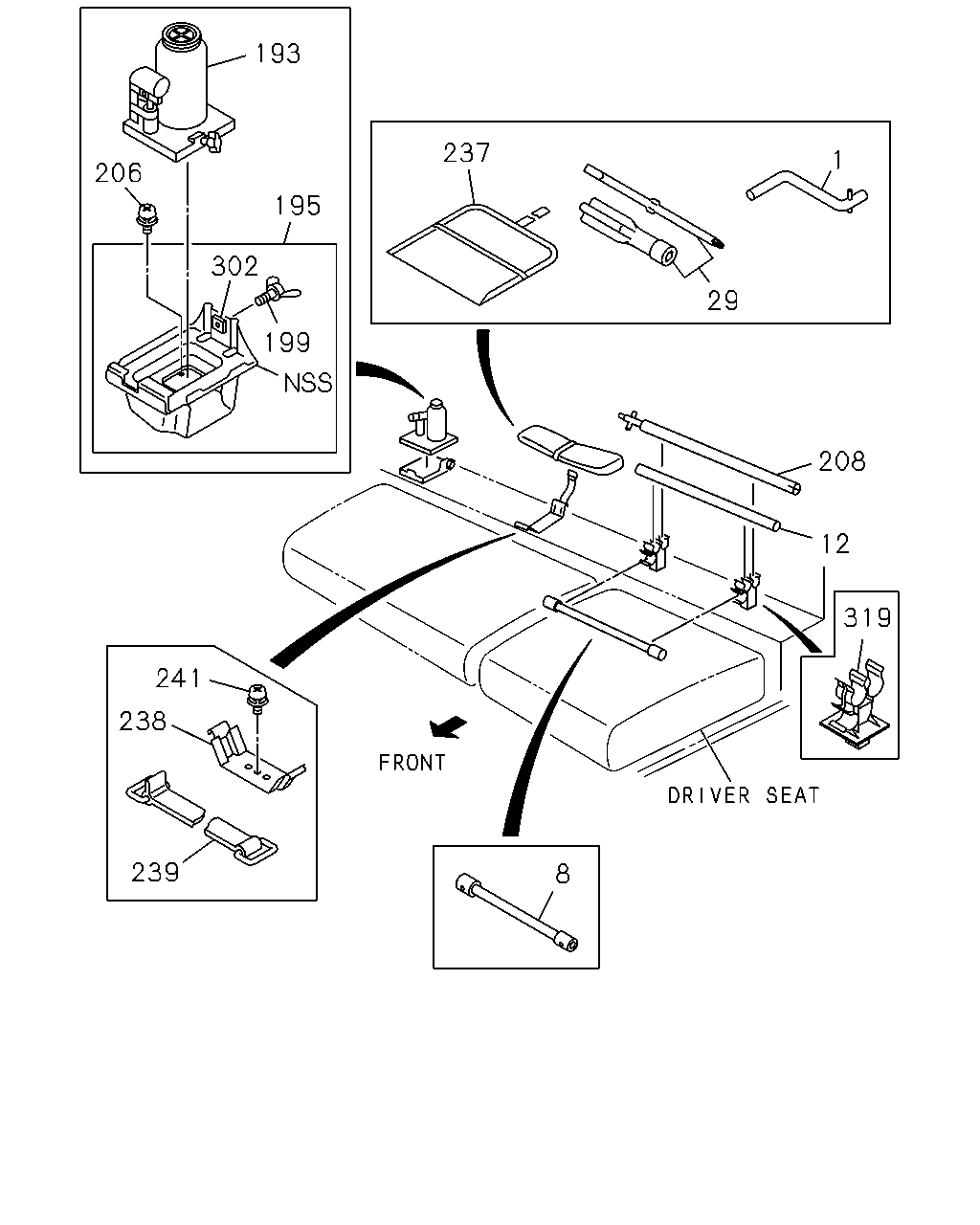

[901A] TOOLS (21 parça)
[901A] TOOL BOX (3 parça)
▶
193
237
1
206
195
302
29
199
208
12
319
241
238
239
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.629 HANDLE; SPARE TIRE CARRIER
8-97218-985-0
01
1
0505-
8
08.821 WRENCH; WHEEL
B=41X19 L=330
8-94386-490-1
01
1
0505-0701
8
08.821 WRENCH; WHEEL
B=41X21 L=440
1-85113-015-1
01
1
0702-
12
08.821 HANDLE; WRENCH,WHEEL PIN
OD=25 L=590
8-97332-988-0
01
1
0505-
29
08.821 DRIVER; SCREW
<+>,<-> L=160
8-94242-798-1
01
1
0505-
193
08.820 JACK ASM
5TON
8-97131-077-2
01
1
0505-0805
193
08.820 JACK ASM
5TON
8-98114-045-0
01
1
0806-
195
08.820 BRACKET; JACK
8-97856-997-4
01
1
0505-0805
195
08.820 BRACKET; JACK
8-97856-994-3
01
1
0806-
199
08.820 BOLT; JACK
M8X50 WING
8-94279-136-0
01
1
0505-0805
199
08.820 BOLT; JACK
M8X30 WING
8-94279-018-1
01
1
0806-
206
08.820 SCREW; OIL JACK BRKT
16.320 M6X20 W/LK&PL WASHER
8-94279-403-0
01
1
0505-0612
206
08.820 SCREW; OIL JACK BRKT
16.570 M6X16
0-38050-616-0
01
1
0701-
208
08.820 HANDLE; JACK
L=642
8-97217-800-0
01
1
0505-
237
08.821 BAG; TOOL
8-97130-903-0
01
1
0505-
238
08.820 SUPPORT; TOOL BAG
8-97994-977-0
01
1
0505-
239
08.820 BAND; TOOL BAG
L=100
5-73997-026-1
01
1
0505-
241
08.820 SCREW; TOOL BAG SUPPORT
16.320 M6X20 W/LK&PL WASHER
8-94279-403-0
01
1
0505-0612
241
08.820 SCREW; TOOL BAG SUPPORT
16.570 M6X16
0-38050-616-0
01
1
0701-
302
08.820 NUT; JACK BRKT
8-94279-522-0
01
1
0505-
319
08.821 CLIP; TOOL BAR
8-97853-077-2
02
1
0505-
280
284
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
280
08.821 BOX; TOOL
TOOL & STORAGE BOX<VK2>
8-97222-496-0
01
1
0505-
284
08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 02.559 M8X25 FLANGE
0-28680-825-0
04
1
0505-0512
284
08.821 BOLT; TOOL BOX
TOOL & STORAGE BOX<VK2> 06.216 M8X25 FLANGE
0-28650-825-0
04
1
0601-
