◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#40973) — 22 parça

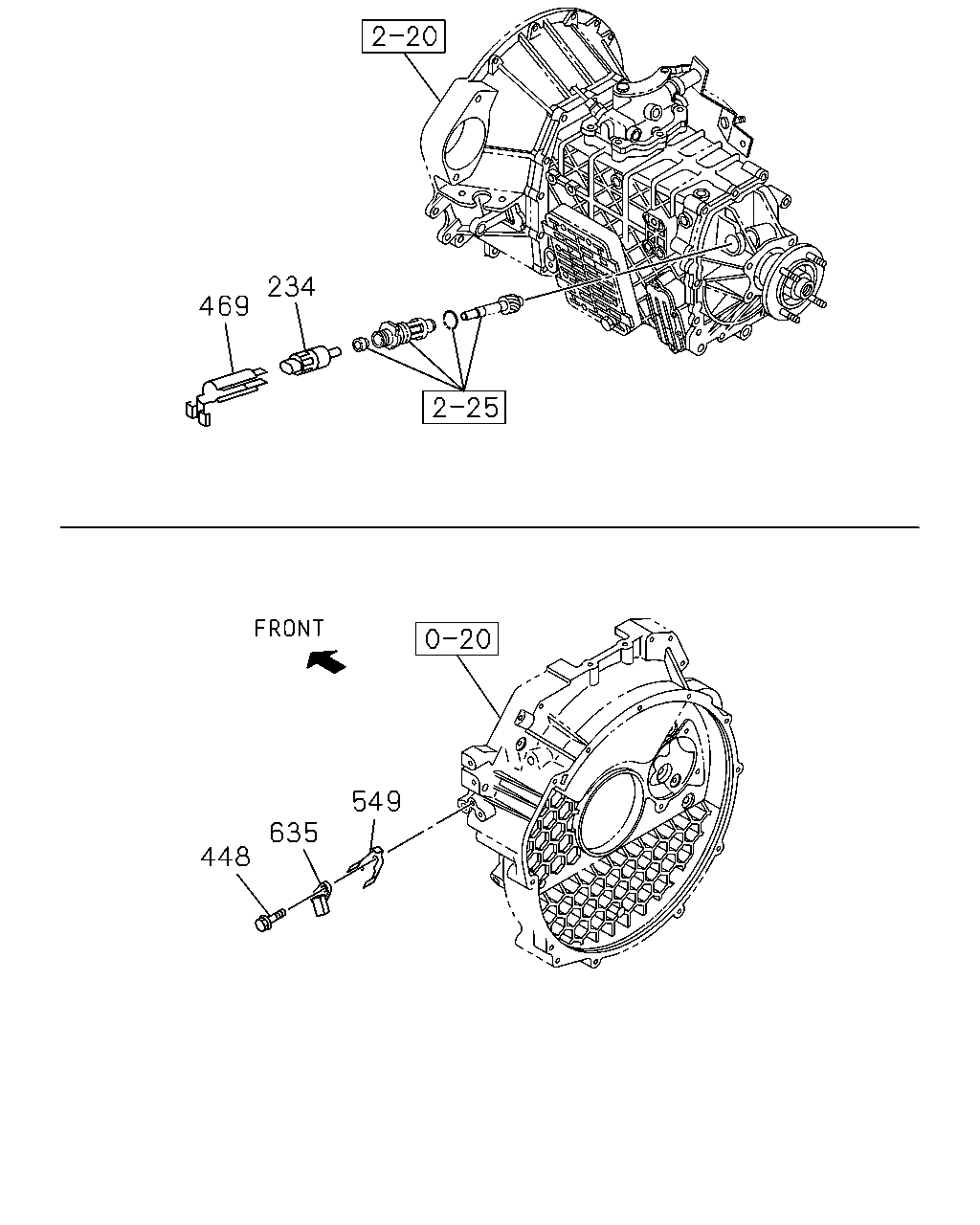

çizim 13843
234 469 549 635 448
BalonParca AdiParca NoAdetTipApplied Date
234 03.682 SENSOR; VEHICLE SPD
4 PULSE ALUMINUM 		8-97256-525-0 01 1 0505-
448 02.500 BOLT; SENSOR
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0505-0505
448 02.500 BOLT; SENSOR
GLOW SYSTEM DELETE<7RK> 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0507
448 02.500 BOLT; SENSOR
FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0506-0507
448 02.500 BOLT; SENSOR
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 00.738 M6X16 FLANGE 		0-28080-616-0 01 1 0508-0512
448 02.500 BOLT; SENSOR
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.242 M6X16 FLANGE 		0-28050-616-0 01 1 0601-
469 03.682 PROTECTOR; SPEED SENSOR 8-97168-308-0 01 1 0505-0808
469 03.682 PROTECTOR; SPEED SENSOR 8-98119-901-0 01 1 0809-
549 02.510 SHEET
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 09.743 		8-97161-633-2 01 1 0505-0505
549 02.510 SHEET
GLOW SYSTEM DELETE<7RK> 09.743 		8-97161-633-2 01 1 0506-0507
549 02.510 SHEET
FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0506-0507
549 02.510 SHEET
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 09.743 		8-97161-633-2 01 1 0508-
635 09.750 SENSOR; TACHOMETER
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> CALSONIC KANSEI 		8-97163-104-0 01 1 0505-0505
635 09.750 SENSOR; TACHOMETER
GLOW SYSTEM DELETE<7RK> CALSONIC KANSEI 		8-97163-104-0 01 1 0506-0507
635 09.750 SENSOR; TACHOMETER
FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0506-0507
635 09.750 SENSOR; TACHOMETER
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) CALSONIC KANSEI 		8-97163-104-0 01 1 0508-

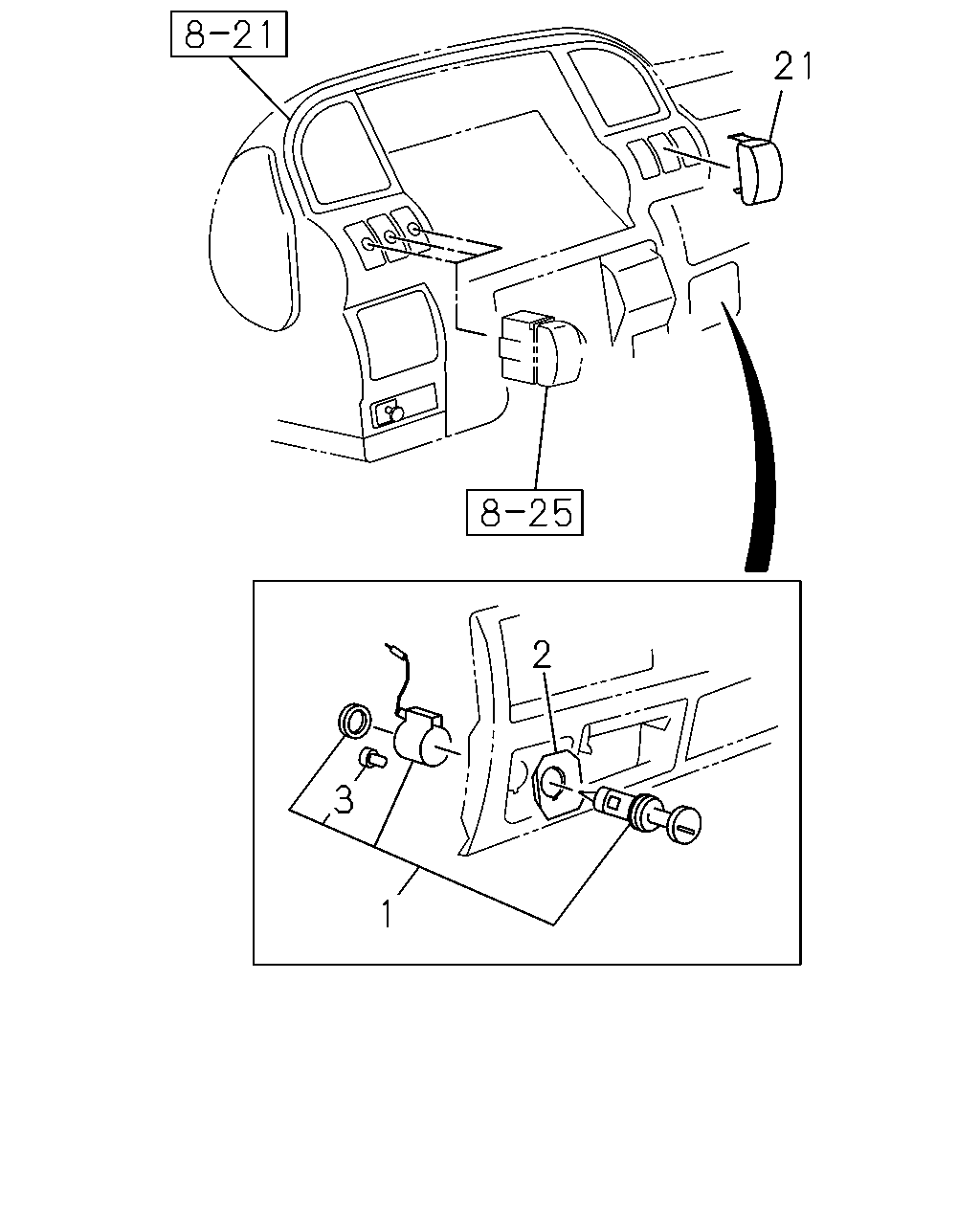

çizim 55856
21 2 3 1
BalonParca AdiParca NoAdetTipApplied Date
1 09.709 LIGHTER; CIGAR 8-97320-325-0 01 1 0505-
2 09.709 BEZEL; CIGAR LIGHTER 8-97853-159-1 01 1 0505-0706
2 09.709 BEZEL; CIGAR LIGHTER 8-98091-060-0 01 1 0707-
3 08.991 BULB; CIGAR LIGHTER
28V 1.8W 		8-97173-159-0 01 1 0505-
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0505-
21 09.744 COVER; HOLE 8-97136-694-0 01 1 0505-
