Sayfa 8-15 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶

8-15 — FIXING PARTS; WIRING HARNESS (#40970) — 135 parça

16 16 48 483 488 16 205 48 142 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (E) L=135	1-09987-143-1	AR	1	0505-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0505-
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	0505-
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0505-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	0505-
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	AR	1	0505-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 04.785 (F) ID=9.6	8-94147-870-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0505-
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0505-
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0505-
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> 03.162 L=140	5-09707-031-1	01	1	0505-0505
483	02.559 CLIP; ENG HARNESS GLOW SYSTEM DELETE<7RK> 03.162 L=140	5-09707-031-1	01	1	0506-0507
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	0506-0507
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 L=140	5-09707-031-1	01	1	0508-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0505-

16 16 48 48 464 48 208 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (E) L=135	1-09987-143-1	AR	1	0505-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0505-
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	0505-
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0505-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	0505-
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	AR	1	0505-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 04.785 (F) ID=9.6	8-94147-870-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0505-
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	02	1	0505-0505
208	02.559 CLIP; HARNESS,MAG VLV T=6.0	5-09709-012-0	01	1	0506-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) T=6.0	5-09709-024-0	02	1	0505-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	01	1	0505-

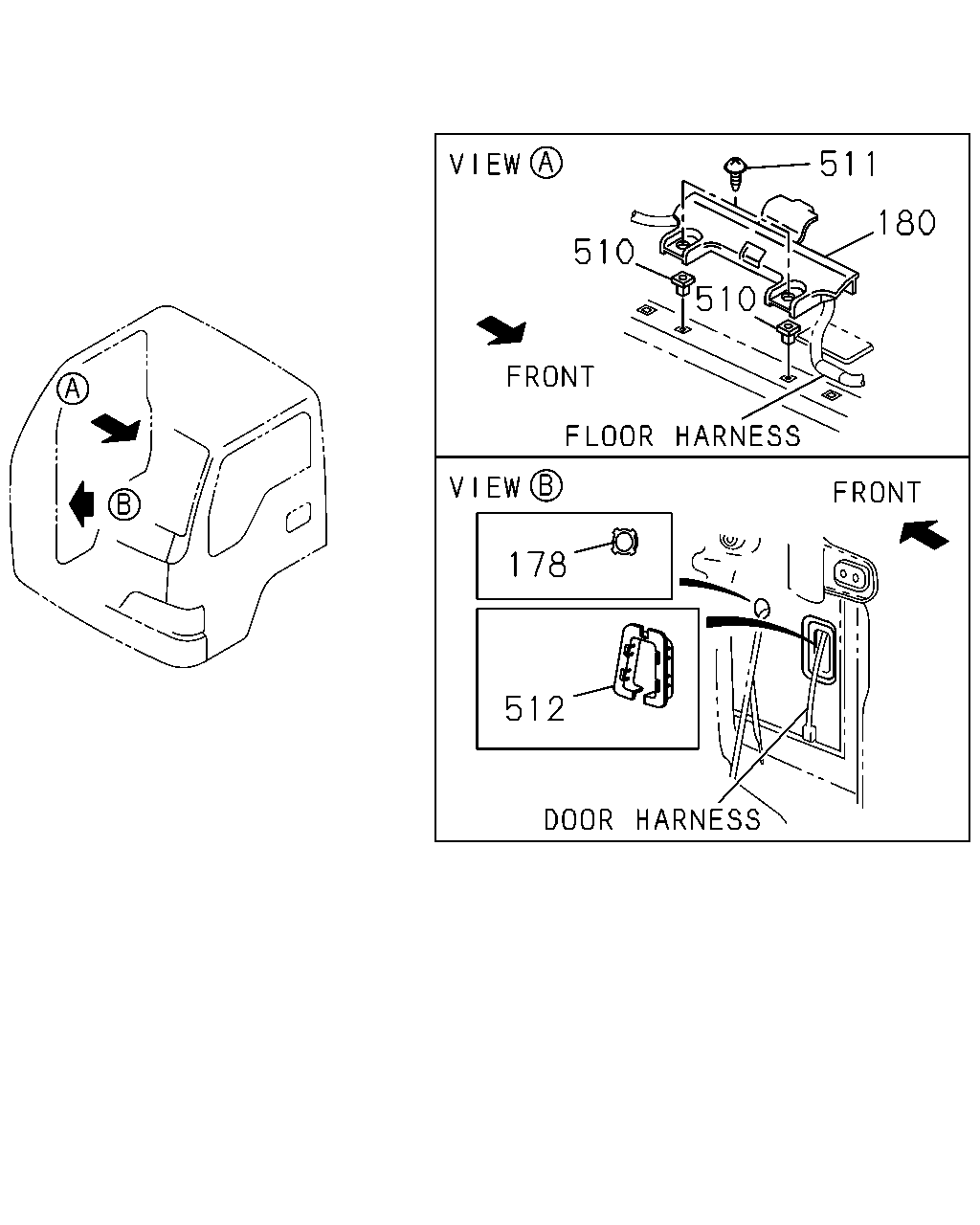

511 180 510 510 178 512

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0505-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0505-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0505-
511	02.559 SCREW; HARNESS COVER 08.845 M5X14 TAPPING W/PL WASHER	0-74110-514-0	04	1	0505-0604
511	02.559 SCREW; HARNESS COVER 16.800 M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0605-0702
511	02.559 SCREW; HARNESS COVER 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0505-
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0505-
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL)	8-97072-950-0	02	1	0505-
512	02.559 PROTECTOR; HARNESS RADIO AM/FM STEREO 2 SPEAKERS(6GZ),RADIO AM/FM W/CASSETTE 2 SPEAKERS(6VL) EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0505-

53 53 180 7 412 504 514 312

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-97094-992-1	01	1	0505-
53	02.483 BRACKET; HARNESS (A)	8-97377-701-0	01	1	0505-
53	02.483 BRACKET; HARNESS (B)	8-98003-048-0	01	1	0505-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0505-
312	02.559 BRACKET; CLIP HARNESS	8-97355-918-0	01	1	0505-
412	02.559 BRACKET; HARNESS,TRANS	8-97379-633-0	01	1	0505-
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0505-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	01	1	0505-
514	02.559 FINISHER; HARNESS 16.550 L=120 SERVICED BY L=2040	1-71997-513-1	03	1	0505-
514	02.559 FINISHER; HARNESS 16.550 L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0505-
514	02.559 FINISHER; HARNESS L=290 SERVICED BY L=500	1-79937-746-0	01	1	0505-

8 38 38 377 386 8 38 139 239 55 219 219 294 515 294 519

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.559 BOLT; BRKT,CONNECTOR (A) M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
8	02.559 BOLT; BRKT,CONNECTOR 06.216 (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-
8	02.559 BOLT; BRKT,CONNECTOR 08.225 (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0505-
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	02	1	0505-0512
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	02	1	0601-
38	02.559 BOLT; CLIP,HARNESS (C) M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
38	02.559 BOLT; CLIP,HARNESS 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0505-0512
38	02.559 BOLT; CLIP,HARNESS 00.685 (A) M6X25 FLANGE	0-28650-625-0	01	1	0601-
38	02.559 BOLT; CLIP,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) 08.900 (B) M8X12 FLANGE	0-28080-812-0	01	1	0505-0512
38	02.559 BOLT; CLIP,HARNESS POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.343 (B) M8X12 FLANGE	0-28050-812-0	01	1	0601-
55	02.559 WASHER; PL,CLIP 02.587 ID=6.4 OD=18	9-09160-706-0	01	1	0505-0605
55	02.559 WASHER; PL,CLIP 00.413 ID=6.4 OD=18	0-91610-706-0	01	1	0606-
139	02.559 BOLT; BRKT M8X25 FLANGE	0-28680-825-0	02	1	0505-0512
139	02.559 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	01	1	0505-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0603-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	0505-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0603-
219	02.559 NUT 04.594 (A) M6 FLANGE	0-91150-106-0	05	1	0505-0602
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	05	1	0603-
219	02.559 NUT 07.633 (B) M8 FLANGE	0-91150-108-0	01	1	0505-0602
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0603-
239	02.559 BOLT; GRAND 02.343 M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0505-
294	02.559 NUT 07.633 (A) M8 FLANGE	0-91150-108-0	02	1	0505-0602
294	02.559 NUT 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	0603-
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0505-0602
294	02.559 NUT 04.785 (B) M10 FLANGE	0-91150-110-0	01	1	0505-0602
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
294	02.559 NUT 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0603-
377	02.559 BOLT; CAB EARTH M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0505-
386	02.559 BOLT; GRAND HARNESS M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0505-
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
515	02.559 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	02	1	0505-0602
515	02.559 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-
519	02.559 NUT; EARTH CABLE 04.785 M10 FLANGE	0-91150-110-0	01	1	0505-0602
519	02.559 NUT; EARTH CABLE 03.162 M10 FLANGE	0-91180-110-0	01	1	0603-

48 48 16 48 16 264 48 464 48 570 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS (E) L=135	1-09987-143-1	AR	1	0505-
16	02.559 CLIP; HARNESS 16.065 (C) 1 SET=5 PIECE	1-09987-214-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.240 (D) ID=14 L=47	5-09700-319-0	AR	1	0505-
16	02.559 CLIP; HARNESS 03.162 (J) L=140	5-09707-031-1	AR	1	0505-
16	02.559 CLIP; HARNESS (A) L=100	8-94327-067-1	AR	1	0505-
16	02.559 CLIP; HARNESS 02.343 (F) ID=10 & 16	8-94413-325-0	AR	1	0505-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	AR	1	0505-
16	02.559 CLIP; HARNESS 02.694 (I) ID=6 & 10-13	8-97069-515-0	AR	1	0505-
16	02.559 CLIP; HARNESS (B) L=155	8-97173-307-0	AR	1	0505-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (C) ID=33 L=63	1-09700-807-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (B) ID=31 L=30	1-09700-969-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (I) L=170.3	1-09987-182-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 04.785 (F) ID=9.6	8-94147-870-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (G) L=110	8-94149-419-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS 03.115 (H) T=9 & 10.5	8-97041-091-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	AR	1	0505-
48	02.559 CLIP; FRAME HARNESS (J) ID=30 W/STUD	8-97078-642-2	AR	1	0505-
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0505-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (B) T=6.0	5-09709-024-0	02	1	0505-
464	02.525 CLIP; SEDIMENTER HARNESS 02.559 (A) ID=6.5	8-94257-639-0	01	1	0505-
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.446 ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0505-0801
570	02.559 CLIP; HARNESS,PTO POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.671 ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0802-
