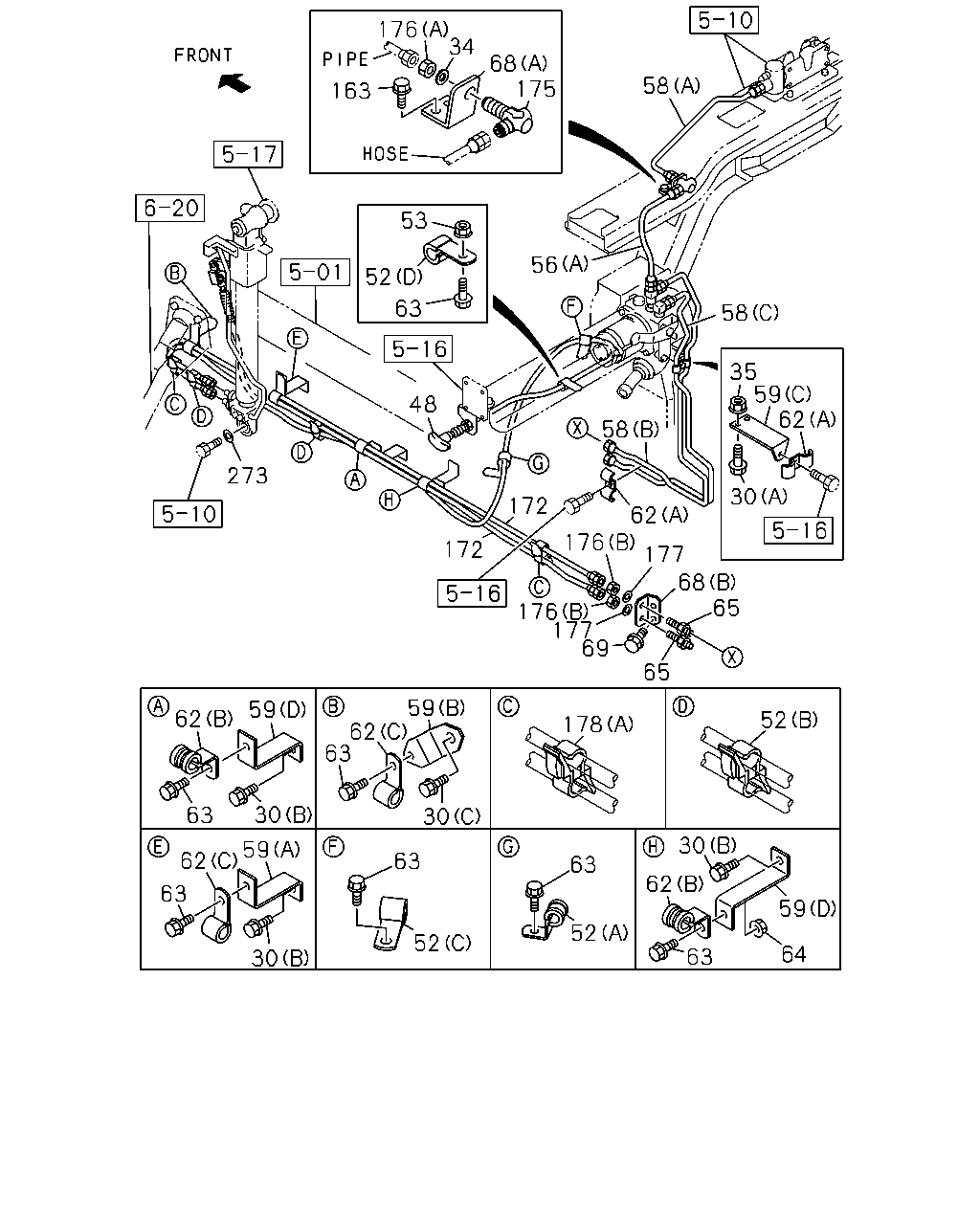

5-15 — CAB MOUNTING; CAB SIDE (#4097) — 182 parça

176 34 68 175 58 163 53 52 63 58 35 59 62 48 58 273 30 172 62 176 172 177 68 65 176 177 69 65 59 62 63 59 62 52 178 30 63 30 30 59 62 63 63 62 63 59 52 52 64 63 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9905-9910	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	03	1	9911-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28081-225-0	01	1	9603-9606	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	9607-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
34	WASHER; LK ID=14.2	9-09150-514-0	01	1	9603-9610	●	●
35	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9603-9606	●	●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9603-9606		●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9606		●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9607-9711	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9603-9907	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9603-	●	●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9603-9606		●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9607-9907	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
58	PIPE; OIL,POWER UNIT (A)	1-47424-665-1	01	1	9603-9610	●	●
58	PIPE; OIL,POWER UNIT (B)	1-47428-473-0	01	1	9603-9904	●	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (B)	1-49163-336-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT (C)	1-47428-474-0	01	1	9603-9904	●	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (C)	1-49163-342-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (B)	1-49163-338-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (C)	1-49163-344-0	01	1	9905-	●	●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	9603-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9603-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	9603-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9603-9910	●	●
59	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=90	1-82699-856-0	02	1	9911-	●	●
59	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90	1-82699-856-0	01	1	9911-	●	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●	●
62	CLIP; OIL PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9603-9905	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9905-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9603-9904	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9905-	●	●
68	BRACKET; UNION (A)	1-47476-898-0	01	1	9603-9610	●	●
68	BRACKET; UNION (B)	1-47477-750-0	01	1	9603-9902	●	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9903-9903	●	●
68	BRACKET; UNION (B)	1-47478-499-0	01	1	9904-9904	●	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9905-	●	●
69	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
163	BOLT; BRKT FIX M8X20 FLANGE	0-28680-820-0	02	1	9607-9610	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9603-9904	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9905-	●	●
175	UNION; FLEX HOSE M14	9-09225-208-1	01	1	9603-9610	●	●
176	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9610	●	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9603-9904	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9905-	●	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE (A) ID=12-16 & 12-16	1-09709-191-0	02	1	9603-9706	●	●
178	CLIP; FLEX HOSE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9611-9904	●	●
178	CLIP; FLEX HOSE (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (D) L=140	5-09707-031-1	01	1	9908-	●	●
178	CLIP; FLEX HOSE V TYPE ENG<91L> (D) L=140	5-09707-031-1	01	1	9908-	●	●
178	CLIP; FLEX HOSE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (D) L=140	5-09707-031-1	02	1	9908-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9603-	●	●

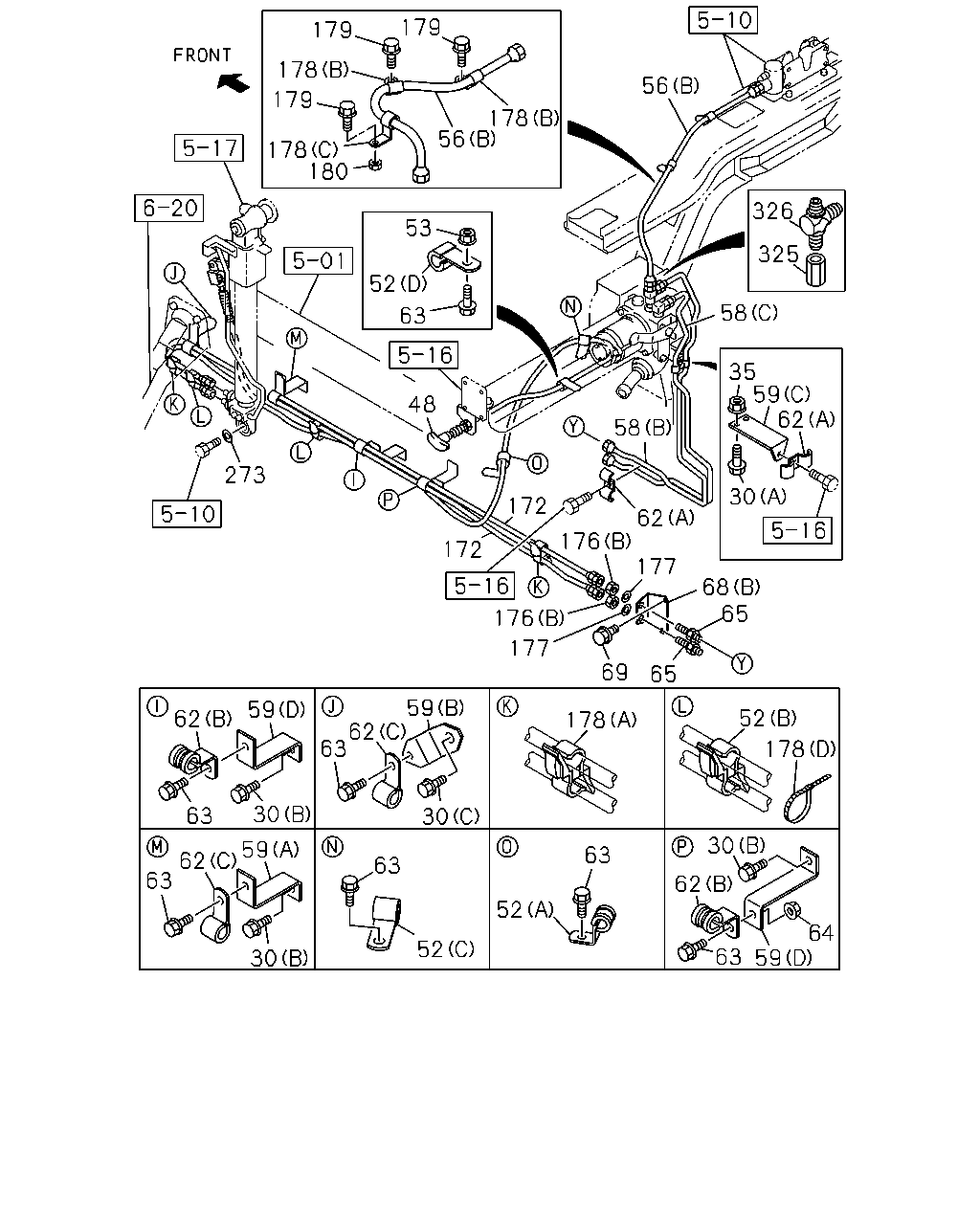

179 179 178 56 179 178 56 178 180 326 53 325 52 58 63 35 59 62 48 58 273 30 172 62 176 177 172 68 65 176 177 69 65 62 59 62 63 59 52 178 178 30 63 30 30 59 62 63 63 63 62 52 64 59 52 63 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
30	BOLT; BRKT FIX (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
30	BOLT; BRKT FIX (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28080-825-0	03	1	9603-9606	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
30	BOLT; BRKT FIX (B) M8X25 FLANGE	0-28680-825-0	03	1	9905-9910	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (B) M8X25 FLANGE	0-28680-825-0	03	1	9911-	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28081-225-0	01	1	9603-9606	●	●
30	BOLT; BRKT FIX (C) M12X25 FLANGE	0-28681-225-0	01	1	9607-	●	●
30	BOLT; BRKT FIX BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (B) M8X25 FLANGE	0-28680-825-0	02	1	9911-	●	●
35	NUT; BRKT M8	9-09110-408-0	02	1	9603-9606	●	●
35	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9603-9606	●	●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9603-9606		●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9606		●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9607-9711	●	●
52	CLIP; CONT CABLE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	02	1	9603-9907	●	●
52	CLIP; CONT CABLE (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9908-	●	●
52	CLIP; CONT CABLE (C) ID=7 L=20	9-09524-635-0	01	1	9603-	●	●
52	CLIP; CONT CABLE (D) ID=7 L=50	9-09524-685-0	01	1	9603-	●	●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9603-9606		●
52	CLIP; CONT CABLE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (B) ID=6-10 & 10-14	1-09709-201-1	01	1	9607-9907	●	●
53	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
56	HOSE; FLEX,OIL PIPE (A) L=300	1-09364-545-1	01	1	9603-9610	●	●
56	HOSE; FLEX,OIL PIPE (B) L=650	1-09364-432-3	01	1	9611-9904	●	●
56	HOSE; FLEX,OIL PIPE EXC. CAB UP +110MM<TGG> (B) L=650	1-09365-053-0	01	1	9905-	●	●
56	HOSE; FLEX,OIL PIPE CAB UP +110MM<TGG> (B) L=750	1-09365-058-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT (A)	1-47424-665-1	01	1	9603-9610	●	●
58	PIPE; OIL,POWER UNIT (B)	1-47428-473-0	01	1	9603-9904	●	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (B)	1-49163-336-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT (C)	1-47428-474-0	01	1	9603-9904	●	●
58	PIPE; OIL,POWER UNIT EXC. CAB UP +110MM<TGG> (C)	1-49163-342-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (B)	1-49163-338-0	01	1	9905-	●	●
58	PIPE; OIL,POWER UNIT CAB UP +110MM<TGG> (C)	1-49163-344-0	01	1	9905-	●	●
59	BRACKET; CLIP (A)	1-47476-200-0	01	1	9603-	●	●
59	BRACKET; CLIP (C)	1-47477-317-0	01	1	9603-	●	●
59	BRACKET; CLIP (B)	1-47477-631-1	01	1	9603-	●	●
59	BRACKET; CLIP (D) L=90	1-82699-856-0	02	1	9603-9910	●	●
59	BRACKET; CLIP BRAKE SYSTEM FULL AIR DUAL CIRCUIT(Z06) (D) L=90	1-82699-856-0	02	1	9911-	●	●
59	BRACKET; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) (D) L=90	1-82699-856-0	01	1	9911-	●	●
62	CLIP; OIL PIPE (A) ID=9 & 9 L=17 & 17	1-09700-651-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (A) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	9905-	●	●
62	CLIP; OIL PIPE (B) ID=25 H=30 L=35	1-09700-875-0	02	1	9603-9905	●	●
62	CLIP; OIL PIPE (B) ID=18 H=23 L=28	1-09700-860-0	02	1	9906-	●	●
62	CLIP; OIL PIPE (C) ID=11X2 L=16	9-09535-025-0	02	1	9603-9904	●	●
62	CLIP; OIL PIPE (C) ID=9X2 L=16	9-09534-825-0	02	1	9905-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
64	NUT; CLIP BRAKE SYSTEM AIR OVER HYDRAULIC DUAL CIRCUIT(Z05) M8 FLANGE	0-91150-108-0	01	1	9911-	●	●
65	UNION; OIL PIPE M14	9-09223-308-1	02	1	9603-9904	●	●
65	UNION; OIL PIPE M12 L=66.5	9-09223-306-1	02	1	9905-	●	●
68	BRACKET; UNION (A)	1-47476-898-0	01	1	9603-9610	●	●
68	BRACKET; UNION (B)	1-47477-750-0	01	1	9603-9902	●	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9903-9903	●	●
68	BRACKET; UNION (B)	1-47478-499-0	01	1	9904-9904	●	●
68	BRACKET; UNION (B)	1-47478-383-0	01	1	9905-	●	●
69	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
69	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09364-825-1	02	1	9603-9904	●	●
172	HOSE; FLEX,OIL TILT L=1600	1-09365-052-1	02	1	9905-	●	●
176	NUT; UNION (A) M14	9-99111-414-0	01	1	9603-9610	●	●
176	NUT; UNION (B) M14	9-99111-414-0	02	1	9603-9904	●	●
176	NUT; UNION (B) M12	9-09840-280-0	02	1	9905-	●	●
177	WASHER; LK,UNION ID=14.2	9-09150-514-0	02	1	9603-9904	●	●
177	WASHER; LK,UNION ID=12.2	9-09150-512-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE (A) ID=12-16 & 12-16	1-09709-191-0	02	1	9603-9706	●	●
178	CLIP; FLEX HOSE (B) ID=11 H=20 L=20	5-09700-351-0	02	1	9611-9904	●	●
178	CLIP; FLEX HOSE (C) ID=8 H=20 L=20	1-09700-604-0	02	1	9905-	●	●
178	CLIP; FLEX HOSE L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (D) L=140	5-09707-031-1	01	1	9908-	●	●
178	CLIP; FLEX HOSE V TYPE ENG<91L> (D) L=140	5-09707-031-1	01	1	9908-	●	●
178	CLIP; FLEX HOSE L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> (D) L=140	5-09707-031-1	02	1	9908-	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	9611-9904	●	●
179	BOLT; CLIP,FLEX HOSE M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
180	NUT; CLIP CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
273	WASHER; PL,OIL CYL ID=10.5 OD=32	9-09164-810-0	01	1	9603-	●	●
325	ADAPTER; PUMP M12 & RC1/4 STRAIGHT	1-09660-885-0	01	1	9905-	●	●
326	UNION; PUMP M12X2 & PT1/4 3WAY	1-09656-230-1	01	1	9905-	●	●

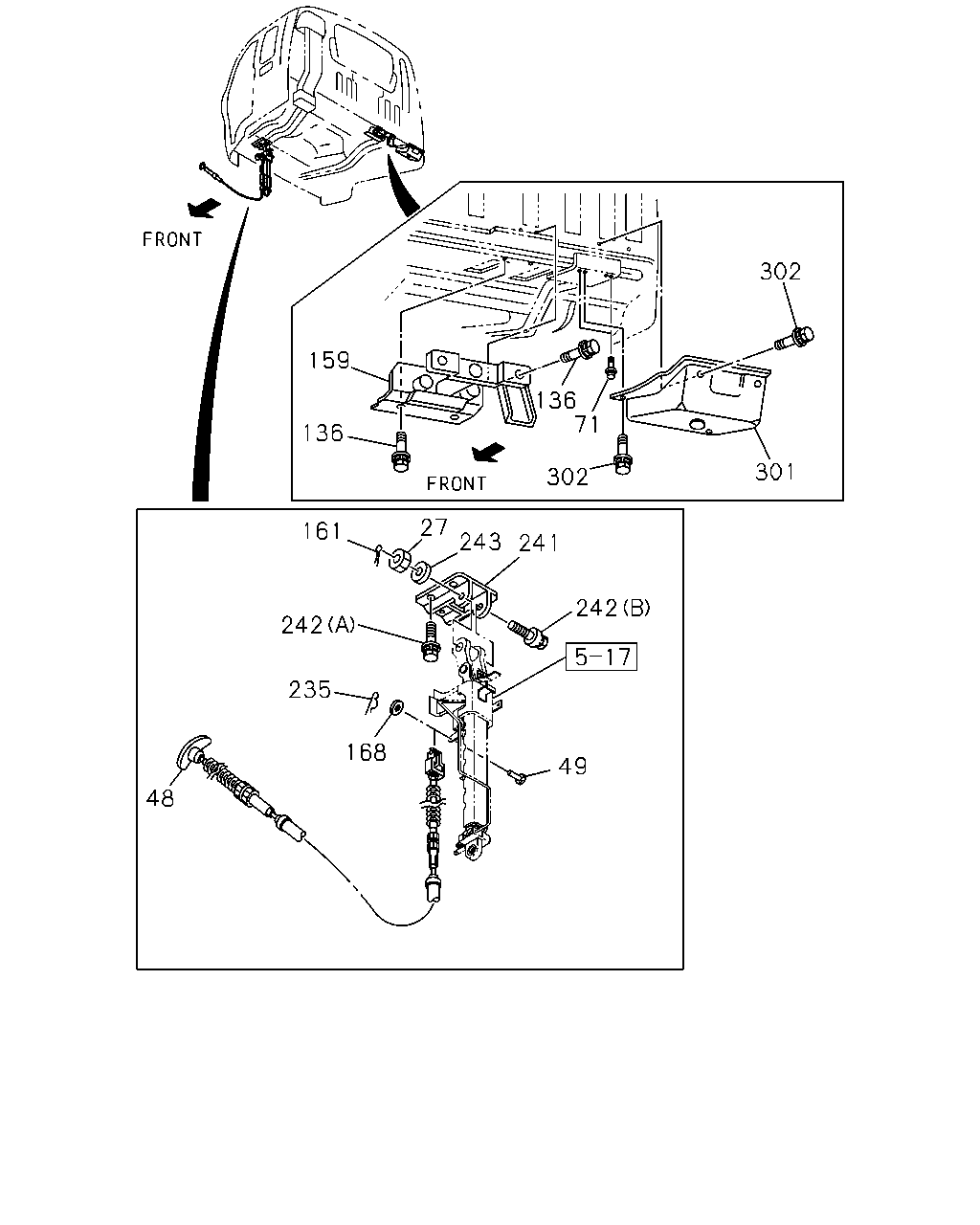

302 159 136 71 136 301 302 27 161 243 241 242 242 235 168 49 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	NUT; OIL CYL M14	9-99116-414-0	01	1	9603-	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9603-9606	●	●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9603-9606		●
48	CABLE ASM; CONT ANTI NOISE EQUIPMENT<SV9> L TYPE ENG<90L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT V TYPE ENG<91L> L=2457	1-62500-670-6	01	1	9607-9711	●	●
48	CABLE ASM; CONT L=2457	1-62500-670-6	01	1	9712-9910	●	●
48	CABLE ASM; CONT L=2457	1-62500-730-0	01	1	9911-	●	●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9603-9606		●
48	CABLE ASM; CONT L TYPE ENG<90L> EXC. ANTI NOISE EQUIPMENT<SV9> L=2688	1-62500-684-2	01	1	9607-9711	●	●
49	PIN; JAW FIX OD=6 L=17	9-08223-617-0	01	1	9603-	●	●
71	BOLT M10X25 W/LK&PL WASHER	8-94279-220-0	02	1	9603-	●	●
136	BOLT; CAB LK M8X24.5 W/LK&PL WASHER	8-94279-217-0	04	1	9603-	●	●
159	PIN	1-79717-615-2	01	1	9603-9609	●	●
159	PIN	1-79717-627-1	01	1	9610-	●	●
161	PIN; SPLIT OD=2.8 L=25	9-08113-025-0	01	1	9603-	●	●
168	WASHER; PL ID=6.4	9-09160-506-0	01	1	9603-	●	●
235	PIN; SNAP L=21.2	8-94157-840-0	01	1	9603-	●	●
241	BRACKET; POWER CYL UPR,CAB TILT	1-53458-338-0	01	1	9603-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (A) M10X30	1-09980-546-0	05	1	9603-	●	●
242	BOLT; POWER CYL BRKT,CAB TILT (B) M14X70	1-53458-633-0	01	1	9603-	●	●
243	WASHER; LK,POWER CYL BRKT ID=14.2	9-09150-514-0	01	1	9603-	●	●
301	BRACKET; RR MTG,CAB	1-62570-866-1	02	1	9603-	●	●
302	BOLT; BRKT,CAB M10X25 W/LK&PL WASHER	8-94279-220-0	08	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
