7-50 — FRONT SEAT (#40965) — 68 parça
çizim 54971
1 99 2 18 17 12 19 24 228 13 15 69 382 71 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-676-3 01 1 0505-
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-476-3 01 1 0505-
1 16.720 BACK ASM; SEAT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-365-3 01 1 0505-
1 16.720 BACK ASM; SEAT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-377-3 01 1 0505-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-484-3 01 1 0505-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-678-3 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-677-2 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-477-2 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-366-2 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-378-2 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-485-2 01 1 0505-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-679-2 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-100-1 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-478-1 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-367-1 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-375-1 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-482-1 01 1 0505-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-093-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-101-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-479-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
MANUAL TILT CAB<RWZ> EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-368-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
EXC. MANUAL TILT CAB<RWZ>,SEAT CLOTH<7FL> DARK GRAY 		8-97400-376-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. MANUAL TILT CAB<RWZ>,SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97400-483-1 01 1 0505-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> EXC. MANUAL TILT CAB<RWZ> DARK GRAY 		8-97400-094-1 01 1 0505-
15 16.716 FRAME; CUSHION,FRT SEAT
EXC. MANUAL TILT CAB<RWZ> 		8-97262-070-1 01 1 0505-
17 16.682 BOLT; RECLINING
M8X20 		8-97255-906-0 02 1 0505-
18 16.682 COVER; RECLINING
GRAY 		8-97400-369-0 01 1 0505-0505
18 16.682 COVER; RECLINING
DARK GRAY 		8-97400-095-0 01 1 0506-
19 16.686 SCREW; COVER
16.802 M5X16 TAPPING W/PL WASHER 		0-74310-516-0 01 1 0505-0604
19 16.686 SCREW; COVER
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 01 1 0605-
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97400-370-0 01 1 0505-0505
24 16.682 KNOB; RECLINING,FRT,SEAT
DARK GRAY 		8-97400-096-0 01 1 0506-0804
24 16.682 KNOB; RECLINING,FRT,SEAT
GRAY 		8-97415-446-0 01 1 0805-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> 		8-97854-947-3 01 1 0505-
63 16.682 ADJUSTER; SEAT SLIDE
EXC. SEAT CLOTH<7FL> 		8-97854-670-3 01 1 0505-
63 16.682 ADJUSTER; SEAT SLIDE
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> 		8-97854-670-3 01 1 0505-
69 16.682 NUT; FRT SEAT
M8 		1-09984-109-0 02 1 0505-
71 16.682 BOLT; ADJ TO SEAT
M8X20 		8-97255-906-0 02 1 0505-
99 16.716 BUSHING; SEAT BACK 8-97854-087-0 01 1 0505-
228 16.714 SCREW; KNOB
11.377 M4X6 		8-97042-273-0 01 1 0505-
382 16.682 WASHER; PL,DRIVER SEAT
06.514 ID=8.4 OD=22 		8-94127-883-1 02 1 0505-

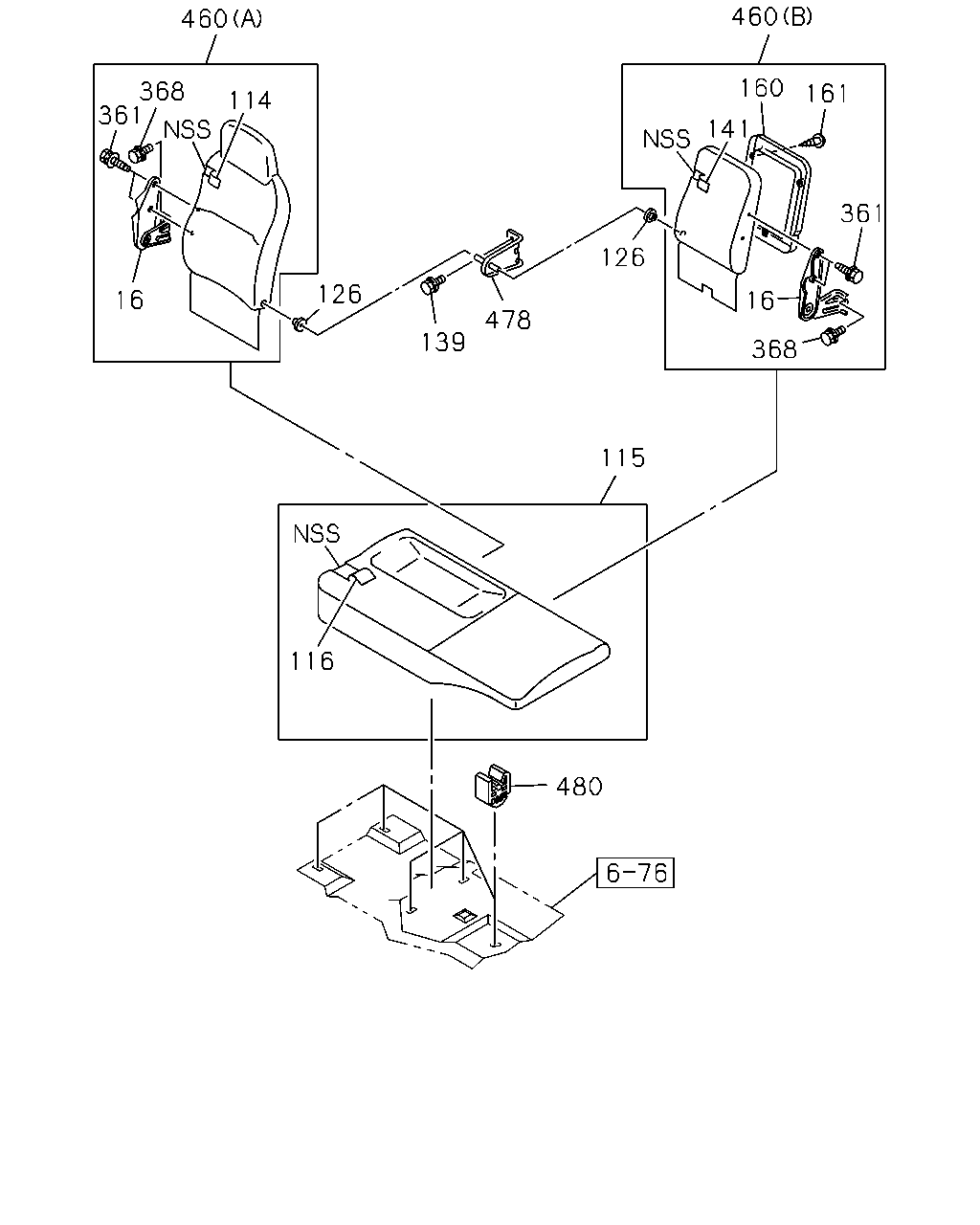

çizim 58104
460 460 160 368 361 161 114 141 361 126 126 16 16 478 139 368 115 116 480
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
BLACK 		8-97859-273-3 01 1 0505-
16 16.682 ADJUSTER ASM; RECLINING
BLACK 		8-97859-274-3 01 1 0505-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-693-2 01 1 0505-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-692-2 01 1 0505-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY 		8-97400-664-2 01 1 0505-
115 16.720 CUSHION ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-663-2 01 1 0505-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY 		8-97400-107-1 01 1 0505-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-703-1 01 1 0505-
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0505-0804
126 16.686 BUSHING; HINGE,RECLINING 8-97854-900-0 01 1 0505-0804
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805-
126 16.686 BUSHING; HINGE,RECLINING 8-98069-558-0 01 1 0805-
139 16.679 BOLT; PASSENGER SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 04 1 0505-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY 		8-97400-105-1 01 1 0505-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
EXC. SEAT CLOTH<7FL> DARK GRAY 		8-97400-698-2 01 1 0505-
160 16.650 CONSOLE; UPR,BACK CENTER
GRAY 		8-97398-252-1 01 1 0505-
161 16.650 SCREW; CONSOLE
M4X12 		8-94279-351-0 04 1 0505-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0505-
361 16.682 BOLT; ADJ,RECLINING
M8X18 		8-94279-109-1 02 1 0505-
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0505-
368 16.682 BOLT; SEAT
16.320 M8X24.5 W/LK&PL WASHER 		8-94279-217-0 01 1 0505-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-075-1 01 1 0505-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-653-2 01 1 0505-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (A) DARK GRAY 		8-97400-652-2 01 1 0505-
460 16.670 BACK ASM; PASSENGER SEAT
EXC. SEAT CLOTH<7FL> (B) DARK GRAY 		8-97400-658-2 01 1 0505-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA 8-97868-185-0 01 1 0505-
480 16.716 CLIP; CUSHION 8-94279-977-0 05 1 0505-
