7-43 — SUN VISOR AND ASSIST GRIP (#40963) — 62 parça

30 31 152 151 138 30 31 1 128 128 128 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.742 BOARD; HEADER SHELF TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97994-820-1	01	1	0505-
15	16.742 FASTENER; HEADER SHELF BOARD TRAY ROOF HEAD<7EJ> LIGHT GRAY, D8X15 PUSH RIVET	8-97892-693-0	02	1	0505-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (A)	8-97859-388-4	01	1	0505-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-798-3	01	1	0505-
30	16.742 BRACKET ASM; HEADER SHELF TRAY ROOF HEAD<7EJ> (B)	8-97856-797-3	01	1	0505-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0505-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.069 (A) M5X16 W/TORQUES	8-98061-741-0	02	1	0701-0702
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.263 (A) M5X16	8-94279-341-0	02	1	0703-
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.320 (B) M6X20 W/LK&PL WASHER	8-94279-403-0	04	1	0505-0612
31	16.742 SCREW; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 16.570 (B) M6X16	0-38050-616-0	04	1	0701-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (A) LIGHT GRAY	8-97892-153-2	02	1	0505-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C)	8-97892-737-0	03	1	0505-0612
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> (C) M6X16 W/TORQUES	8-98064-273-0	03	1	0701-
128	16.742 FASTENER; HEADER SHELF TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> (B) LIGHT GRAY	8-97892-151-0	01	1	0505-
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
138	16.742 NUT; BRKT,HEADER SHELF TRAY ROOF HEAD<7EJ> 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
151	16.450 COVER; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-250-0	01	1	0505-
152	16.450 CLIP; BRKT TRAY ROOF HEAD<7EJ> EXC. ROOF VENTILATOR<C55> LIGHT GRAY	8-97867-185-0	02	1	0505-

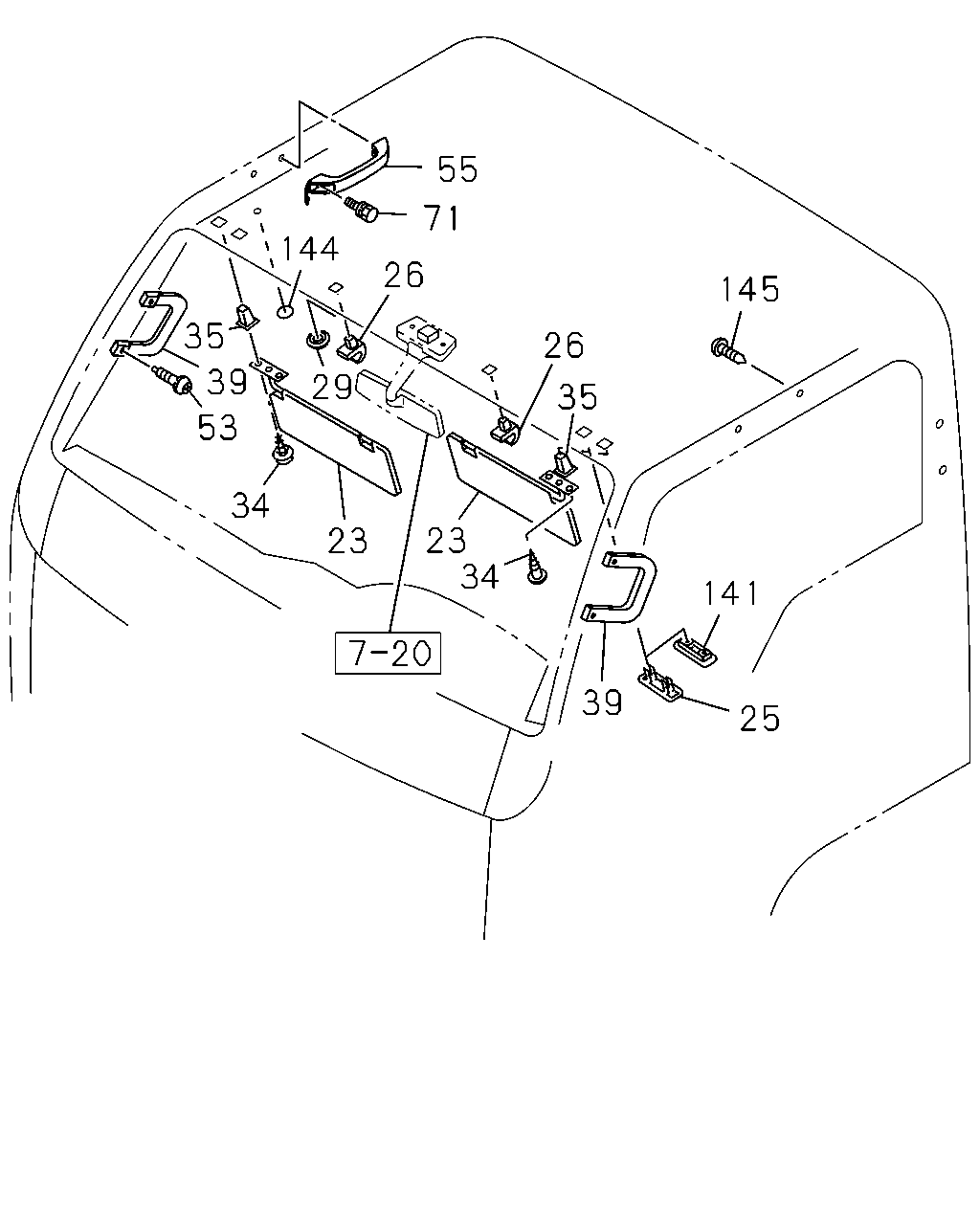

55 71 144 26 145 35 26 39 29 35 53 34 23 34 23 141 39 25

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-875-1	01	1	0505-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-451-0	01	1	0510-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-781-2	01	1	0505-0509
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-441-0	01	1	0510-
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97997-504-1	01	1	0505-0509
23	16.070 SUN VISOR TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-401-0	01	1	0510-
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97868-220-2	01	1	0505-0509
23	16.070 SUN VISOR EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97404-443-0	01	1	0510-
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97859-846-3	01	1	0505-0610
25	16.070 COVER; HOLE,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-201-3	01	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-97867-184-2	02	1	0505-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> TRAY ROOF HEAD<7EJ> DARK GRAY	8-97406-198-2	02	1	0611-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	02	1	0505-0610
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	02	1	0611-
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> LIGHT GRAY	8-94351-982-0	01	1	0505-0610
26	16.070 HOLDER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> DARK GRAY	8-97405-171-0	01	1	0611-
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97867-184-2	01	1	0505-0610
26	16.070 HOLDER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> DARK GRAY	8-97406-198-2	01	1	0611-
29	16.070 HOLDER; GROMMET,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.547 OD=15.0	8-94279-040-0	01	1	0505-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0505-0612
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 03.671 M5X20	5-09981-059-0	04	1	0505-0612
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	04	1	0701-0706
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 06.514 M5X18 TAPPING	0-72180-518-0	04	1	0707-
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 03.671 M5X20	5-09981-059-0	02	1	0505-0612
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 09.647 T25 M5X20 TAPPING HEXALOBULAR	0-72180-520-0	02	1	0701-0706
34	16.070 SCREW; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 06.514 M5X18 TAPPING	0-72180-518-0	02	1	0707-
35	16.070 GROMMET; SCREW,SUN VISOR SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0505-
35	16.070 GROMMET; SCREW,SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> 16.588	8-94279-039-0	04	1	0505-
35	16.070 GROMMET; SCREW,SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,TRAY ROOF HEAD<7EJ> 16.588	8-94279-039-0	02	1	0505-
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97582-194-1	02	1	0505-0702
39	16.450 HANDLE; ASSIST,A-POST GRAY	8-97409-477-0	02	1	0703-
53	16.450 SCREW; ASSIST HANDLE M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0505-0612
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	0701-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> GRAY	8-97582-294-2	01	1	0505-0610
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	0611-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X30 W/LK WASHER	5-09981-064-0	02	1	0505-0612
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	0701-
141	16.070 COVER; SUN VISOR TRAY ROOF HEAD<7EJ> EXC. SUNVISOR PASSENGER SIDE<D20> LIGHT GRAY	8-97859-845-1	01	1	0505-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-97856-832-2	04	1	0505-0610
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE	8-98059-421-0	04	1	0611-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	04	1	0505-
145	16.070 PLUG; HOLE EXC. TRAY ROOF HEAD<7EJ> 16.069 OD=12 L=14.8	8-94279-921-0	04	1	0505-
