Sayfa 5-10 - Isuzu EPC

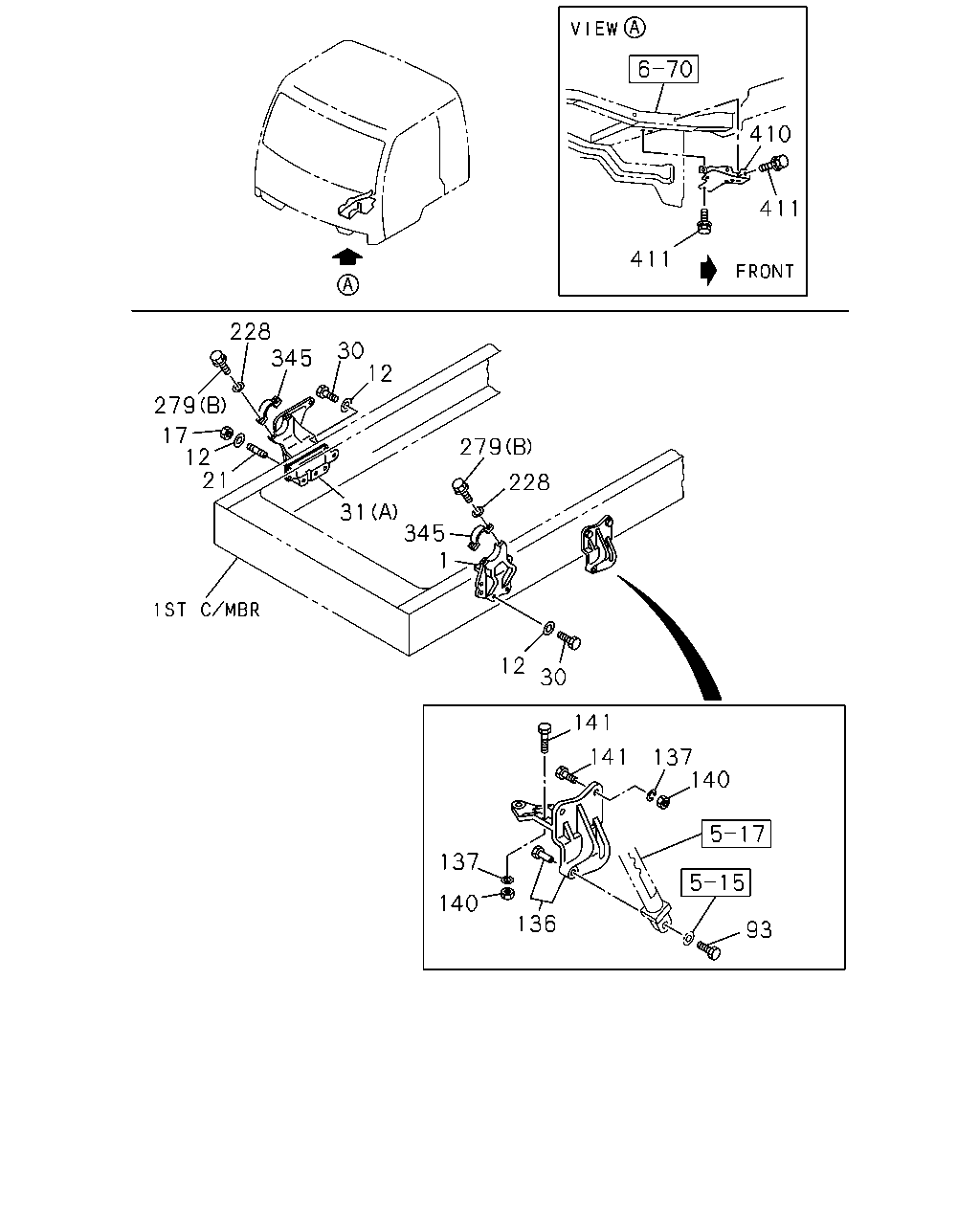

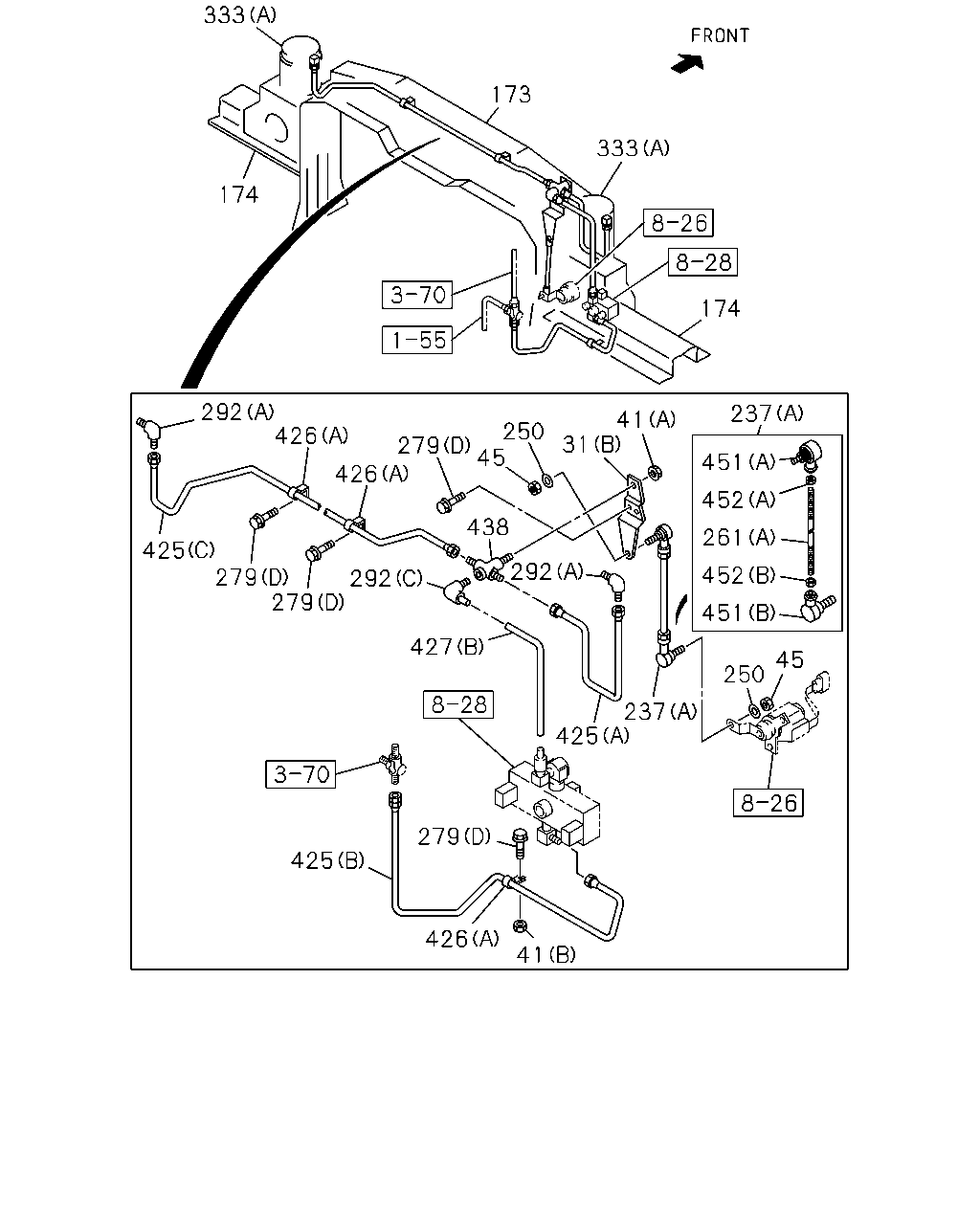

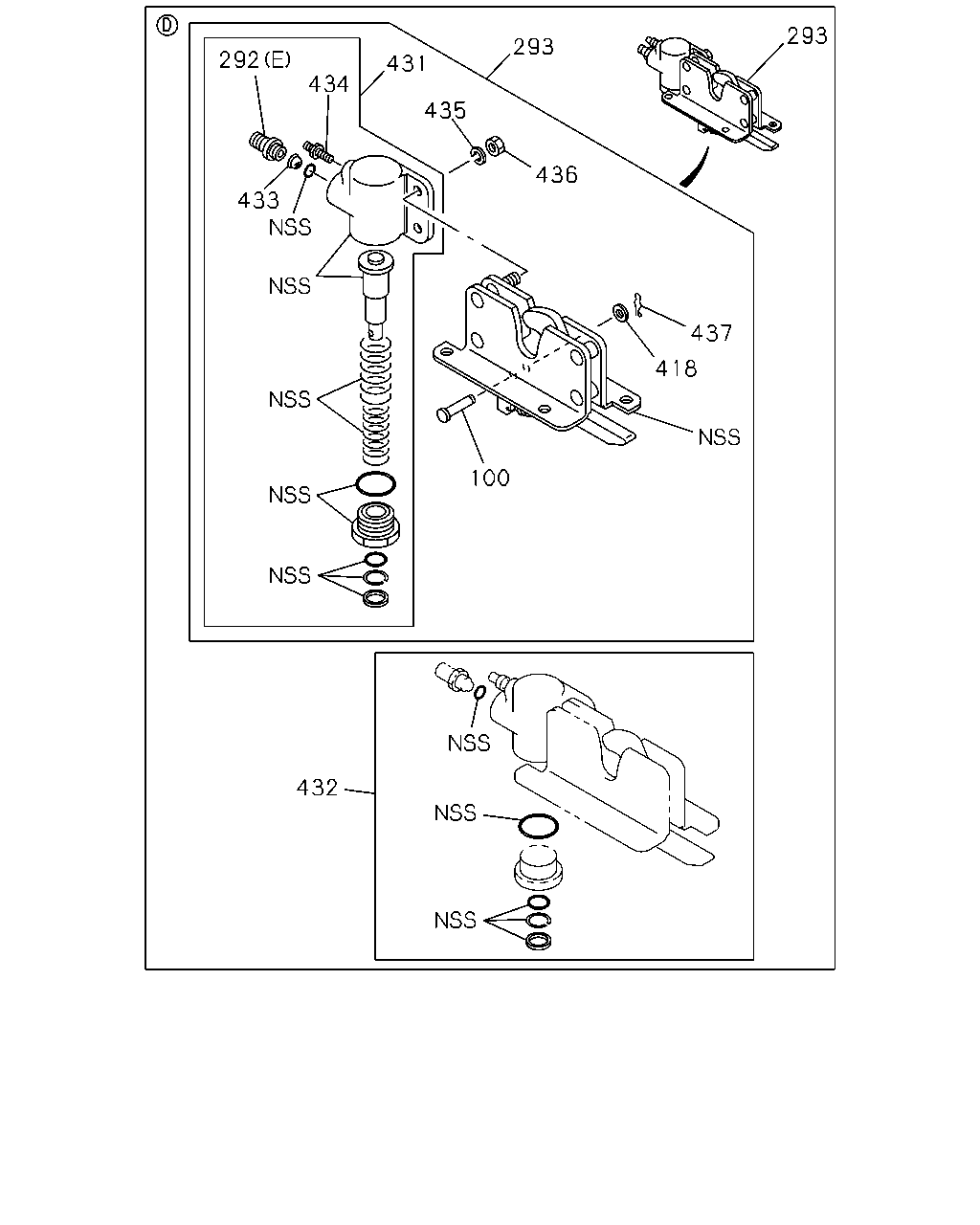

5-10 — CAB MOUNTING; FRAME SIDE (#4096) — 513 parça

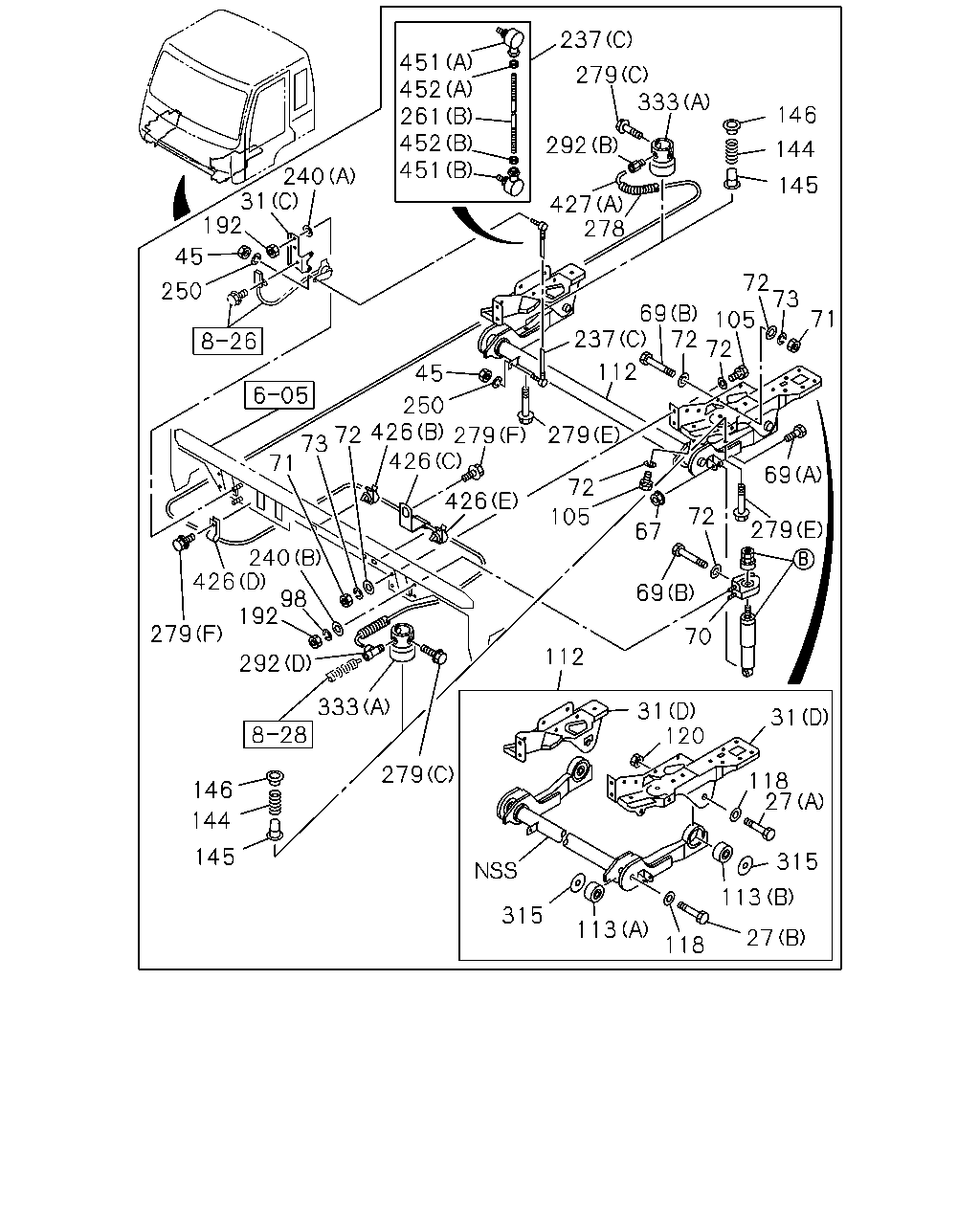

237 451 452 261 452 451 279 333 146 292 144 240 31 192 145 427 278 45 72 73 250 69 72 71 105 112 45 250 72 426 279 73 71 426 279 69 72 426 72 105 279 67 240 426 69 98 192 70 279 292 112 333 31 120 31 279 118 27 146 144 145 315 113 315 113 27 118 237 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
27	BOLT; BUSHING (A) M18X90	9-91066-890-0	02	1	0105-	●	●
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9603-	●	●
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9603-0104	●	●
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9603-9706	●	●
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9707-9904	●
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9904		●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9905-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9603-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9904		●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9905-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9603-	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9603-9606	●	●
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9603-	●	●
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9603-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9603-	●	●
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9603-	●	●
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9603-	●	●
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9603-	●	●
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9603-	●	●
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9603-	●	●
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	9603-	●	●
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-568-4	01	1	9603-	●	●
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	9603-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	9603-	●	●
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	9603-	●	●
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9603-	●	●
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9603-	●	●
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	9603-	●	●
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	9603-	●	●
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	9603-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	02	1	9603-	●	●
192	NUT; BRKT FIX M10	1-09984-142-0	04	1	9603-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9905-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9603-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9603-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9603-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9603-	●	●
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9905-9905	●	●
278	COVER DELUXE CAB(W14) FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-	●	●
278	COVER FULL FLOATING CAB(W16) L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9603-9711	●	●
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9712-9904	●	●
278	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9905-9905	●	●
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28280-825-0	02	1	9603-9603	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9905-9905	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9603-9711	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9904	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9905-9905	●	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9904	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9603-	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9603-9904	●	●
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9905-	●	●
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9603-	●	●
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9603-	●	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	03	1	9905-9905	●	●
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	9906-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9912	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=7 L=32	9-09524-665-0	01	1	0001-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9603-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9603-9904	●	●
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9905-9905	●	●
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9603-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9603-	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=1300	1-09368-930-0	01	1	9603-9904	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9603-9904	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9603-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9603-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9603-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9603-	●	●

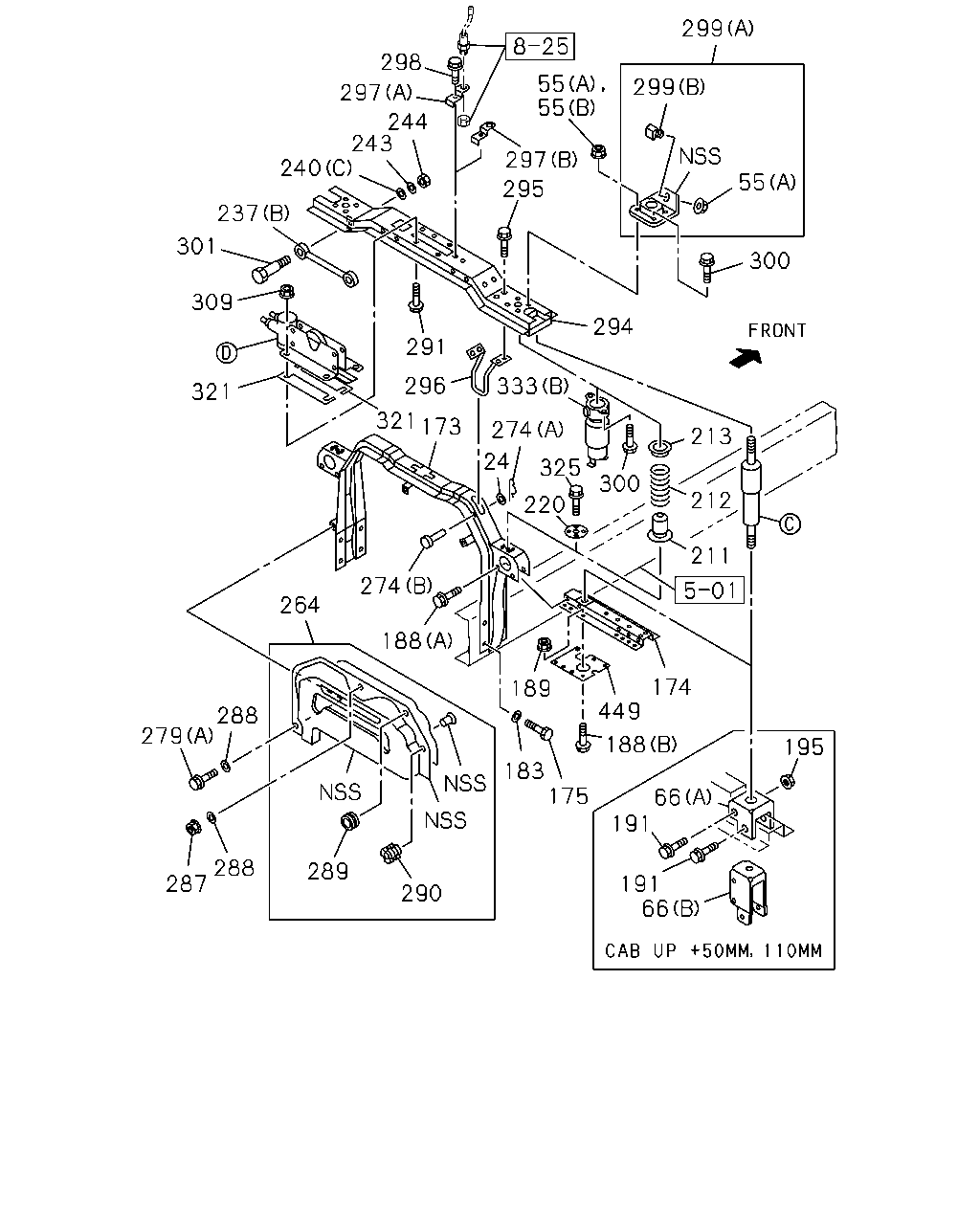

299 298 55 55 299 297 244 243 240 297 55 295 237 301 300 309 294 291 296 333 321 321 173 274 213 24 325 300 212 220 211 274 264 449 188 174 189 288 279 188 195 183 175 66 191 288 287 289 191 66 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9603-	●	●
55	NUT; RUBBER (A) M8 FLANGE	0-91150-108-0	02	1	9603-9607	●	●
55	NUT; RUBBER (A) M8 FLANGE	0-91150-108-0	06	1	9608-	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	04	1	9603-9603	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) (B) M8	9-09110-408-0	08	1	9604-9606	●	●
55	NUT; RUBBER FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	08	1	9607-9607	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) (B) M8	9-09110-408-0	04	1	9603-9606	●	●
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	04	1	9607-9607	●	●
66	BRACKET; S/ABS CAB UP +50MM<W60> (A)	1-53458-753-0	01	1	9707-9904		●
66	BRACKET; S/ABS CAB UP +110MM<TGG> (B)	1-53458-755-1	01	1	9905-	●	●
66	BRACKET; S/ABS CAB UP +50MM<W60> (A)	1-53458-754-0	01	1	9707-9904		●
66	BRACKET; S/ABS CAB UP +110MM<TGG> (B)	1-53458-786-0	01	1	9905-	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-611-1	01	1	9905-9908	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9905-9905	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9906-9908	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-545-5	01	1	9603-9706	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60>	1-53450-545-5	01	1	9707-9904	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-545-6	01	1	9905-	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9603-9903	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9904	●	●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-547-6	01	1	9707-9904		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-563-5	01	1	9905-9906	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-560-8	01	1	9907-	●	●
174	OUTRIGGER	1-53456-246-6	02	1	9603-9607	●	●
174	OUTRIGGER	1-53456-277-3	01	1	9608-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	9608-	●	●
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9603-	●	●
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9603-	●	●
188	BOLT; OUTRIGGER (A) M10X20 FLANGE	0-28081-020-0	08	1	9603-9606	●	●
188	BOLT; OUTRIGGER (A) M10X20 FLANGE	0-28681-020-0	08	1	9607-9609	●	●
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	9610-	●	●
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28681-020-0	08	1	9905-	●	●
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	9905-	●	●
191	BOLT; BRKT FIX CAB UP +50MM<W60> M10X25 FLANGE	0-28681-025-0	07	1	9707-9904		●
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	9905-	●	●
195	NUT; BRKT FIX CAB UP +50MM<W60> M10 FLANGE	0-91150-210-0	04	1	9707-9904		●
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9905-	●	●
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	9603-	●	●
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	9603-	●	●
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	9603-	●	●
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9603-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9905-	●	●
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9603-	●	●
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9603-	●	●
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9603-9606	●	●
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9706-	●	●
244	NUT; LATERAL ROD M12	9-99110-412-0	02	1	9603-9606	●	●
244	NUT; LATERAL ROD M12 FLANGE	0-91150-212-0	02	1	9607-9705	●	●
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9706-	●	●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-0	01	1	9703-9706	●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-0	01	1	9707-9905	●	●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG>	1-53193-390-2	01	1	9906-	●	●
264	PANEL; BACK ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9603-9702	●	●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-1	01	1	9703-9904	●	●
264	PANEL; BACK V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9703-9904	●	●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-1	01	1	9905-9905	●	●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG>	1-53192-606-2	01	1	9906-	●	●
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>	1-53193-618-1	01	1	9906-	●	●
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG>	1-53193-819-1	01	1	9906-	●	●
274	PIN (A)	1-09987-158-1	01	1	9603-	●	●
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9603-	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28280-825-0	02	1	9603-9603	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9905-9905	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9603-9711	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9904	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9905-9905	●	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-	●	●
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9603-	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9603-9905	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	04	1	9906-	●	●
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> ID=8.4 OD=26	9-09164-808-0	03	1	9906-	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9603-9702	●	●
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9703-9904	●
289	GROMMET L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9905-	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	04	1	9603-9608	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9609-9702	●	●
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9703-9904	●
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9905-9905	●	●
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG>	1-53459-702-1	04	1	9906-	●	●
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG>	1-53459-702-1	03	1	9906-	●	●
291	BOLT; RATCH M10X20 FLANGE	0-28081-020-0	04	1	9603-9606	●	●
291	BOLT; RATCH M10X20 FLANGE	0-28681-020-0	04	1	9607-9609	●	●
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9610-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-561-4	01	1	9603-9607	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-692-1	01	1	9608-9803	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-0	01	1	9804-9810	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-1	02	1	9811-9903	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-1	01	1	9904-9904	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9905-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-629-3	01	1	9603-9607	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-695-1	01	1	9608-9803	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-0	01	1	9804-9810	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-1	02	1	9811-9903	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-1	01	1	9904-9904	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9905-	●	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9607-	●	●
296	STOPPER; UPR	1-53458-382-0	01	1	9603-	●	●
297	BRACKET; LIMIT SW (A)	1-53458-348-0	01	1	9603-9901	●	●
297	BRACKET; LIMIT SW (B)	1-53458-782-0	01	1	9902-	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9901	●	●
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-	●	●
299	RUBBER; MTG (B)	1-53366-155-0	02	1	9603-	●	●
299	RUBBER; MTG (A)	1-53366-156-0	02	1	9603-	●	●
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9603-9607	●	●
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-	●	●
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	9608-	●	●
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-	●	●
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9603-	●	●
309	NUT M10	9-09110-510-0	04	1	9603-9606	●	●
309	NUT M10 FLANGE	0-91150-210-0	04	1	9607-	●	●
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9603-	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9603-	●	●
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9603-	●	●
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	9905-	●	●

333 173 333 174 174 292 426 237 41 31 250 279 45 451 426 452 438 261 425 279 292 279 292 452 451 427 45 250 237 425 279 425 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9603-9706	●	●
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9707-9904	●
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9904		●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9905-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9603-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9904		●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9905-	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-112-0	01	1	9603-9606	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
41	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	01	1	9603-9606	●	●
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9607-	●	●
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9603-	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-611-1	01	1	9905-9908	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9905-9905	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9906-9908	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-545-5	01	1	9603-9706	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60>	1-53450-545-5	01	1	9707-9904	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-545-6	01	1	9905-	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9603-9903	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9904	●	●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-547-6	01	1	9707-9904		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-563-5	01	1	9905-9906	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-560-8	01	1	9907-	●	●
174	OUTRIGGER	1-53456-246-6	02	1	9603-9607	●	●
174	OUTRIGGER	1-53456-277-3	01	1	9608-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	9608-	●	●
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9603-	●	●
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9905-	●	●
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9603-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9603-	●	●
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9603-	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28280-825-0	02	1	9603-9603	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9905-9905	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9603-9711	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9904	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9905-9905	●	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9904	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9603-	●	●
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9603-	●	●
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9603-	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) (B)	1-49118-055-0	01	1	9703-9706	●
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) (B)	1-49118-055-0	01	1	9707-9904	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-49118-055-0	01	1	9905-9912	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-49122-424-0	01	1	0001-	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	9905-	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-49119-371-0	01	1	9905-9912	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-49122-425-0	01	1	0001-0004	●	●
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-49122-659-0	01	1	0005-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	9603-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B)	1-47499-071-0	01	1	9603-9702	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-47499-071-0	01	1	9703-9904	●	●
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) (B)	1-47499-071-0	01	1	9703-9904	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B)	1-47499-071-0	01	1	9905-9912	●	●
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-47499-071-0	01	1	9905-9912	●	●
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0001-	●	●
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0001-	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49113-541-0	01	1	9603-9904	●	●
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-49113-541-0	01	1	9905-	●	●
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	03	1	9905-9905	●	●
426	CLIP DELUXE CAB(W14) FULL FLOATING CAB(W16) (E) ID=5.8 L=8	8-94155-681-0	02	1	9906-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	01	1	9603-9912	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=7 L=32	9-09524-665-0	01	1	0001-	●	●
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	9603-	●	●
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9603-9904	●	●
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9905-9905	●	●
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-	●	●
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9603-	●	●
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9603-	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=1300	1-09368-930-0	01	1	9603-9904	●	●
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9603-9904	●	●
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9905-	●	●
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9603-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9603-	●	●
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9603-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9603-	●	●
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) M5	9-99110-405-0	02	1	9603-	●	●

202 202 294 203 204 205 204 203 201 173 203 204 205 174 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-611-1	01	1	9905-9908	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9905-9905	●	●
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. MIXER TRUCK<RA2>,FULL FLOATING CAB(W16)	1-53450-615-1	01	1	9906-9908	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-545-5	01	1	9603-9706	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60>	1-53450-545-5	01	1	9707-9904	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-545-6	01	1	9905-	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9603-9903	●	●
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9904	●	●
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9905-	●	●
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-547-6	01	1	9707-9904		●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-563-5	01	1	9905-9906	●	●
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-560-8	01	1	9907-	●	●
174	OUTRIGGER	1-53456-246-6	02	1	9603-9607	●	●
174	OUTRIGGER	1-53456-277-3	01	1	9608-	●	●
174	OUTRIGGER	1-53456-278-3	01	1	9608-	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-480-0	02	1	9603-9703	●	●
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9704-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9603-9610	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9603-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	12	1	9603-9610	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9611-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9611-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9603-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9603-	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-561-4	01	1	9603-9607	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-692-1	01	1	9608-9803	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-0	01	1	9804-9810	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-1	02	1	9811-9903	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-1	01	1	9904-9904	●	●
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9905-	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-629-3	01	1	9603-9607	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-695-1	01	1	9608-9803	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-0	01	1	9804-9810	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-1	02	1	9811-9903	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-1	01	1	9904-9904	●	●
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9905-	●	●

293 293 292 431 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
100	PIN; JOINT	1-53458-527-0	01	1	9603-9705	●	●
100	PIN; JOINT	1-53458-831-0	01	1	9706-	●	●
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9603-9904	●	●
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9905-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9603-	●	●
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9603-	●	●
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9603-9705	●	●
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9904	●	●
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9905-	●	●
418	WASHER; PL,PIN	1-53458-059-0	01	1	9603-	●	●
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9603-9904	●	●
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9905-	●	●
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9603-	●	●
433	FILTER; AIR CYL	1-53458-048-0	01	1	9603-	●	●
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9603-	●	●
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9603-	●	●
436	NUT; AIR CYL	1-53458-528-0	02	1	9603-	●	●
437	PIN; SNAP	1-53458-526-0	01	1	9603-	●	●

65 65 202 202 202 202 203 203 204 204 205 205 204 204 203 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9603-9610	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703	●	●
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9603-9610	●	●
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-	●	●
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9603-	●	●
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9611-	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	12	1	9603-9610	●	●
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9611-	●	●
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9611-	●	●
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9603-	●	●
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9603-	●	●

410 411 411 228 345 30 12 279 17 12 21 279 228 31 345 1 12 30 141 141 137 140 137 140 136 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BRACKET; CAB MTG	1-53453-214-1	01	1	9603-9706	●	●
1	BRACKET; CAB MTG	1-53453-214-1	01	1	9707-9904	●
1	BRACKET; CAB MTG EXC. CAB UP +50MM<W60>	1-53453-214-1	01	1	9707-9904		●
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-214-2	01	1	9905-	●	●
1	BRACKET; CAB MTG CAB UP +50MM<W60>	1-53453-215-2	01	1	9707-9904		●
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-246-1	01	1	9905-	●	●
12	WASHER; LK,BRKT ID=15	9-09651-069-0	11	1	9603-9904	●	●
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9905-	●	●
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9905-	●	●
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	01	1	9603-9904	●	●
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9905-	●	●
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9905-	●	●
21	STUD; BRKT,CAB TILT M14X48 L=75	1-09300-094-0	01	1	9603-9904	●	●
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14X48 L=75	1-09300-094-0	01	1	9905-	●	●
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> M16X50 L=74	1-09300-117-0	01	1	9905-	●	●
30	BOLT; CAB FRT FOOT M14X45	9-92061-445-0	10	1	9603-9904	●	●
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> M14X45	9-92061-445-0	10	1	9905-	●	●
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> M16X45	9-92061-645-0	10	1	9905-	●	●
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9603-9706	●	●
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9707-9904	●
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9904		●
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9905-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9603-	●	●
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9603-	●	●
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9603-	●	●
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9904		●
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9905-	●	●
93	BOLT; PIN M10X20 W/LK WASHER	0-50041-020-0	01	1	9603-9606	●	●
93	BOLT; PIN M10X20 FLANGE	0-28681-020-0	01	1	9607-9904	●	●
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9905-	●	●
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9905-	●	●
136	BRACKET; OIL CYL	1-53458-623-0	01	1	9603-9706	●	●
136	BRACKET; OIL CYL	1-53458-623-0	01	1	9707-9904	●
136	BRACKET; OIL CYL 8PE1S(59L),10PE1S(60L)	1-53458-623-0	01	1	9707-9904		●
136	BRACKET; OIL CYL L TYPE ENG<90L> EXC. CAB UP +50MM<W60>	1-53458-623-0	01	1	9707-9904		●
136	BRACKET; OIL CYL WHEEL BASE 4500MM(45W)	1-53458-623-0	01	1	9905-9905	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-623-0	01	1	9905-9905	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. CAB UP +110MM<TGG>	1-53458-623-0	01	1	9905-9905	●
136	BRACKET; OIL CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4900MM(49W)	1-53458-623-0	01	1	9905-9905	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) LIGHT DUTY PACKAGE TRUCK<Y21>	1-53458-623-0	01	1	9905-9905		●
136	BRACKET; OIL CYL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5900MM(59W)	1-53458-623-0	01	1	9905-9905		●
136	BRACKET; OIL CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W)	1-53458-623-0	01	1	9905-9905		●
136	BRACKET; OIL CYL WHEEL BASE 4500MM(45W)	1-53458-623-0	01	1	9905-9907	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) EXC. SILENCER SINGLE VERTICAL<N28>	1-53458-623-0	01	1	9905-9907	●
136	BRACKET; OIL CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4900MM(49W)	1-53458-623-0	01	1	9905-9907	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-623-0	01	1	9905-9907		●
136	BRACKET; OIL CYL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-53458-623-0	01	1	9905-9907		●
136	BRACKET; OIL CYL WHEEL BASE 4500MM(45W)	1-53458-623-0	01	1	9908-9910	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) EXC. CAB UP +110MM<TGG>	1-53458-623-0	01	1	9908-9910	●
136	BRACKET; OIL CYL 10PE1S(60L),10PE1N(61L),10PE1H(68L) WHEEL BASE 4900MM(49W)	1-53458-623-0	01	1	9908-9910	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) EXC. CAB UP +110MM<TGG>	1-53458-623-0	01	1	9908-9910		●
136	BRACKET; OIL CYL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-53458-623-0	01	1	9908-9910		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) EXC. CAB UP +110MM<TGG>	1-53458-623-0	01	1	9911-	●	●
136	BRACKET; OIL CYL 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-53458-623-0	01	1	9911-	●	●
136	BRACKET; OIL CYL L TYPE ENG<90L> CAB UP +50MM<W60>	1-53458-624-0	01	1	9707-9904		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) FRAME EQUIPMENT HEAVY DUTY<F03> CAB UP +110MM<TGG>	1-53458-829-0	01	1	9905-9905	●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) CAB UP +110MM<TGG>	1-53458-829-0	01	1	9905-9905		●
136	BRACKET; OIL CYL 6WG1 TC-C(72L) WHEEL BASE 5900MM(59W)	1-53458-829-0	01	1	9905-9905		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W)	1-53458-829-0	01	1	9905-9905		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) SILENCER SINGLE VERTICAL<N28>	1-53458-829-0	01	1	9905-9907	●
136	BRACKET; OIL CYL 6WG1 TC-C(72L)	1-53458-829-0	01	1	9905-9907		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-829-0	01	1	9905-9907		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W)	1-53458-829-0	01	1	9905-9907		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L) WHEEL BASE 4900MM(49W) SILENCER SINGLE VERTICAL<N28>	1-53458-829-0	01	1	9908-9910	●
136	BRACKET; OIL CYL 6WG1 TC-C(72L)	1-53458-829-0	01	1	9908-9910		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5900MM(59W) CAB UP +110MM<TGG>	1-53458-829-0	01	1	9908-9910		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) WHEEL BASE 5300MM(53W),WHEEL BASE 6300MM(63W)	1-53458-829-0	01	1	9908-9910		●
136	BRACKET; OIL CYL 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L) CAB UP +110MM<TGG>	1-53458-829-0	01	1	9911-	●	●
136	BRACKET; OIL CYL 6WG1 TC-C(72L)	1-53458-829-0	01	1	9911-		●
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9603-	●	●
140	NUT; BRKT M14	9-99110-514-0	02	1	9603-9708	●	●
140	NUT; BRKT L TYPE ENG<90L> M14	9-99110-514-0	02	1	9709-9904	●	●
140	NUT; BRKT 10PE1S(60L) M14	9-99110-514-0	02	1	9709-9904	●	●
140	NUT; BRKT M14	9-99110-514-0	02	1	9905-	●	●
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9603-	●	●
228	WASHER; PL ID=12.5	9-09164-512-0	04	1	9603-9605	●	●
279	BOLT (B) M12X40	9-92061-240-0	04	1	9603-9605	●	●
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28280-825-0	02	1	9603-9603	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28080-825-0	02	1	9604-9606	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9905	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	03	1	9906-	●	●
279	BOLT ANTI NOISE EQUIPMENT<SV9> EXC. CAB UP +110MM<TGG> (A) M8X25 FLANGE	0-28680-825-0	02	1	9906-	●	●
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9905-9905	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB(W14) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-	●	●
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	06	1	9603-9606	●	●
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	9607-	●	●
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9603-	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9603-9711	●	●
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9904	●	●
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9905-9905	●	●
279	BOLT DELUXE CAB(W14) FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-	●	●
345	CAP; CAB	1-53458-336-3	02	1	9603-	●	●
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9603-	●	●
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9603-	●	●
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	9603-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
