◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-20 - MIRROR AND MIRROR STAY ▶
7-20 — MIRROR AND MIRROR STAY (#40958) — 62 parça
çizim 55803
4 162 2 159 3 158 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.068 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-241-1 01 1 0505-0610
1 16.068 MIRROR; ROOM
TRAY ROOF HEAD<7EJ> DARK GRAY 		8-97406-215-1 01 1 0611-
1 16.068 MIRROR; ROOM
EXC. TRAY ROOF HEAD<7EJ> LIGHT GRAY 		8-97582-242-2 01 1 0505-
2 16.069 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 0505-0612
2 16.069 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> 09.647 T25 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 02 1 0701-0702
2 16.069 SCREW; MIRROR TO BODY
TRAY ROOF HEAD<7EJ> 03.671 M5X20 		5-09981-059-0 02 1 0703-
2 16.069 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16 		8-94279-341-0 02 1 0505-0612
2 16.069 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> M5X16 W/TORQUES 		8-98061-741-0 02 1 0701-0702
2 16.069 SCREW; MIRROR TO BODY
EXC. TRAY ROOF HEAD<7EJ> 16.263 M5X16 		8-94279-341-0 02 1 0703-
3 16.069 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> WINDSHIELD WEATHERSTRIP TYPE<7EL> L=35 		8-97867-849-0 01 1 0505-
3 16.069 STOPPER; RR VIEW MIRROR
TRAY ROOF HEAD<7EJ> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> L=26 		8-97853-263-1 01 1 0505-
3 16.069 STOPPER; RR VIEW MIRROR
EXC. TRAY ROOF HEAD<7EJ>,WINDSHIELD WEATHERSTRIP TYPE<7EL> L=31 		8-97859-098-2 01 1 0505-
3 16.069 STOPPER; RR VIEW MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> EXC. TRAY ROOF HEAD<7EJ> L=40 		8-94273-036-3 01 1 0505-
4 16.069 GROMMET; SCREW,ROOM MIRROR
TRAY ROOF HEAD<7EJ> 16.588 		8-94279-039-0 01 1 0505-
158 16.495 LENS; ROOM LAMP
16.068 		5-73117-108-1 01 1 0505-
159 08.991 BULB; ROOM LAMP
24V 10W 		5-82194-030-0 01 1 0505-
162 16.069 SEAL; ROOM LAMP
TRAY ROOF HEAD<7EJ> 		8-97856-532-0 01 1 0505-

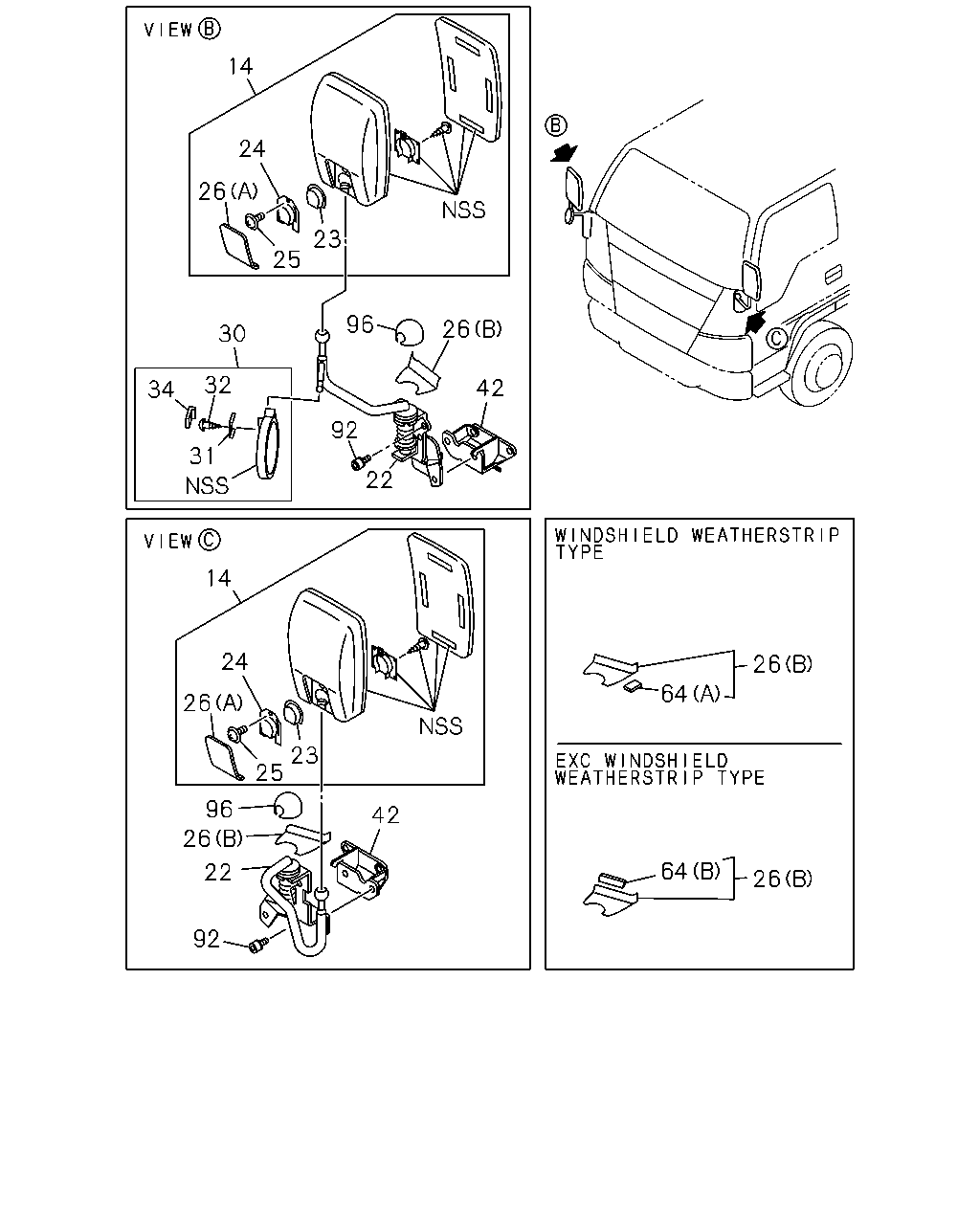

çizim 58116
14 24 26 23 25 96 26 30 32 42 34 92 31 22 14 24 26 64 26 23 25 96 42 26 64 22 26 92
BalonParca AdiParca NoAdetTipApplied Date
14 16.068 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0505-
14 16.068 MIRROR ASM; OUTSIDE 8-94262-543-3 01 1 0505-
22 16.069 STAY; OUTSIDE MIRROR 8-97582-991-3 01 1 0505-0701
22 16.069 STAY; OUTSIDE MIRROR 8-98039-576-1 01 1 0702-
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-97582-988-3 01 1 0505-0701
22 16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9> 		8-98039-573-1 01 1 0702-
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-97582-987-3 01 1 0505-0701
22 16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> 		8-98039-572-1 01 1 0702-
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0505-
23 16.069 WASHER; OUTSIDE MIRROR
T=2.0 		8-94262-545-0 01 1 0505-
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0505-
24 16.069 HOLDER; OUTSIDE MIRROR
T=1.6 		8-94262-546-1 01 1 0505-
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0505-
25 16.069 SCREW; OUTSIDE MIRROR
M6X30 		8-94279-365-0 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
(A) T=2.3 		8-94262-547-2 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-166-0 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97589-159-1 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0505-0807
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-840-4 01 1 0808-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0505-0807
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR ARC WHITE(729) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) WHITE 		8-97582-831-5 01 1 0808-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-168-0 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97589-161-1 01 1 0505-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0505-0807
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-844-4 01 1 0808-
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0505-0807
26 16.069 COVER; OUTSIDE MIRROR
BODY COLOR MARINE BLUE(890) EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) BLUE 		8-97582-835-5 01 1 0808-
30 16.068 MIRROR; UNDER
UNDER MIRROR<RR9> 		8-94262-625-2 01 1 0505-
31 16.069 PLATE; MIRROR
UNDER MIRROR<RR9> 		8-94262-631-0 01 1 0505-
32 16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18 		8-94279-372-0 02 1 0505-
34 16.069 CAP; MIRROR
UNDER MIRROR<RR9> 		8-94262-629-0 01 1 0505-
42 16.069 ATTACHMENT; OUTSIDE MIRROR 8-97581-755-2 01 1 0505-
42 16.069 ATTACHMENT; OUTSIDE MIRROR 8-97581-625-2 01 1 0505-
64 16.069 SEAL; MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0505-0807
64 16.069 SEAL; MIRROR
EXC. IDENTIFICATION LABEL FOR KD<6UT> (B) 		8-98015-057-0 02 1 0808-0809
64 16.069 SEAL; MIRROR
IDENTIFICATION LABEL FOR KD<6UT> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0808-0809
64 16.069 SEAL; MIRROR
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) 		8-98015-057-0 02 1 0810-
64 16.069 SEAL; MIRROR
KD PREPARATORY PACK VAR.4<7TV> EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (B) 		8-98015-057-0 02 1 0810-
64 16.069 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0505-0505
64 16.069 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 02 1 0505-0505
64 16.069 SEAL; MIRROR
WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-98015-058-0 04 1 0505-
92 16.069 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-94279-183-1 10 1 0505-0611
92 16.069 BOLT; STAY BRKT,MIRROR
M8X30 W/LK WASHER 		8-98020-347-0 10 1 0612-
96 16.069 CAP; MIRROR STAY 8-97581-631-2 02 1 0505-
