◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#40957) — 24 parça
çizim 13031
35 35 48 9 190
BalonParca AdiParca NoAdetTipApplied Date
9 08.808 PLATE; NAME,SPD RANGE
CAUTION SPANISH<YN1> EXC. TACHOMETER<U16> 		8-94158-942-0 01 1 0505-
9 08.808 PLATE; NAME,SPD RANGE
EXC. TACHOMETER<U16>,CAUTION SPANISH<YN1> 		8-94158-940-0 01 1 0505-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> CAUTION SPANISH<YN1> (A) 		8-97857-419-1 01 1 0505-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (B) 		5-85881-328-1 01 1 0505-
35 08.808 PLATE; CAUTION,CAB
MANUAL TILT CAB<RWZ> EXC. CAUTION SPANISH<YN1> (A) 		8-97856-228-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-98017-873-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CAUTION SPANISH<YN1> (B) 		8-98017-874-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
(A) 		8-97376-837-0 01 1 0505-
190 08.808 PLATE; CAUTION,OIL CHANGE
LIMITED SLIP DIFF<6LV> 		8-97200-740-0 01 1 0505-

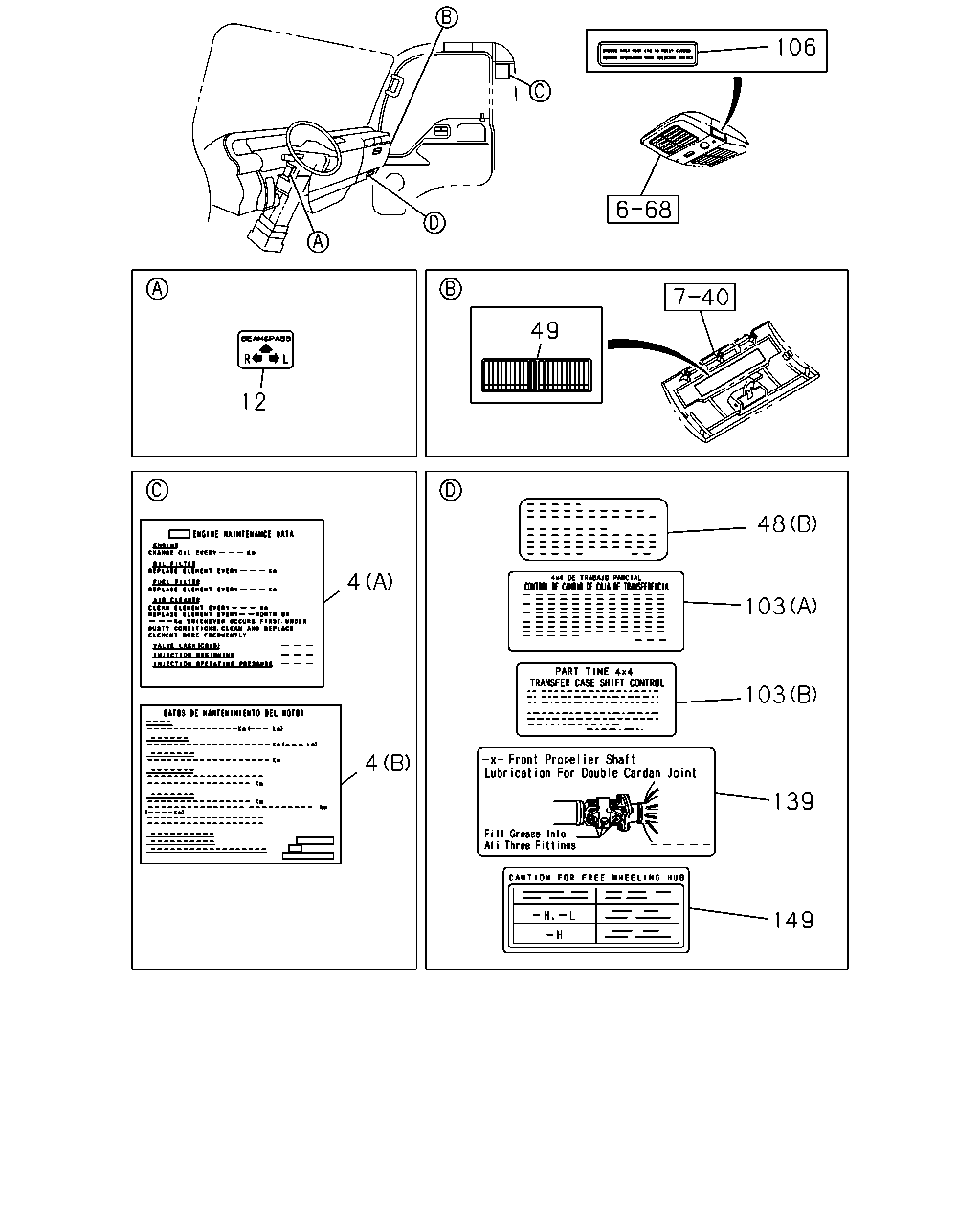

çizim 58128
106 49 12 48 4 103 103 4 139 149
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
CAUTION SPANISH<YN1> (B) 		8-97189-402-1 01 1 0505-
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> (A) 		8-97189-401-1 01 1 0505-
12 02.459 LABEL; TURN 8-94273-445-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
CAUTION SPANISH<YN1> POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-98017-873-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) EXC. CAUTION SPANISH<YN1> (B) 		8-98017-874-0 01 1 0505-
48 08.808 PLATE; CAUTION,PTO
(A) 		8-97376-837-0 01 1 0505-
49 08.808 PLATE; CAUTION,FUSE BOX 8-97377-715-0 01 1 0505-
103 08.808 PLATE; CAUTION,4WD
CAUTION SPANISH<YN1> 04.017 (A) 		8-97108-716-1 01 1 0505-
103 08.808 PLATE; CAUTION,4WD
EXC. CAUTION SPANISH<YN1> 04.017 (B) 		8-97108-715-0 01 1 0505-
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> CAUTION SPANISH<YN1> 		8-97580-590-0 01 1 0505-
106 08.808 PLATE; CAUTION,ROOF VENT
ROOF VENTILATOR<C55> EXC. CAUTION SPANISH<YN1> 		8-97580-589-0 01 1 0505-
139 08.808 PLATE; CAUTION,PROP SHAFT
CAUTION SPANISH<YN1> 		8-98009-407-0 01 1 0505-
139 08.808 PLATE; CAUTION,PROP SHAFT
EXC. CAUTION SPANISH<YN1> 		8-97118-440-0 01 1 0505-
149 08.808 PLATE; CAUTION,LOCKING HUB
CAUTION SPANISH<YN1> 		8-97108-674-2 01 1 0505-
149 08.808 PLATE; CAUTION,LOCKING HUB
EXC. CAUTION SPANISH<YN1> 		8-97108-673-1 01 1 0505-
