6-20 — SIDE PANEL AND STEP (#40939) — 70 parça

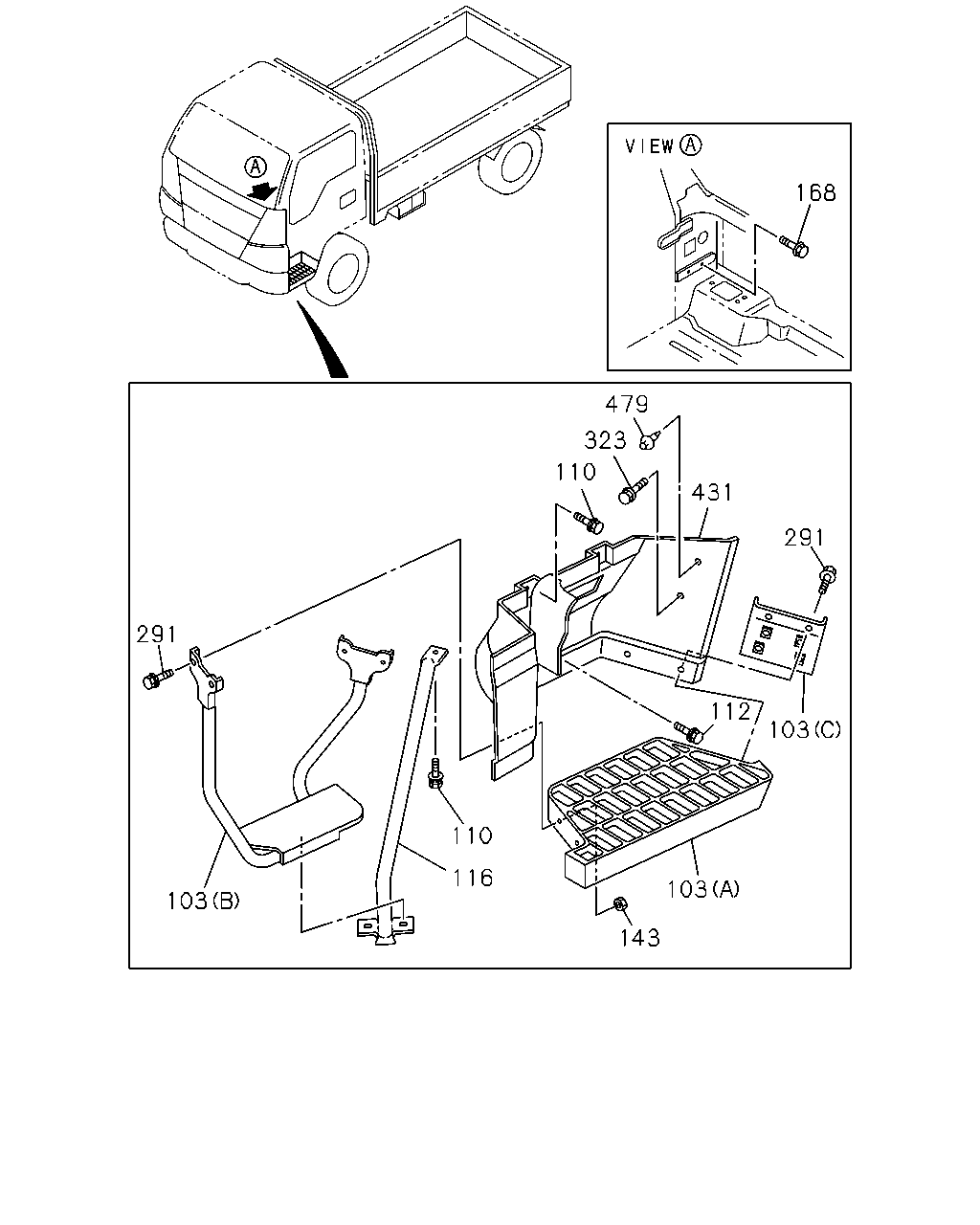

çizim 13477
168 479 323 110 431 291 291 112 103 110 116 103 103 143
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP
08.155 (C) 		8-97856-571-2 02 1 0505-
103 08.228 PLATE; STEP
(B) 		8-97856-568-1 01 1 0505-
103 08.228 PLATE; STEP
(A) 		8-97867-969-1 01 1 0505-
103 08.228 PLATE; STEP
(B) 		8-97856-567-1 01 1 0505-
103 08.228 PLATE; STEP
(A) 		8-97867-968-1 01 1 0505-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0505-
112 08.228 BOLT; 1ST STEP
02.664 M8X20 FLANGE 		0-28680-820-0 10 1 0505-0512
112 08.228 BOLT; 1ST STEP
01.531 M8X20 FLANGE 		0-28650-820-0 10 1 0601-
116 08.228 STAY; 1ST STEP,FRT 8-97410-684-0 01 1 0505-
116 08.228 STAY; 1ST STEP,FRT 8-97856-569-2 01 1 0505-
143 08.309 NUT; STEP PLATE TO BRKT
03.417 M8 FLANGE 		8-94279-517-0 04 1 0505-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0505-
291 08.225 BOLT; STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 0505-
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 02 1 0505-
431 08.228 SUPPORT ASM; STEP 8-97892-966-1 01 1 0505-
431 08.228 SUPPORT ASM; STEP 8-97892-965-1 01 1 0505-
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0505-

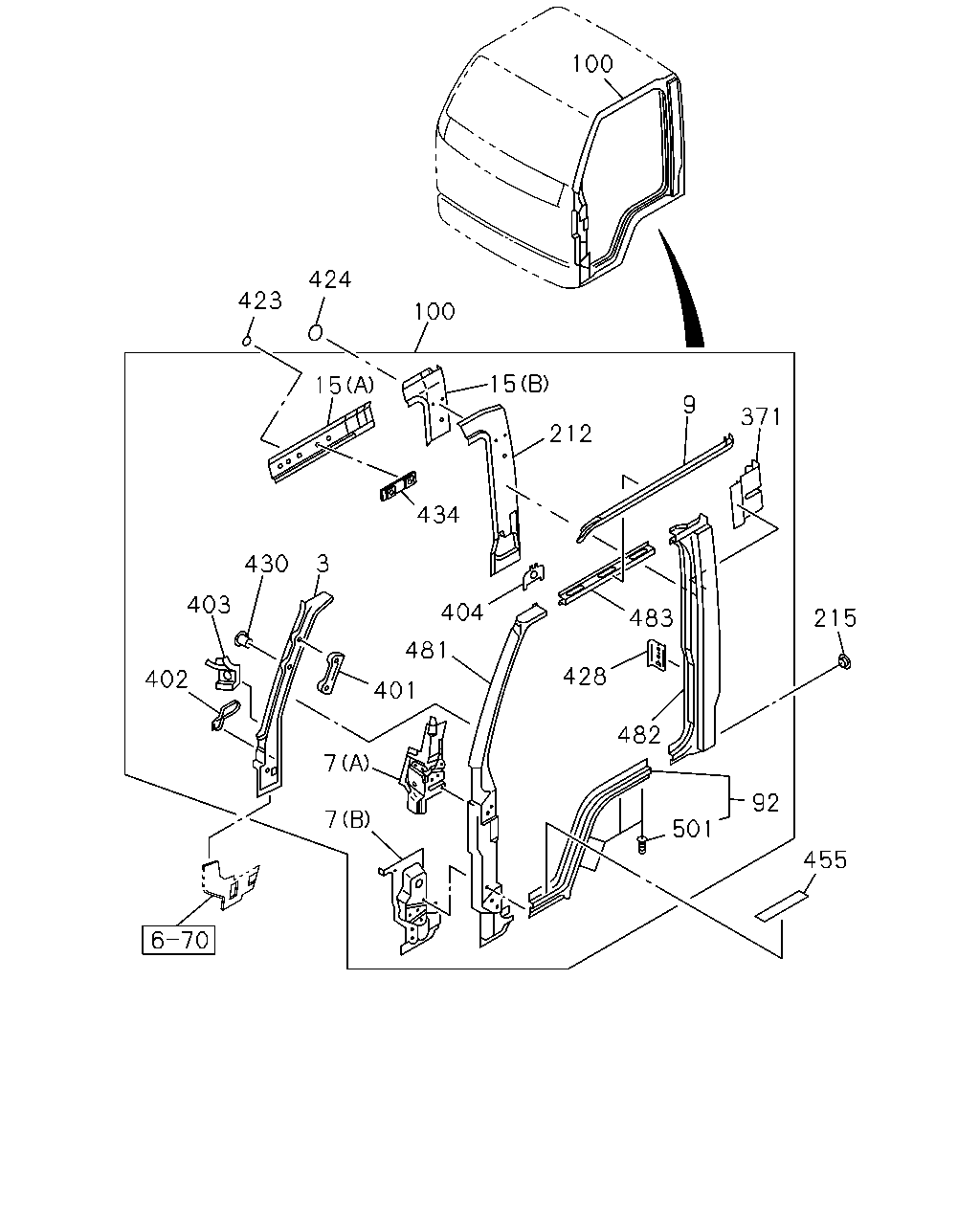

çizim 55550
100 424 423 100 15 15 9 371 212 434 3 430 403 404 215 483 481 428 402 401 482 7 92 7 501 455
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-358-4 01 1 0505-
3 16.592 PANEL; CLOSING,FRT PILLAR 8-97851-357-4 01 1 0505-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0505-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-354-2 01 1 0505-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0505-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-353-2 01 1 0505-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-020-9 01 1 0505-
9 16.592 MOLDING; DRIP,CAB SIDE 8-97851-019-9 01 1 0505-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-335-4 01 1 0505-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-337-5 01 1 0505-
15 16.592 PANEL; CANT RAIL SIDE
(A) 		8-97851-334-4 01 1 0505-
15 16.592 PANEL; CANT RAIL SIDE
(B) 		8-97851-336-5 01 1 0505-
92 16.570 PANEL; SIDE SILL,CAB 8-97867-238-0 01 1 0505-
92 16.570 PANEL; SIDE SILL,CAB 8-97867-237-0 01 1 0505-
100 16.570 PANEL ASM; BODY SIDE 8-97583-959-0 01 1 0505-
100 16.570 PANEL ASM; BODY SIDE 8-97583-958-0 01 1 0505-
212 16.588 CLOSING; PILLAR 8-97890-453-4 01 1 0505-
212 16.588 CLOSING; PILLAR 8-97890-452-4 01 1 0505-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0505-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0505-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0505-
401 16.592 PATCH; CLOSING,FRT PILLAR 8-97851-301-1 02 1 0505-
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0505-
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0505-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0505-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0505-
404 16.570 BRACKET 8-97890-317-1 01 1 0505-
404 16.570 BRACKET 8-97890-318-1 01 1 0505-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0505-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0505-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0505-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0505-
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0505-0610
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0505-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0505-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0505-
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0505-0805
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806-
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0505-0805
430 16.570 NUT; PANEL
16.549 M8 POP NUT 		8-98021-404-0 02 1 0806-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0505-
455 08.228 PROTECTOR; STEP 8-97852-863-0 02 1 0505-0511
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0512-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-138-0 01 1 0505-
481 16.570 PANEL; SIDE FRT PILLAR 8-98268-139-0 01 1 0505-
482 16.570 PANEL; SIDE RR PILLAR 8-97859-052-2 01 1 0505-
482 16.570 PANEL; SIDE RR PILLAR 8-97851-521-4 01 1 0505-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-525-2 01 1 0505-
483 16.570 PANEL; SIDE CANTRAIL 8-97851-524-2 01 1 0505-
501 16.570 PIN; STUD
M8X17 SPECIAL STUD 		8-94279-177-0 06 1 0505-
