Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶

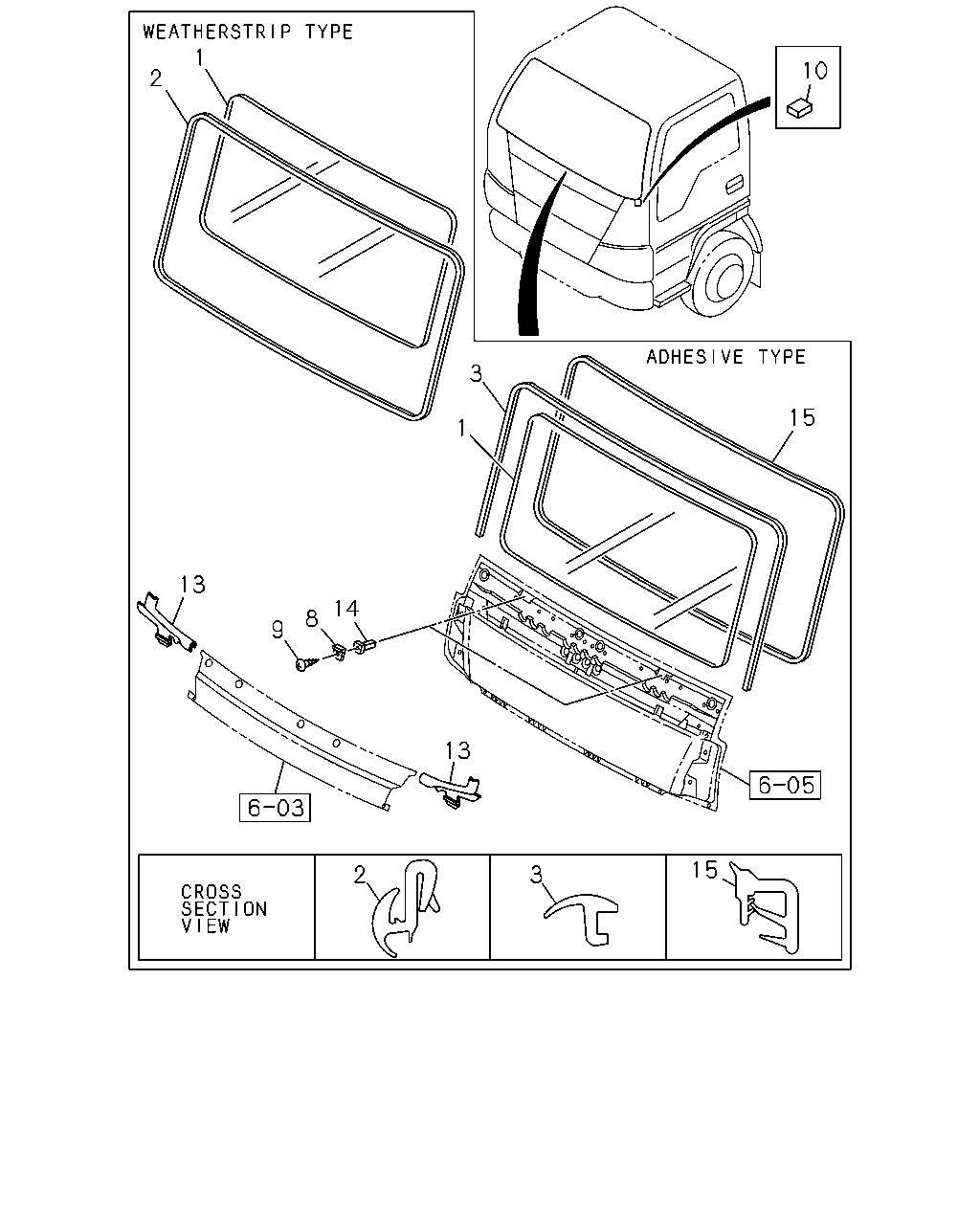

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#40938) — 12 parça
1
10
2
3
15
1
13
14
8
9
13
15
2
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97869-127-1
01
1
0505-0805
1
16.005 GLASS; WINDSHIELD
T=6.3
8-97997-945-2
01
1
0806-
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-350-4
01
1
0505-
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-624-3
01
1
0505-
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-1
02
1
0505-
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
0505-
10
08.160 SPACER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 10.027 10X10
8-94174-466-0
01
1
0509-
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-618-3
01
1
0505-
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-617-4
01
1
0505-
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK
8-94279-714-0
04
1
0505-
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
0505-
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> GRAY
8-97582-815-7
01
1
0505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
