Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶

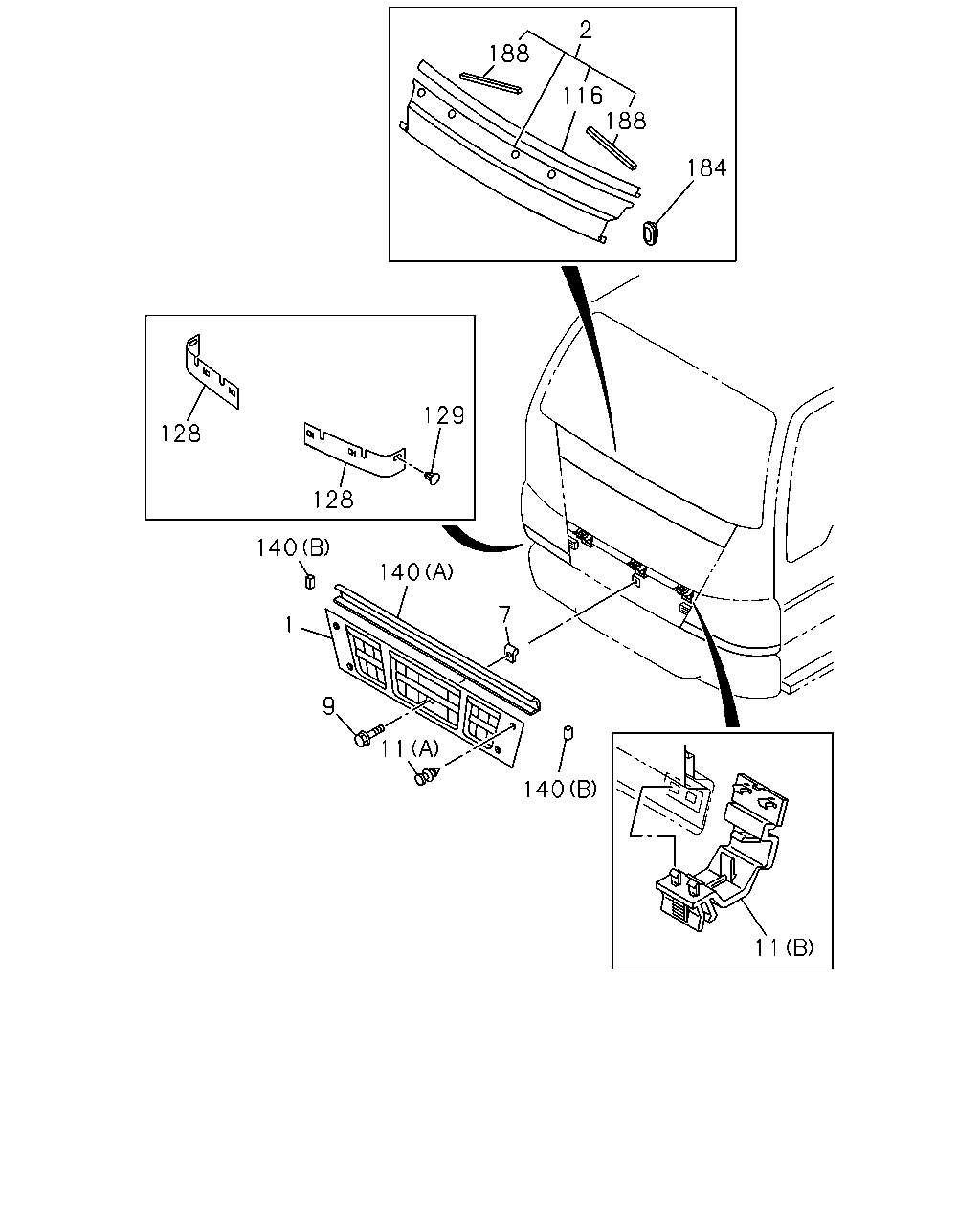

6-03 — RADIATOR GRILLE
(#40935) — 19 parça
2
188
116
188
184
129
128
128
140
140
7
1
9
11
140
11
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE
8-97583-047-4
01
1
0505-
1
01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE
8-97583-048-4
01
1
0505-
1
01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR
8-97581-826-2
01
1
0505-
2
01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97583-954-2
01
1
0505-
2
01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97583-953-3
01
1
0505-
7
01.269 NUT; SPIRE,RAD GRILLE
08.155
8-97805-829-0
01
1
0505-0505
7
01.269 NUT; SPIRE,RAD GRILLE
8-98014-760-0
01
1
0506-
9
01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING
8-94321-767-1
01
1
0505-0805
9
01.269 SCREW; RAD GRILLE
08.153 M6X20 W/PL WASHER
8-98059-504-0
01
1
0806-
11
01.269 CLIP; RAD GRILLE
(B) WHITE
8-97102-415-0
04
1
0505-
11
01.269 CLIP; RAD GRILLE
(A)
8-97581-651-2
04
1
0505-
116
01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97581-656-1
01
1
0505-
128
01.267 COVER; HEADLAMP GRILLE
8-97581-653-3
02
1
0505-
129
01.269 CLIP; COVER HEADLAMP GRILLE
D=6.5
8-97855-279-0
02
1
0505-
140
01.266 SEAL; RAD GRILLE
(A)
8-97581-665-0
01
1
0505-
140
01.266 SEAL; RAD GRILLE
(B)
8-97583-411-1
02
1
0505-
184
01.269 GROMMET; ORNAMENT
8-97581-668-0
03
1
0505-0602
184
01.269 GROMMET; ORNAMENT
8-97581-668-0
02
1
0603-
188
08.010 SEAL; ORNAMENT
8-97584-800-0
02
1
0505-
