5-01 — FRAME AND OTHER PARTS
(#40929) — 58 parça
◀

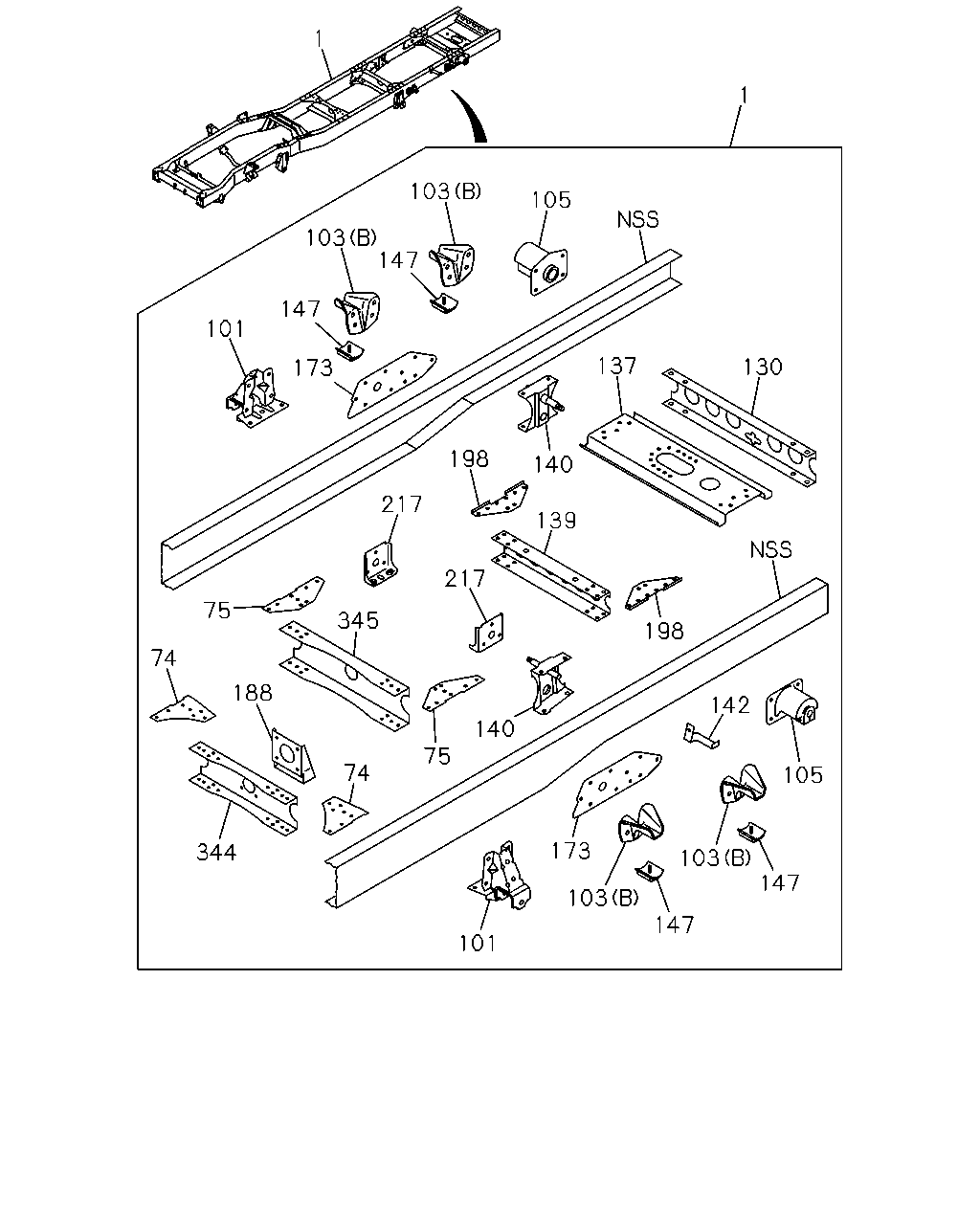

[501A] ASM;REAR SIDE (24 parça)

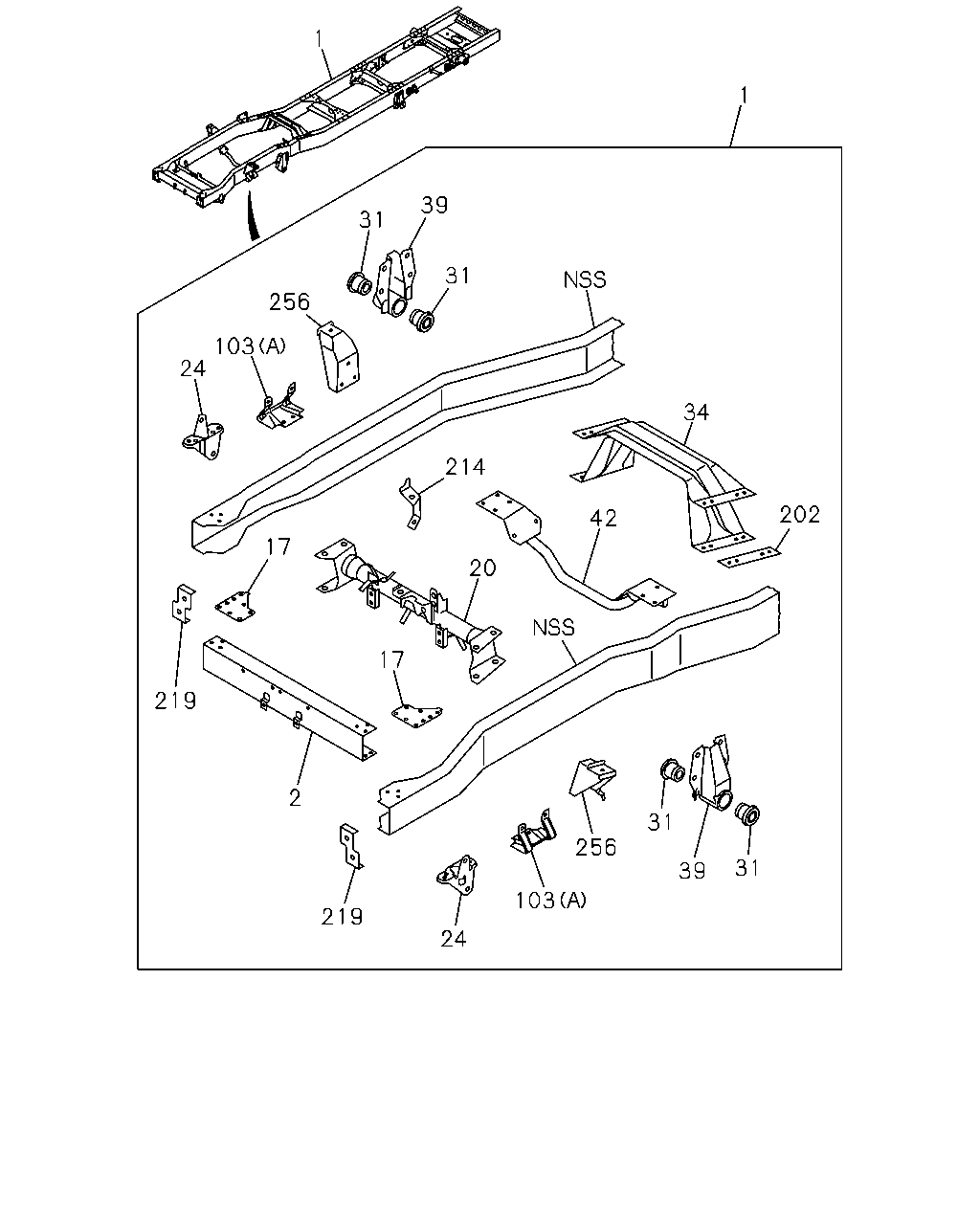

[501A] ASM;FRONT SIDE (18 parça)
[501A] RIVET,BOLT,NUT (16 parça)
▶
1
1
103
105
103
147
147
101
137
130
173
198
140
217
139
217
75
345
198
74
188
142
140
75
74
105
173
344
103
147
103
147
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-97376-976-1
01
1
0505-
74
07.039 GUSSET; 4TH C/MBR
RH-UPPER, LH-LOWER
8-97079-406-0
02
1
0505-
74
07.039 GUSSET; 4TH C/MBR
RH-LOWER, LH-UPPER
8-97079-407-0
02
1
0505-
75
07.039 GUSSET; 5TH C/MBR
RH-UPPER, LH-LOWER
8-94319-528-0
02
1
0505-
75
07.039 GUSSET; 5TH C/MBR
RH-LOWER, LH-UPPER
8-94319-529-0
02
1
0505-
101
07.112 BRACKET; RR SPR,FRT
8-94101-296-3
02
1
0505-
103
07.420 STOPPER; SUB SPR
07.112 (A)
8-94101-392-0
02
1
0505-
103
07.420 STOPPER; SUB SPR
(B)
8-97223-748-0
04
1
0505-
105
07.112 BRACKET; RR SPR,RR
9-53353-615-1
02
1
0505-
130
07.014 MEMBER; CROSS,END
8-94473-386-0
01
1
0505-
137
07.629 BRACKET; SPARE TIRE
8-97076-885-1
01
1
0505-
139
07.012 MEMBER; CROSS,6TH
8-94473-385-1
01
1
0505-
140
07.112 BRACKET; S/ABS,RR
8-94342-188-0
01
1
0505-
140
07.112 BRACKET; S/ABS,RR
8-94342-189-0
01
1
0505-
142
04.845 BRACKET; FLEX HOSE,BRAKE
07.112
8-94162-749-2
01
1
0505-
147
07.535 RUBBER; SUB SPRING
8-97254-387-0
04
1
0505-
173
07.112 STIFFENER; RR SPRING
RR SUS FRONT
8-97208-576-0
02
1
0505-
173
07.112 STIFFENER; RR SPRING
RR SUS REAR
8-97208-577-0
02
1
0505-
188
07.039 BRACKET; SUPPORT,CTR BRG
8-97043-581-0
01
1
0505-
198
07.039 GUSSET; 6TH C/MBR
RH-LOWER, LH-UPPER
8-94319-528-0
02
1
0505-
198
07.039 GUSSET; 6TH C/MBR
RH-UPPER, LH-LOWER
8-94319-529-0
02
1
0505-
217
07.535 BRACKET; HELPER RUBBER,RR SPRING
8-94258-963-0
02
1
0505-
344
07.012 MEMBER; CROSS,4TH
8-97079-405-4
01
1
0505-
345
07.012 MEMBER; CROSS,5TH
8-97180-545-5
01
1
0505-
1
1
39
31
31
256
103
24
34
214
202
42
17
20
17
219
2
31
256
31
39
103
219
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.003 FRAME ASM
8-97376-976-1
01
1
0505-
2
07.010 MEMBER; CROSS,1ST
8-97042-532-8
01
1
0505-
17
07.039 GUSSET; 1ST C/MBR
8-97088-205-1
02
1
0505-
20
07.012 MEMBER; CROSS,2ND
8-97377-815-0
01
1
0505-
24
07.105 BRACKET; FRT SPR,FRT
8-97086-593-1
01
1
0505-
24
07.105 BRACKET; FRT SPR,FRT
8-97086-592-1
01
1
0505-
31
07.428 BUSHING; FRT SPR,RR
07.524
8-97184-699-1
04
1
0505-
34
07.012 MEMBER; CROSS,3RD
8-97353-677-0
01
1
0505-
39
07.112 BRACKET; FRT SPR,RR
8-97046-283-1
02
1
0505-
42
07.011 MEMBER; CROSS,ENG MTG
8-97088-742-1
01
1
0505-
103
07.420 STOPPER; SUB SPR
07.112 (A)
8-94101-392-0
02
1
0505-
103
07.420 STOPPER; SUB SPR
(B)
8-97223-748-0
04
1
0505-
202
07.105 SPACER; 3RD C/MBR
8-97314-627-1
04
1
0505-
214
07.112 BRACKET; GEAR CONT
8-97094-811-2
01
1
0505-
219
07.869 BRACKET; BACK BAR,FRT BUMPER,FRA
8-97081-350-0
01
1
0505-
219
07.869 BRACKET; BACK BAR,FRT BUMPER,FRA
8-97081-351-0
01
1
0505-
256
07.395 BRACKET; S/ABS
8-97077-463-3
01
1
0505-
256
07.395 BRACKET; S/ABS
8-94314-431-3
01
1
0505-
376
376
376
376
376
376
376
376
376
376
376
176
118
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
67
07.011 NUT; C/MBR
06.509 M12 FLANGE
8-94436-194-0
08
1
0505-
118
07.529 NUT; STOPPER
07.242 M8 LOCK NUT
9-09131-508-0
04
1
0505-0603
118
07.529 NUT; STOPPER
M8 LOCK NUT
0-91370-008-0
04
1
0604-
176
04.085 BOLT; C/MBR,ENG MTG
00.002 M12X35 FLANGE
0-28091-235-0
08
1
0505-0512
176
04.085 BOLT; C/MBR,ENG MTG
M12X35 FLANGE
0-28061-235-0
08
1
0601-
376
07.039 RIVET; FRAME
07.011 (A) D8X24 TAPER END
9-06750-824-0
AR
1
0505-
376
07.039 RIVET; FRAME
(B) D10X24 TAPER END
9-06751-024-0
AR
1
0505-
376
07.039 RIVET; FRAME
(C) D10X26 TAPER END
9-06751-026-0
AR
1
0505-
376
07.039 RIVET; FRAME
(D) D10X28 TAPER END
9-06751-028-0
AR
1
0505-
376
07.039 RIVET; FRAME
(E) D10X30 TAPER END
9-06751-030-0
AR
1
0505-
376
07.039 RIVET; FRAME
(F) D10X32 TAPER END
9-06751-032-0
AR
1
0505-
376
07.039 RIVET; FRAME
(G) D10X36 TAPER END
9-06751-036-0
AR
1
0505-
376
07.039 RIVET; FRAME
07.105 (H) D12X30 TAPER END
9-06751-230-0
AR
1
0505-
376
07.039 RIVET; FRAME
07.535 (I) D12X34 TAPER END
9-06751-234-0
AR
1
0505-
376
07.039 RIVET; FRAME
07.428 (J) D12X36 TAPER END
9-06751-236-0
AR
1
0505-
376
07.039 RIVET; FRAME
(K) D13X40 TAPER END
9-06751-340-0
AR
1
0505-
