9 |

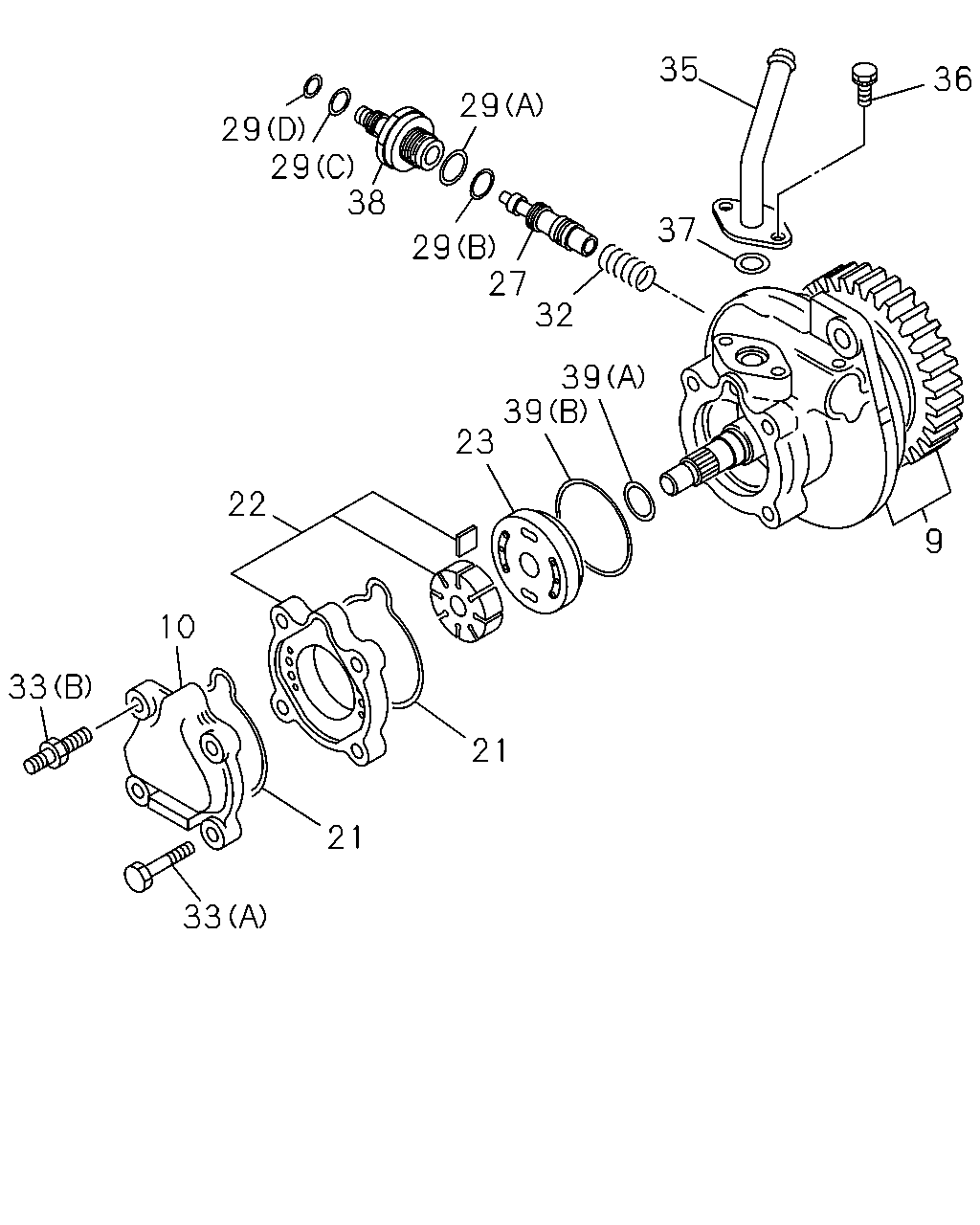

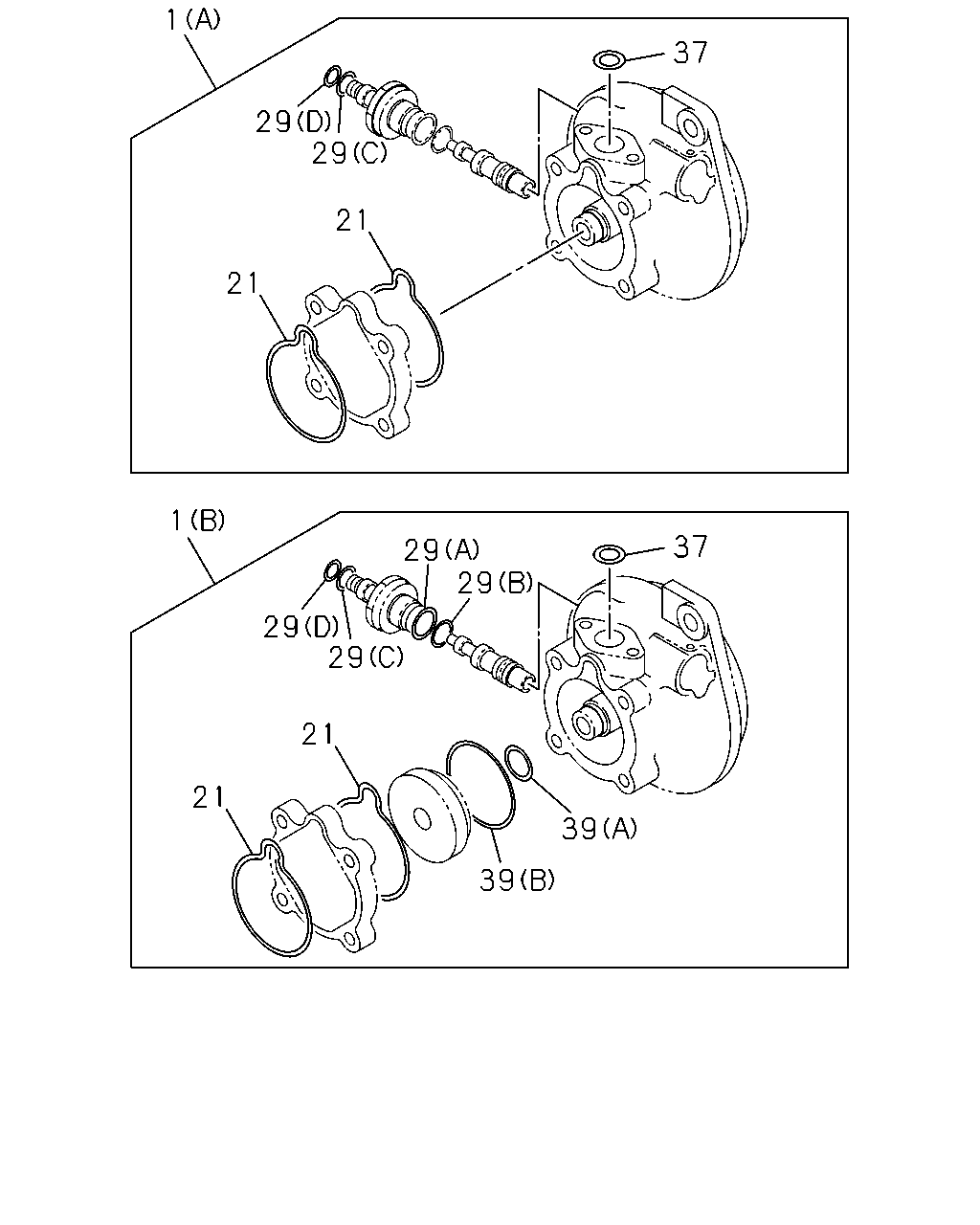

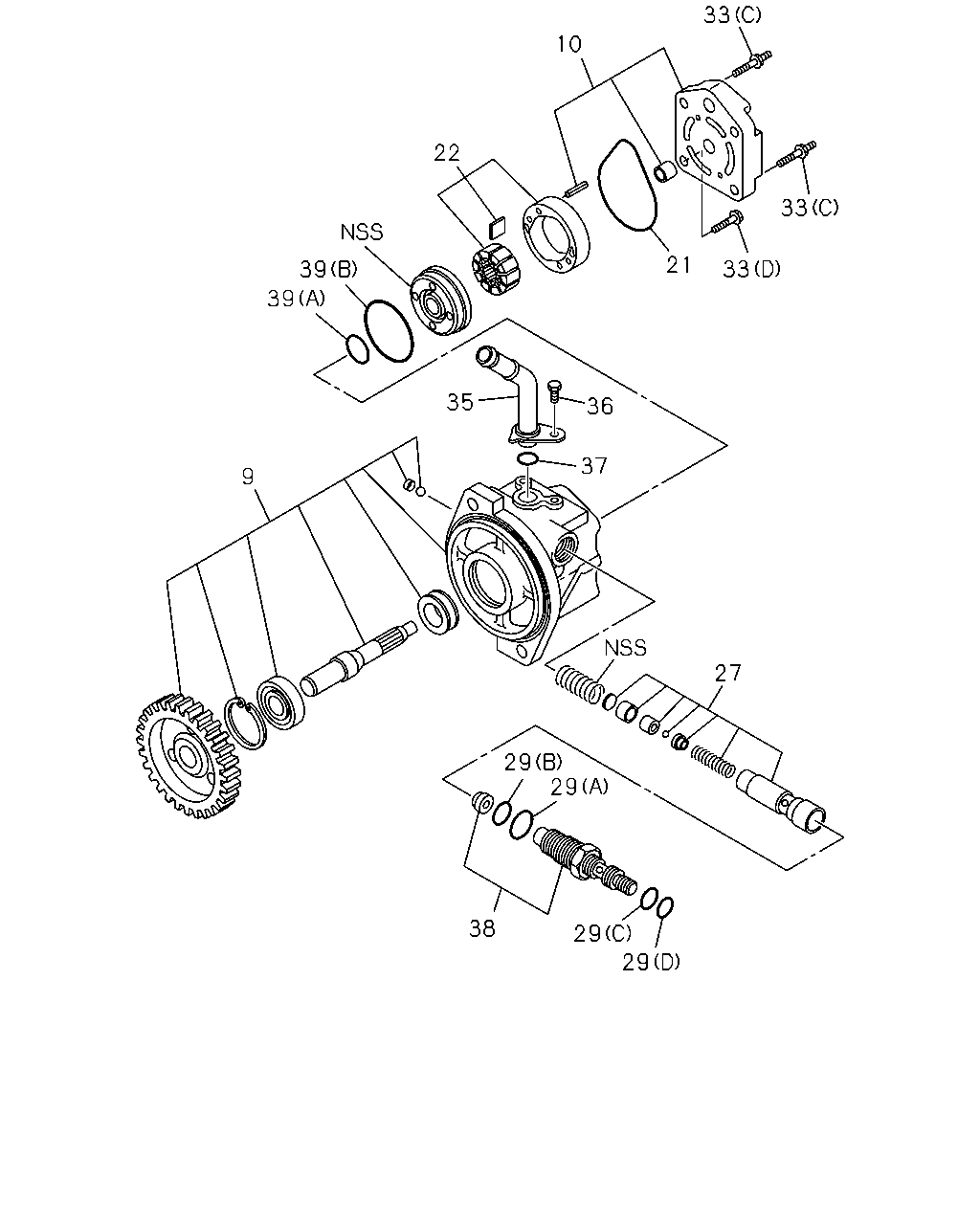

06.608 BODY ASM; FRT,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97388-641-0 |
01 |
1 |
- |
| |
10 |
06.608 BODY ASM; RR,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97029-772-0 |
01 |
1 |
- |
| |
21 |
06.609 GASKET; FRT COVER TO BODY
ASM PART: A = 8-97388-651-1, 97388651
|
8-97062-329-0 |
02 |
1 |
- |
| |
22 |
06.610 CARTRIDGE ASM; OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97148-690-0 |
01 |
1 |
- |
| |
23 |
06.609 PLATE; SIDE,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97147-453-0 |
01 |
1 |
- |
| |
27 |
06.624 VALVE ASM; OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97075-587-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(A) ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-658-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(B) ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-659-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
06.674, (C)
ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-666-0 |
01 |
1 |
- |
| |
29 |
06.609 GASKET; PLUG TO VLV
(D) ASM PART: A = 8-97388-651-1, 97388651
|
8-97075-581-0 |
01 |
1 |
- |
| |
32 |
06.606 SPRING; OIL PUMP
06.612
ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-654-0 |
01 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
06.608, (B)
ASM PART: A = 8-97388-651-1, 97388651
|
8-97029-773-0 |
03 |
1 |
- |
| |
33 |
06.606 BOLT; COVER
(A) ASM PART: A = 8-97388-651-1, 97388651
|
8-97075-585-0 |
01 |
1 |
- |
| |
35 |
06.602 PIPE; HOSE CONN,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97388-640-0 |
01 |
1 |
- |
| |
36 |
06.602 BOLT; CONN,PIPE
ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-664-0 |
02 |
1 |
- |
| |
37 |
06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97184-767-0 |
01 |
1 |
-0507 |
| |
37 |
06.635 GASKET; PIPE CONN,OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97357-781-0 |
01 |
1 |
0508- |
| |
38 |
06.624 CONNECTOR; OIL PUMP
ASM PART: A = 8-97388-651-1, 97388651
|
8-97093-504-0 |
01 |
1 |
- |
| |
39 |
06.609 GASKET; OIL PUMP
(B) ASM PART: A = 8-97388-651-1, 97388651
|
8-94379-647-0 |
01 |
1 |
- |
| |
39 |
06.609 GASKET; OIL PUMP
(A) ASM PART: A = 8-97388-651-1, 97388651
|
8-97147-441-0 |
01 |
1 |
- |
