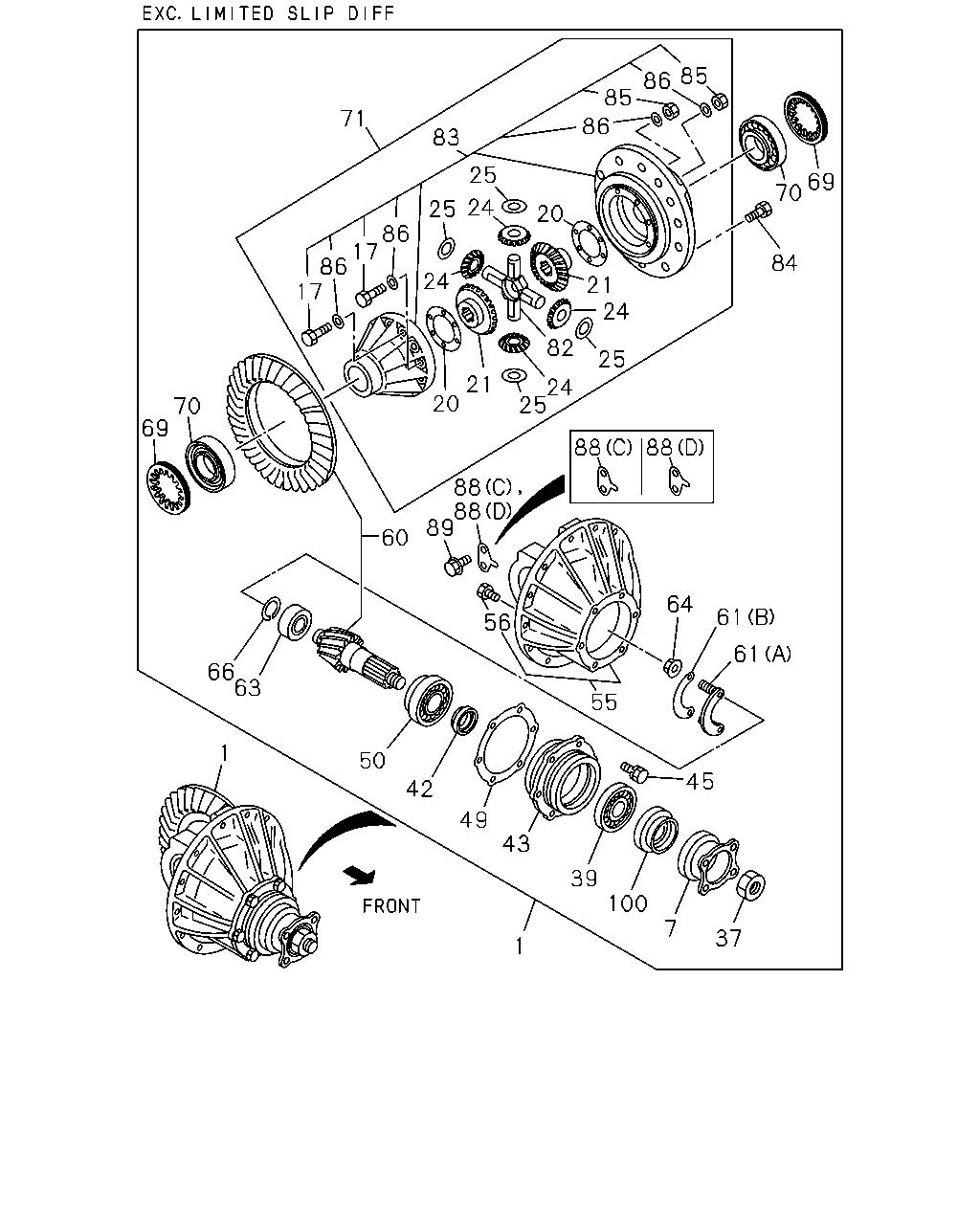

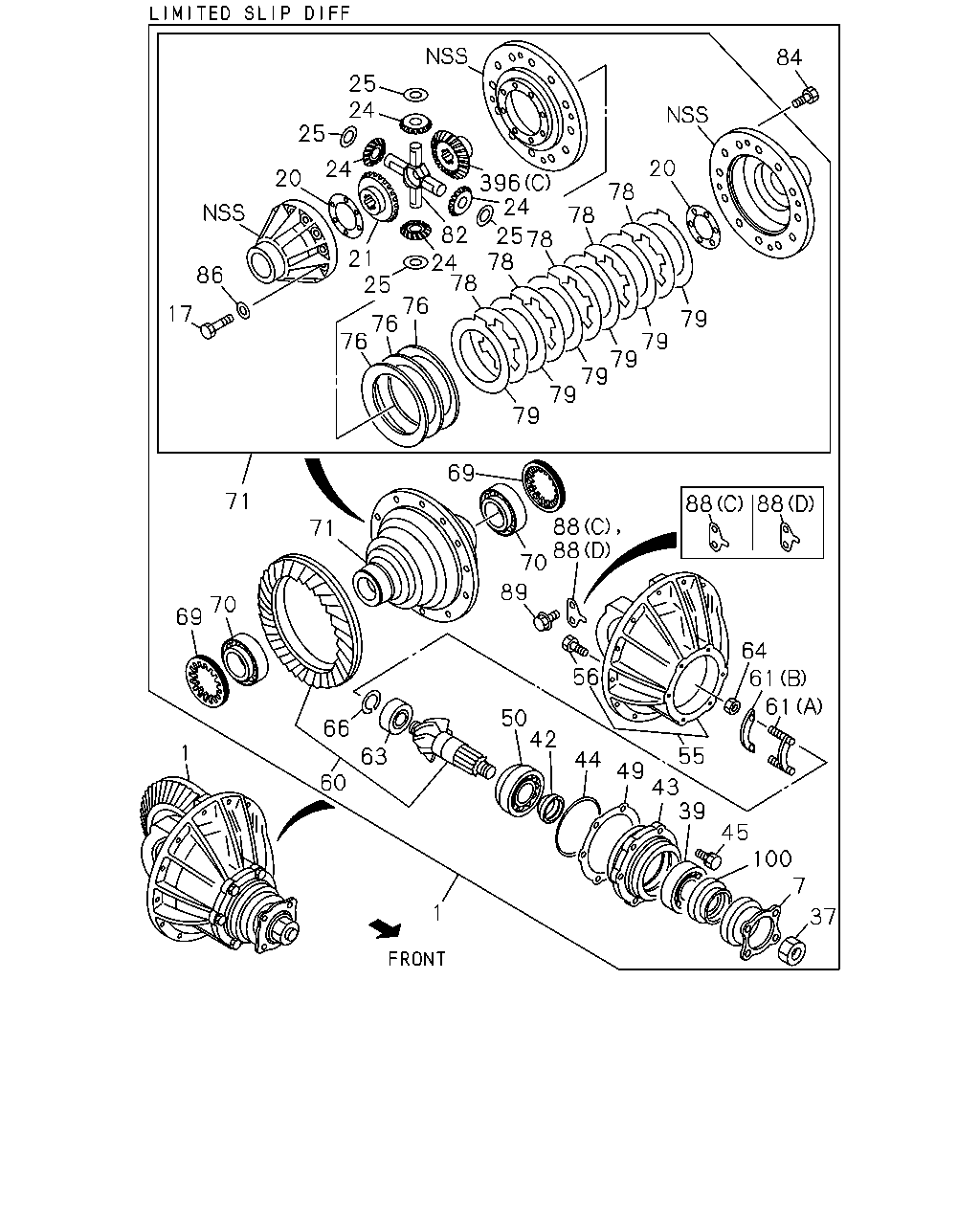

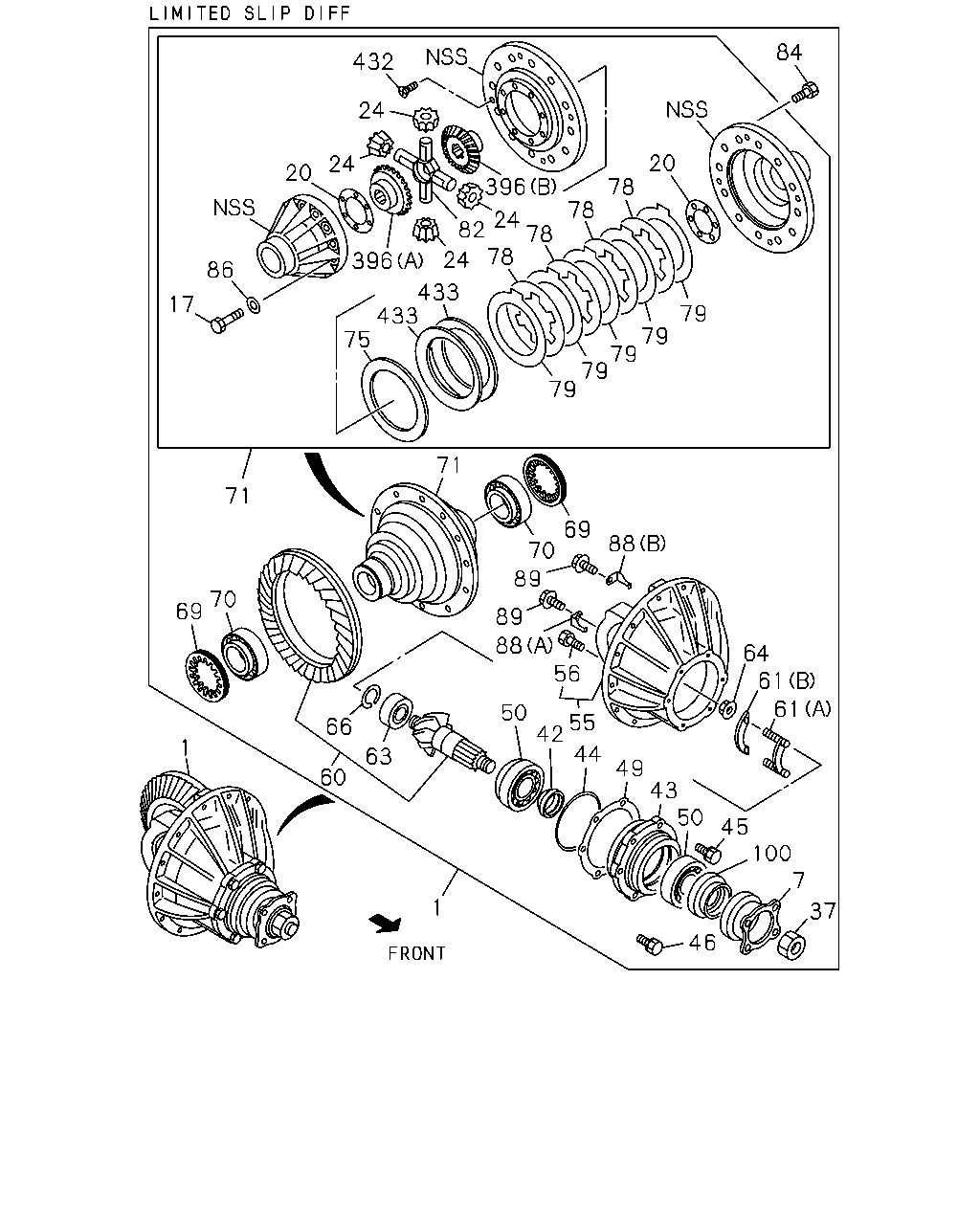

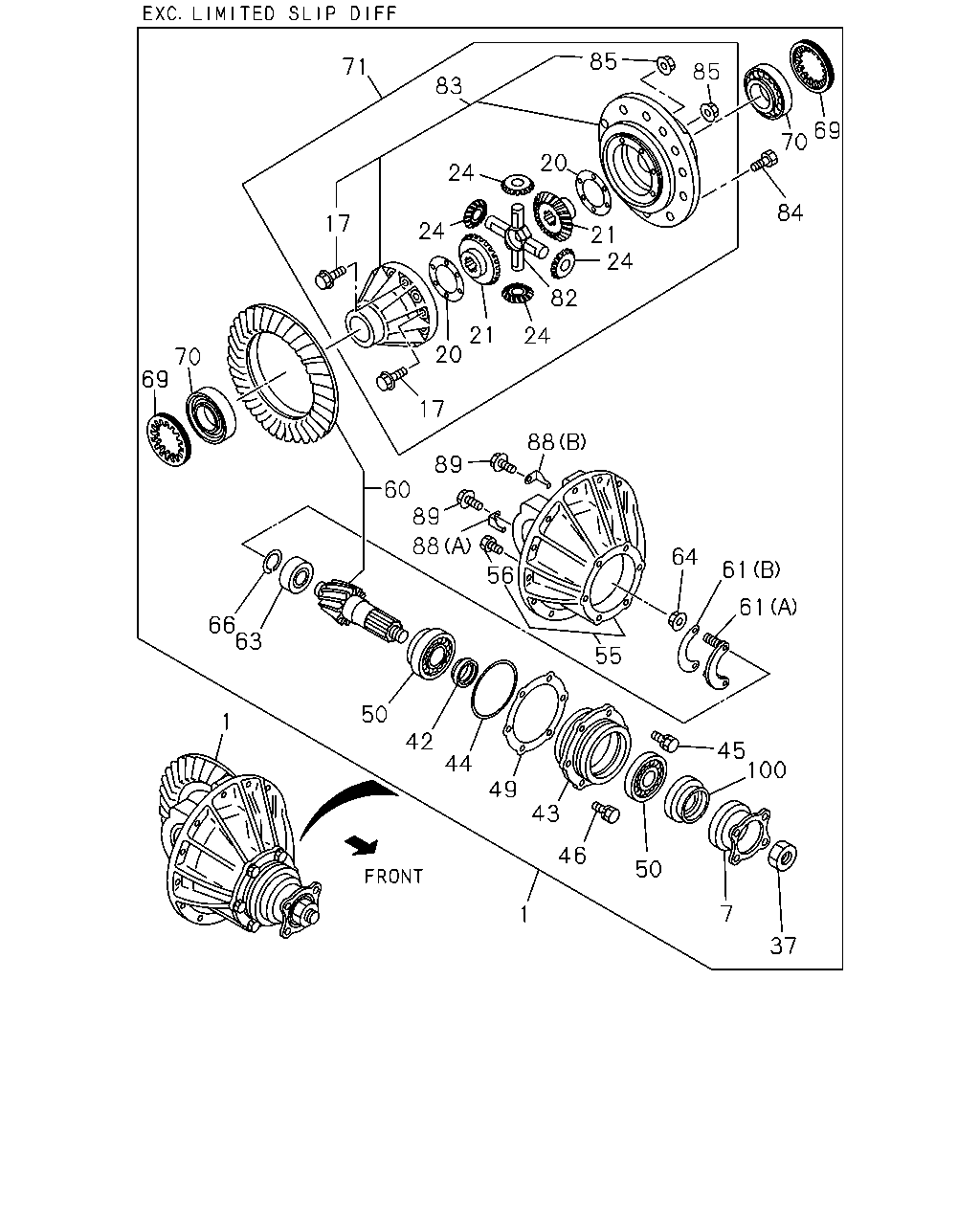

4-25 — REAR FINAL DRIVE (#40915) — 640 parça

84 432 24 20 24 20 396 78 78 24 82 78 78 24 396 86 433 433 75 17 79 79 79 79 79 71 71 69 70 88 89 70 69 89 88 56 64 61 61 50 55 42 66 1 44 63 49 43 50 60 45 100 7 1 37 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0505-0805
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0806-
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0505-0510
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-0805
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0806-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0806-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0505-0805
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0505-0805
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0806-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0806-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0505-0805
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0806-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0806-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0505-0805
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0806-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0806-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0505-0805
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0806-
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0505-0805
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0806-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0806-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0505-0805
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0806-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0806-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0505-0805
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0505-0805
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 43/7	8-97320-103-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0806-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0806-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0806-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0505-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0806-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0505-0805
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0505-0805
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0505-0805
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.00	8-97220-699-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.30	8-97220-700-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.60	8-97220-701-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=2.85	8-97220-702-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.15	8-97220-703-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.45	8-97220-704-0	01	1	0806-
75	05.511 PLATE; BEVEL LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0505-0805
75	05.511 PLATE; BEVEL REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=3.75	8-97221-223-0	01	1	0806-
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0505-0805
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0806-
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0505-0805
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0806-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0505-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0806-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0806-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0505-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0805
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0806-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0806-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0505-0805
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97362-598-0	01	1	0505-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97362-598-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-717-0	01	1	0505-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-717-0	01	1	0806-
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-97220-727-0	04	1	0505-0707
432	05.650 SCREW LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0708-0805
432	05.650 SCREW REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-98080-350-0	04	1	0806-
433	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0505-0805
433	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-722-0	02	1	0806-

85 86 85 71 86 83 25 69 70 24 25 20 86 17 86 17 84 24 21 24 82 25 21 20 24 25 70 69 88 88 88 88 89 60 64 61 56 61 66 63 55 1 50 45 42 49 43 39 100 7 37 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0505-0805
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0505-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0806-
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0505-0510
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-0805
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0806-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0806-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0806-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0505-0805
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0505-0805
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0806-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0806-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0505-0805
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0806-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0806-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0505-0805
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0806-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0806-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0505-0805
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0806-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0806-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0505-0805
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0505-0805
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 43/7	8-97320-103-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0806-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0806-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0806-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0505-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0806-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0505-0805
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0505-0805
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0505-0805
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0806-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0806-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0505-0805
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0505-0602
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-0805
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0505-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0806-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0806-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0505-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0805
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0806-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0806-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0505-0805
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0806-

84 25 24 396 24 25 20 24 20 78 78 25 78 78 82 24 78 21 25 86 76 76 76 17 79 79 79 79 79 79 69 71 88 88 88 88 70 71 89 70 69 64 61 56 61 50 42 66 1 55 63 44 49 43 39 60 45 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0505-0805
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0505-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0806-
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0505-0510
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-0805
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0806-
25	05.528 WASHER; THRUST,PINION REAR AXLE HEAVY DUTY 320MM(6CP)	1-41552-020-0	04	1	0806-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0806-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0505-0805
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> NSK	1-09812-026-0	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> JTEKT	5-09812-062-1	01	1	0806-
39	05.484 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> NSK	5-09812-063-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0505-0805
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0806-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0806-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0505-0805
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0806-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0806-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0505-0805
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0806-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0806-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0505-0805
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0806-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0806-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0505-0805
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0806-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0806-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0505-0805
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0505-0805
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 43/7	8-97320-103-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0806-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0806-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0806-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0505-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0806-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0505-0805
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0505-0805
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0505-0805
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0806-
76	05.511 DISC; BEVEL REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-795-0	03	1	0806-
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-793-0	05	1	0806-
78	05.511 DISC; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0505-0805
78	05.511 DISC; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-696-0	04	1	0806-
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97142-794-0	06	1	0806-
79	05.511 PLATE; FRICTION LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0505-0805
79	05.511 PLATE; FRICTION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-698-0	05	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0806-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-413-0	12	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0806-
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	9-09651-116-0	12	1	0505-0707
86	05.510 WASHER; PL,DIFF CAGE SETTING LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0708-0805
86	05.510 WASHER; PL,DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> ID=10 OD=18 T=2	8-98080-367-0	12	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0806-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0806-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0505-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0805
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0806-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0806-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0505-0805
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> (C)	8-97142-805-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97362-598-0	01	1	0505-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 05.528 (A) Z=20	8-97362-598-0	01	1	0806-
396	05.515 GEAR; DIFF,LSD LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-717-0	01	1	0505-0805
396	05.515 GEAR; DIFF,LSD REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> (B) Z=20	8-97362-717-0	01	1	0806-

85 71 85 83 69 70 20 24 84 17 24 21 24 82 21 20 24 70 69 17 88 89 60 89 88 64 61 56 61 66 63 55 50 1 42 45 100 44 49 43 46 50 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> 43/7	8-98123-083-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97094-684-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-97363-136-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> 43/7	8-98015-156-0	01	1	0806-
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-97367-504-0	01	1	0505-0510
1	05.505 DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0511-0805
1	05.505 DRIVE ASM; FINAL,RR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 43/7	8-98015-130-0	01	1	0806-
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 320MM(6CP)	8-97073-802-2	01	1	0806-
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	0505-0805
7	05.545 FLANGE; FINAL REAR AXLE HEAVY DUTY 292MM(G73)	8-94477-723-4	01	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-98107-373-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-295-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97321-642-0	12	1	0806-
17	05.510 BOLT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0505-0805
17	05.510 BOLT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M10X75 FLANGE	8-97232-161-0	12	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.80	1-41562-073-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=2.90	1-41562-074-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.00	1-41562-075-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.10	1-41562-076-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.20	1-41562-077-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.30	1-41562-078-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) T=3.40	1-41562-079-0	AR	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) T=1.40	9-41562-601-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.30	8-97220-723-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.50	8-97220-724-0	02	1	0806-
20	05.543 WASHER; THRUST,SIDE GEAR LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0505-0805
20	05.543 WASHER; THRUST,SIDE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> T=1.60	8-97220-725-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	01	1	0806-
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> Z=16	1-41561-093-0	02	1	0806-
21	05.528 GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0505-0805
21	05.528 GEAR; SIDE,DIFF REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> Z=20	8-97362-598-0	02	1	0806-
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 320MM(6CP) Z=10	1-41551-024-0	04	1	0806-
24	05.526 GEAR; PINION,DIFF Z=10	8-97356-349-0	04	1	0505-0510
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	0511-0805
24	05.526 GEAR; PINION,DIFF REAR AXLE HEAVY DUTY 292MM(G73) Z=10	8-98015-202-0	04	1	0806-
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 320MM(6CP) M30 FLANGE	8-97047-146-0	01	1	0806-
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	0505-0805
37	05.595 NUT; DRIVING PINION REAR AXLE HEAVY DUTY 292MM(G73) M24 FLANGE	8-94329-526-1	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-097-0	01	1	0806-
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	0505-0805
42	05.453 COLLAR; DIST,COLLAPSIBLE REAR AXLE HEAVY DUTY 292MM(G73) L=19.6	9-41219-603-1	01	1	0806-
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-098-0	01	1	0806-
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	0505-0805
43	05.453 CAGE; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73)	8-94400-890-0	01	1	0806-
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP)	8-97048-053-0	01	1	0806-
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	0505-0805
44	05.476 GASKET; PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) 05.458	9-09720-505-0	01	1	0806-
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M12X40 W/LK WASHER	0-50071-240-0	06	1	0806-
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50051-238-0	05	1	0505-0805
45	05.453 BOLT; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) M12X38 W/LK WASHER	0-50051-238-0	05	1	0806-
46	05.453 BOLT M14X35 W/LK WASHER	0-50051-435-0	01	1	0505-0805
46	05.453 BOLT REAR AXLE HEAVY DUTY 292MM(G73) M14X35 W/LK WASHER	0-50051-435-0	01	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.12	8-97047-298-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.15	8-97047-299-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.20	8-97047-300-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) ID=142 T=0.25	8-97048-418-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 320MM(6CP) 05.528 ID=142 T=0.50	8-97048-419-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.10	8-94401-335-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.12	8-94401-336-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.14	8-94401-337-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.16	8-94401-338-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.18	8-94401-339-0	AR	1	0806-
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	0505-0805
49	05.458 SHIM; FINAL PINION CAGE REAR AXLE HEAVY DUTY 292MM(G73) ID=132 T=0.20	8-94401-340-0	AR	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.484 NSK	1-09812-041-2	01	1	0806-
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	1-09812-042-1	01	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 JTEKT	5-09812-062-1	02	1	0806-
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	0505-0805
50	05.447 BEARING; FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) 05.484 NSK	5-09812-063-0	02	1	0806-
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 320MM(6CP)	8-97094-637-0	01	1	0806-
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	0505-0805
55	05.505 CARRIER; DIFF REAR AXLE HEAVY DUTY 292MM(G73)	8-97307-760-0	01	1	0806-
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 320MM(6CP) M14X95 FLANGE	1-09070-027-0	04	1	0806-
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	0505-0805
56	05.506 BOLT; BRG CAP REAR AXLE HEAVY DUTY 292MM(G73) 05.387 M14X80	8-94365-377-3	04	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 320MM(6CP) 43/7	8-97092-946-0	01	1	0806-
60	05.529 GEAR SET; FINAL DRIVE,RR 43/7	8-97320-103-0	01	1	0505-0805
60	05.529 GEAR SET; FINAL DRIVE,RR REAR AXLE HEAVY DUTY 292MM(G73) 43/7	8-97320-103-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (A) W/STUD	8-97047-149-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 320MM(6CP) (B)	8-97047-150-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (A) W/STUD	5-41227-001-0	01	1	0806-
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	0505-0805
61	05.476 RETAINER; PILOT BRG,PINION REAR AXLE HEAVY DUTY 292MM(G73) (B)	9-41227-601-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) NSK	8-97047-296-0	01	1	0806-
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT	8-97047-928-0	01	1	0806-
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) NSK	5-09810-008-1	01	1	0806-
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	0505-0805
63	05.447 BEARING; PINION PILOT REAR AXLE HEAVY DUTY 292MM(G73) JTEKT	8-97107-548-0	01	1	0806-
64	05.476 NUT; RET 04.594 M6 FLANGE	0-91150-106-0	02	1	0505-0602
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	0603-
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 320MM(6CP)	8-97047-297-0	01	1	0806-
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	0505-0805
66	05.476 RING; SNAP,PILOT BRG REAR AXLE HEAVY DUTY 292MM(G73)	9-09752-002-0	01	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) M115 H=20	1-41121-039-0	02	1	0806-
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	0505-0805
69	05.506 NUT; ADJ,DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) M110 H=10	5-41121-001-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 320MM(6CP) JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0806-
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	0505-0805
70	05.536 BEARING; DIFF CAGE REAR AXLE HEAVY DUTY 292MM(G73) NSK	9-00093-602-0	02	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) LIMITED SLIP DIFF<6LV>	8-97138-033-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-100-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-97363-163-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-98015-186-1	01	1	0806-
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-97363-156-0	01	1	0505-0510
71	05.510 CAGE ASM; DIFF,FINAL DRIVE EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0511-0805
71	05.510 CAGE ASM; DIFF,FINAL DRIVE REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-98015-179-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 320MM(6CP) 05.520	1-41521-035-2	01	1	0806-
82	05.517 SPIDER; DIFF PINION LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV>	8-97220-519-0	01	1	0806-
82	05.517 SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0505-0805
82	05.517 SPIDER; DIFF PINION REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 05.520	5-41521-008-0	01	1	0806-
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV>	8-97047-117-1	01	1	0806-
83	05.510 CAGE ASM; DIFF EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0505-0805
83	05.510 CAGE ASM; DIFF REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV>	8-97319-396-1	01	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 320MM(6CP) M16X30	8-97047-147-0	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) LIMITED SLIP DIFF<6LV> M14X29	8-97319-141-2	12	1	0806-
84	05.531 BOLT; FINAL DRIVE GEAR EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0505-0805
84	05.531 BOLT; FINAL DRIVE GEAR REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> M14X25	8-97318-938-1	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 320MM(6CP) EXC. LIMITED SLIP DIFF<6LV> M12	8-97065-214-0	12	1	0806-
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 08.917 M10 FLANGE	0-91150-210-0	12	1	0505-0602
85	05.510 NUT; DIFF CAGE SETTING EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0603-0805
85	05.510 NUT; DIFF CAGE SETTING REAR AXLE HEAVY DUTY 292MM(G73) EXC. LIMITED SLIP DIFF<6LV> 04.085 M10 FLANGE	0-91180-210-0	12	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (D)	8-97087-821-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 320MM(6CP) (C) T=2.3	9-41124-015-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (A)	8-97027-281-0	AR	1	0806-
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	0505-0805
88	05.506 PLATE; LK,ADJ NUT REAR AXLE HEAVY DUTY 292MM(G73) (B)	8-97027-282-0	AR	1	0806-
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 320MM(6CP) 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0806-
89	05.506 BOLT; LK PLATE 01.062 M8X16 FLANGE	0-28080-816-0	02	1	0505-0512
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0601-0805
89	05.506 BOLT; LK PLATE REAR AXLE HEAVY DUTY 292MM(G73) 02.343 M8X16 FLANGE	0-28050-816-0	02	1	0806-
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 320MM(6CP) NOK	1-09625-484-1	01	1	0806-
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	0505-0805
100	05.469 SEAL; OIL,FINAL PINION REAR AXLE HEAVY DUTY 292MM(G73) OD=103	8-94408-083-0	01	1	0806-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
