Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

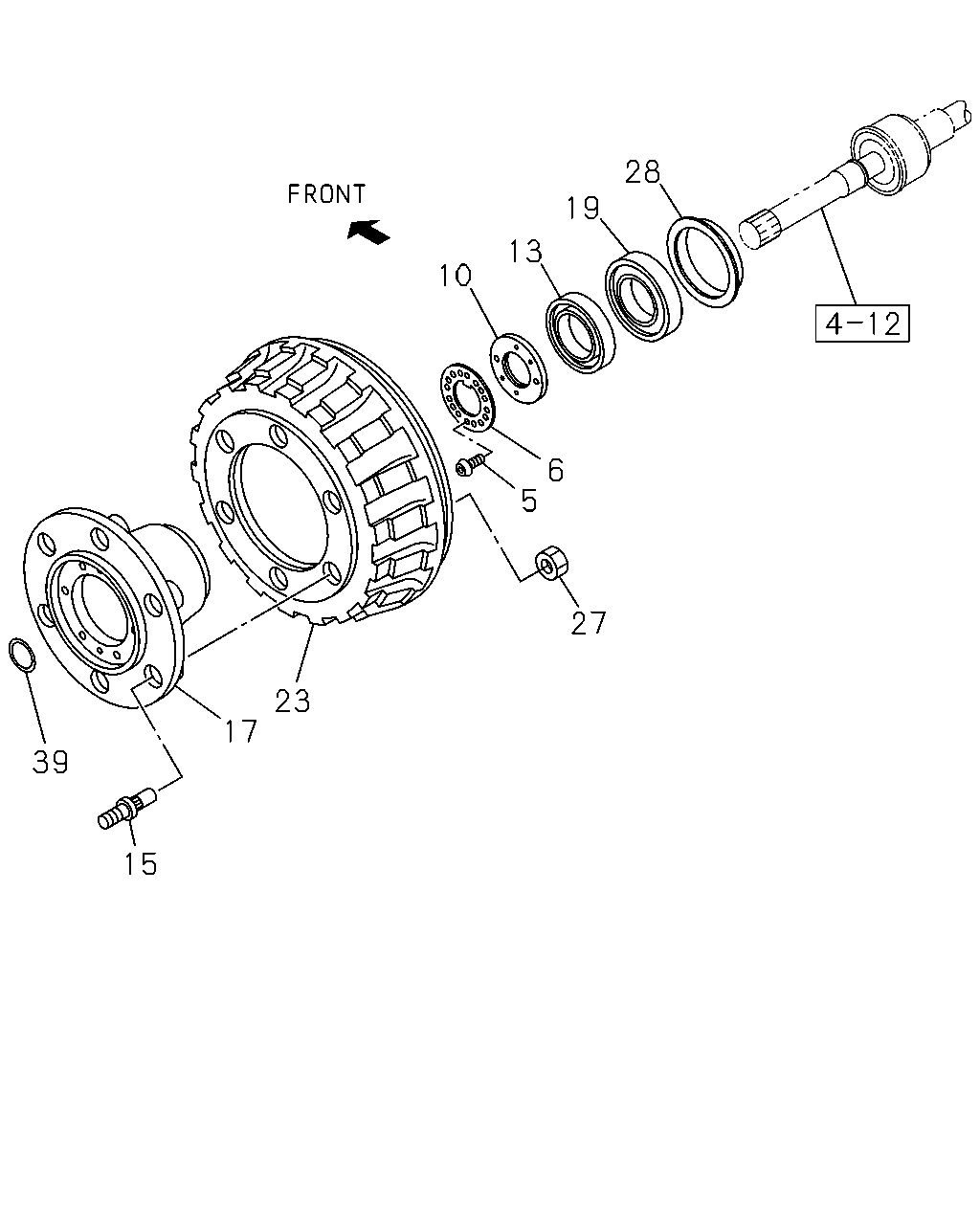

4-11 — FRONT HUB AND DRUM OR ROTOR
(#40910) — 15 parça
28
19
13
10
6
5
27
23
17
39
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
06.321 BOLT; LK WASHER
M6X12
8-94477-783-0
04
1
0505-
6
05.812 WASHER; LK,FRT HUB
05.830 ID=52
9-09853-214-0
02
1
0505-
10
05.812 NUT; FRT HUB BRG
06.022
8-94440-902-1
02
1
0505-
13
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
1-09812-097-0
02
1
0505-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28 LH THREAD,M22X57 RH THREAD
8-97081-585-3
06
1
0505-
15
05.812 PIN; WHEEL,FRT AXLE
M20X28,M22X57 RH THREAD
8-97081-584-3
06
1
0505-
17
06.307 HUB; FRT AXLE
8-97116-500-0
02
1
0505-
19
06.311 BEARING; HUB INNER,FRT AXLE
8-94441-252-0
02
1
0505-
23
05.809 DRUM; BRK,FRT
8-97138-110-0
02
1
0505-
27
05.813 NUT; WHEEL PIN,FRT AXLE
M22
9-09110-522-0
12
1
0505-0512
27
05.813 NUT; WHEEL PIN,FRT AXLE
07.172 M22
0-91110-522-0
12
1
0601-
28
06.326 SEAL; OIL,FRT HUB
8-94440-904-0
02
1
0505-
39
06.022 SHIM; AXLE SHAFT OUTER
06.308 T=0.3
8-94441-489-0
AR
1
0505-
39
06.022 SHIM; AXLE SHAFT OUTER
06.308 T=0.5
8-94441-490-0
AR
1
0505-
39
06.022 SHIM; AXLE SHAFT OUTER
06.308 T=1.0
8-94441-491-0
AR
1
0505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
