◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#40903) — 22 parça

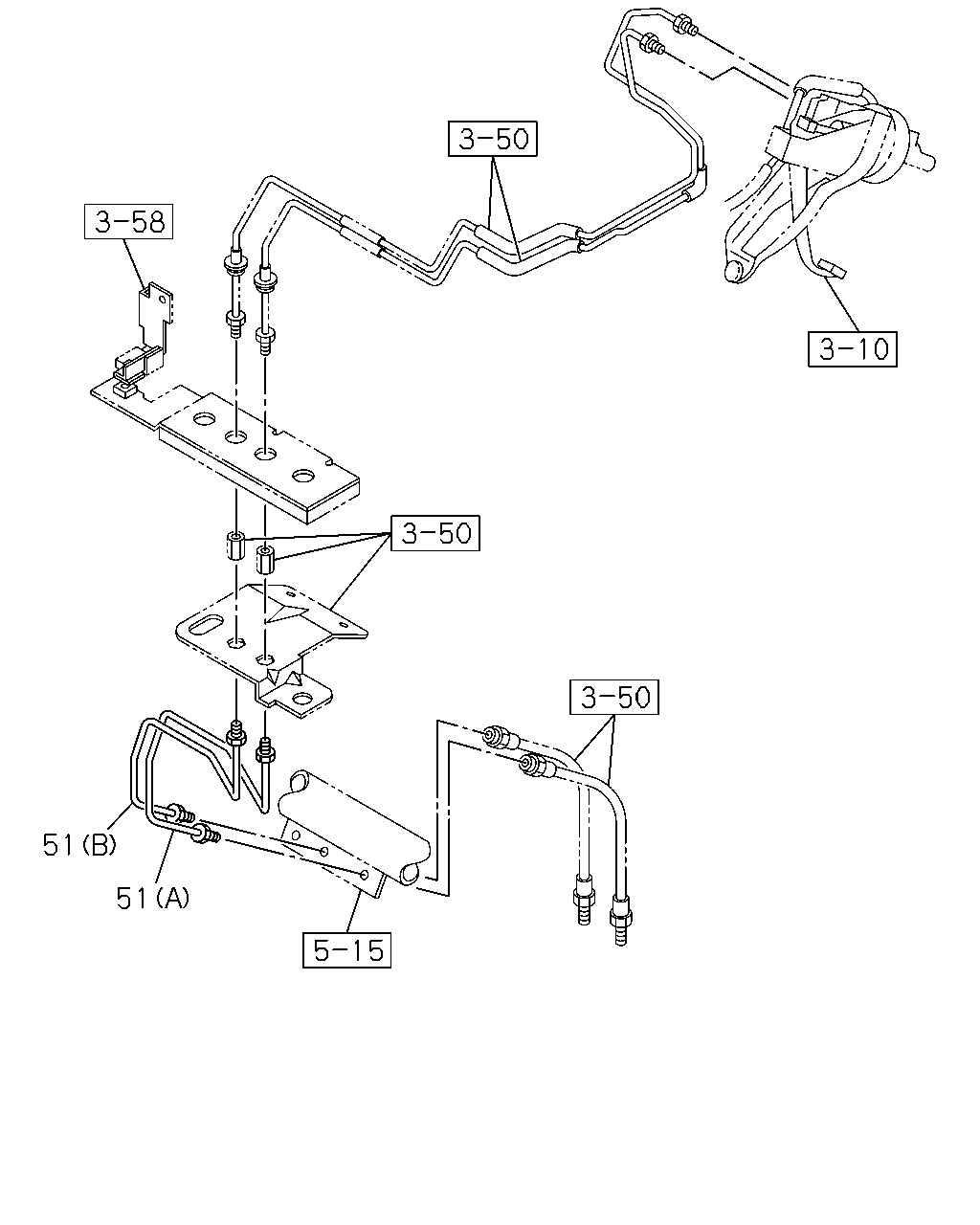

çizim 14014
51 51
BalonParca AdiParca NoAdetTipApplied Date
51 04.685 PIPE; BRK
(A) FRONT 		8-97073-076-1 01 1 0505-
51 04.685 PIPE; BRK
(B) REAR 		8-97073-078-1 01 1 0505-
çizim 55160
50 98 99
BalonParca AdiParca NoAdetTipApplied Date
50 04.685 PIPE; BRK,UNION TO VLV
FRONT 		8-97373-731-0 01 1 0505-
98 04.686 PIPE ASM; 4/6 WAY 8-97325-774-3 01 1 0505-
99 04.686 PIPE ASM; 4/5/6 WAY 8-97325-775-3 01 1 0505-

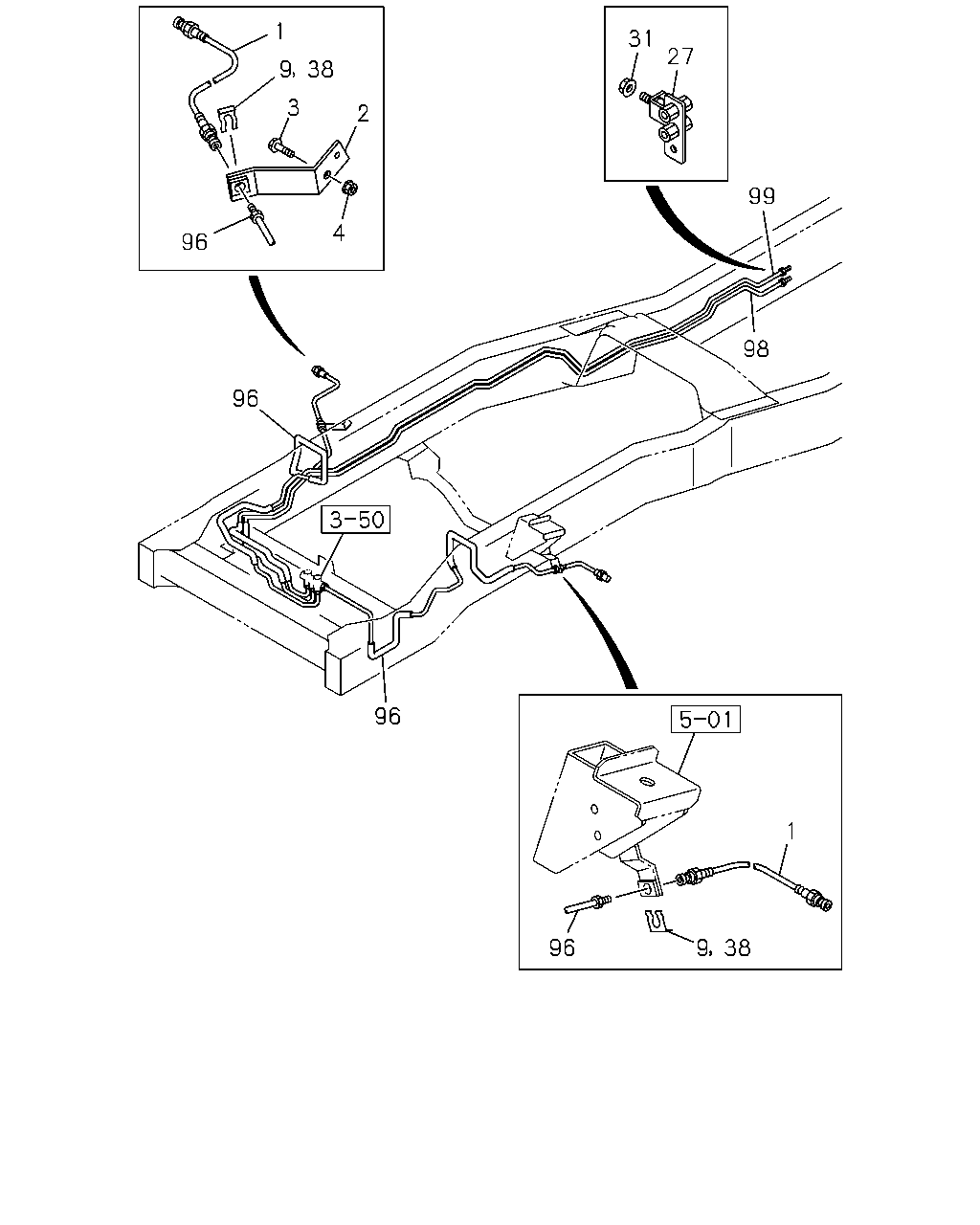

çizim 55888
1 31 27 9 38 3 2 99 4 96 98 96 96 1 96 9 38
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK 8-97039-543-1 02 1 0505-
2 04.681 BRACKET; FLEX HOSE,FRT BRK 8-94310-121-2 01 1 0505-
3 04.686 BOLT; BRKT,FLEX HOSE,FRT BRK
03.405 M10X25 FLANGE 		0-28681-025-0 01 1 0505-0512
3 04.686 BOLT; BRKT,FLEX HOSE,FRT BRK
00.029 M10X25 FLANGE 		0-28651-025-0 01 1 0601-
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
04.785 M10 FLANGE 		0-91150-110-0 01 1 0505-0602
4 04.686 NUT; FLEX HOSE BRKT,FRT BRK
03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0505-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
27 04.686 UNION; BRK PIPE 8-97352-980-1 01 1 0505-
31 04.686 NUT; UNION CLIP
04.594 M6 FLANGE 		0-91150-106-0 01 1 0505-0602
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0603-
38 04.686 CLIP
04.681 		8-94137-662-0 02 1 0505-0610
38 04.686 CLIP 8-97360-054-0 02 1 0611-
96 04.686 PIPE ASM; 6 WAY 8-97374-189-0 01 1 0505-
96 04.686 PIPE ASM; 6 WAY 8-97325-763-2 01 1 0505-
98 04.686 PIPE ASM; 4/6 WAY 8-97325-774-3 01 1 0505-
99 04.686 PIPE ASM; 4/5/6 WAY 8-97325-775-3 01 1 0505-
