Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

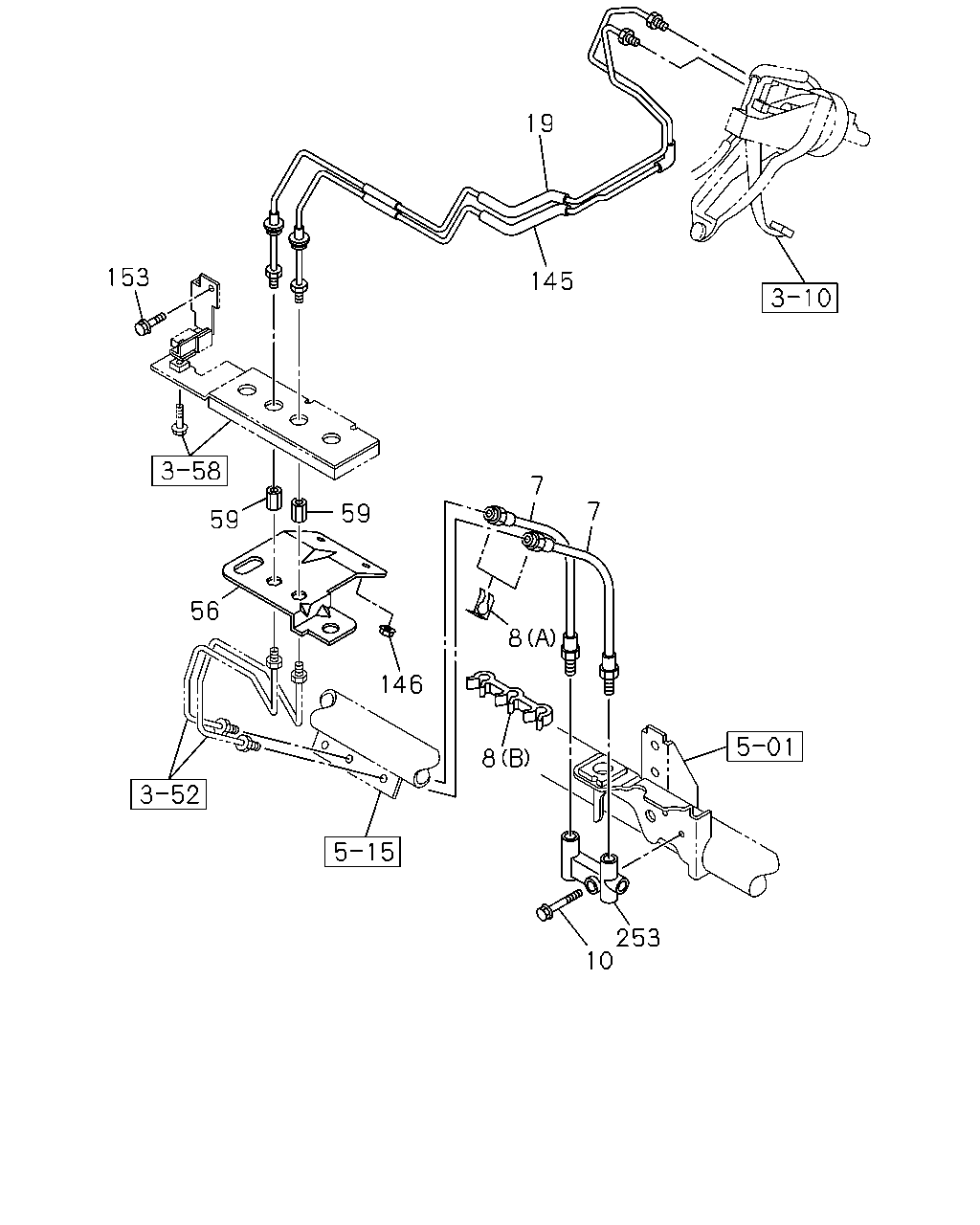

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#40902) — 17 parça
◀
[350A] CAB SIDE (16 parça)
[350A] FRAME SIDE (1 parça)
▶
19
153
145
7
7
59
59
56
8
146
8
253
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0505-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A)
8-94167-006-0
02
1
0505-0610
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0611-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0505-
10
04.686 BOLT; JOINT
03.163 M6X40 FLANGE
0-28680-640-0
01
1
0505-0512
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0601-
19
04.685 PIPE; BRK,M/CYL TO UNION
8-97314-593-0
01
1
0505-
56
04.686 BRACKET; UNION,BRK
8-97171-017-1
01
1
0505-
59
04.686 UNION; BRK PIPE
08.963 M10 STRAIGHT
9-09227-005-0
02
1
0505-0607
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0608-
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97314-586-0
01
1
0505-
146
04.685 NUT; BRKT
07.633 M8 FLANGE
0-91150-108-0
02
1
0505-0602
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0603-
153
04.730 SCREW; BRKT FIX
16.802 M5X16 TAPPING W/PL WASHER
0-74310-516-0
01
1
0505-0604
153
04.730 SCREW; BRKT FIX
03.885 M5X16 TAPPING W/PL WASHER
0-74360-516-0
01
1
0605-
253
04.840 JOINT
04.686
8-97120-033-2
01
1
0505-
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
04.686 PIPE; BRK,VLV TO UNION
REAR
8-97373-732-0
01
1
0505-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
