4-50 — FRONT SUSPENSION (#4090) — 83 parça

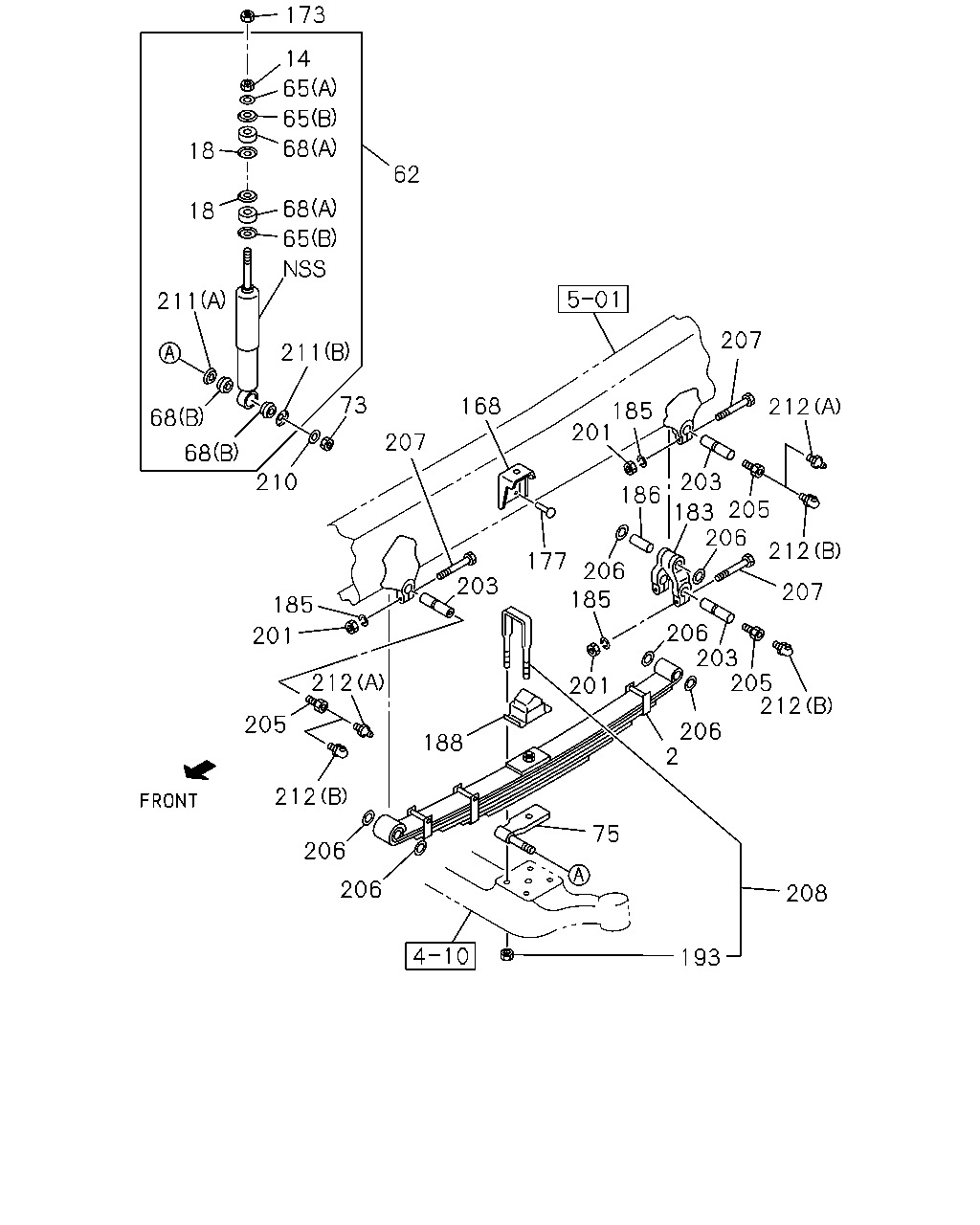

çizim 7383
173 14 65 65 68 18 62 68 18 65 211 207 211 73 168 212 185 201 68 207 68 203 183 205 206 210 186 212 177 206 185 203 207 185 206 203 205 212 201 212 201 205 206 2 188 212 75 206 206 208 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		1-51130-245-0 02 1 9603-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-245-0 02 1 9603-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-245-0 02 1 9905-9910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-245-0 02 1 9905-9910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51130-245-0 02 1 9911- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51130-245-0 02 1 9911- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) 		1-51130-247-0 02 1 9911- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) 		1-51130-247-0 02 1 9911- ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. SINGAPORE EQUIPMENT(WQ3) 		1-51130-075-1 02 1 9911- ● ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9603-9904 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51130-207-0 02 1 9905-9910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51130-207-0 02 1 9905-9910 ●
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60),SINGAPORE EQUIPMENT(WQ3) 		1-51130-207-0 02 1 9911- ● ●
14 NUT; S/ABS,UPR
M14 		9-99111-414-0 02 1 9603- ● ●
18 WASHER; CENTERING,S/ABS
ID=24 		1-51631-067-0 04 1 9603- ● ●
62 ABSORBER ASM; SHOCK,FRT 1-51630-417-0 02 1 9603-9911 ● ●
62 ABSORBER ASM; SHOCK,FRT
EXC. INDONESIA EQUIPMENT(WR7) 		1-51630-417-0 02 1 9912- ● ●
62 ABSORBER ASM; SHOCK,FRT
INDONESIA EQUIPMENT(WR7) 		1-51630-512-0 02 1 9912- ● ●
65 WASHER; S/ABS
(A) ID=16.5 		1-09503-266-0 02 1 9603- ● ●
65 WASHER; S/ABS
(B) ID=16.5 		1-51631-068-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(A) ID=16 T=25 		1-51631-069-0 04 1 9603- ● ●
68 BUSHING; S/ABS
(B) 		9-51631-026-0 04 1 9603- ● ●
73 NUT; BRKT,SHOCK
M20 		9-99110-420-0 02 1 9603- ● ●
75 BRACKET; FRT S/ABS 1-51681-598-2 01 1 9603-0002 ● ●
75 BRACKET; FRT S/ABS 1-51681-826-1 01 1 0003- ● ●
75 BRACKET; FRT S/ABS 1-51681-597-2 01 1 9603-0002 ● ●
75 BRACKET; FRT S/ABS 1-51681-825-1 01 1 0003- ● ●
168 BRACKET; S/ABS,FRT SUSP 1-51681-616-0 02 1 9603- ● ●
173 NUT; S/ABS
M14 		9-99111-414-0 02 1 9603- ● ●
177 RIVET; BRKT,S/ABS
D13X40 		1-09730-089-0 06 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9612-9707 ● ●
177 RIVET; BRKT,S/ABS
D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
8PE1S(59L),10PE1S(60L) D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
L TYPE ENG<90L> EXC. CAB UP +50MM<W60> D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
D13X40 PLATED TAPER END 		9-06771-340-0 06 1 9710-9904 ● ●
177 RIVET; BRKT,S/ABS
D13X42 		1-09730-090-0 02 1 9603-9611 ● ●
177 RIVET; BRKT,S/ABS
D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9612-9707 ● ●
177 RIVET; BRKT,S/ABS
D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
8PE1S(59L),10PE1S(60L) D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
L TYPE ENG<90L> EXC. CAB UP +50MM<W60> D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9708-9709 ●
177 RIVET; BRKT,S/ABS
D13X42 PLATED TAPER END 		9-06771-342-0 02 1 9710-9904 ● ●
183 SHACKLE; FRT SUSP 1-51162-029-4 02 1 9603- ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9603-9606 ● ●
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 12 1 9609- ● ●
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 02 1 9603- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-086-0 02 1 9603-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9603-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-086-0 02 1 9905-9910 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-086-0 02 1 9905-9910 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3) 		1-51172-086-0 02 1 9911-9911 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. SINGAPORE EQUIPMENT(WQ3) 		1-51172-086-0 02 1 9911-9911 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51172-086-0 02 1 9912- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) EXC. SINGAPORE EQUIPMENT(WQ3),INDONESIA EQUIPMENT(WR7) 		1-51172-086-0 02 1 9912- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
SINGAPORE EQUIPMENT(WQ3) 		1-51172-085-0 02 1 9911- ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9603-9904 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) 		1-51172-081-0 02 1 9905-9910 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60) 		1-51172-081-0 02 1 9905-9910 ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), FRONT SPRING HEAVY DUTY VAR1(F60),SINGAPORE EQUIPMENT(WQ3) 		1-51172-081-0 02 1 9911-9911 ● ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRT & RR SUSPENSION HEAVY DUTY VAR1(F40) INDONESIA EQUIPMENT(WR7) 		1-51172-081-0 02 1 9912- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRT & RR SUSPENSION HEAVY DUTY VAR1(F40), SINGAPORE EQUIPMENT(WQ3) 		1-51172-081-0 02 1 9912- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
FRONT SPRING HEAVY DUTY VAR1(F60) INDONESIA EQUIPMENT(WR7) 		1-51172-081-0 02 1 9912- ●
188 RUBBER; CLAMP,U-BOLT,FRT SPR
EXC. FRONT SPRING HEAVY DUTY VAR1(F60),SINGAPORE EQUIPMENT(WQ3) 		1-51172-081-0 02 1 9912- ●
193 NUT; U BOLT
M22 		9-09112-822-0 08 1 9603- ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9603-9606 ● ●
201 NUT; PIN LK
M12 FLANGE 		0-91150-212-0 12 1 9607-9608 ● ●
201 NUT; PIN LK
M12 		9-99110-512-0 12 1 9609- ● ●
203 PIN; SPR TO SHACKLE 1-51161-031-0 06 1 9603- ● ●
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 06 1 9603- ● ●
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 12 1 9603- ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9603-9606 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 12 1 9607-9608 ● ●
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 12 1 9609- ● ●
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 04 1 9603-9911 ● ●
208 U-BOLT SET; FRT SPRING
EXC. INDONESIA EQUIPMENT(WR7) L=230 		1-87870-269-1 04 1 9912- ● ●
208 U-BOLT SET; FRT SPRING
INDONESIA EQUIPMENT(WR7) L=270 		1-87870-327-0 04 1 9912- ● ●
210 WASHER; S/ABS,OUTER
ID=21 		9-09160-520-0 02 1 9603- ● ●
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9603- ● ●
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
V TYPE ENG<91L> (B) PT1/8 ELBOW 		9-09031-210-0 06 1 9603- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9603-9606 ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (A) PT1/8 STRAIGHT 		9-09031-010-0 04 1 9607- ● ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9603-9606 ●
212 NIPPLE; GREASE,ELBOW
L TYPE ENG<90L> (B) PT1/8 ELBOW 		9-09031-210-0 02 1 9607- ● ●
