Isuzu WW
▶
TRUCKS
▶
NPS
▶
51036 - NPS-LHD
▶
3 - Brakes, Brake System
▶
3-10 - BRAKE PEDAL AND CONTROL
▶

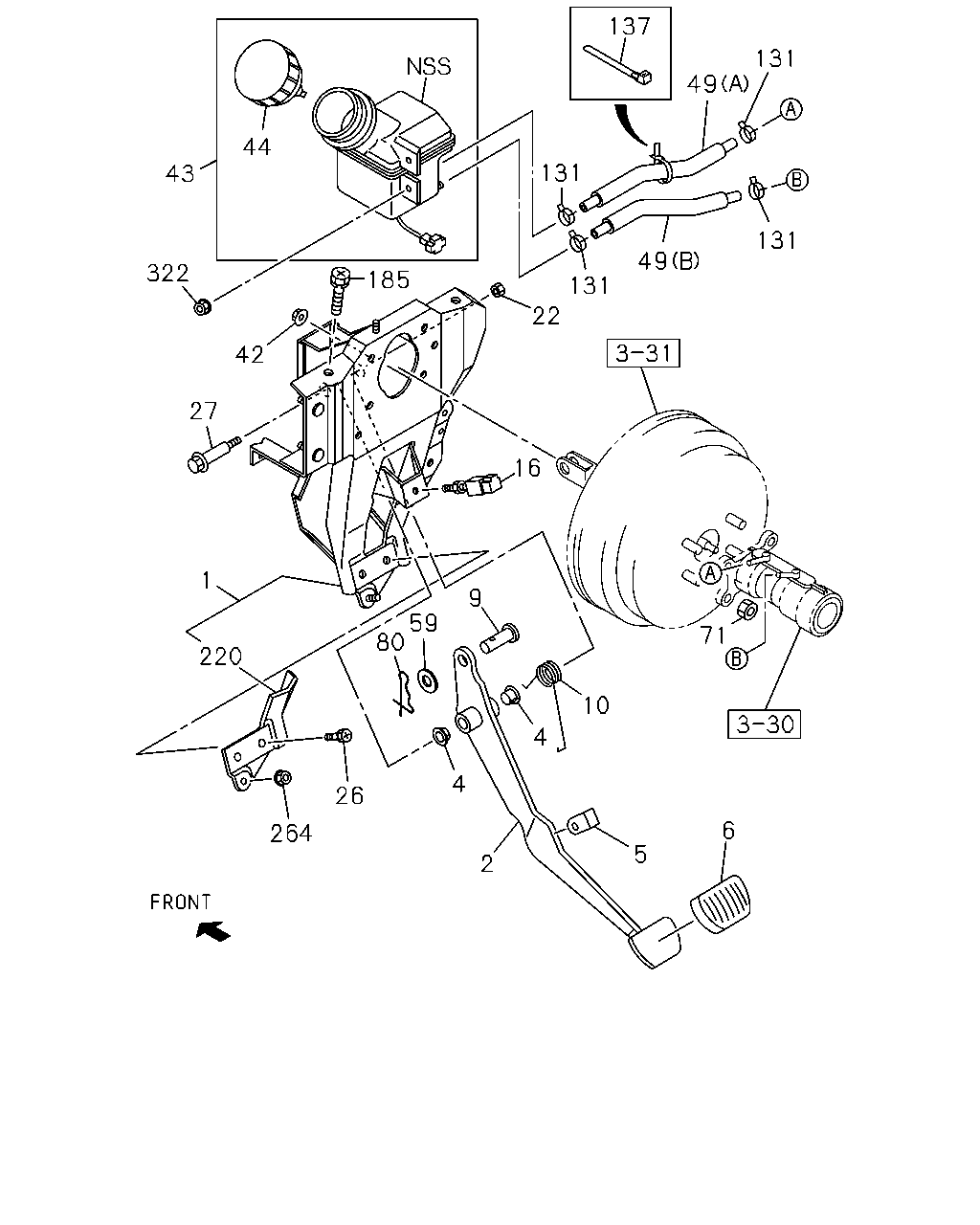

3-10 — BRAKE PEDAL AND CONTROL
(#40896) — 29 parça
137
131
49
44
131
43
131
49
322
185
131
22
42
27
16
1
9
59
80
71
220
10
4
4
26
6
264
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.634 BRACKET ASM; PEDAL
8-97896-969-5
01
1
0505-
2
04.625 PEDAL; BRK
8-97856-336-2
01
1
0505-
4
04.634 BUSHING; BRK PEDAL
04.792
8-94238-596-0
02
1
0505-
5
04.634 STOPPER; BRK PEDAL
8-97853-602-1
01
1
0505-
6
04.630 COVER; BRK PEDAL
00.829
8-97853-413-2
01
1
0505-
9
04.634 PIN; JAW JOINT
8-94410-276-0
01
1
0505-
10
04.639 SPRING; RETURN,BRK PEDAL
8-97853-212-1
01
1
0505-
16
02.447 SWITCH; STOP LAMP
8-97855-187-0
01
1
0505-
22
04.634 NUT; SHAFT
00.833 M10 FLANGE
1-09440-022-0
01
1
0505-
26
04.634 BOLT; PEDAL
00.833 M10X22 W/PL WASHER
8-97313-188-0
02
1
0505-
27
04.634 SHAFT; BRK PEDAL
8-97866-667-0
01
1
0505-
42
04.898 NUT; BRK PEDAL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0505-
43
04.651 TANK ASM; OIL
8-97179-813-1
01
1
0505-
44
04.651 CAP; OIL TANK
8-97178-291-1
01
1
0505-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(A) L=335
8-97129-586-0
01
1
0505-
49
04.680 HOSE; OIL TANK TO BRK M/CYL
(B) L=340
8-97130-440-0
01
1
0505-
59
04.634 WASHER; PL,JAW JOINT
02.575 ID=15
9-09160-514-0
01
1
0505-0605
59
04.634 WASHER; PL,JAW JOINT
ID=15
0-91610-514-0
01
1
0606-
71
04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER
8-94279-050-0
04
1
0505-
80
04.634 PIN; SNAP,BRK PEDAL
8-94279-912-0
01
1
0505-
131
04.681 CLIP; RUBBER HOSE,OIL TANK TO BR
8-97130-480-0
04
1
0505-
137
04.681 CLIP; BAND,RUBBER HOSE
02.559 L=250
5-09707-030-1
01
1
0505-
185
04.634 BOLT; BRKT
09.003 M10X25 FLANGE
0-28691-025-0
02
1
0505-0512
185
04.634 BOLT; BRKT
07.833 M10X25 FLANGE
0-28661-025-0
02
1
0601-
220
04.634 BRACKET; STRG SHAFT
8-97857-044-1
01
1
0505-
264
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
04.010 M8 FLANGE
8-97046-127-0
01
1
0505-0610
264
04.634 NUT; BRKT,COLUMN SUPT TO B.PDL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
0611-
322
04.651 NUT; OIL TANK
04.594 M6 FLANGE
0-91150-106-0
02
1
0505-0602
322
04.651 NUT; OIL TANK
01.062 M6 FLANGE
0-91180-106-0
02
1
0603-
