◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPS ▶ 51036 - NPS-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-81 - POWER TAKE OFF; TRANSMISSION SIDE ▶
2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#40891) — 64 parça

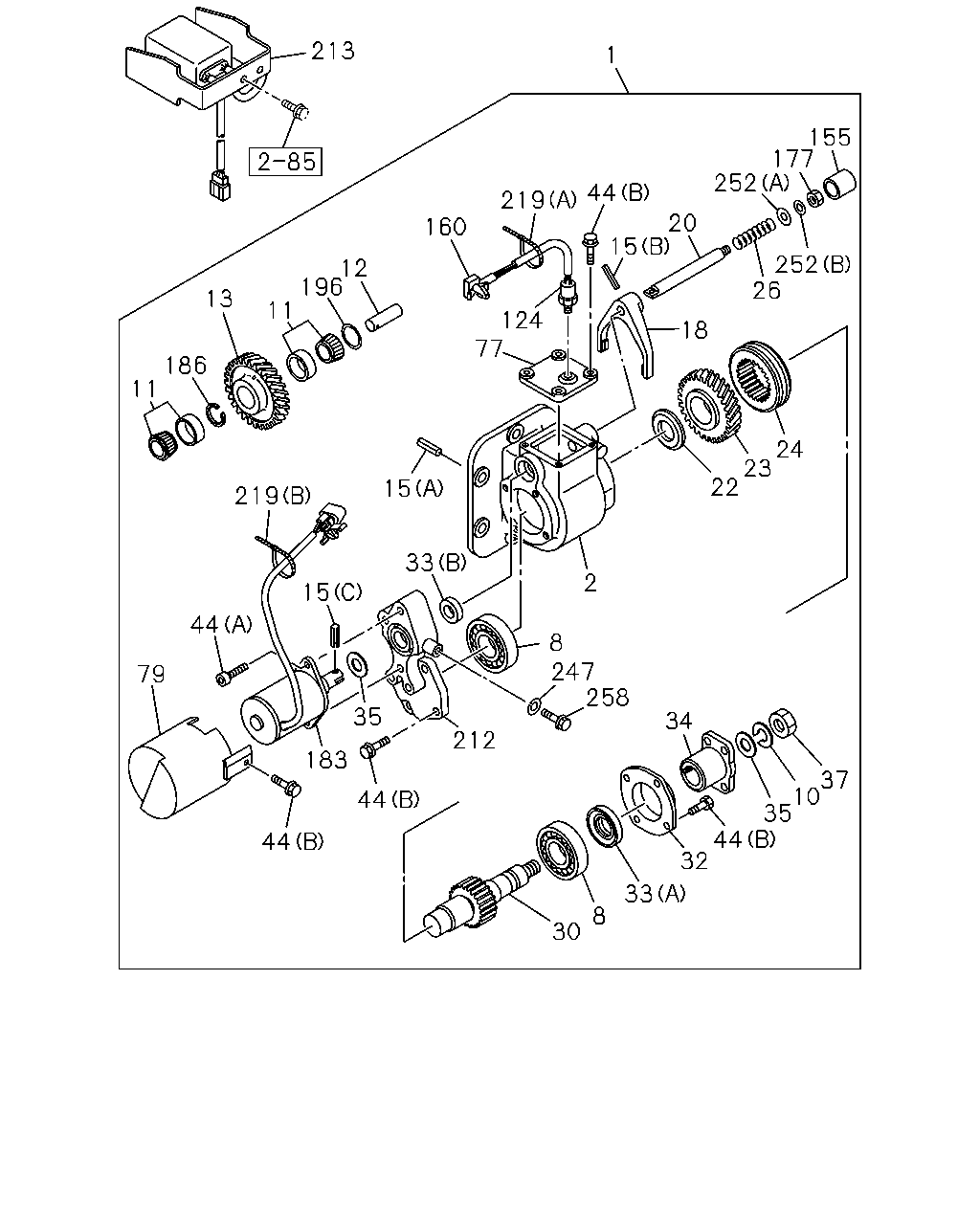

çizim 13287
213 1 155 177 252 44 219 20 15 160 252 26 12 196 13 11 124 77 18 186 11 24 23 22 15 219 33 2 15 44 8 247 258 79 35 34 212 183 37 10 35 44 32 44 44 33 8 30
BalonParca AdiParca NoAdetTipApplied Date
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) IDENTIFICATION=YE 		8-97308-250-9 01 1 0505-0710
1 04.439 POWER TAKE OFF ASM; TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) IDENTIFICATION=YE 		8-98092-476-1 01 1 0711-
2 04.439 CASE; GEAR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-692-2 01 1 0505-
8 04.439 BEARING; OUTPUT SHAFT,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) ID=25 OD=62 		8-94343-031-1 02 1 0505-
10 04.439 WASHER; OUTPUT SHAFT COVER,SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.796 ID=14.2 		9-09150-514-0 01 1 0505-0709
10 04.439 WASHER; OUTPUT SHAFT COVER,SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.174 ID=14.2 		0-91510-814-0 01 1 0710-
11 04.439 BEARING; IDLE GEAR,TRANS SIDE PT
POWER TAKE OFF CONTROL ELECTRIC(7GR) NSK 		8-97106-734-0 02 1 0505-
12 04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		9-38211-606-0 01 1 0505-
13 04.439 GEAR; IDLE,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) Z=31 		8-97308-700-0 01 1 0505-
15 04.439 PIN; SPR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.303 (B) L=25 OD=5 		8-94135-771-0 01 1 0505-
15 04.439 PIN; SPR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) (C) L=14 		8-97175-890-0 01 1 0505-
15 04.439 PIN; SPR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) L=16 		9-09878-613-0 01 1 0505-
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98003-231-0 01 1 0505-0709
18 04.439 ARM; GEAR SHIFT,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98088-695-0 01 1 0710-
20 04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-709-1 01 1 0505-
22 04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		9-38245-603-1 01 1 0505-
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) Z=27 		8-97308-714-0 01 1 0505-0805
23 04.439 GEAR; OUTPUT,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) Z=27 		8-98120-609-0 01 1 0806-
24 04.439 SLEEVE; DOG CLU,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97231-316-1 01 1 0505-
26 04.439 SPRING; SHIFTER ROD,TRANS SIDE P
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97175-987-0 01 1 0505-
30 04.439 SHAFT; OUTPUT,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97118-183-1 01 1 0505-
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97350-757-3 01 1 0505-0511
32 04.439 COVER; RR,OUTPUT SHAFT,TRANS SID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97305-794-0 01 1 0512-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		1-38159-007-0 01 1 0505-
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		9-09724-015-0 01 1 0505-0509
33 04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID
POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-98028-789-0 01 1 0510-
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97350-755-0 01 1 0505-0709
34 04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98046-624-0 01 1 0710-
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.575 ID=15 		9-09160-514-0 02 1 0505-0709
35 04.439 WASHER; PL,FLANGE FIX,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.634 ID=15 		0-91610-514-0 02 1 0710-
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.172 M14 		9-99111-414-0 01 1 0505-0709
37 04.439 NUT; FLANGE FIX,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 06.515 M14 		0-91111-514-0 01 1 0710-
44 04.439 BOLT; COVER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 (B) M8X25 FLANGE 		0-28680-825-0 15 1 0505-0709
44 04.439 BOLT; COVER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 (B) M8X20 FLANGE 		0-28050-820-0 15 1 0710-0710
44 04.439 BOLT; COVER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 04.338 (B) M8X20 FLANGE 		0-28050-820-0 12 1 0711-
44 04.439 BOLT; COVER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.330 (A) M8X16 HEX SOCKET 		0-58310-816-0 03 1 0505-0709
44 04.439 BOLT; COVER,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.004 (A) M8X16 HEX SOCKET 		0-58330-816-0 03 1 0710-
77 04.439 COVER; OUTPUT,RR,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-719-0 01 1 0505-
79 04.439 COVER; DUST,TRANS SIDE PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-728-0 01 1 0505-0710
124 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97332-132-0 01 1 0505-0709
124 04.439 SWITCH; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98031-760-0 01 1 0710-
155 04.439 PLUG; SHIFTER ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97374-349-0 01 1 0505-0709
155 04.439 PLUG; SHIFTER ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98037-770-0 01 1 0710-
160 04.439 CLIP; PTO A/T SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 L=15 		8-94315-436-1 01 1 0505-
177 04.439 NUT; SHIFT ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 00.002 M8 		9-09110-508-0 01 1 0505-0709
177 04.439 NUT; SHIFT ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.334 M8 		0-91110-508-0 01 1 0710-
183 04.439 SOLENOID ASM; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97350-878-0 01 1 0505-0709
183 04.439 SOLENOID ASM; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-98038-582-0 01 1 0710-
186 04.439 RING; SNAP,IDLE GEAR,TRANS SIDE
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97106-730-0 01 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.50 		8-97106-724-0 02 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.60 		8-97106-725-0 02 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.65 		8-97106-726-0 02 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.70 		8-97106-727-0 02 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.80 		8-97106-728-0 02 1 0505-
196 04.439 PIECE; THRUST
POWER TAKE OFF CONTROL ELECTRIC(7GR) T=1.85 		8-97106-729-0 02 1 0505-
212 04.439 ADAPTER; SOLENOID
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-739-0 01 1 0505-
213 04.439 CONTROL UNIT; PTO
POWER TAKE OFF CONTROL ELECTRIC(7GR) 		8-97308-960-0 01 1 0505-
219 04.439 CLIP; CABLE
POWER TAKE OFF CONTROL ELECTRIC(7GR) (B) 		8-98091-152-0 01 1 0711-
219 04.439 CLIP; CABLE
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-97221-218-0 02 1 0505-
247 04.439 WASHER
POWER TAKE OFF CONTROL ELECTRIC(7GR) 02.559 ID=8.2 		0-91510-808-0 01 1 0711-
252 04.439 WASHER; PL,SHIFTER ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) (A) 		8-97308-737-1 01 1 0505-
252 04.439 WASHER; PL,SHIFTER ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 16.674 (B) ID=8.4 		9-09160-508-0 01 1 0505-0709
252 04.439 WASHER; PL,SHIFTER ROD
POWER TAKE OFF CONTROL ELECTRIC(7GR) 03.417 (B) ID=8.4 OD=16 		0-91610-508-0 01 1 0710-
258 04.439 BOLT
POWER TAKE OFF CONTROL ELECTRIC(7GR) M8 		8-98038-424-0 01 1 0711-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
