2-75 — TRANSFER CONTROL (#40890) — 62 parça

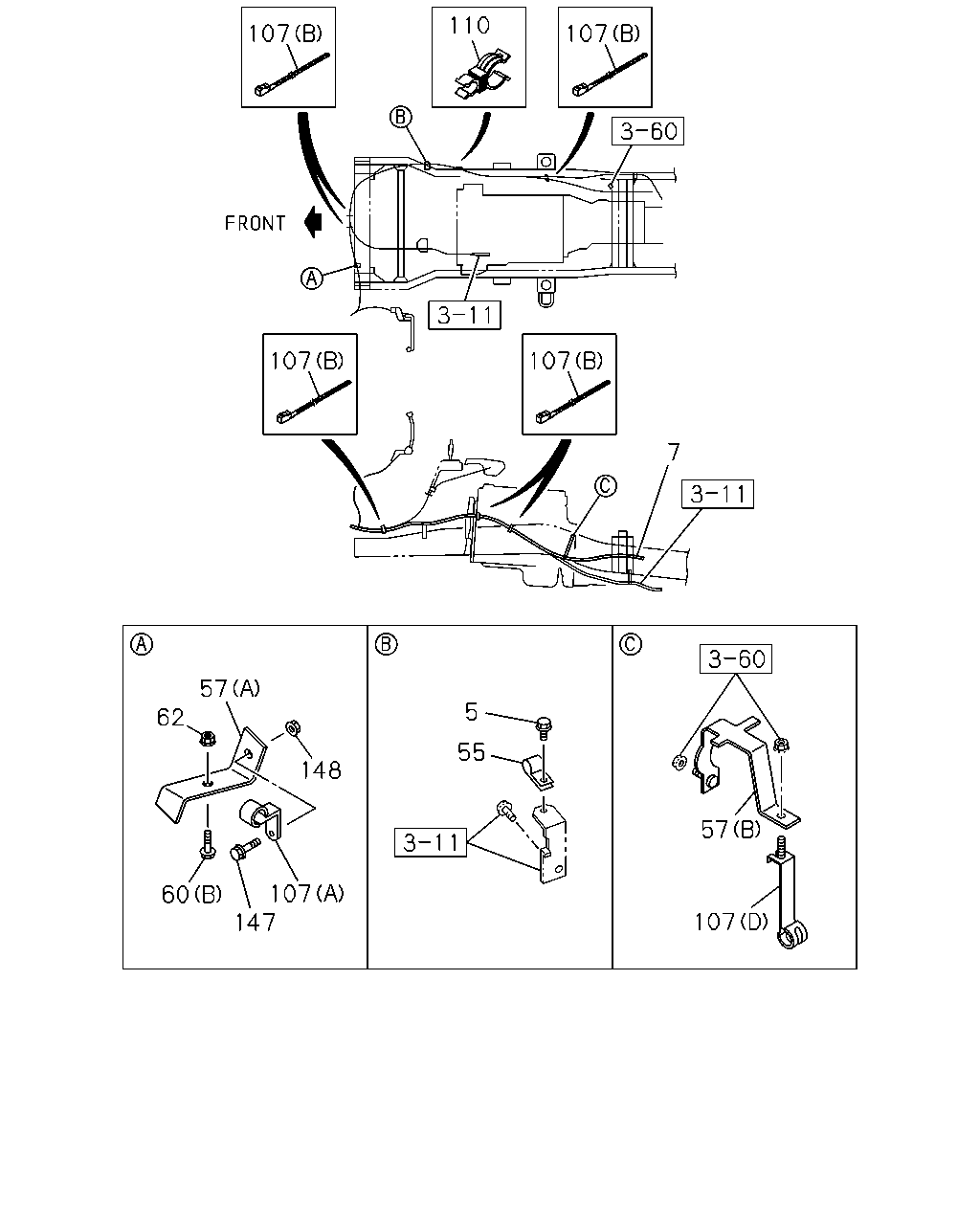

110 107 107 107 7 57 5 62 55 148 57 107 147 60 107 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	04.027 BOLT; CLIP BRKT 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
5	04.027 BOLT; CLIP BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
7	04.550 CABLE; CONT,TRANSFER L=4031	8-97374-198-1	01	1	0505-0506
7	04.550 CABLE; CONT,TRANSFER	8-98024-256-0	01	1	0507-
55	04.027 CLIP; CONT CABLE 04.785	8-94458-385-1	01	1	0505-
57	04.550 BRACKET; CABLE CLIP 04.047 (A)	8-97103-234-0	01	1	0505-
57	04.550 BRACKET; CABLE CLIP (B)	8-97314-900-2	01	1	0505-
60	04.027 BOLT; BRKT 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0505-0512
60	04.027 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-
60	04.027 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512
60	04.027 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
60	04.027 BOLT; BRKT 03.320 (C) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0505-0604
60	04.027 BOLT; BRKT 02.559 (C) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-
62	04.030 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
62	04.030 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (A) ID=19 L=24 H=21	1-09700-109-1	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (B) L=250	5-09707-030-1	03	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 03.162 (B) L=140	5-09707-031-1	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 03.162 (B) L=140	5-09707-031-1	02	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER (C)	8-94152-900-0	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (D) ID=13 L=90	8-97015-782-1	01	1	0505-
110	04.027 CLIP; CONT CABLE,TRANSFER ID=21 & 9.8	8-97309-945-0	01	1	0505-
147	04.027 BOLT; CLIP 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0505-0512
147	04.027 BOLT; CLIP 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-
148	04.027 NUT; CLIP 07.633 M8 FLANGE	0-91150-108-0	01	1	0505-0602
148	04.027 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-

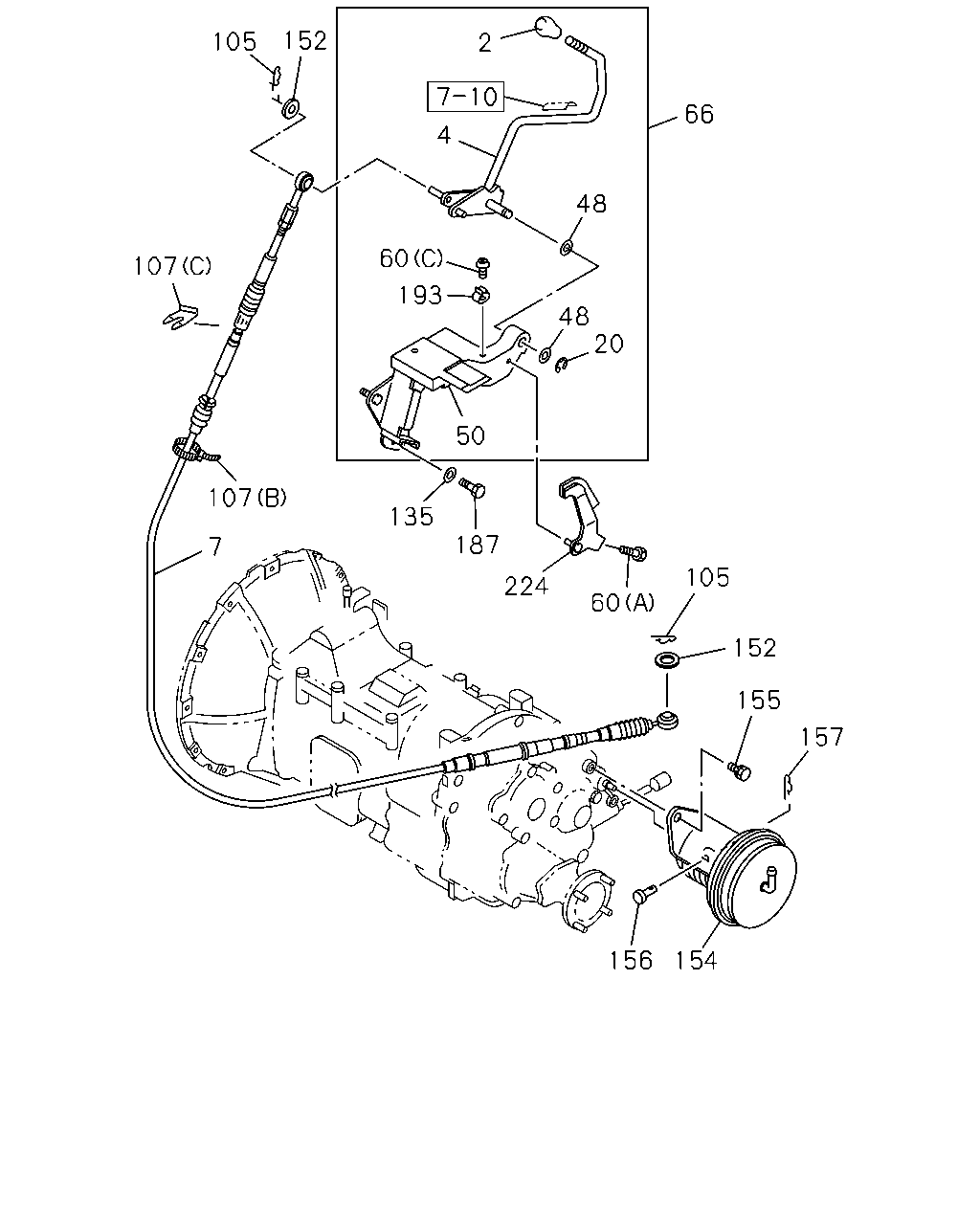

152 105 2 66 4 48 60 107 193 48 20 50 107 135 187 7 224 60 152 155 157 156 154 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	04.006 KNOB; CONT LEVER,NEUTRAL & FRT	8-97376-985-0	01	1	0505-
4	04.030 LEVER ASM; TRANSFER CONT 04.439	8-97143-218-0	01	1	0505-
7	04.550 CABLE; CONT,TRANSFER L=4031	8-97374-198-1	01	1	0505-0506
7	04.550 CABLE; CONT,TRANSFER	8-98024-256-0	01	1	0507-
20	04.046 RING; SNAP,RELAY LEVER 08.934 ID=10	9-09185-410-0	01	1	0505-0604
20	04.046 RING; SNAP,RELAY LEVER 04.008 ID=10	0-91805-510-0	01	1	0605-
48	04.012 BUSHING; CONT LEVER 04.792	8-94238-596-0	02	1	0505-
50	04.027 BRACKET; CONT LEVER 04.439	8-97118-977-0	01	1	0505-
60	04.027 BOLT; BRKT 04.439 (A) M6X16 FLANGE	0-28680-616-0	01	1	0505-0512
60	04.027 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0601-
60	04.027 BOLT; BRKT 02.664 (B) M8X20 FLANGE	0-28680-820-0	01	1	0505-0512
60	04.027 BOLT; BRKT 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0601-
60	04.027 BOLT; BRKT 03.320 (C) M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0505-0604
60	04.027 BOLT; BRKT 02.559 (C) M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-
66	04.006 LEVER; CHANGE	8-97376-664-0	01	1	0505-
105	04.027 PIN; SNAP,CONT CABLE,TRANSFER 00.833 L=27.7	8-94111-137-0	02	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (A) ID=19 L=24 H=21	1-09700-109-1	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (B) L=250	5-09707-030-1	03	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 03.162 (B) L=140	5-09707-031-1	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 03.162 (B) L=140	5-09707-031-1	02	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER (C)	8-94152-900-0	01	1	0505-
107	04.027 CLIP; CONT CABLE,TRANSFER 02.559 (D) ID=13 L=90	8-97015-782-1	01	1	0505-
135	04.570 WASHER; PL,CONT ARM 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0505-0605
135	04.570 WASHER; PL,CONT ARM 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-
152	04.027 WASHER; PL,CONT CABLE 16.674 ID=8.4	9-09160-508-0	02	1	0505-0605
152	04.027 WASHER; PL,CONT CABLE 03.417 ID=8.4 OD=16	0-91610-508-0	02	1	0606-
154	04.570 ACTUATOR; SELECT,TRANSFER	8-97117-302-1	01	1	0505-0604
154	04.570 ACTUATOR; SELECT,TRANSFER	8-98031-513-0	01	1	0605-
155	04.570 BOLT; SELECT ACTUATOR 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0505-0512
155	04.570 BOLT; SELECT ACTUATOR 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-
156	04.570 PIN; JOINT,SELECT ACTUATOR OD=4 L=16	9-08233-416-0	01	1	0505-0604
156	04.570 PIN; JOINT,SELECT ACTUATOR OD=4 L=16	0-82353-416-0	01	1	0605-
157	04.570 PIN; SNAP,SELECT ACTUATOR	1-09747-001-0	01	1	0505-
187	04.012 BOLT; CONT LEVER 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0505-
193	04.027 STOPPER 04.439	8-97142-947-0	01	1	0505-
224	04.027 PLATE; STOPPER,PTO LEVER 04.439	8-97118-983-0	01	1	0505-
