1-35 — CHARGE AIR COOLER (#40885) — 64 parça

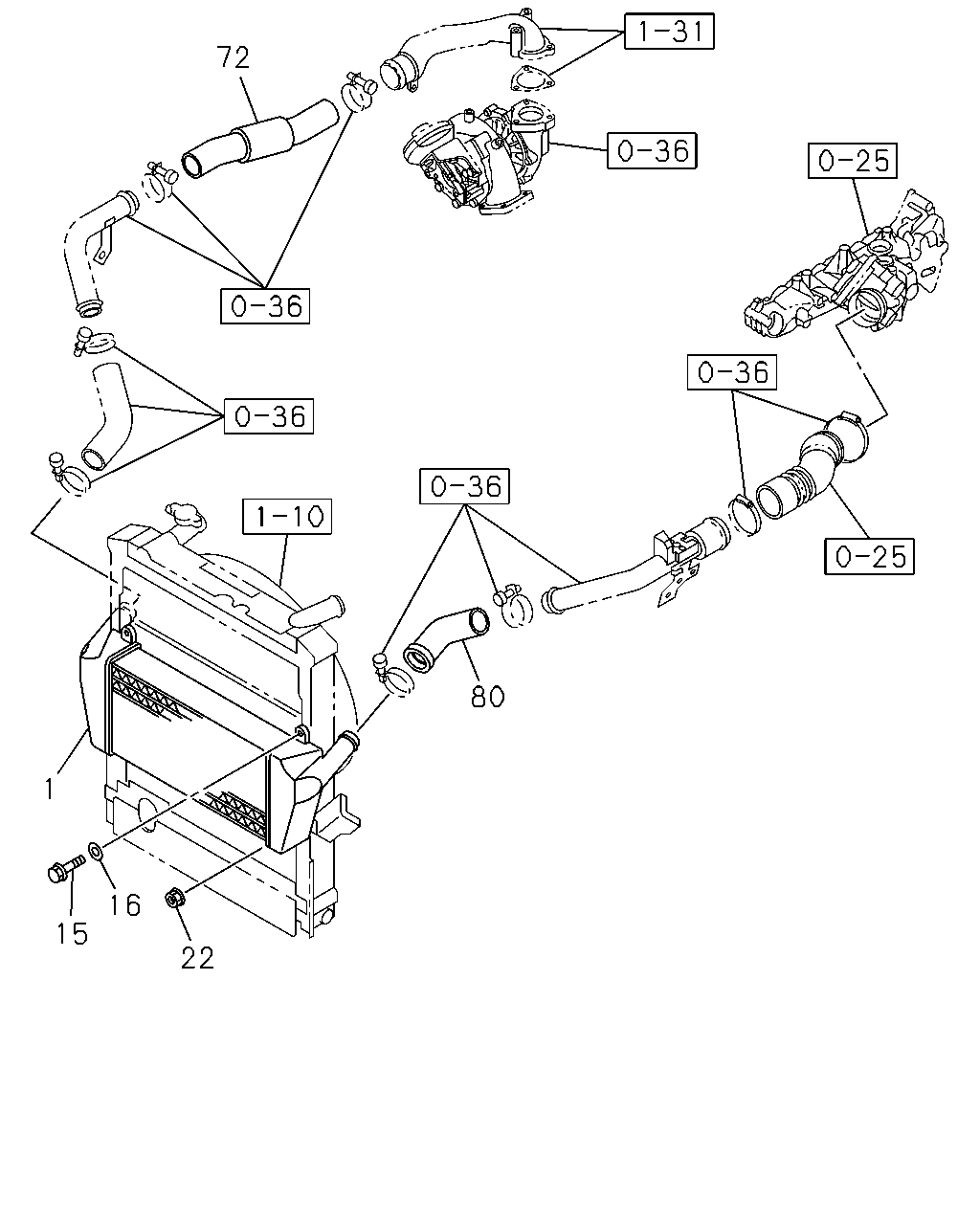

çizim 11367
72 80 1 16 15 22
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) 		8-97218-394-4 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97218-394-4 01 1 0507-0606 ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) 		8-97240-039-2 01 1 0302-0506 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) 		8-97240-039-2 01 1 0507-0606 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) 		8-97333-362-1 01 1 0507-0606 ● ● ● ●
15 03.374 BOLT; CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.275 M8X25 FLANGE 		0-28050-825-0 02 1 0607- ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0607- ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) 16.674 ID=8.4 		9-09160-508-0 04 1 0302-0506 ● ● ● ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.674 ID=8.4 		9-09160-508-0 04 1 0507-0606 ● ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0607- ● ● ● ●
22 03.374 NUT
4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 02 1 0607- ● ● ● ●
22 03.374 NUT
4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0607- ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY) 		8-97203-993-1 01 1 0302-0506 ● ● ● ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97203-993-2 01 1 0507-0606 ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ) 		8-97203-993-2 01 1 0507-0606 ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4JJ1 ENG(LFB) 		8-98048-142-1 01 1 0607- ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0607- ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) 		8-97233-792-0 01 1 0302-0506 ● ● ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ) 		8-97233-792-1 01 1 0507-0606 ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4JJ1 ENG(LFB) 		8-98018-532-2 01 1 0607- ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCS ENG(RJS) 		8-98011-904-2 01 1 0507-0606 ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98011-904-2 01 1 0607-0608 ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0609- ● ● ● ●

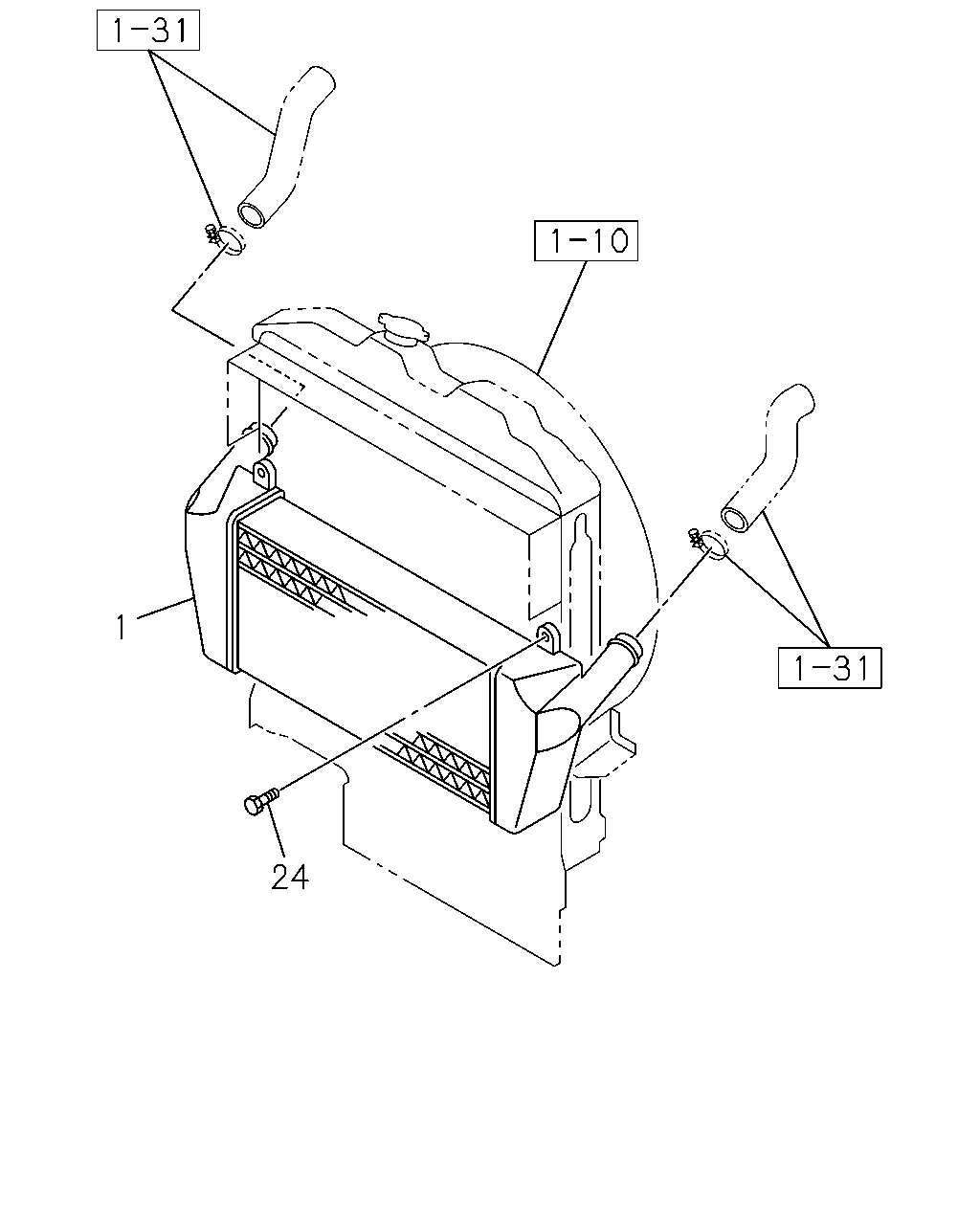

çizim 12584
1 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) 		8-97218-394-4 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97218-394-4 01 1 0507-0606 ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) 		8-97240-039-2 01 1 0302-0506 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) 		8-97240-039-2 01 1 0507-0606 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) 		8-97333-362-1 01 1 0507-0606 ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) M8X26 		8-97173-439-0 04 1 0302-0506 ● ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCS ENG(RJS) M8X26 		8-97173-439-0 04 1 0507-0606 ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0302-0506 ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0507-0606 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCC ENG(RDV) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0607- ● ● ● ●

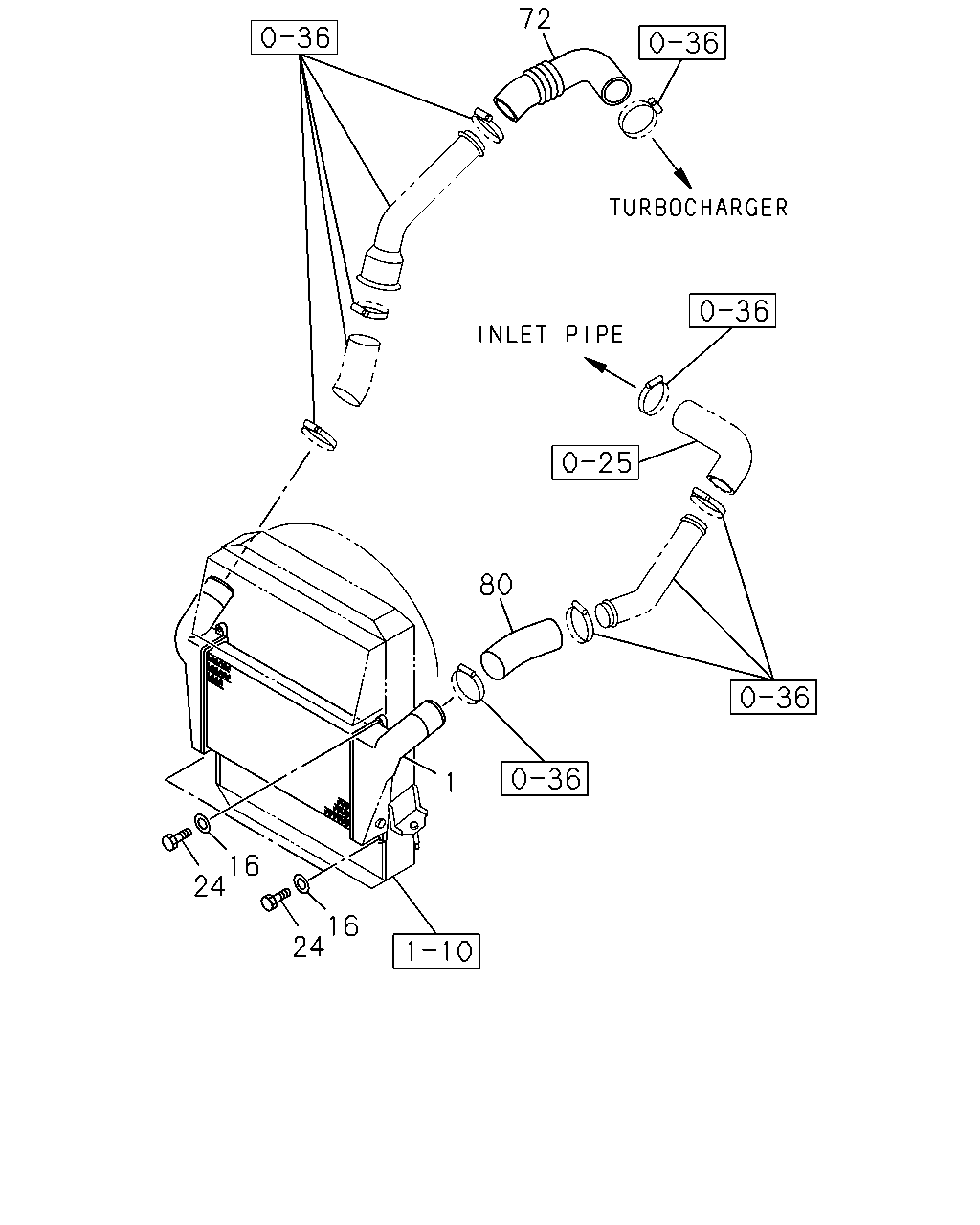

çizim 13763
72 80 1 16 24 16 24
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G
1 03.374 COOLER; CHARGE AIR
4HE1 ENG(RLY) 		8-97218-394-4 01 1 0302-0506 ● ● ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCN ENG(RDQ) 		8-97218-394-4 01 1 0507-0606 ● ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCC ENG(RDV) 		8-97389-001-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1 ENG(RJX) 		8-97240-039-2 01 1 0302-0506 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JH1-TC ENG(RDM) 		8-97240-039-2 01 1 0507-0606 ● ● ●
1 03.374 COOLER; CHARGE AIR
4JJ1 ENG(LFB) 		8-97387-033-0 01 1 0607- ● ● ● ●
1 03.374 COOLER; CHARGE AIR
4HK1-TCS ENG(RJS) 		8-97333-362-1 01 1 0507-0606 ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4JJ1 ENG(LFB) 03.417 ID=8.4 OD=16 		0-91610-508-0 02 1 0607- ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) 16.674 ID=8.4 		9-09160-508-0 04 1 0302-0506 ● ● ● ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.674 ID=8.4 		9-09160-508-0 04 1 0507-0606 ● ● ● ● ●
16 03.374 WASHER; PL,CHARGE AIR COOLER
4HK1-TCC ENG(RDV) 16.674 ID=8.4 		9-09160-508-0 04 1 0607- ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HE1 ENG(RLY) M8X26 		8-97173-439-0 04 1 0302-0506 ● ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCS ENG(RJS) M8X26 		8-97173-439-0 04 1 0507-0606 ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1 ENG(RJX) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0302-0506 ● ● ●
24 03.374 BOLT; COOLER TO RAD
4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0507-0606 ● ● ● ● ● ●
24 03.374 BOLT; COOLER TO RAD
4HK1-TCC ENG(RDV) 01.531 M8X25 FLANGE 		0-28080-825-0 04 1 0607- ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY) 		8-97203-993-1 01 1 0302-0506 ● ● ● ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 		8-97203-993-2 01 1 0507-0606 ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCN ENG(RDQ) 		8-97203-993-2 01 1 0507-0606 ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4JJ1 ENG(LFB) 		8-98048-142-1 01 1 0607- ● ● ● ●
72 01.540 HOSE; CONN,INL PIPE TO DUCT
4HK1-TCC ENG(RDV) 		8-98020-248-2 01 1 0607- ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HE1 ENG(RLY) 		8-97233-792-0 01 1 0302-0506 ● ● ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCN ENG(RDQ) 		8-97233-792-1 01 1 0507-0606 ● ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4JJ1 ENG(LFB) 		8-98018-532-2 01 1 0607- ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCS ENG(RJS) 		8-98011-904-2 01 1 0507-0606 ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98011-904-2 01 1 0607-0608 ● ● ● ●
80 01.540 HOSE; CONN,CHARGE AIR COOLER TO
4HK1-TCC ENG(RDV) 		8-98053-760-0 01 1 0609- ● ● ● ●
