Sayfa 1-31 - Isuzu EPC

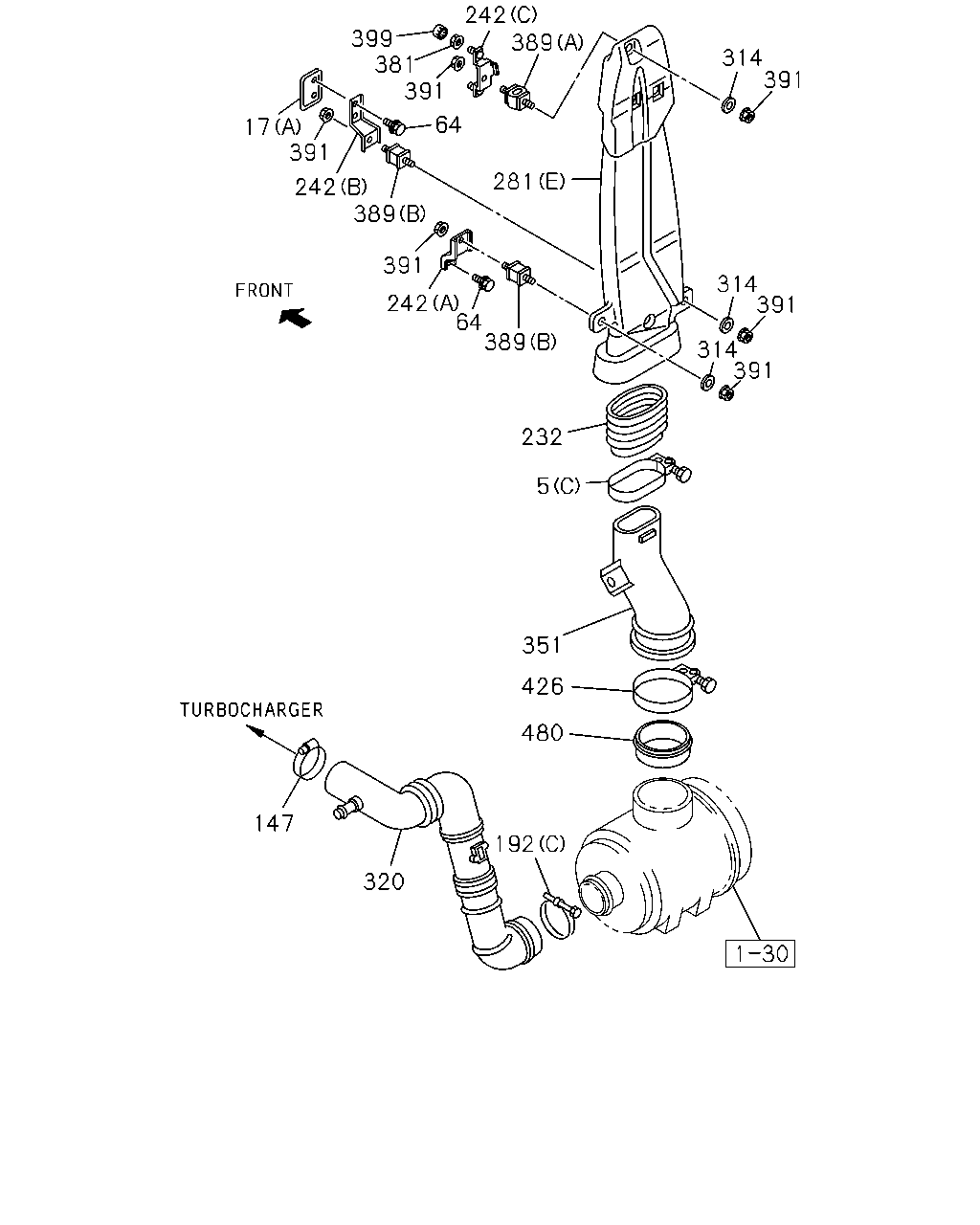

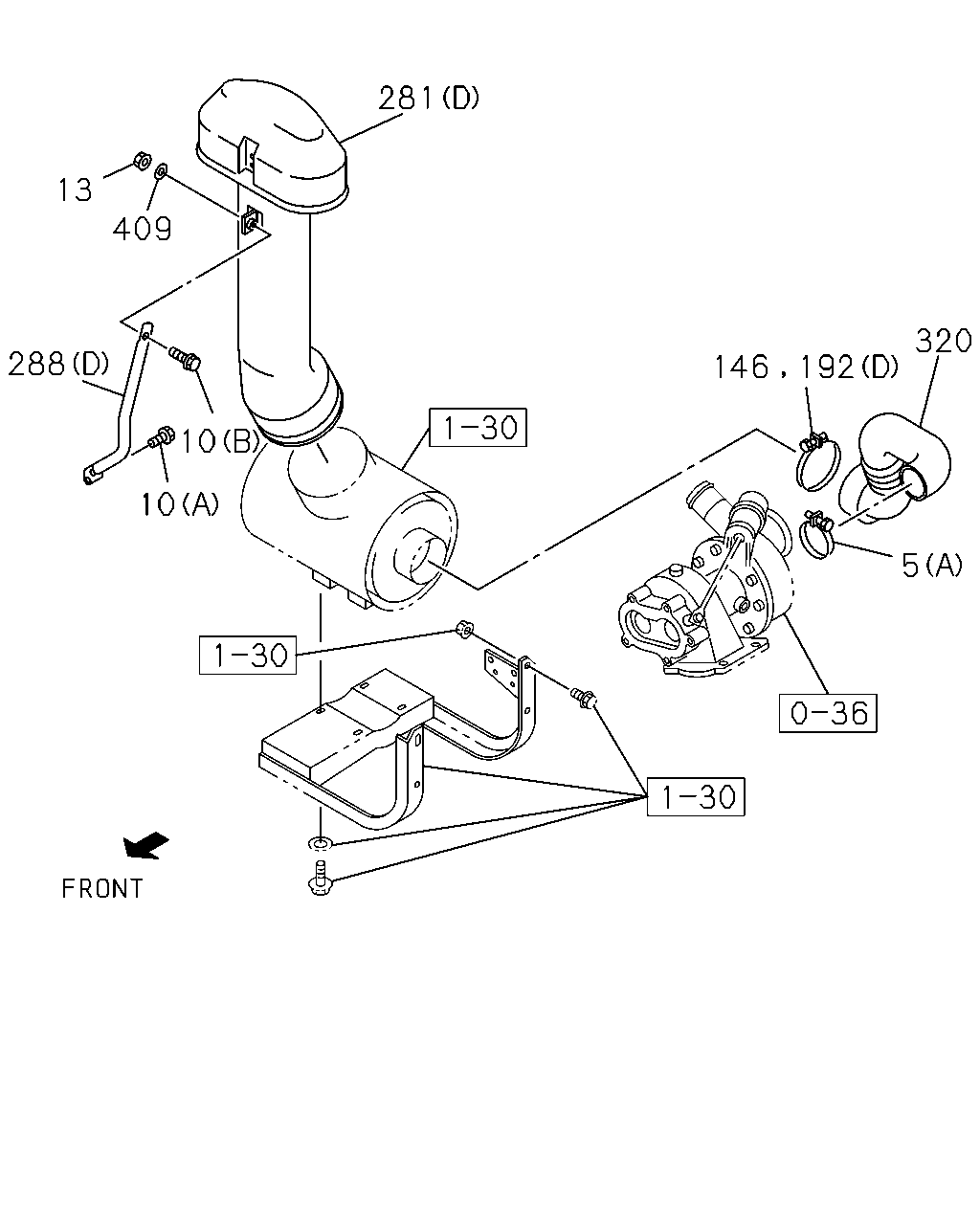

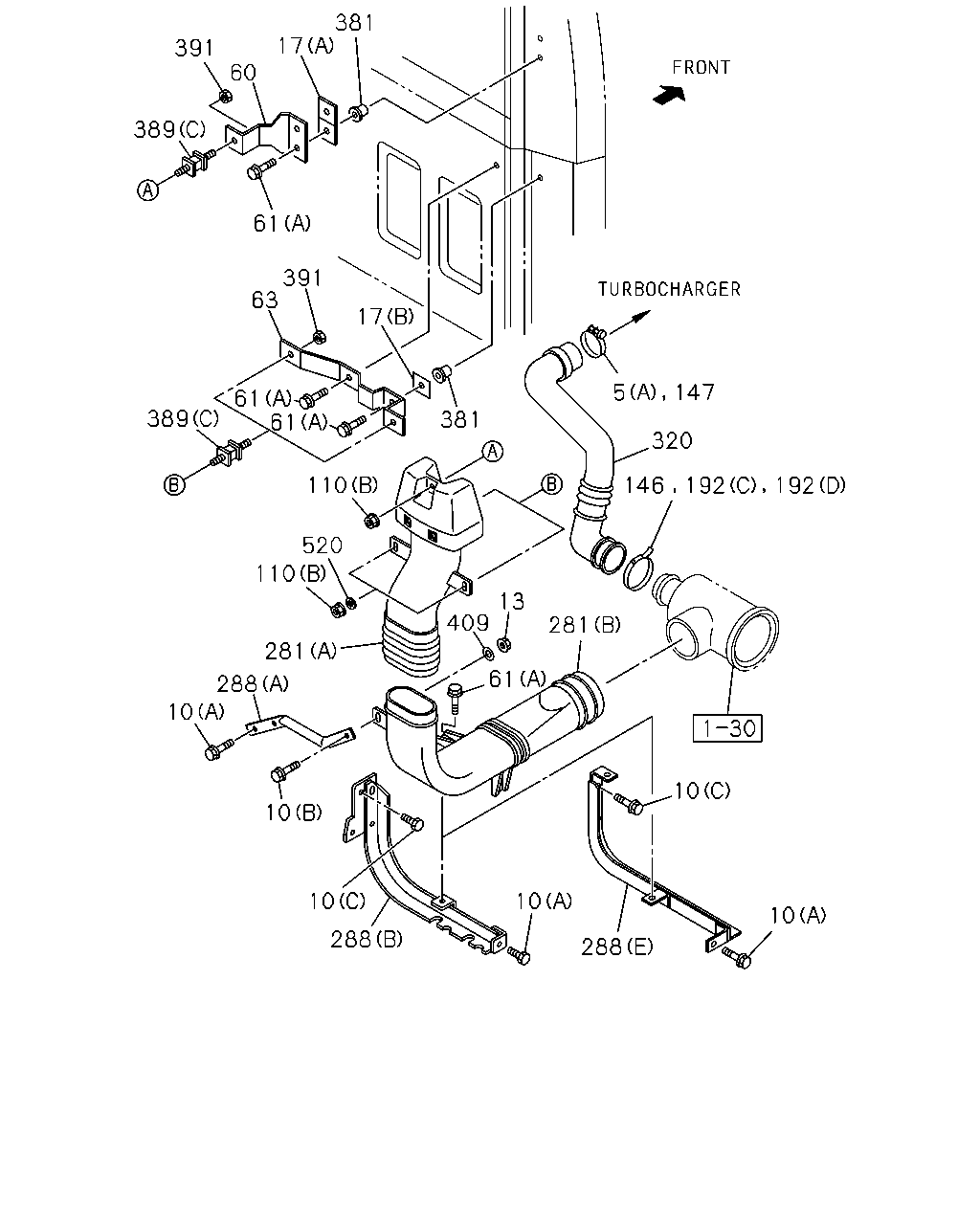

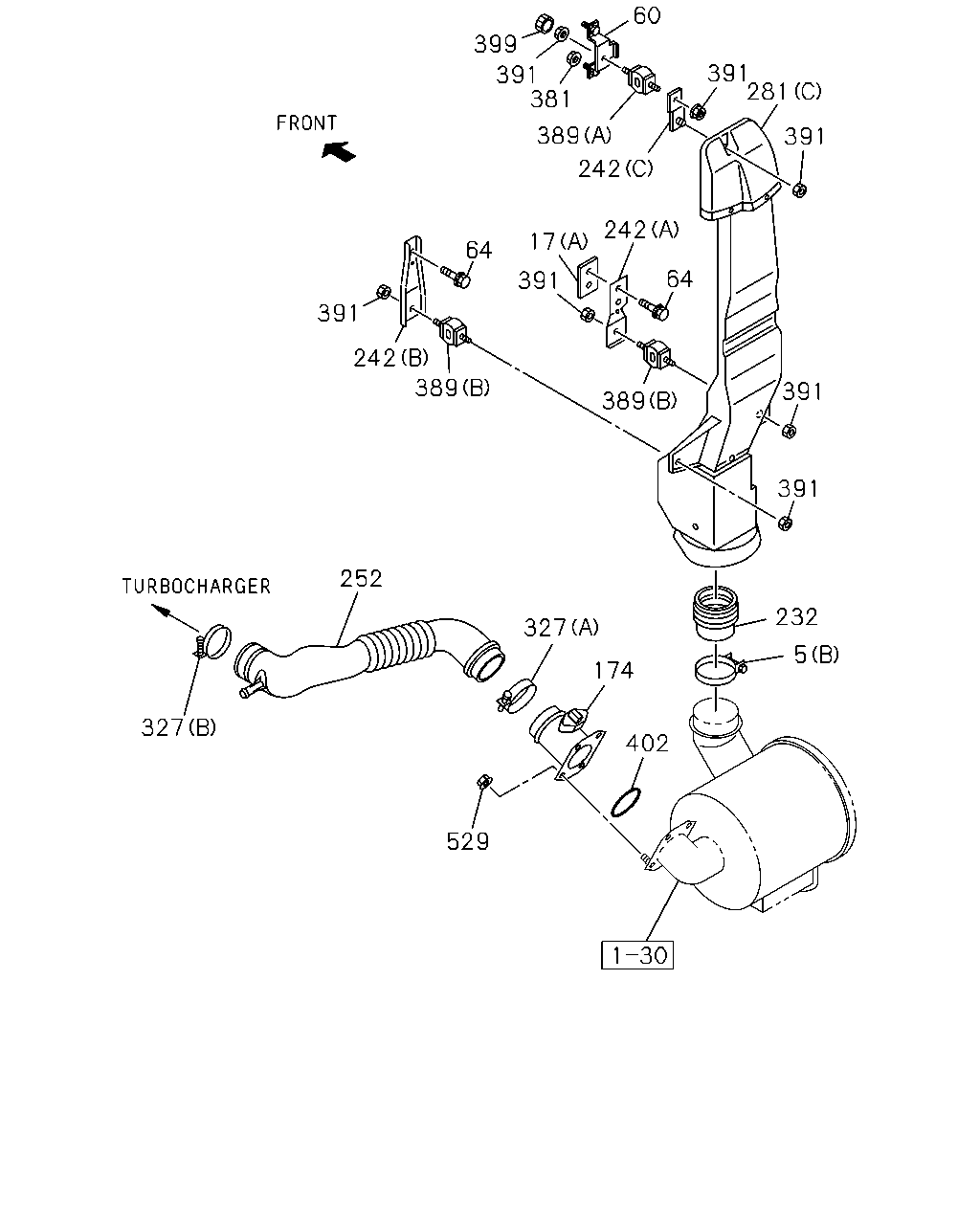

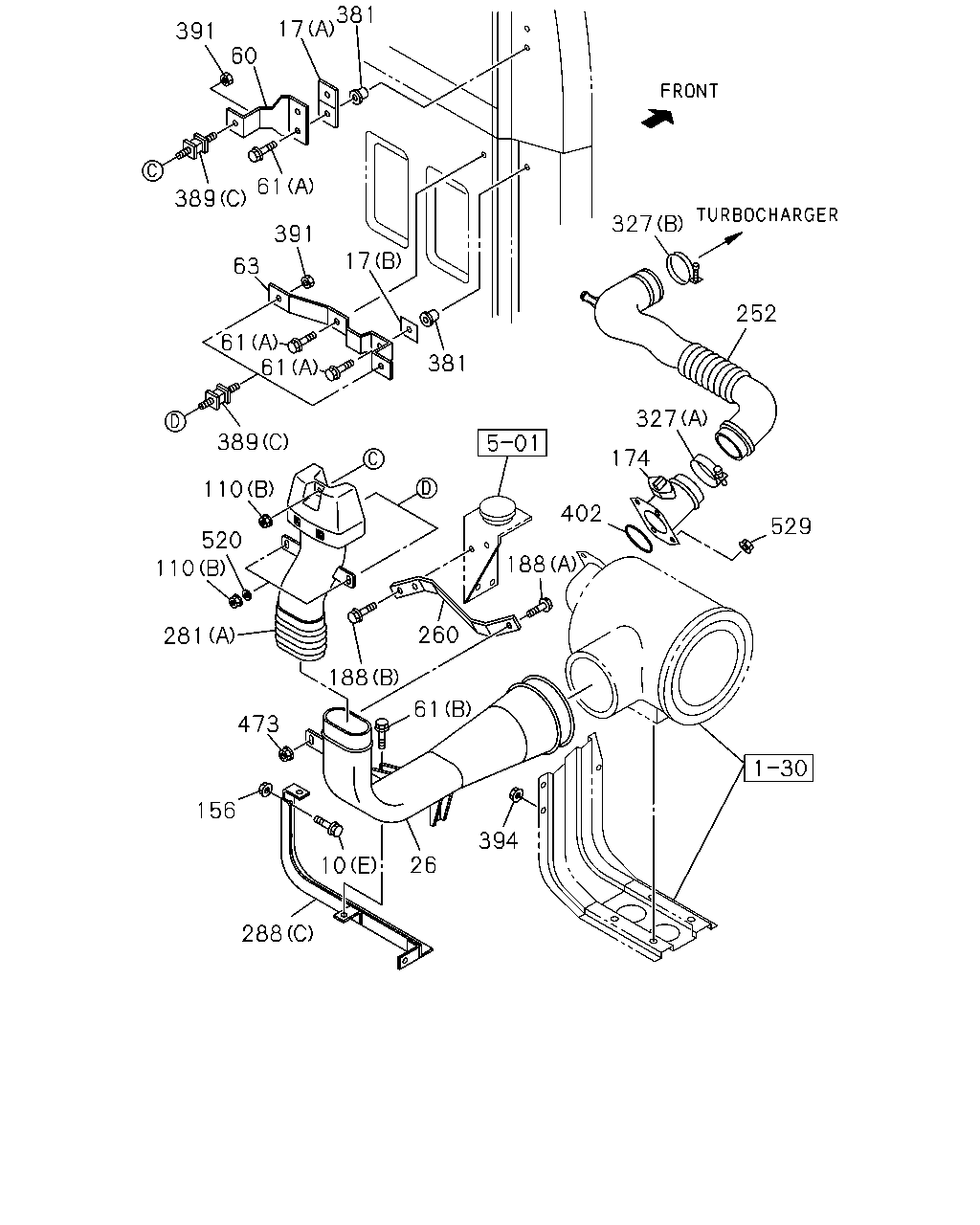

1-31 — AIR DUCT (#40884) — 971 parça

381 17 391 60 389 61 391 63 17 5 147 61 61 389 381 320 110 146 192 192 520 110 13 409 281 281 61 288 10 10 10 10 10 10 288 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (B) ID=112	9-09915-074-1	01	1	0302-0506	●	●
5	03.407 CLIP; AIR DUCT 4JH1-TC ENG(RDM) (B) ID=112	9-09915-074-1	01	1	0507-0606	●	●
5	03.407 CLIP; AIR DUCT 4JJ1 ENG(LFB) (C) D=101.6	9-09915-502-1	01	1	0607-	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) (A) ID=58-79	1-09707-136-0	01	1	0302-0506	●	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85	1-09707-202-0	01	1	0507-0606		●	●		●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (A) ID=68-85	1-09707-202-0	01	1	0507-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-							●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0302-0506	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607							●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-		●	●		●		●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-						●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0302-0506						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512							●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606							●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-							●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602						●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606						●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●				●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607						●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607							●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-		●	●		●		●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-						●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0302-0506	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) (A)	8-97853-699-2	01	1	0302-0506							●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97853-699-2	01	1	0507-0606	●	●				●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97853-699-2	01	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97853-699-2	01	1	0607-	●	●	●			●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (A)	8-97853-699-2	01	1	0607-							●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0302-0506						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97892-723-0	02	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97892-723-0	02	1	0607-						●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (B)	8-97892-723-0	02	1	0607-							●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0302-0506	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0507-0606	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0302-0506						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0302-0506						●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-525-4	01	1	0507-0606							●
60	03.417 BRACKET; AIR DUCT,UPR 4JJ1 ENG(LFB)	8-97892-525-4	01	1	0607-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCC ENG(RDV)	8-97892-525-4	01	1	0607-							●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0302-0506						●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0302-0506						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606							●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0607-						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0607-							●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0302-0506						●	●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1 ENG(RJX)	8-97892-526-3	01	1	0302-0506						●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1-TC ENG(RDM)	8-97892-526-3	01	1	0507-0606						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0507-0606						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-526-3	01	1	0507-0606							●
63	03.417 BRACKET; AIR DUCT,LWR 4JJ1 ENG(LFB)	8-97892-526-3	01	1	0607-						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCC ENG(RDV)	8-97892-526-3	01	1	0607-							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●					●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-					●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606						●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506							●
110	03.403 NUT; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) 03.407 ID=112	9-09915-074-1	01	1	0302-0506	●	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 ID=112	9-09915-074-1	01	1	0507-0606		●	●		●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ) 03.407 ID=112	9-09915-074-1	01	1	0507-0606						●
147	03.417 CLIP; HOSE TO ENG 4JJ1 ENG(LFB) 03.407 ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JJ1 ENG(LFB) 03.407 ID=65-85	8-98133-350-0	01	1	0811-	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4HK1-TCC ENG(RDV) 03.407 ID=77-95	1-09707-198-0	01	1	0607-0810		●	●		●		●
147	03.417 CLIP; HOSE TO ENG 4HK1-TCC ENG(RDV) 03.407 ID=75-95	8-98133-357-0	01	1	0811-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0302-0410	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-65	1-09707-204-0	06	1	0411-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) (A) ID=50-65	1-09707-204-0	06	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4HK1-TCC ENG(RDV) (D) ID=112	9-09915-074-1	01	1	0607-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0302-0403	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0404-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4JJ1 ENG(LFB) (C) ID=117	9-09915-075-1	01	1	0607-	●	●	●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0302-0506	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (C)	8-97300-255-1	01	1	0507-0606	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (E)	8-97369-706-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (D)	8-97180-995-0	01	1	0302-0506	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97180-995-0	01	1	0507-0606		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (D)	8-97180-995-0	01	1	0607-		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (A)	8-97372-358-0	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97372-358-0	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (A)	8-97372-358-0	01	1	0607-							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX),4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (A)	8-97213-911-2	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (A)	8-97213-911-2	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (B)	8-97213-912-2	01	1	0302-0506						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (B)	8-97213-912-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97213-912-3	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (B)	8-97213-912-3	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (B)	8-97213-912-3	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (D)	8-97183-041-2	01	1	0302-0506	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97183-041-2	01	1	0507-0606		●	●		●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (D)	8-97183-041-2	01	1	0607-		●	●		●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0302-0506						●
288	03.417 BRACKET; DUCT 4JH1-TC ENG(RDM) (C)	8-97287-785-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98047-142-1	01	1	0607-0706						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98082-537-0	01	1	0707-						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (A)	8-97214-827-1	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (A)	8-97214-827-1	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-827-1	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (A)	8-97214-827-1	01	1	0607-						●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (A)	8-97214-827-1	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) 03.405 (B)	8-97214-828-0	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (B)	8-98011-754-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-754-0	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (B)	8-98011-754-0	01	1	0607-							●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97209-707-0	01	1	0302-0506	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606		●	●		●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-137-0	01	1	0607-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-689-1	01	1	0607-		●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97211-578-0	01	1	0302-0506						●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ)	8-98000-874-0	01	1	0507-0606						●

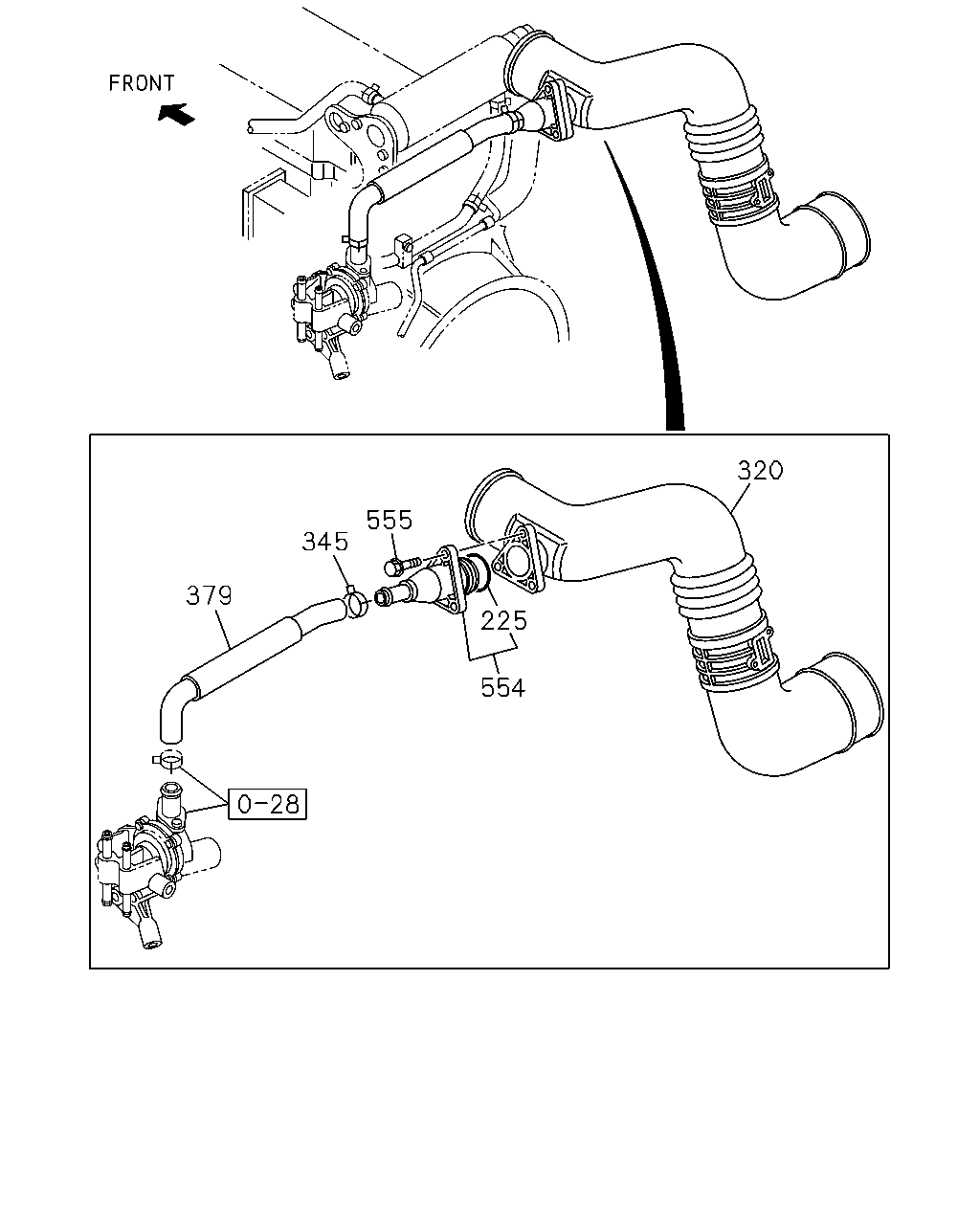

320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-874-0	01	1	0507-0606							●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-138-0	01	1	0607-						●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-690-1	01	1	0607-							●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0302-0506	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.800 M6 FLANGE	1-09984-018-0	02	1	0507-0606	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.800 M6 FLANGE	1-09984-018-0	02	1	0607-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (A)	8-97080-149-0	01	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (B)	8-97081-886-0	02	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (C)	8-97080-149-0	03	1	0507-0606						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C)	8-97080-149-0	03	1	0507-0606							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (C)	8-97080-149-0	03	1	0607-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCC ENG(RDV) 03.417 (C)	8-97080-149-0	03	1	0607-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0302-0506	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0507-0606	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0607-0910	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0302-0506						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●	●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0302-0506	●	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605		●	●		●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605						●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606		●	●		●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606						●
409	03.417 WASHER; PL,BRKT 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-0607						●
409	03.417 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-0607							●
409	03.417 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0608-		●	●		●		●
409	03.417 WASHER; PL,BRKT 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0608-						●
520	03.403 WASHER; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0302-0506						●
520	03.403 WASHER; RUBBER MTG 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0302-0506							●
520	03.403 WASHER; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0507-0605						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0507-0605							●
520	03.403 WASHER; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-0606						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-0606							●
520	03.403 WASHER; RUBBER MTG 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0607-						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0607-							●

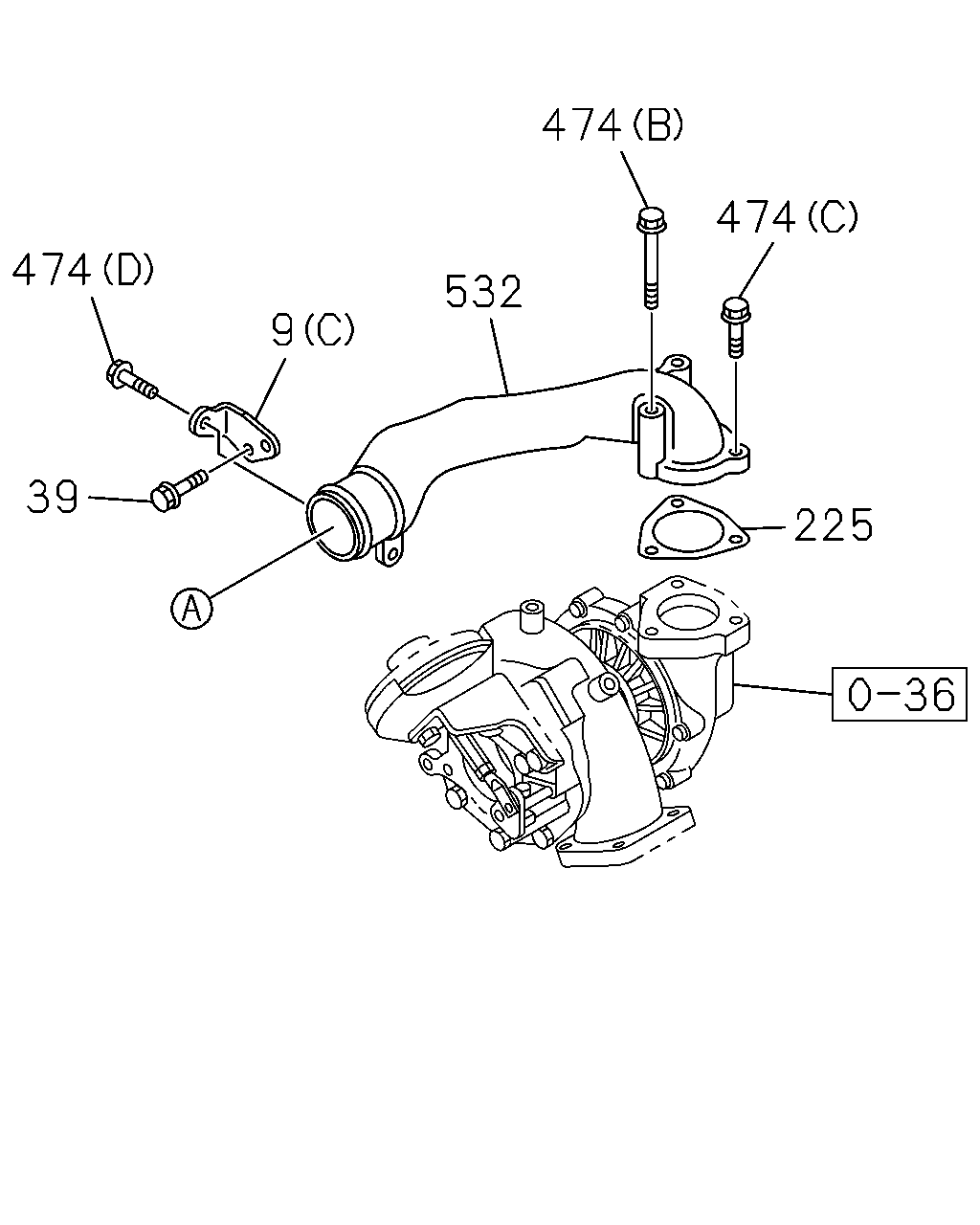

474 474 474 532 9 39 225

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	E	F	G
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97300-773-1	01	1	0302-0506	●	●			●
9	03.417 BRACKET; INT PIPE 4JH1-TC ENG(RDM) (B)	8-97300-773-1	01	1	0507-0606	●	●			●
9	03.417 BRACKET; INT PIPE 4JJ1 ENG(LFB) (C)	8-98009-086-0	01	1	0607-	●	●	●		●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (A)	8-97312-473-1	01	1	0302-0506	●	●			●
9	03.417 BRACKET; INT PIPE 4JH1-TC ENG(RDM) (A)	8-97312-473-1	01	1	0507-0606	●	●			●
39	03.417 BOLT; BRKT 4JJ1 ENG(LFB) 03.613 M8X14 FLANGE	8-97378-075-0	01	1	0607-	●	●	●		●
225	03.417 GASKET; AIR PIPE 4HK1-TCC ENG(RDV) 01.097 ID=43.7	9-09561-344-0	01	1	0607-		●	●	●		●
225	03.417 GASKET; AIR PIPE 4JJ1 ENG(LFB) 03.270	8-97202-328-1	01	1	0607-	●	●	●		●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	0607-	●	●	●		●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0607-	●	●	●		●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506	●	●			●
474	03.417 BOLT; PIPE 4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●			●
474	03.417 BOLT; PIPE 4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●			●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●		●
532	03.417 PIPE; INTAKE 4JJ1 ENG(LFB)	8-97385-203-1	01	1	0607-	●	●	●		●

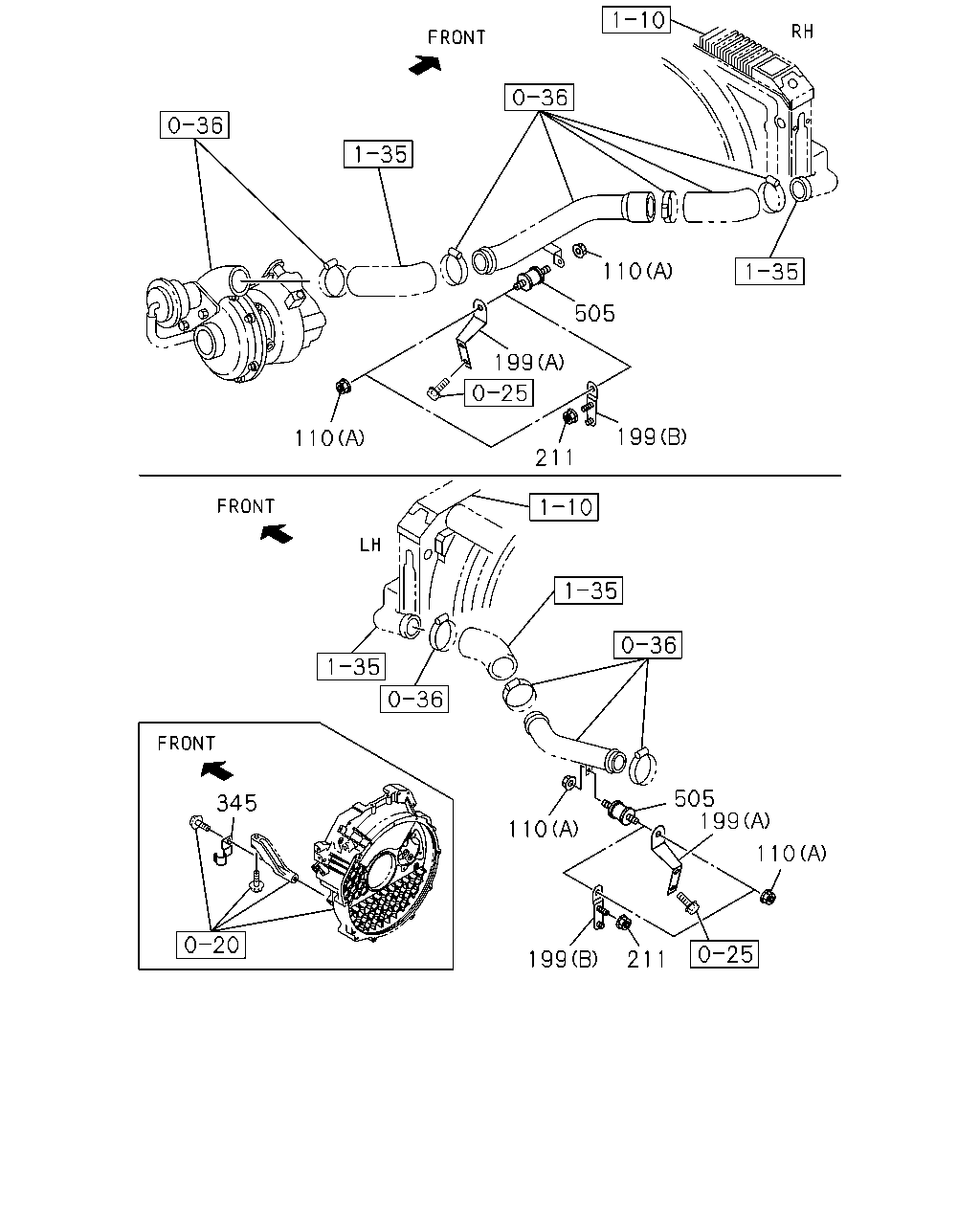

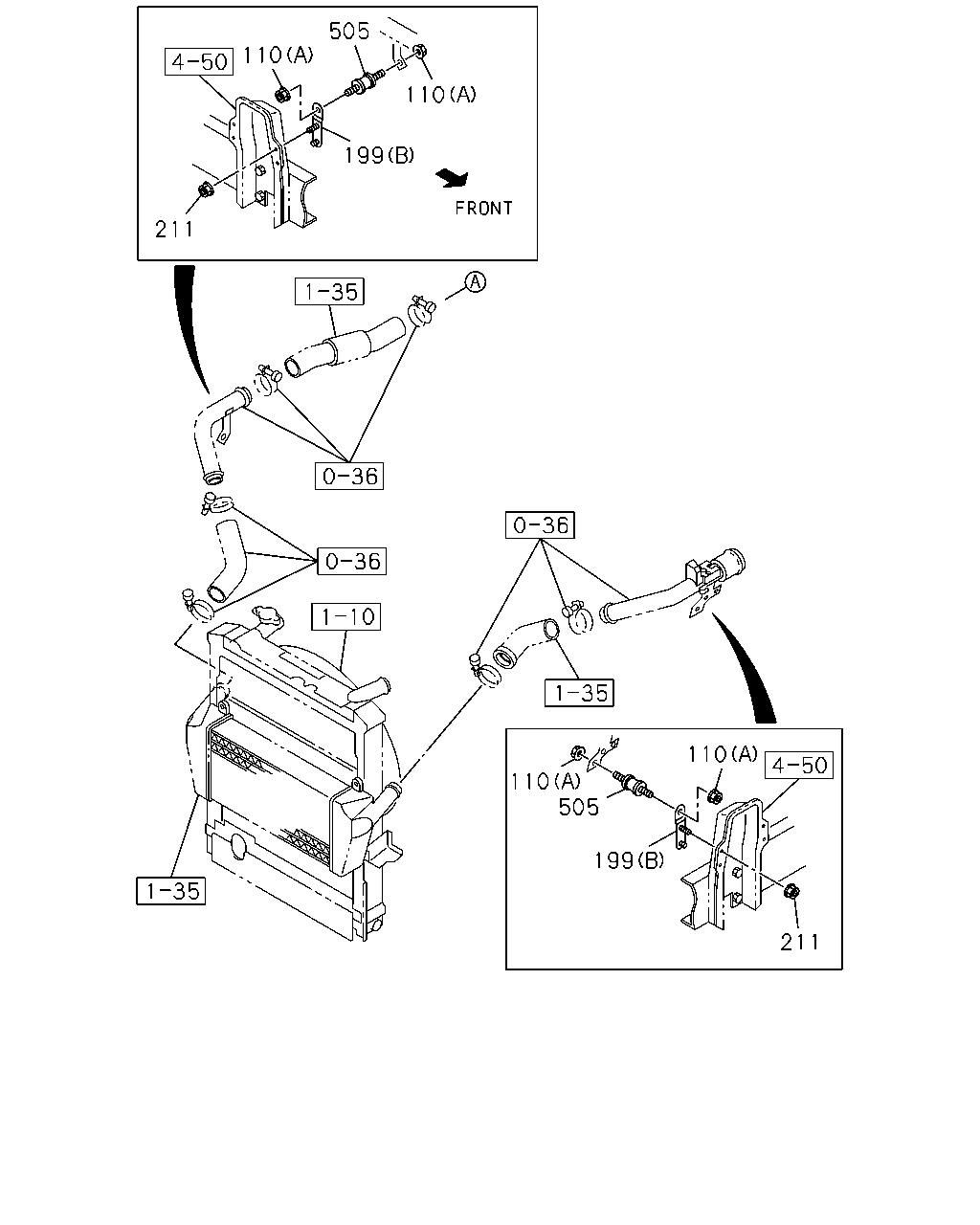

505 110 110 199 211 110 110 505 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●					●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-					●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606						●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506							●
110	03.403 NUT; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-604-0	01	1	0302-0506	●	●	●	●	●	●	●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-753-1	01	1	0507-0606		●	●		●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98011-753-1	01	1	0507-0606						●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB) (B)	8-98011-753-1	01	1	0607-	●					●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98011-753-1	01	1	0607-		●	●
199	03.417 BRACKET; PIPE 4HK1-TCC ENG(RDV) (B)	8-98011-753-1	01	1	0607-					●		●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-603-1	01	1	0302-0506	●	●	●	●	●	●	●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-752-1	01	1	0507-0606		●	●		●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98011-752-1	01	1	0507-0606						●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB) (B)	8-98011-752-1	01	1	0607-	●					●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98011-752-1	01	1	0607-		●	●
199	03.417 BRACKET; PIPE 4HK1-TCC ENG(RDV) (B)	8-98011-752-1	01	1	0607-					●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0606		●	●		●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0606						●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610	●					●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610		●	●
211	03.405 NUT; BRKT 4HK1-TCC ENG(RDV) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610					●		●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●					●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●	●
211	03.405 NUT; BRKT 4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-					●		●
505	03.406 RUBBER; MTG 4HE1 ENG(RLY) 03.405	8-94158-155-1	02	1	0302-0506	●	●	●	●	●	●	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405	8-94158-155-1	02	1	0507-0606		●	●		●		●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.405	8-94158-155-1	02	1	0507-0606						●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB) 03.405	8-94158-155-1	02	1	0607-0611	●					●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.405	8-94158-155-1	02	1	0607-0611		●	●
505	03.406 RUBBER; MTG 4HK1-TCC ENG(RDV) 03.405	8-94158-155-1	02	1	0607-0611					●		●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB) 03.417	8-98036-826-0	02	1	0612-	●					●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417	8-98036-826-0	02	1	0612-		●	●
505	03.406 RUBBER; MTG 4HK1-TCC ENG(RDV) 03.417	8-98036-826-0	02	1	0612-					●		●

281 13 409 320 288 146 192 10 10 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (B) ID=112	9-09915-074-1	01	1	0302-0506	●	●
5	03.407 CLIP; AIR DUCT 4JH1-TC ENG(RDM) (B) ID=112	9-09915-074-1	01	1	0507-0606	●	●
5	03.407 CLIP; AIR DUCT 4JJ1 ENG(LFB) (C) D=101.6	9-09915-502-1	01	1	0607-	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) (A) ID=58-79	1-09707-136-0	01	1	0302-0506	●	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85	1-09707-202-0	01	1	0507-0606		●	●		●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (A) ID=68-85	1-09707-202-0	01	1	0507-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-							●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0302-0506	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607							●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-		●	●		●		●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-						●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0302-0506						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512							●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606							●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-							●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602						●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606						●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●				●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607						●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607							●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-		●	●		●		●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-						●
146	03.417 CLIP; HOSE,ACL 4HE1 ENG(RLY) 03.407 ID=112	9-09915-074-1	01	1	0302-0506	●	●	●	●	●	●	●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.407 ID=112	9-09915-074-1	01	1	0507-0606		●	●		●		●
146	03.417 CLIP; HOSE,ACL 4HK1-TCN ENG(RDQ) 03.407 ID=112	9-09915-074-1	01	1	0507-0606						●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0302-0410	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-65	1-09707-204-0	06	1	0411-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) (A) ID=50-65	1-09707-204-0	06	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4HK1-TCC ENG(RDV) (D) ID=112	9-09915-074-1	01	1	0607-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0302-0403	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0404-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4JJ1 ENG(LFB) (C) ID=117	9-09915-075-1	01	1	0607-	●	●	●			●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0302-0506	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (C)	8-97300-255-1	01	1	0507-0606	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (E)	8-97369-706-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (D)	8-97180-995-0	01	1	0302-0506	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97180-995-0	01	1	0507-0606		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (D)	8-97180-995-0	01	1	0607-		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (A)	8-97372-358-0	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97372-358-0	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (A)	8-97372-358-0	01	1	0607-							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX),4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (A)	8-97213-911-2	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (A)	8-97213-911-2	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (B)	8-97213-912-2	01	1	0302-0506						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (B)	8-97213-912-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97213-912-3	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (B)	8-97213-912-3	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (B)	8-97213-912-3	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (D)	8-97183-041-2	01	1	0302-0506	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97183-041-2	01	1	0507-0606		●	●		●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (D)	8-97183-041-2	01	1	0607-		●	●		●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0302-0506						●
288	03.417 BRACKET; DUCT 4JH1-TC ENG(RDM) (C)	8-97287-785-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98047-142-1	01	1	0607-0706						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98082-537-0	01	1	0707-						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (A)	8-97214-827-1	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (A)	8-97214-827-1	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-827-1	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (A)	8-97214-827-1	01	1	0607-						●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (A)	8-97214-827-1	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) 03.405 (B)	8-97214-828-0	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (B)	8-98011-754-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-754-0	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (B)	8-98011-754-0	01	1	0607-							●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97209-707-0	01	1	0302-0506	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606		●	●		●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-137-0	01	1	0607-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-689-1	01	1	0607-		●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97211-578-0	01	1	0302-0506						●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ)	8-98000-874-0	01	1	0507-0606						●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-874-0	01	1	0507-0606							●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-138-0	01	1	0607-						●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-690-1	01	1	0607-							●
409	03.417 WASHER; PL,BRKT 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0302-0506	●	●	●	●	●	●	●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605		●	●		●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605						●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606		●	●		●		●
409	03.417 WASHER; PL,BRKT 4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606						●
409	03.417 WASHER; PL,BRKT 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-0607						●
409	03.417 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0607-0607							●
409	03.417 WASHER; PL,BRKT 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0608-		●	●		●		●
409	03.417 WASHER; PL,BRKT 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0608-						●

320 555 345 379 225 554

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
225	03.417 GASKET; AIR PIPE 4HK1-TCC ENG(RDV) 01.097 ID=43.7	9-09561-344-0	01	1	0607-		●	●		●		●
225	03.417 GASKET; AIR PIPE 4JJ1 ENG(LFB) 03.270	8-97202-328-1	01	1	0607-	●	●	●			●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97209-707-0	01	1	0302-0506	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606		●	●		●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-137-0	01	1	0607-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-689-1	01	1	0607-		●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97211-578-0	01	1	0302-0506						●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ)	8-98000-874-0	01	1	0507-0606						●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-874-0	01	1	0507-0606							●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-138-0	01	1	0607-						●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-690-1	01	1	0607-							●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0302-0307	●	●	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0506	●	●	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0507-0606		●	●		●		●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ)	8-98020-040-0	01	1	0507-0606						●
345	03.417 CLIP; PCV HOSE 4HK1-TCC ENG(RDV) 08.846 ID=21.7	8-97203-074-0	01	1	0607-		●	●		●		●
379	03.675 HOSE; RUBBER 4HK1-TCC ENG(RDV)	8-98037-922-0	01	1	0607-		●	●		●		●
554	04.439 FLANGE; PIPE,PCV 4HK1-TCC ENG(RDV)	8-98038-208-0	01	1	0607-		●	●		●		●
555	03.407 BOLT; FLANGE,PCV 4HK1-TCC ENG(RDV) 00.386 M6X20 FLANGE	0-28050-620-0	03	1	0607-		●	●		●		●

381 17 391 60 61 389 327 391 17 63 252 61 61 381 327 389 174 110 402 529 520 110 188 260 281 188 61 473 156 394 26 10 288

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-							●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0302-0506	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607							●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-		●	●		●		●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-						●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0302-0506						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512							●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606							●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-							●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0302-0506	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) (A)	8-97853-699-2	01	1	0302-0506							●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97853-699-2	01	1	0507-0606	●	●				●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97853-699-2	01	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97853-699-2	01	1	0607-	●	●	●			●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (A)	8-97853-699-2	01	1	0607-							●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0302-0506						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97892-723-0	02	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97892-723-0	02	1	0607-						●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (B)	8-97892-723-0	02	1	0607-							●
26	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97213-912-2	01	1	0302-0506						●
26	03.417 DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97213-912-3	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0302-0506	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0507-0606	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0302-0506						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0302-0506						●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-525-4	01	1	0507-0606							●
60	03.417 BRACKET; AIR DUCT,UPR 4JJ1 ENG(LFB)	8-97892-525-4	01	1	0607-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCC ENG(RDV)	8-97892-525-4	01	1	0607-							●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0302-0506						●	●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0302-0506						●
61	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0507-0606							●
61	03.417 BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0607-						●
61	03.417 BOLT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 09.003 (A) M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	0607-							●
63	03.417 BRACKET; AIR DUCT,LWR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0302-0506						●	●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1 ENG(RJX)	8-97892-526-3	01	1	0302-0506						●
63	03.417 BRACKET; AIR DUCT,LWR 4JH1-TC ENG(RDM)	8-97892-526-3	01	1	0507-0606						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97892-526-3	01	1	0507-0606						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-526-3	01	1	0507-0606							●
63	03.417 BRACKET; AIR DUCT,LWR 4JJ1 ENG(LFB)	8-97892-526-3	01	1	0607-						●
63	03.417 BRACKET; AIR DUCT,LWR 4HK1-TCC ENG(RDV)	8-97892-526-3	01	1	0607-							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●					●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-					●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606						●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506							●
110	03.403 NUT; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
156	03.417 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506						●
156	03.417 NUT; BRKT 4JH1-TC ENG(RDM) 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602						●
156	03.417 NUT; BRKT 4JH1-TC ENG(RDM) 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606						●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0302-0506	●	●				●
174	03.682 SENSOR; AIR FLOW CONT 4JH1-TC ENG(RDM)	8-97240-057-1	01	1	0507-0606	●	●				●
188	03.403 BOLT; STAY 4JH1 ENG(RJX) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0302-0506						●
188	03.403 BOLT; STAY 4JH1-TC ENG(RDM) 02.183 (A) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512						●
188	03.403 BOLT; STAY 4JH1-TC ENG(RDM) 01.060 (A) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606						●
188	03.403 BOLT; STAY 4JH1 ENG(RJX) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0302-0506						●
188	03.403 BOLT; STAY 4JH1-TC ENG(RDM) 03.405 (B) M10X25 FLANGE	0-28681-025-0	02	1	0507-0512						●
188	03.403 BOLT; STAY 4JH1-TC ENG(RDM) 00.029 (B) M10X25 FLANGE	0-28651-025-0	02	1	0601-0606						●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-541-2	01	1	0302-0506	●	●
252	03.417 DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97312-541-3	01	1	0507-0606	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-542-2	01	1	0302-0506						●
252	03.417 DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97312-542-3	01	1	0507-0606						●
260	03.417 STAY; AIR DUCT 4JH1 ENG(RJX)	8-97214-827-1	01	1	0302-0506						●
260	03.417 STAY; AIR DUCT 4JH1-TC ENG(RDM)	8-97214-827-1	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0302-0506	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (C)	8-97300-255-1	01	1	0507-0606	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (E)	8-97369-706-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (D)	8-97180-995-0	01	1	0302-0506	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97180-995-0	01	1	0507-0606		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (D)	8-97180-995-0	01	1	0607-		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (A)	8-97372-358-0	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97372-358-0	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (A)	8-97372-358-0	01	1	0607-							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX),4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (A)	8-97213-911-2	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (A)	8-97213-911-2	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (B)	8-97213-912-2	01	1	0302-0506						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (B)	8-97213-912-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97213-912-3	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (B)	8-97213-912-3	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (B)	8-97213-912-3	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (D)	8-97183-041-2	01	1	0302-0506	●	●	●	●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97183-041-2	01	1	0507-0606		●	●		●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (D)	8-97183-041-2	01	1	0607-		●	●		●
288	03.417 BRACKET; DUCT 4JH1 ENG(RJX) (C)	8-97287-785-0	01	1	0302-0506						●
288	03.417 BRACKET; DUCT 4JH1-TC ENG(RDM) (C)	8-97287-785-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98047-142-1	01	1	0607-0706						●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (E)	8-98082-537-0	01	1	0707-						●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) (A)	8-97214-827-1	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (A)	8-97214-827-1	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97214-827-1	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4JJ1 ENG(LFB) (A)	8-97214-827-1	01	1	0607-						●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (A)	8-97214-827-1	01	1	0607-							●
288	03.417 BRACKET; DUCT 4HE1 ENG(RLY) 03.405 (B)	8-97214-828-0	01	1	0302-0506						●	●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ) (B)	8-98011-754-0	01	1	0507-0606						●
288	03.417 BRACKET; DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-754-0	01	1	0507-0606							●
288	03.417 BRACKET; DUCT 4HK1-TCC ENG(RDV) (B)	8-98011-754-0	01	1	0607-							●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0302-0403	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-198-0	01	1	0404-0506	●	●				●
327	03.417 CLIP; AIR INT 4JH1-TC ENG(RDM) 03.407 (A) ID=77-95	1-09707-198-0	01	1	0507-0606	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0302-0403	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	01	1	0404-0506	●	●				●
327	03.417 CLIP; AIR INT 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606	●	●				●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0302-0506	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.800 M6 FLANGE	1-09984-018-0	02	1	0507-0606	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.800 M6 FLANGE	1-09984-018-0	02	1	0607-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (A)	8-97080-149-0	01	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (B)	8-97081-886-0	02	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (C)	8-97080-149-0	03	1	0507-0606						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C)	8-97080-149-0	03	1	0507-0606							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (C)	8-97080-149-0	03	1	0607-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCC ENG(RDV) 03.417 (C)	8-97080-149-0	03	1	0607-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0302-0506	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0507-0606	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0607-0910	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0302-0506						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●	●
394	03.417 WASHER; PL,AIR DUCT 4JH1 ENG(RJX) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0302-0506						●
394	03.417 WASHER; PL,AIR DUCT 4JH1-TC ENG(RDM) 06.760 ID=8.4 OD=22	9-09160-708-0	01	1	0507-0605						●
394	03.417 WASHER; PL,AIR DUCT 4JH1-TC ENG(RDM) 04.595 ID=8.4 OD=22	0-91610-708-0	01	1	0606-0606						●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0302-0506	●	●				●
402	03.417 GASKET; RUBBER 4JH1-TC ENG(RDM)	8-97240-056-0	01	1	0507-0606	●	●				●
473	03.417 NUT; DUCT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506						●
473	03.417 NUT; DUCT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602						●
473	03.417 NUT; DUCT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606						●
520	03.403 WASHER; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0302-0506						●
520	03.403 WASHER; RUBBER MTG 4HE1 ENG(RLY) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0302-0506							●
520	03.403 WASHER; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0507-0605						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.760 ID=8.4 OD=22	9-09160-708-0	02	1	0507-0605							●
520	03.403 WASHER; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-0606						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0606-0606							●
520	03.403 WASHER; RUBBER MTG 4JJ1 ENG(LFB) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0607-						●
520	03.403 WASHER; RUBBER MTG 4HK1-TCC ENG(RDV) 04.595 ID=8.4 OD=22	0-91610-708-0	02	1	0607-							●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●	●				●

60 399 391 281 391 381 389 391 242 242 17 64 64 391 391 242 389 391 389 391 252 232 327 5 174 327 402 529

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (B) ID=112	9-09915-074-1	01	1	0302-0506	●	●
5	03.407 CLIP; AIR DUCT 4JH1-TC ENG(RDM) (B) ID=112	9-09915-074-1	01	1	0507-0606	●	●
5	03.407 CLIP; AIR DUCT 4JJ1 ENG(LFB) (C) D=101.6	9-09915-502-1	01	1	0607-	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) (A) ID=58-79	1-09707-136-0	01	1	0302-0506	●	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85	1-09707-202-0	01	1	0507-0606		●	●		●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (A) ID=68-85	1-09707-202-0	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0302-0506	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) (A)	8-97853-699-2	01	1	0302-0506							●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97853-699-2	01	1	0507-0606	●	●				●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97853-699-2	01	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97853-699-2	01	1	0607-	●	●	●			●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (A)	8-97853-699-2	01	1	0607-							●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0302-0506						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97892-723-0	02	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97892-723-0	02	1	0607-						●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (B)	8-97892-723-0	02	1	0607-							●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97856-956-0	01	1	0302-0506	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97856-956-0	01	1	0507-0606	●	●
60	03.417 BRACKET; AIR DUCT,UPR 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0302-0506						●	●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1 ENG(RJX)	8-97892-525-4	01	1	0302-0506						●
60	03.417 BRACKET; AIR DUCT,UPR 4JH1-TC ENG(RDM)	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ>	8-97892-525-4	01	1	0507-0606						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-97892-525-4	01	1	0507-0606							●
60	03.417 BRACKET; AIR DUCT,UPR 4JJ1 ENG(LFB)	8-97892-525-4	01	1	0607-						●
60	03.417 BRACKET; AIR DUCT,UPR 4HK1-TCC ENG(RDV)	8-97892-525-4	01	1	0607-							●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0302-0506	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0507-0606	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0607-	●	●	●
174	03.682 SENSOR; AIR FLOW CONT 4JH1 ENG(RJX)	8-97240-057-0	01	1	0302-0506	●	●				●
174	03.682 SENSOR; AIR FLOW CONT 4JH1-TC ENG(RDM)	8-97240-057-1	01	1	0507-0606	●	●				●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0302-0506	●	●
232	03.417 HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0507-0606	●	●
232	03.417 HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0607-0802	●	●	●
232	03.417 HOSE; CONN 4JJ1 ENG(LFB) 03.407	8-98115-594-0	01	1	0803-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97856-932-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97856-932-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97312-894-1	01	1	0607-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97856-933-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97856-933-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97329-201-0	01	1	0607-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (C)	8-97329-306-0	01	1	0607-	●	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-541-2	01	1	0302-0506	●	●
252	03.417 DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97312-541-3	01	1	0507-0606	●	●
252	03.417 DUCT; AIR INT 4JH1 ENG(RJX)	8-97312-542-2	01	1	0302-0506						●
252	03.417 DUCT; AIR INT 4JH1-TC ENG(RDM)	8-97312-542-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0302-0506	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (C)	8-97300-255-1	01	1	0507-0606	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (E)	8-97369-706-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (D)	8-97180-995-0	01	1	0302-0506	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97180-995-0	01	1	0507-0606		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (D)	8-97180-995-0	01	1	0607-		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (A)	8-97372-358-0	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97372-358-0	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (A)	8-97372-358-0	01	1	0607-							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX),4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (A)	8-97213-911-2	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (A)	8-97213-911-2	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (B)	8-97213-912-2	01	1	0302-0506						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (B)	8-97213-912-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97213-912-3	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (B)	8-97213-912-3	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (B)	8-97213-912-3	01	1	0607-							●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-114-0	01	1	0302-0403	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 03.407 (A) ID=77-95	1-09707-198-0	01	1	0404-0506	●	●				●
327	03.417 CLIP; AIR INT 4JH1-TC ENG(RDM) 03.407 (A) ID=77-95	1-09707-198-0	01	1	0507-0606	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) (B) ID=58-79	8-94126-771-0	01	1	0302-0403	●	●				●
327	03.417 CLIP; AIR INT 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	01	1	0404-0506	●	●				●
327	03.417 CLIP; AIR INT 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	01	1	0507-0606	●	●				●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0302-0506	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.800 M6 FLANGE	1-09984-018-0	02	1	0507-0606	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.800 M6 FLANGE	1-09984-018-0	02	1	0607-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (A)	8-97080-149-0	01	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (B)	8-97081-886-0	02	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (C)	8-97080-149-0	03	1	0507-0606						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C)	8-97080-149-0	03	1	0507-0606							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (C)	8-97080-149-0	03	1	0607-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCC ENG(RDV) 03.417 (C)	8-97080-149-0	03	1	0607-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0302-0506	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0507-0606	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0607-0910	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0302-0506						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0302-0506	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0507-0606	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0607-	●	●	●
402	03.417 GASKET; RUBBER 4JH1 ENG(RJX)	8-97240-056-0	01	1	0302-0506	●	●				●
402	03.417 GASKET; RUBBER 4JH1-TC ENG(RDM)	8-97240-056-0	01	1	0507-0606	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1 ENG(RJX) 04.594 M6 FLANGE	0-91150-106-0	04	1	0302-0506	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1-TC ENG(RDM) 04.594 M6 FLANGE	0-91150-106-0	04	1	0507-0602	●	●				●
529	03.425 NUT; SENSOR,AIRFLOW 4JH1-TC ENG(RDM) 01.062 M6 FLANGE	0-91180-106-0	04	1	0603-0606	●	●				●

110 505 199 199 110 211 505 199 345 110 110 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-	●					●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0607-					●		●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0302-0506	●	●	●	●	●	●	●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 07.633 (A) M8 FLANGE	0-91150-108-0	04	1	0507-0602						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606		●	●		●		●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ) 01.062 (A) M8 FLANGE	0-91180-108-0	04	1	0603-0606						●
110	03.403 NUT; RUBBER MTG 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●
110	03.403 NUT; RUBBER MTG 4HE1 ENG(RLY) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0302-0506							●
110	03.403 NUT; RUBBER MTG 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
110	03.403 NUT; RUBBER MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
110	03.403 NUT; RUBBER MTG 4JJ1 ENG(LFB) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
110	03.403 NUT; RUBBER MTG 4HK1-TCC ENG(RDV) 03.417 (B) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-604-0	01	1	0302-0506	●	●	●	●	●	●	●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-753-1	01	1	0507-0606		●	●		●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98011-753-1	01	1	0507-0606						●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB) (B)	8-98011-753-1	01	1	0607-	●					●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98011-753-1	01	1	0607-		●	●
199	03.417 BRACKET; PIPE 4HK1-TCC ENG(RDV) (B)	8-98011-753-1	01	1	0607-					●		●
199	03.417 BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-603-1	01	1	0302-0506	●	●	●	●	●	●	●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-98011-752-1	01	1	0507-0606		●	●		●		●
199	03.417 BRACKET; PIPE 4HK1-TCN ENG(RDQ) (B)	8-98011-752-1	01	1	0507-0606						●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB) (B)	8-98011-752-1	01	1	0607-	●					●
199	03.417 BRACKET; PIPE 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) (B)	8-98011-752-1	01	1	0607-		●	●
199	03.417 BRACKET; PIPE 4HK1-TCC ENG(RDV) (B)	8-98011-752-1	01	1	0607-					●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0606		●	●		●		●
211	03.405 NUT; BRKT 4HK1-TCN ENG(RDQ) 04.010 M8 FLANGE	8-97046-127-0	02	1	0507-0606						●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610	●					●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610		●	●
211	03.405 NUT; BRKT 4HK1-TCC ENG(RDV) 04.010 M8 FLANGE	8-97046-127-0	02	1	0607-0610					●		●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-	●					●
211	03.405 NUT; BRKT 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-		●	●
211	03.405 NUT; BRKT 4HK1-TCC ENG(RDV) 01.840 M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-					●		●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97066-710-1	01	1	0302-0307	●	●	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0308-0506	●	●	●	●	●	●	●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98020-040-0	01	1	0507-0606		●	●		●		●
345	03.417 CLIP; PCV HOSE 4HK1-TCN ENG(RDQ)	8-98020-040-0	01	1	0507-0606						●
345	03.417 CLIP; PCV HOSE 4HK1-TCC ENG(RDV) 08.846 ID=21.7	8-97203-074-0	01	1	0607-		●	●		●		●
505	03.406 RUBBER; MTG 4HE1 ENG(RLY) 03.405	8-94158-155-1	02	1	0302-0506	●	●	●	●	●	●	●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405	8-94158-155-1	02	1	0507-0606		●	●		●		●
505	03.406 RUBBER; MTG 4HK1-TCN ENG(RDQ) 03.405	8-94158-155-1	02	1	0507-0606						●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB) 03.405	8-94158-155-1	02	1	0607-0611	●					●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.405	8-94158-155-1	02	1	0607-0611		●	●
505	03.406 RUBBER; MTG 4HK1-TCC ENG(RDV) 03.405	8-94158-155-1	02	1	0607-0611					●		●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB) 03.417	8-98036-826-0	02	1	0612-	●					●
505	03.406 RUBBER; MTG 4JJ1 ENG(LFB),4HK1-TCC ENG(RDV) 03.417	8-98036-826-0	02	1	0612-		●	●
505	03.406 RUBBER; MTG 4HK1-TCC ENG(RDV) 03.417	8-98036-826-0	02	1	0612-					●		●

192 508 192 511 474 192 509 487 192 192 192 9 510 13 13 507 32 192 9 509 192 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (B)	8-97300-773-1	01	1	0302-0506	●	●				●
9	03.417 BRACKET; INT PIPE 4JH1-TC ENG(RDM) (B)	8-97300-773-1	01	1	0507-0606	●	●				●
9	03.417 BRACKET; INT PIPE 4JJ1 ENG(LFB) (C)	8-98009-086-0	01	1	0607-	●	●	●			●
9	03.417 BRACKET; INT PIPE 4JH1 ENG(RJX) (A)	8-97312-473-1	01	1	0302-0506	●	●				●
9	03.417 BRACKET; INT PIPE 4JH1-TC ENG(RDM) (A)	8-97312-473-1	01	1	0507-0606	●	●				●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0608-		●	●		●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 06.216 (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●		●	●	●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 06.216 (A) M8X25 FLANGE	0-28650-825-0	04	1	0607-							●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0302-0506	●	●	●	●	●	●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 02.183 (B) M8X35 FLANGE	0-28680-835-0	01	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606		●	●		●		●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0607-0607							●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-		●	●		●		●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 01.060 (B) M8X35 FLANGE	0-28650-835-0	01	1	0608-						●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 08.900 (D) M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.343 (D) M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●				●
10	03.417 BOLT; BRKT FIX 4JH1 ENG(RJX) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0302-0506						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 03.162 (E) M10X35 FLANGE	0-28681-035-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4JH1-TC ENG(RDM) 02.277 (E) M10X35 FLANGE	0-28651-035-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 02.559 (A) M8X25 FLANGE	0-28680-825-0	04	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HE1 ENG(RLY) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0302-0506						●	●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.405 (C) M10X30 FLANGE	0-28681-030-0	02	1	0507-0512							●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606						●
10	03.417 BOLT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0601-0606							●
10	03.417 BOLT; BRKT FIX 4JJ1 ENG(LFB) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-						●
10	03.417 BOLT; BRKT FIX 4HK1-TCC ENG(RDV) 00.029 (C) M10X30 FLANGE	0-28651-030-0	02	1	0607-							●
13	03.417 NUT; BRKT FIX 4HE1 ENG(RLY) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506	●	●	●	●	●	●	●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602						●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●		●		●
13	03.417 NUT; BRKT FIX 4HK1-TCN ENG(RDQ) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606						●
13	03.417 NUT; BRKT FIX 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602	●	●				●
13	03.417 NUT; BRKT FIX 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606	●	●				●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607						●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-0607							●
13	03.417 NUT; BRKT FIX 4HK1-TCC ENG(RDV) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-		●	●		●		●
13	03.417 NUT; BRKT FIX 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0608-						●
32	03.417 RUBBER; AIR DUCT MTG 4JH1 ENG(RJX) 03.405	8-94158-155-1	01	1	0302-0506	●	●				●
32	03.417 RUBBER; AIR DUCT MTG 4JH1-TC ENG(RDM) 03.405	8-94158-155-1	01	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0302-0410	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-65	1-09707-204-0	06	1	0411-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) (A) ID=50-65	1-09707-204-0	06	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4HK1-TCC ENG(RDV) (D) ID=112	9-09915-074-1	01	1	0607-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0302-0403	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0404-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4JJ1 ENG(LFB) (C) ID=117	9-09915-075-1	01	1	0607-	●	●	●			●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) (B) M6X70 FLANGE	0-28050-670-0	02	1	0607-	●	●	●			●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) 03.680 (C) M6X30 FLANGE	0-28650-630-0	01	1	0607-	●	●	●			●
474	03.417 BOLT; PIPE 4JH1 ENG(RJX) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0302-0506	●	●				●
474	03.417 BOLT; PIPE 4JH1-TC ENG(RDM) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0507-0512	●	●				●
474	03.417 BOLT; PIPE 4JH1-TC ENG(RDM) 01.531 (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0606	●	●				●
474	03.417 BOLT; PIPE 4JJ1 ENG(LFB) 02.343 (D) M8X16 FLANGE	0-28050-816-0	01	1	0607-	●	●	●			●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1 ENG(RJX)	8-97312-537-0	01	1	0302-0506	●	●				●
487	03.417 PIPE; TURBO TO CHARGE AIR COOLER 4JH1-TC ENG(RDM)	8-97312-537-0	01	1	0507-0606	●	●				●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1 ENG(RJX)	8-97240-053-0	01	1	0302-0506	●	●				●
507	03.417 PIPE; CHARGE AIR COOLER TO INL M 4JH1-TC ENG(RDM)	8-97240-053-0	01	1	0507-0606	●	●				●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1 ENG(RJX)	8-97258-837-3	01	1	0302-0506	●	●				●
508	03.417 HOSE; AIR,TURBO TO PIPE 4JH1-TC ENG(RDM)	8-97258-837-4	01	1	0507-0606	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (A)	8-97240-044-4	01	1	0302-0506	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1-TC ENG(RDM) (A)	8-97240-044-5	01	1	0507-0606	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1 ENG(RJX) (B)	8-97300-859-3	01	1	0302-0506	●	●				●
509	03.417 HOSE; AIR,PIPE TO CHARGE AIR COO 4JH1-TC ENG(RDM) (B)	8-97300-859-4	01	1	0507-0606	●	●				●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1 ENG(RJX)	8-97300-858-3	01	1	0302-0506	●	●				●
510	03.417 HOSE; AIR,PIPE TO INL MANIF 4JH1-TC ENG(RDM)	8-97300-858-4	01	1	0507-0606	●	●				●
511	03.417 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0506	●	●				●
511	03.417 NUT; PIPE 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602	●	●				●
511	03.417 NUT; PIPE 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606	●	●				●

242 389 399 381 391 314 391 64 17 391 281 242 389 391 314 391 242 64 389 314 391 232 5 351 426 480 147 192 320

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
5	03.407 CLIP; AIR DUCT 4JH1 ENG(RJX) (B) ID=112	9-09915-074-1	01	1	0302-0506	●	●
5	03.407 CLIP; AIR DUCT 4JH1-TC ENG(RDM) (B) ID=112	9-09915-074-1	01	1	0507-0606	●	●
5	03.407 CLIP; AIR DUCT 4JJ1 ENG(LFB) (C) D=101.6	9-09915-502-1	01	1	0607-	●	●	●
5	03.407 CLIP; AIR DUCT 4HE1 ENG(RLY) (A) ID=58-79	1-09707-136-0	01	1	0302-0506	●	●	●	●	●	●	●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A) ID=68-85	1-09707-202-0	01	1	0507-0606		●	●		●		●
5	03.407 CLIP; AIR DUCT 4HK1-TCN ENG(RDQ) (A) ID=68-85	1-09707-202-0	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97853-699-2	01	1	0302-0506	●	●				●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) (A)	8-97853-699-2	01	1	0302-0506							●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97853-699-2	01	1	0507-0606	●	●				●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (A)	8-97853-699-2	01	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97853-699-2	01	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97853-699-2	01	1	0607-	●	●	●			●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (A)	8-97853-699-2	01	1	0607-							●
17	03.403 GASKET; AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0302-0506						●	●
17	03.403 GASKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97892-723-0	02	1	0302-0506						●
17	03.403 GASKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> (B)	8-97892-723-0	02	1	0507-0606						●
17	03.403 GASKET; AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97892-723-0	02	1	0507-0606							●
17	03.403 GASKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97892-723-0	02	1	0607-						●
17	03.403 GASKET; AIR DUCT 4HK1-TCC ENG(RDV) (B)	8-97892-723-0	02	1	0607-							●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1 ENG(RJX) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0302-0506	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0507-0606	●	●
64	03.417 BOLT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 03.483 M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	0607-	●	●	●
147	03.417 CLIP; HOSE TO ENG 4JJ1 ENG(LFB) 03.407 ID=68-85	1-09707-202-0	01	1	0607-0810	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4JJ1 ENG(LFB) 03.407 ID=65-85	8-98133-350-0	01	1	0811-	●	●	●			●
147	03.417 CLIP; HOSE TO ENG 4HK1-TCC ENG(RDV) 03.407 ID=77-95	1-09707-198-0	01	1	0607-0810		●	●		●		●
147	03.417 CLIP; HOSE TO ENG 4HK1-TCC ENG(RDV) 03.407 ID=75-95	8-98133-357-0	01	1	0811-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-69	1-09707-135-0	06	1	0302-0410	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) (A) ID=50-65	1-09707-204-0	06	1	0411-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) (A) ID=50-65	1-09707-204-0	06	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4HK1-TCC ENG(RDV) (D) ID=112	9-09915-074-1	01	1	0607-		●	●		●		●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 03.417 (B) ID=58-79	8-94126-771-0	02	1	0302-0403	●	●				●
192	03.407 CLIP; HOSE 4JH1 ENG(RJX) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0404-0506	●	●				●
192	03.407 CLIP; HOSE 4JH1-TC ENG(RDM) 01.159 (B) ID=58-76	1-09707-203-0	02	1	0507-0606	●	●				●
192	03.407 CLIP; HOSE 4JJ1 ENG(LFB) (C) ID=117	9-09915-075-1	01	1	0607-	●	●	●			●
232	03.417 HOSE; CONN 4JH1 ENG(RJX)	8-94456-844-0	01	1	0302-0506	●	●
232	03.417 HOSE; CONN 4JH1-TC ENG(RDM)	8-94456-844-1	01	1	0507-0606	●	●
232	03.417 HOSE; CONN 4JJ1 ENG(LFB)	8-97109-423-0	01	1	0607-0802	●	●	●
232	03.417 HOSE; CONN 4JJ1 ENG(LFB) 03.407	8-98115-594-0	01	1	0803-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (A)	8-97856-932-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (A)	8-97856-932-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (A)	8-97312-894-1	01	1	0607-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (B)	8-97856-933-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (B)	8-97856-933-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (B)	8-97329-201-0	01	1	0607-	●	●	●
242	03.417 BRACKET; AIR DUCT 4JH1 ENG(RJX) (C)	8-97856-958-0	01	1	0302-0506	●	●
242	03.417 BRACKET; AIR DUCT 4JH1-TC ENG(RDM) (C)	8-97856-958-0	01	1	0507-0606	●	●
242	03.417 BRACKET; AIR DUCT 4JJ1 ENG(LFB) (C)	8-97329-306-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX) (C)	8-97300-255-0	01	1	0302-0506	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (C)	8-97300-255-1	01	1	0507-0606	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (E)	8-97369-706-0	01	1	0607-	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (D)	8-97180-995-0	01	1	0302-0506	●	●	●	●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (D)	8-97180-995-0	01	1	0507-0606		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (D)	8-97180-995-0	01	1	0607-		●	●		●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (A)	8-97372-358-0	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (A)	8-97372-358-0	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (A)	8-97372-358-0	01	1	0607-							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1 ENG(RJX),4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (A)	8-97213-911-2	01	1	0302-0506							●
281	03.417 DUCT; AIR,VERTICAL INT 4JH1-TC ENG(RDM) (A)	8-97213-911-2	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (A)	8-97213-911-2	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY) (B)	8-97213-912-2	01	1	0302-0506						●	●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ) (B)	8-97213-912-3	01	1	0507-0606						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) (B)	8-97213-912-3	01	1	0507-0606							●
281	03.417 DUCT; AIR,VERTICAL INT 4JJ1 ENG(LFB) (B)	8-97213-912-3	01	1	0607-						●
281	03.417 DUCT; AIR,VERTICAL INT 4HK1-TCC ENG(RDV) (B)	8-97213-912-3	01	1	0607-							●
314	03.417 WASHER; PL,AIR INT DUCT 4JJ1 ENG(LFB) 16.335 ID=10.2 T=3.2	8-94279-642-0	03	1	0607-	●	●	●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97209-707-0	01	1	0302-0506	●	●	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-873-1	01	1	0507-0606		●	●		●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-137-0	01	1	0607-	●	●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-689-1	01	1	0607-		●	●		●
320	03.417 HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97211-578-0	01	1	0302-0506						●	●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ)	8-98000-874-0	01	1	0507-0606						●
320	03.417 HOSE; CONN,ACL 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS)	8-98000-874-0	01	1	0507-0606							●
320	03.417 HOSE; CONN,ACL 4JJ1 ENG(LFB)	8-98048-138-0	01	1	0607-						●
320	03.417 HOSE; CONN,ACL 4HK1-TCC ENG(RDV)	8-98019-690-1	01	1	0607-							●
351	03.407 DUCT; AIR 4JJ1 ENG(LFB)	8-98019-067-1	01	1	0607-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.800 M6 FLANGE	1-09984-018-0	02	1	0302-0506	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.800 M6 FLANGE	1-09984-018-0	02	1	0507-0606	●	●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.800 M6 FLANGE	1-09984-018-0	02	1	0607-	●	●	●
381	03.417 NUT; BRKT,AIR DUCT 4HE1 ENG(RLY) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●	●
381	03.417 NUT; BRKT,AIR DUCT 4JH1 ENG(RJX) 16.570 M8 POP NUT	8-94279-538-0	03	1	0302-0506						●
381	03.417 NUT; BRKT,AIR DUCT 4JH1-TC ENG(RDM) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ) FRAME STRAIGHT TYPE<7KJ> 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 16.570 M8 POP NUT	8-94279-538-0	03	1	0507-0606							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.570 M8 POP NUT	8-94279-538-0	03	1	0607-0805							●
381	03.417 NUT; BRKT,AIR DUCT 4JJ1 ENG(LFB) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-						●
381	03.417 NUT; BRKT,AIR DUCT 4HK1-TCC ENG(RDV) 16.549 M8 POP NUT	8-98021-404-0	03	1	0806-							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (A)	8-97080-149-0	01	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (A)	8-97080-149-0	01	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (A)	8-97080-149-0	01	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX) 03.417 (B)	8-97081-886-0	02	1	0302-0506	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM) 03.417 (B)	8-97081-886-0	02	1	0507-0606	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (B)	8-97081-886-0	02	1	0607-	●	●	●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1 ENG(RJX),4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HE1 ENG(RLY) 03.417 (C)	8-97080-149-0	03	1	0302-0506							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) 03.417 (C)	8-97080-149-0	03	1	0507-0606						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) 03.417 (C)	8-97080-149-0	03	1	0507-0606							●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4JJ1 ENG(LFB) 03.417 (C)	8-97080-149-0	03	1	0607-						●
389	03.317 RUBBER; SUPPORT,AIR INT UPR 4HK1-TCC ENG(RDV) 03.417 (C)	8-97080-149-0	03	1	0607-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	07	1	0302-0506	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM) M8 FLANGE	8-94279-517-0	07	1	0507-0606	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	06	1	0607-0910	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	06	1	0911-	●	●	●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1 ENG(RJX) M8 FLANGE	8-94279-517-0	06	1	0302-0506						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JH1-TC ENG(RDM),4HK1-TCN ENG(RDQ) M8 FLANGE	8-94279-517-0	03	1	0507-0606						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCN ENG(RDQ),4HK1-TCS ENG(RJS) M8 FLANGE	8-94279-517-0	03	1	0507-0606							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 FLANGE	8-94279-517-0	03	1	0607-0910						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 FLANGE	8-94279-517-0	03	1	0607-0910							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4JJ1 ENG(LFB) M8 W/LK WASHER	8-97581-234-0	03	1	0911-						●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HK1-TCC ENG(RDV) M8 W/LK WASHER	8-97581-234-0	03	1	0911-							●
391	03.417 NUT; SUPPORT RUBBER,UPR 4HE1 ENG(RLY) M8 FLANGE	8-94279-517-0	03	1	0302-0506						●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1 ENG(RJX)	8-94273-605-0	02	1	0302-0506	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JH1-TC ENG(RDM)	8-94273-605-0	02	1	0507-0606	●	●
399	03.417 CAP; BRKT,AIR DUCT 4JJ1 ENG(LFB)	8-94273-605-0	02	1	0607-	●	●	●
426	03.417 CLIP; DUCT 4JJ1 ENG(LFB)	9-09915-504-1	01	1	0607-0802	●	●	●
426	03.417 CLIP; DUCT 4JJ1 ENG(LFB) 03.407 ID=127	1-14239-263-0	01	1	0803-	●	●	●
480	03.417 ADAPTER 4JJ1 ENG(LFB)	8-97093-075-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
