◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10720 - CXZ RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#4088) — 63 parça

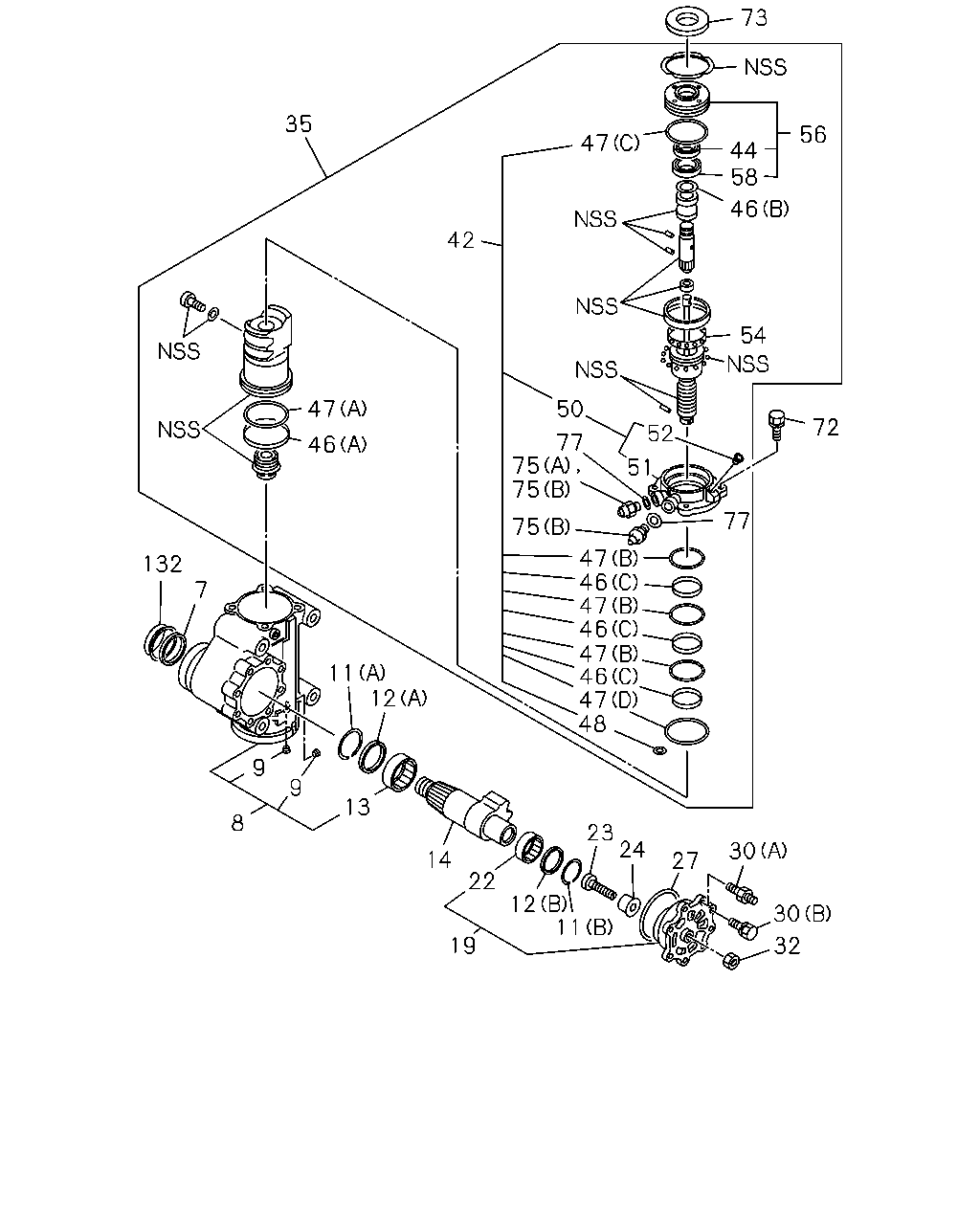

çizim 5782
73 35 56 47 44 58 46 42 54 50 47 72 52 77 75 75 46 51 77 75 47 46 47 46 47 46 47 48 132 7 11 12 9 13 8 23 24 30 14 27 22 12 11 30 32 19 9
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-041-0 01 1 -
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44240-102-0 01 1 -
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-265-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-072-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-819-2 		1-44321-032-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-858-1 		1-44321-032-0 01 1 -0004
14 SHAFT; SECTOR,STRG UNIT
ASM PART: C = 1-44000-863-1 		1-44321-035-0 01 1 -
14 SHAFT; SECTOR,STRG UNIT
ASM PART: B = 1-44000-858-1 		1-44321-037-1 01 1 0005-
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44260-021-0 01 1 -
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-234-0 01 1 -
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
(A) STUD ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-19519-121-0 03 1 -
30 BOLT; COVER STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44279-012-0 05 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1 		1-44150-057-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: C = 1-44000-863-1 		1-44150-085-0 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44560-080-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44560-076-0 01 1 -
51 HOUSING; VALVE STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44561-020-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-114-0 01 1 -
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-819-2 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-819-2 		1-44259-035-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: B = 1-44000-858-1, C = 1-44000-863-1 		1-44259-035-1 02 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-227-0 01 1 -

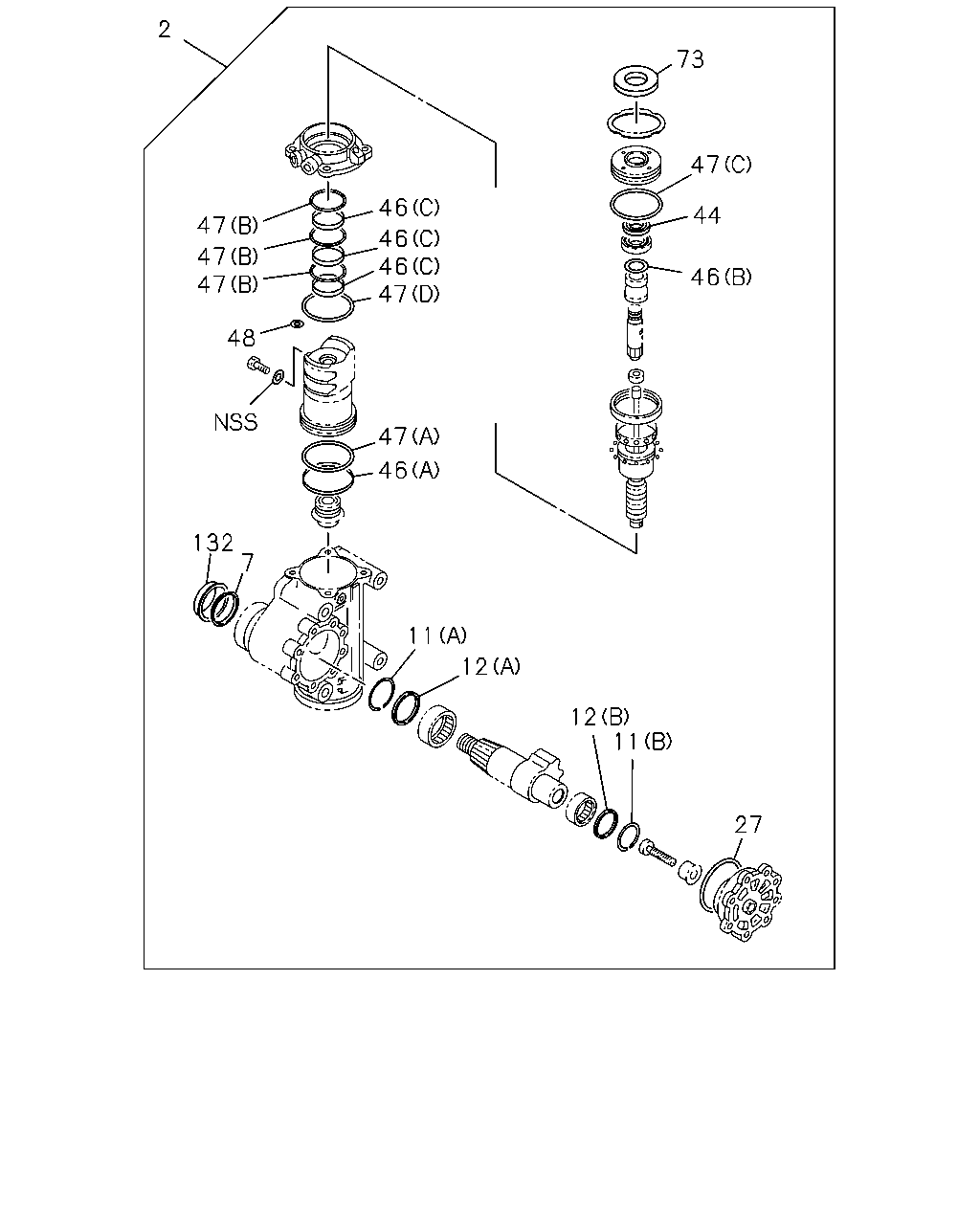

çizim 39897
2 73 47 46 44 47 46 46 47 47 47 46 48 47 46 132 7 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-85574-052-0 01 1 -
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-041-0 01 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-252-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-265-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44159-170-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44159-163-0 01 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-260-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-261-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-114-0 01 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-819-2, B = 1-44000-858-1, C = 1-44000-863-1 		1-44519-227-0 01 1 -
