Isuzu WW
▶
TRUCKS
▶
NPR
▶
50949 - NPR/NQR(EUROPE)-LHD
▶
0 - Engine, Emission, Engine Electrical
▶

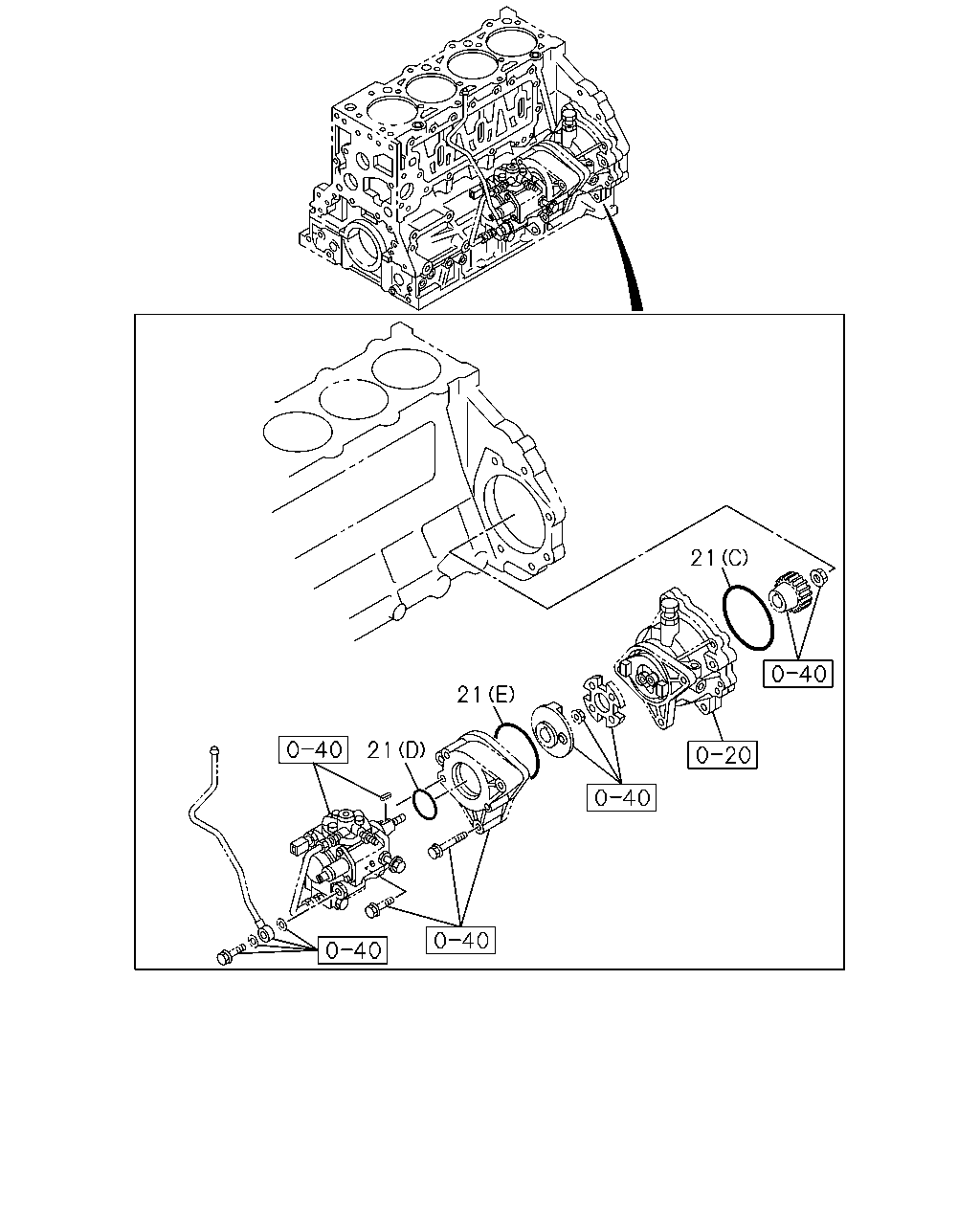

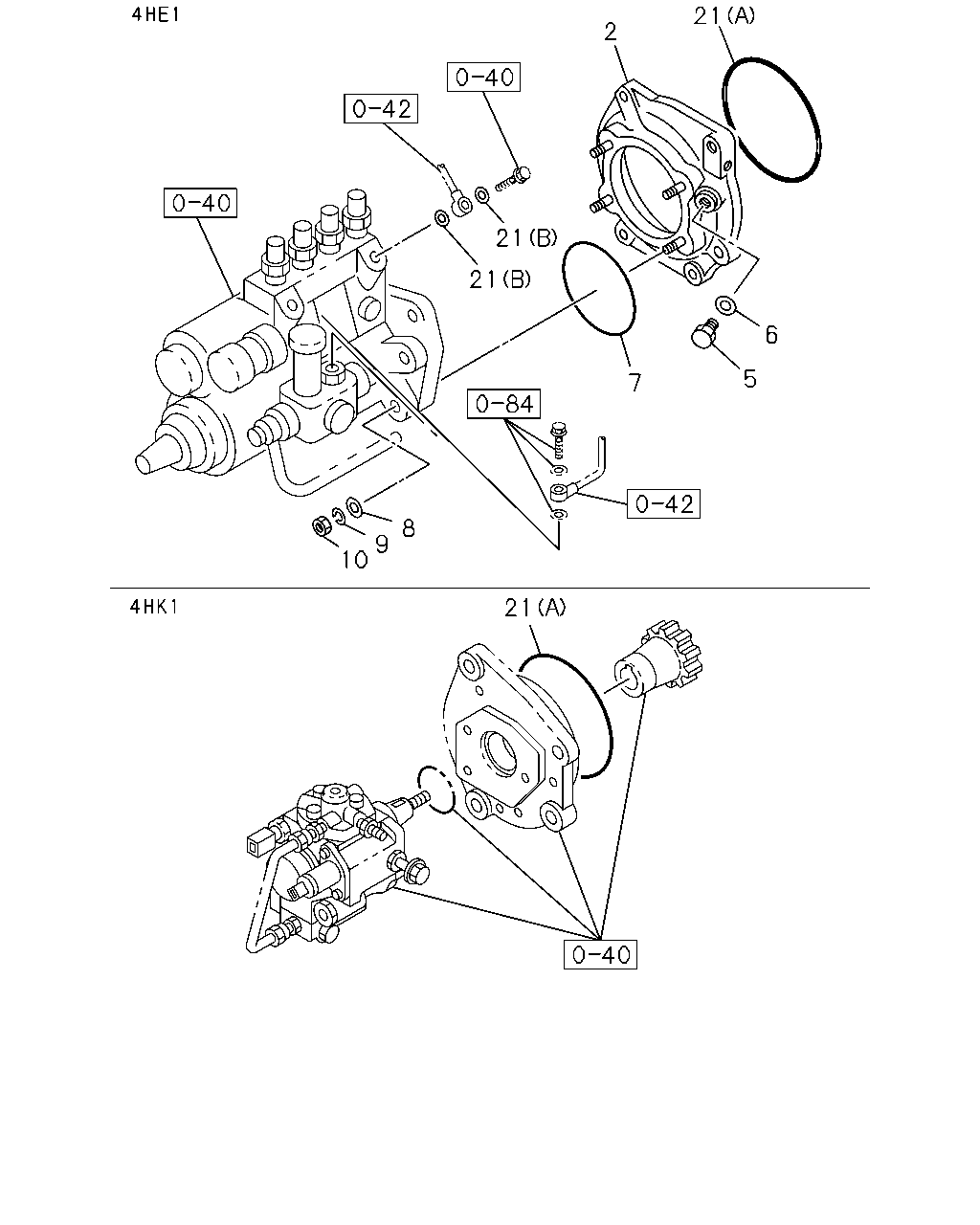

0-86 - MISCELLANEOUS PARTS; INJECTION PUMP
▶
0-86 — MISCELLANEOUS PARTS; INJECTION PUMP
(#40878) — 19 parça
Tümü
A - 4HE1 ENG
B - 4HK1-TCN ENG
C - 4HK1-TCS ENG
D - 4HK1-TCC ENG
◀
[086A] 4HE1,-'06/6 4HK1 (13 parça)
[086A] '06/7- 4HK1 (6 parça)
▶
21
2
21
21
6
5
7
8
9
10
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
2
03.306 BRACKET; HSG & TIMER,INJ PUMP
8-97188-880-1
01
1
0302-0506
●
5
03.306 PLUG; HSG BRKT,INJ PUMP
8-97026-919-0
01
1
0302-0506
●
6
03.306 GASKET; PLUG,INJ PUMP BRKT
03.308
1-15729-787-0
01
1
0302-0506
●
7
03.306 GASKET; HSG BRKT,ENG SIDE
8-97188-881-0
01
1
0302-0506
●
8
03.306 WASHER; PL,HSG BRKT,INJ PUMP
06.896 ID=10.5
9-09164-510-0
04
1
0302-0506
●
9
03.306 WASHER; LK,HSG BRKT,INJ PUMP
00.002 ID=10.2
9-09150-510-0
04
1
0302-0506
●
10
03.306 NUT; HSG BRKT,INJ PUMP
5-15639-002-0
04
1
0302-0506
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0302-0506
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0507-0606
●
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 (C) ID=139.6
1-09623-464-0
01
1
0607-
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0
9-09572-014-0
02
1
0302-0506
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=94.6
1-09623-593-0
01
1
0607-
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (D) ID=52
8-98031-844-0
01
1
0607-
●
21
21
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0302-0506
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
8-97039-200-1
01
1
0507-0606
●
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 04.854 (C) ID=139.6
1-09623-464-0
01
1
0607-
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.107 (B) ID=14.2 OD=23.0
9-09572-014-0
02
1
0302-0506
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). (E) ID=94.6
1-09623-593-0
01
1
0607-
●
21
03.330 GASKET; INJ PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). 03.162 (D) ID=52
8-98031-844-0
01
1
0607-
●
