Sayfa 0-66 - Isuzu EPC

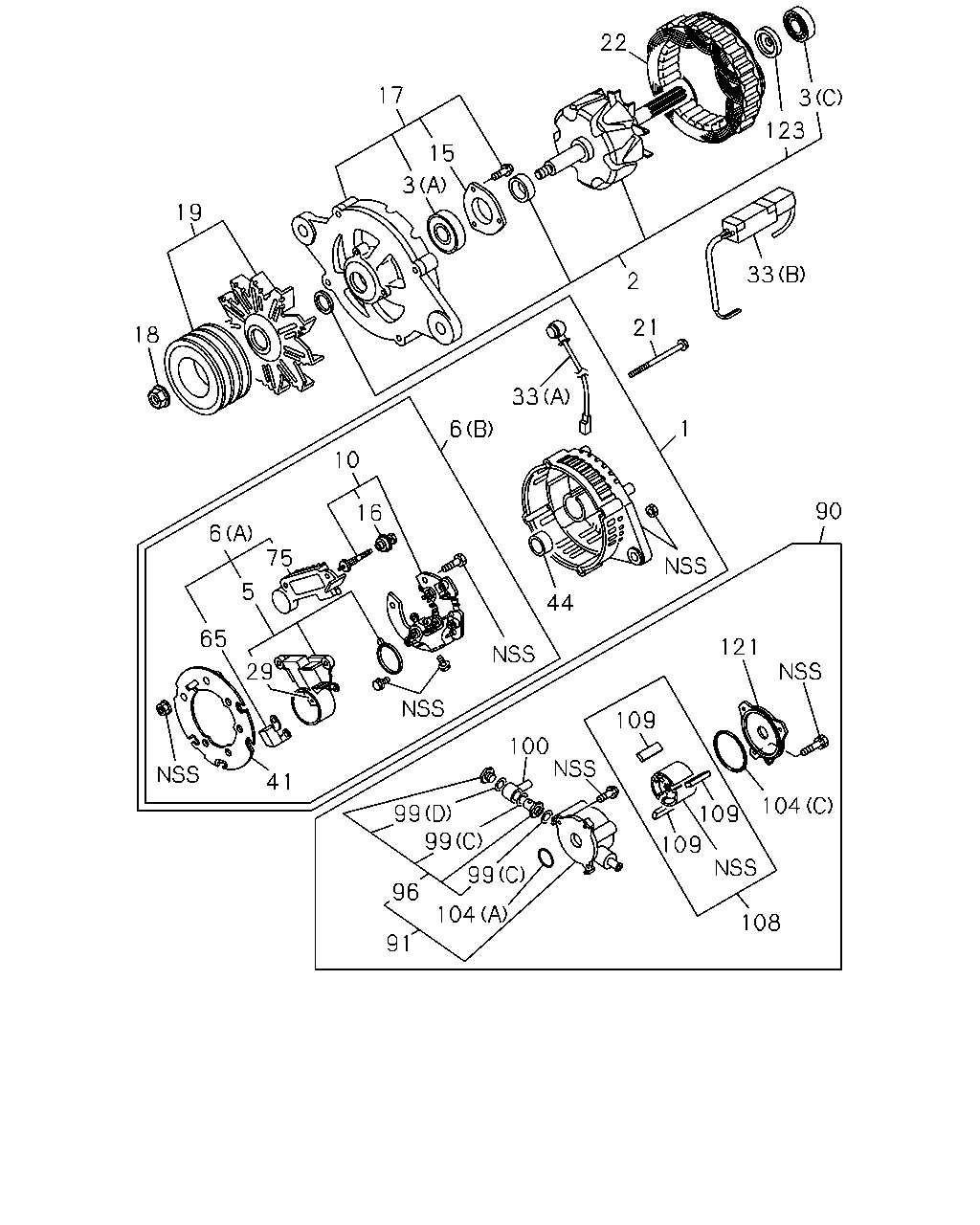

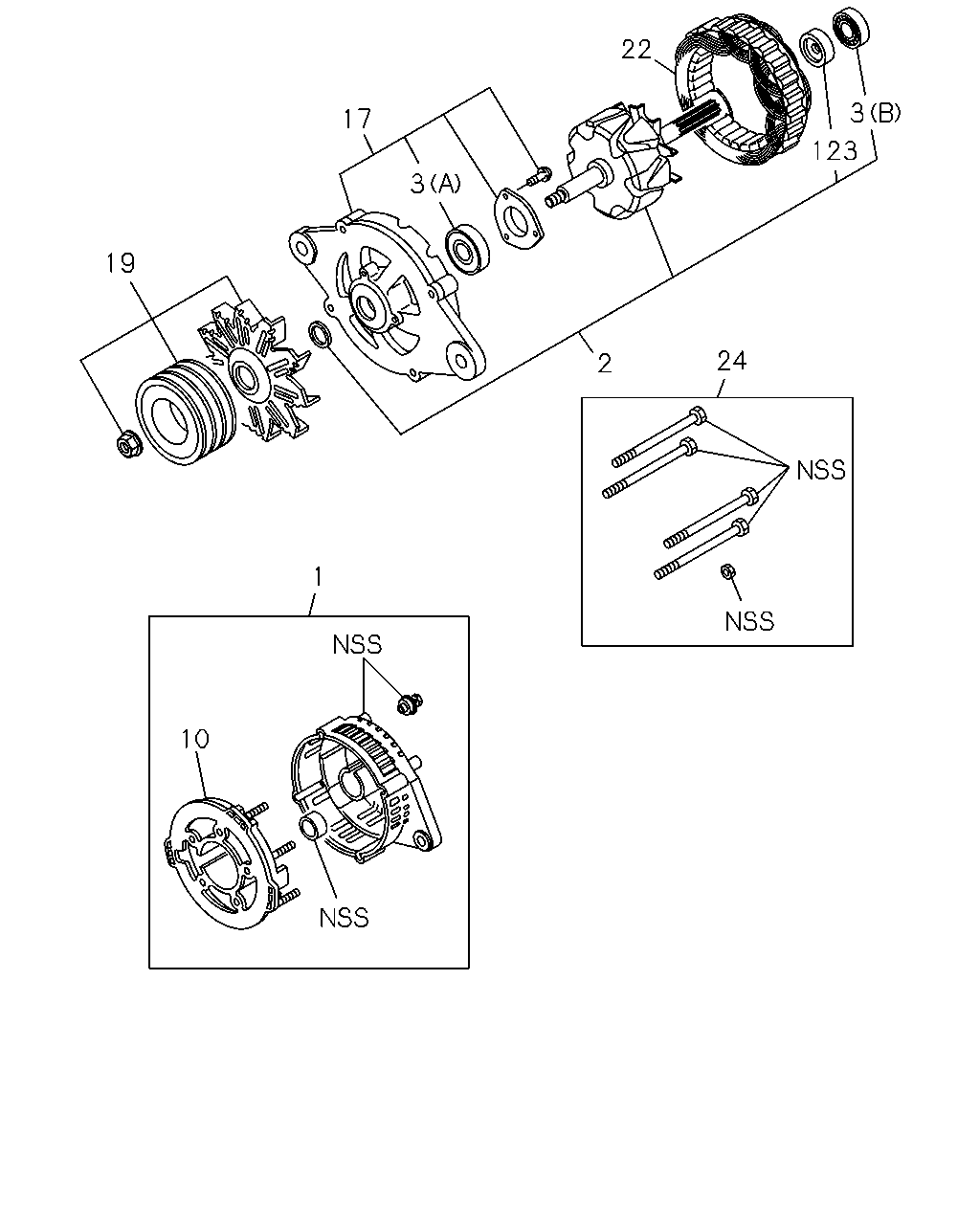

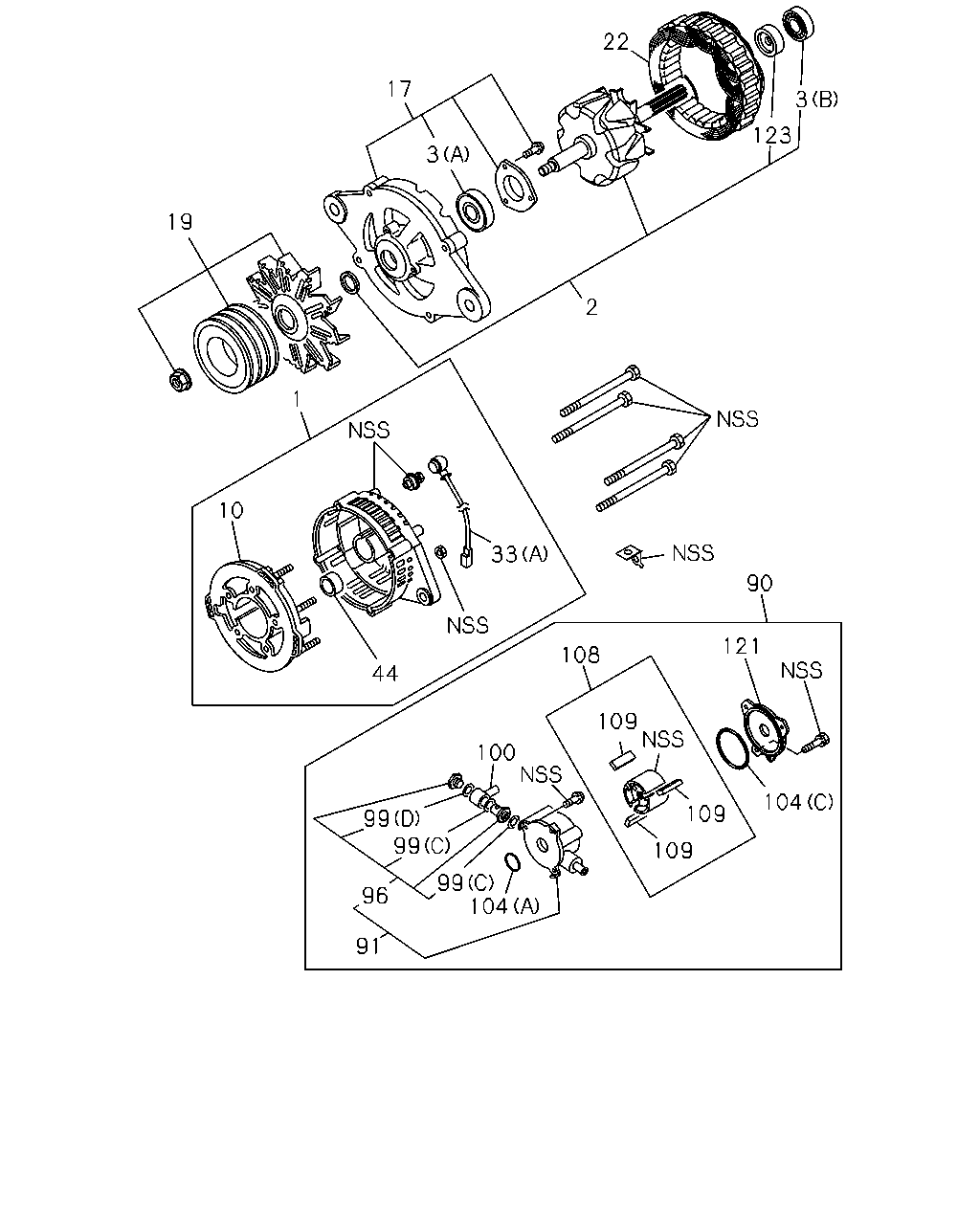

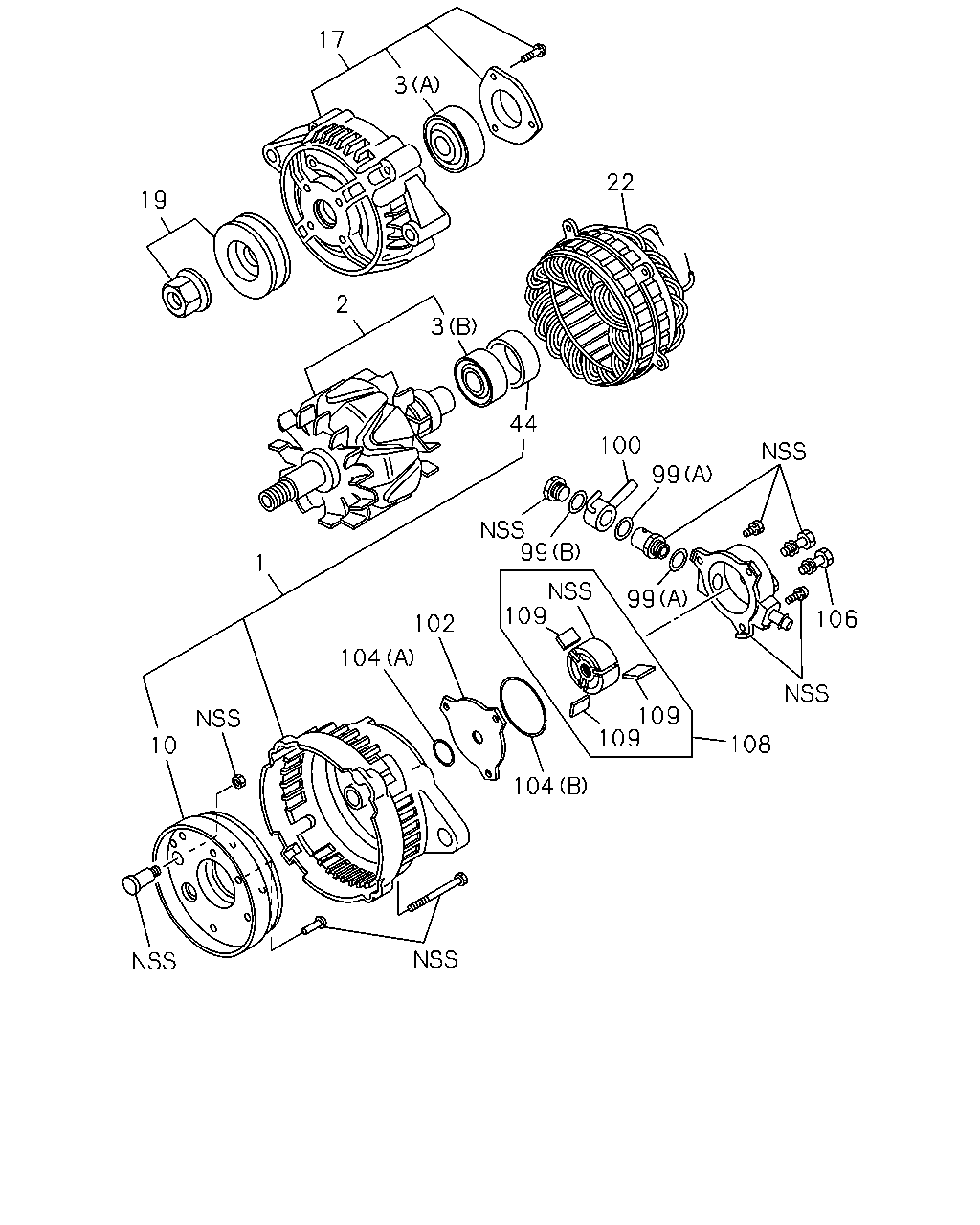

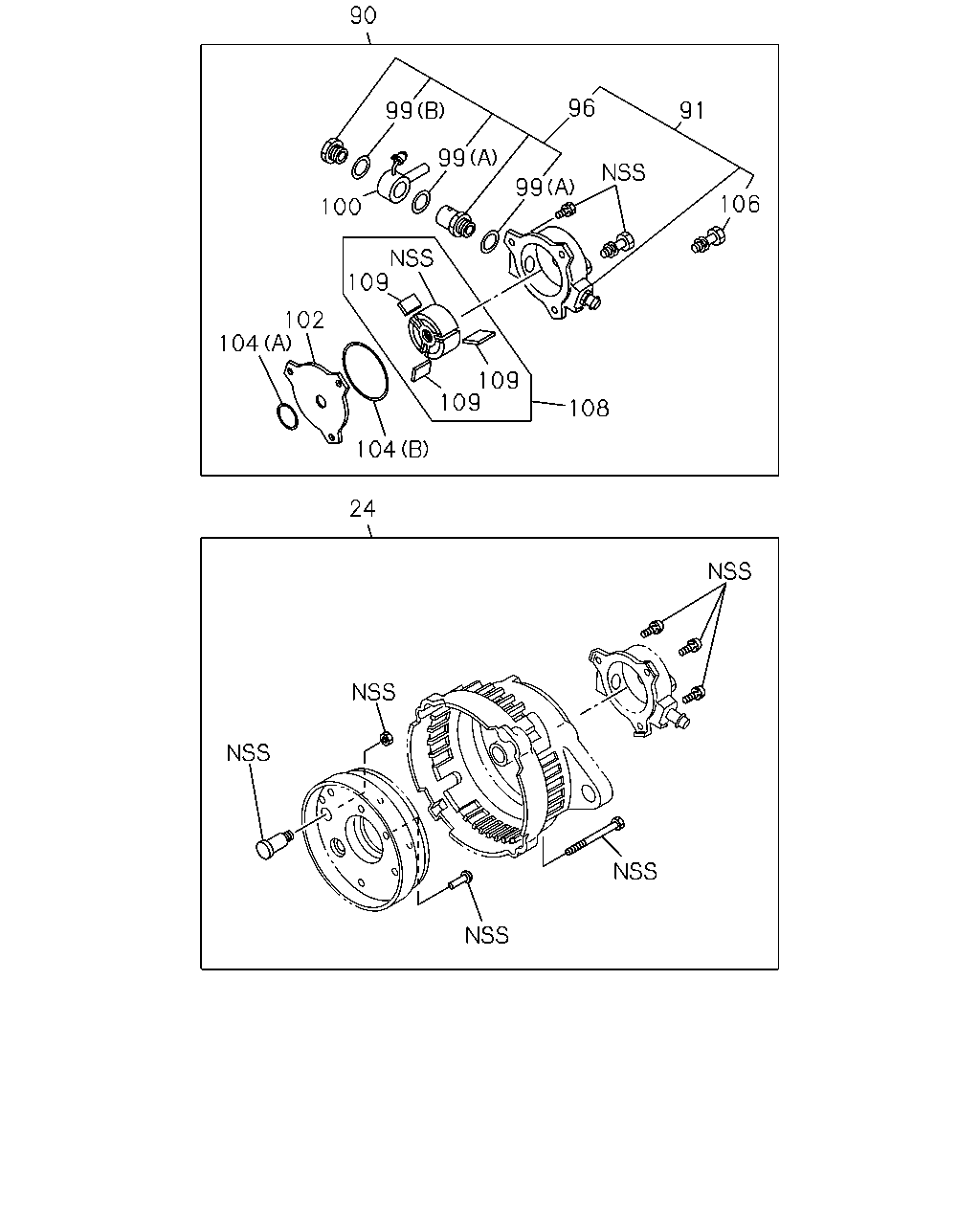

0-66 — GENERATOR (#40870) — 420 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-

22 17 3 123 15 3 19 33 2 21 18 33 1 6 10 90 16 6 75 5 44 65 121 29 109 100 41 104 99 99 109 109 99 96 104 108 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-332-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-472-0	01	1	0402-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-330-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: B = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97249-209-2, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-057-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97248-295-1, 97248295, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
5	02.291 HOLDER; BRUSH,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97083-283-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (B) ASM PART: E = 8-97250-258-2, 97250258	8-97111-263-0	01	1	-
6	02.500 REGULATOR ASM; VOLTAGE,GEN (A) ASM PART: E = 8-97250-258-2, 97250258	8-97111-264-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-473-0	01	1	0402-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-
15	02.279 RETAINER; ROTOR,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97083-291-0	01	1	-
16	02.291 TERMINAL ASM; RECTIFIER,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-869-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
18	02.274 NUT; PULLEY,GEN ASM PART: E = 8-97250-258-2, 97250258, G = 8-97351-573-0, 97351573	8-97083-293-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97250-258-2, 97250258, G = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163, F = 8-97351-572-0, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: I = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-926-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-058-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: L = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
21	02.316 BOLT; THROUGH,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97168-206-0	04	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97351-572-0, 97351572, I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574, J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-438-0	01	1	-
29	02.285 BRUSH; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97084-356-0	02	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, E = 8-97250-258-2, 97250258	8-97210-711-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: E = 8-97250-258-2, 97250258	8-97264-870-0	01	1	-
41	02.274 GUIDE; FAN,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97083-288-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-589-0	01	1	-
65	02.319 CONDENSER; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97084-357-0	01	1	-
75	02.319 REGULATOR; VOLTAGE,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97111-267-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-433-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97258-675-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-453-0	01	1	0402-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: E = 8-97250-258-2, 97250258	8-97083-274-0	01	1	-

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-

22 17 3 123 3 19 2 1 10 33 90 121 108 44 109 100 104 109 99 99 109 99 104 96 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-332-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-472-0	01	1	0402-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-330-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: B = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97249-209-2, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-057-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97248-295-1, 97248295, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-473-0	01	1	0402-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97250-258-2, 97250258, G = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163, F = 8-97351-572-0, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: I = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-926-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-058-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: L = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97351-572-0, 97351572, I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574, J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-438-0	01	1	-
33	02.500 WIRE; LEAD,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, E = 8-97250-258-2, 97250258	8-97210-711-0	01	1	-
33	02.500 WIRE; LEAD,GEN (B) ASM PART: E = 8-97250-258-2, 97250258	8-97264-870-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-589-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-433-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97258-675-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-453-0	01	1	0402-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-304-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-298-0	03	1	-
121	02.297 COVER; RR,VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-116-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: E = 8-97250-258-2, 97250258	8-97083-274-0	01	1	-

22 3 17 123 3 19 24 2 1 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-332-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-472-0	01	1	0402-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-330-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: B = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97249-209-2, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-057-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97248-295-1, 97248295, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-473-0	01	1	0402-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97250-258-2, 97250258, G = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163, F = 8-97351-572-0, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: I = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-926-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-058-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: L = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97351-572-0, 97351572, I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574, J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-438-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-644-0	01	1	-
123	02.291 GUIDE; BRUSH ASM PART: E = 8-97250-258-2, 97250258	8-97083-274-0	01	1	-

90 96 91 99 99 99 106 100 109 102 104 109 109 104 24 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.307 SCREW; RECTIFIER,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573	8-97131-532-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97161-697-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97173-433-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-336-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97258-681-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98038-927-0	01	1	-
24	02.307 SCREW; RECTIFIER,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-928-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-433-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97258-675-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-450-0	01	1	-0401
90	03.280 PUMP ASM; VAC,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-450-0	01	1	-
90	03.280 PUMP ASM; VAC,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-451-0	01	1	0402-
90	03.280 PUMP ASM; VAC,GEN ASM PART: F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97351-707-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-117-0	01	1	-
91	03.280 BODY; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-694-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-991-0	01	1	-
96	03.280 VALVE ASM; VAC PUMP 02.307 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-118-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-298-0	03	1	-

17 3 22 19 2 3 44 100 99 99 1 109 99 106 102 104 109 109 108 10 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	02.297 COVER ASM; RR,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-332-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-370-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-379-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-867-0	01	1	-
1	02.297 COVER ASM; RR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-702-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-440-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-441-0	01	1	-0401
1	02.297 COVER ASM; RR,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-447-0	01	1	0402-1208
1	02.297 COVER ASM; RR,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-472-0	01	1	0402-
1	02.297 COVER ASM; RR,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-185-0	01	1	-1208
1	02.297 COVER ASM; RR,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-187-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-621-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-104-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-330-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-700-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: B = 8-97240-270-2, 97240270	8-97313-435-0	01	1	-
2	02.279 ROTOR; GEN 03.280 ASM PART: D = 8-97249-209-2, 97249209	8-97313-436-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-705-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-914-0	01	1	-
2	02.279 ROTOR; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-916-1	01	1	-
2	02.279 ROTOR; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-057-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97062-744-0	01	1	1209-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: C = 8-97248-295-1, 97248295, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97062-744-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (C) ASM PART: E = 8-97250-258-2, 97250258	8-97083-273-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97148-112-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: B = 8-97240-270-2, 97240270	8-97148-112-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (A) ASM PART: C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, H = 8-97351-574-0, 97351574, I = 8-98029-887-2, 98029887, J = 8-98029-889-2, 98029889, K = 8-98029-890-2, 98029890, L = 8-98029-892-2, 98029892, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97161-473-0	01	1	-
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: B = 8-97240-270-2, 97240270	8-97248-128-0	01	1	-1208
3	02.306 BEARING; ROTOR,GEN (B) ASM PART: A = 8-97170-163-2, 97170163, D = 8-97249-209-2, 97249209, F = 8-97351-572-0, 97351572	8-97248-128-0	01	1	-
3	02.306 BEARING; ROTOR,GEN ASM PART: G = 8-97351-573-0, 97351573	8-98146-442-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97249-333-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-333-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97253-381-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: F = 8-97351-572-0, 97351572	8-97253-577-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97264-868-0	01	1	-
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97313-444-0	01	1	-0401
10	02.319 RECTIFIER; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97374-448-0	01	1	0402-1208
10	02.319 RECTIFIER; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97374-473-0	01	1	0402-
10	02.319 RECTIFIER; GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-98046-188-0	01	1	-1208
10	02.319 RECTIFIER; GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98046-190-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-625-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-111-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-334-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-703-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-446-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-447-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: F = 8-97351-572-0, 97351572	8-97351-706-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591	8-98038-922-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-98038-924-0	01	1	-
17	02.305 COVER ASM; FRT,GEN ASM PART: N = 8-98075-026-0, 98075026	8-98076-329-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: E = 8-97250-258-2, 97250258, G = 8-97351-573-0, 97351573	8-97083-292-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: A = 8-97170-163-2, 97170163, F = 8-97351-572-0, 97351572	8-97148-113-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574	8-97249-335-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-448-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-448-0	01	1	-0401
19	02.274 PULLEY; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-449-0	01	1	0402-
19	02.274 PULLEY; GEN ASM PART: I = 8-98029-887-2, 98029887	8-98038-925-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: K = 8-98029-890-2, 98029890, N = 8-98075-026-0, 98075026	8-98038-926-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: M = 8-98039-591-1, 98039591	8-98040-058-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: J = 8-98029-889-2, 98029889	8-98040-132-0	01	1	-
19	02.274 PULLEY; GEN ASM PART: L = 8-98029-892-2, 98029892	8-98040-133-0	01	1	-
22	02.310 STATOR; GEN ASM PART: E = 8-97250-258-2, 97250258	8-97147-622-0	01	1	-
22	02.310 STATOR; GEN ASM PART: A = 8-97170-163-2, 97170163	8-97148-106-0	01	1	-
22	02.310 STATOR; GEN ASM PART: F = 8-97351-572-0, 97351572, I = 8-98029-887-2, 98029887, K = 8-98029-890-2, 98029890, M = 8-98039-591-1, 98039591, N = 8-98075-026-0, 98075026	8-97192-850-0	01	1	-
22	02.310 STATOR; GEN ASM PART: C = 8-97248-295-1, 97248295, H = 8-97351-574-0, 97351574, J = 8-98029-889-2, 98029889, L = 8-98029-892-2, 98029892	8-97249-331-1	01	1	-
22	02.310 STATOR; GEN ASM PART: G = 8-97351-573-0, 97351573	8-97302-701-0	01	1	-
22	02.310 STATOR; GEN ASM PART: B = 8-97240-270-2, 97240270	8-97313-437-0	01	1	-
22	02.310 STATOR; GEN ASM PART: D = 8-97249-209-2, 97249209	8-97313-438-0	01	1	-
44	02.298 SEAL; RR COVER,GEN ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-589-0	01	1	-
99	03.280 GASKET; VAC PUMP (C), ID=18 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-002-0	02	1	-
99	03.280 GASKET; VAC PUMP (D), ID=12 OD=24 ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	5-19679-003-0	01	1	-
99	03.280 GASKET; VAC PUMP (A), ID=18 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-992-0	02	1	-
99	03.280 GASKET; VAC PUMP (B), ID=12 OD=24 ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-993-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258	8-97083-303-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-452-0	01	1	-0401
100	03.280 CONNECTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270	8-97313-452-0	01	1	-
100	03.280 CONNECTOR; VAC PUMP ASM PART: D = 8-97249-209-2, 97249209	8-97313-453-0	01	1	0402-
102	03.280 COVER; FRT,VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97137-334-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP 04.830, (A) ASM PART: A = 8-97170-163-2, 97170163, B = 8-97240-270-2, 97240270, C = 8-97248-295-1, 97248295, D = 8-97249-209-2, 97249209, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-94156-608-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (B) ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-994-0	01	1	-
104	03.280 GASKET; FRT COVER,VAC PUMP (C) ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-304-0	01	1	-
106	03.280 BOLT; OIL CONN,VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-989-0	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97148-115-1	01	1	-
108	03.280 ROTOR; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-97236-693-0	01	1	-
109	03.280 VANE; VAC PUMP ASM PART: B = 8-97240-270-2, 97240270, D = 8-97249-209-2, 97249209	8-94223-985-0	03	1	-
109	03.280 VANE; VAC PUMP ASM PART: A = 8-97170-163-2, 97170163, C = 8-97248-295-1, 97248295, E = 8-97250-258-2, 97250258, F = 8-97351-572-0, 97351572, G = 8-97351-573-0, 97351573, H = 8-97351-574-0, 97351574	8-97083-298-0	03	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
