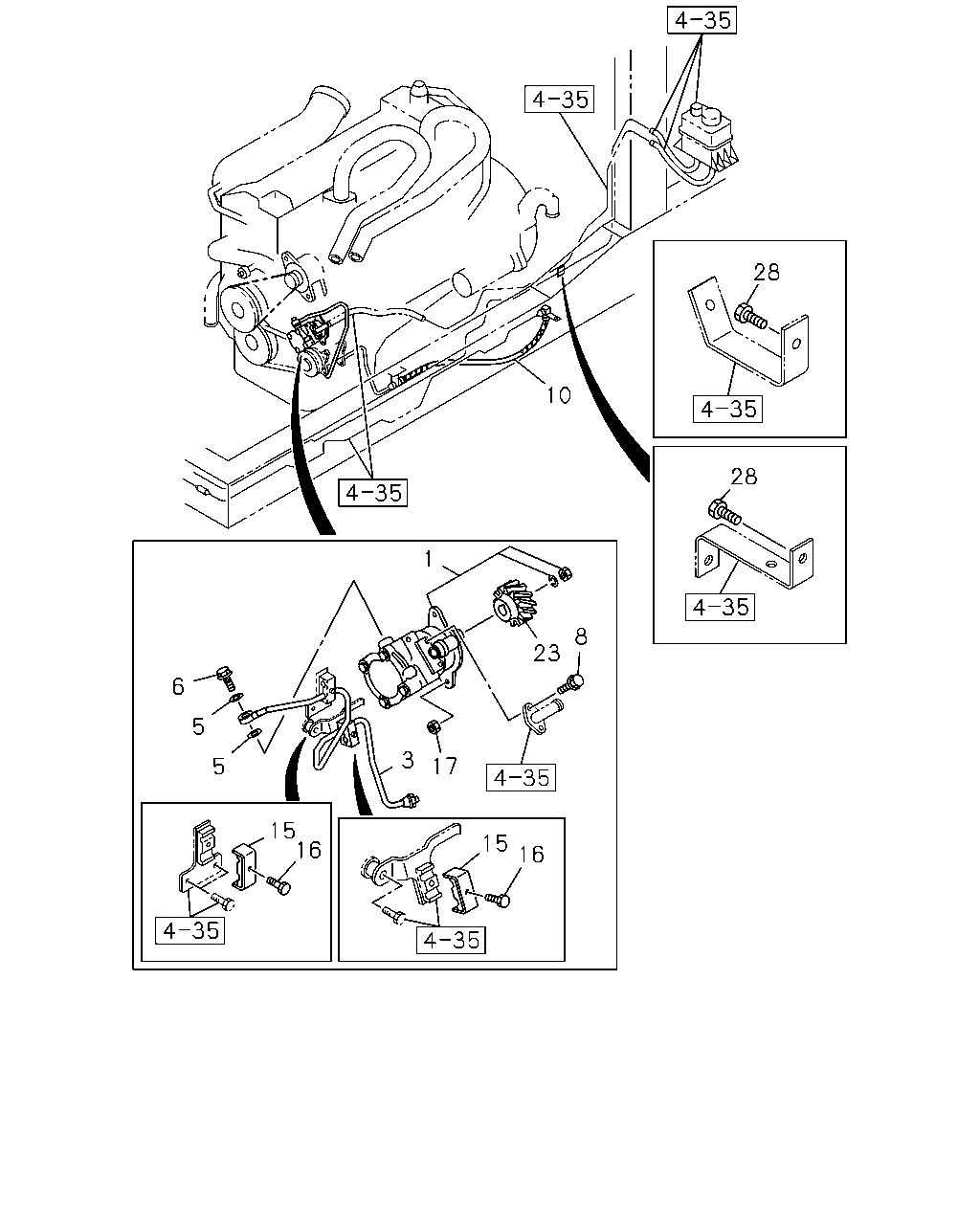

4-36 — POWER STEERING CONTROL; ENGINE SIDE (#4087) — 113 parça

28 10 28 1 8 23 6 5 3 17 5 15 16 15 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-447-0	01	1	9603-9904	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-S(56L),8PE1S(59L), 10PE1S(60L),10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L)	1-19500-447-2	01	1	9905-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-2	01	1	9905-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	9905-	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9603-9810	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-9904	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9905-	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-640-0	01	1	9603-9604		●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-637-0	01	1	9605-9706	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-13313-637-0	01	1	9707-9904	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-13313-637-1	01	1	9905-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9606	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9606		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9607-9706	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9607-9706	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9904	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9904	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L) M18X40	1-09675-153-0	01	1	9603-9904	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M18X40	1-09675-153-0	01	1	9905-9905	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	9905-	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9603-9606		●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9607-9706	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M18X36	1-09675-174-0	01	1	9707-9904	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M18X36	1-09675-174-0	01	1	9905-	●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L) M8X12 FLANGE	0-28080-812-0	02	1	9603-9904	●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28080-812-0	02	1	9905-	●	●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606		●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9607-9706	●	●
8	BOLT; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	02	1	9707-9904	●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9603-9810	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9603-9606		●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9607-	●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-S(56L)	1-09701-195-1	02	1	9603-9606		●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-S(56L)	1-09701-195-1	02	1	9607-9706	●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-09701-195-1	02	1	9707-9904	●	●
15	CLIP; OIL PIPE SUCTION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-09701-195-2	02	1	9905-	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L) M8X14 FLANGE	0-28080-814-0	01	1	9603-9904	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	9905-	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9603-9606		●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9607-9706	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) M6X35 FLANGE	0-28680-635-0	02	1	9707-9904	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M6X35 FLANGE	0-28680-635-0	02	1	9905-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9603-	●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L) Z=20	1-19581-011-2	01	1	9603-9904	●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) Z=20	1-19581-011-2	01	1	9905-	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9603-9606		●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9607-9706	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) Z=20	1-19581-023-2	01	1	9707-9904	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20	1-19581-023-2	01	1	9905-9910	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20	1-19581-038-0	01	1	9911-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●

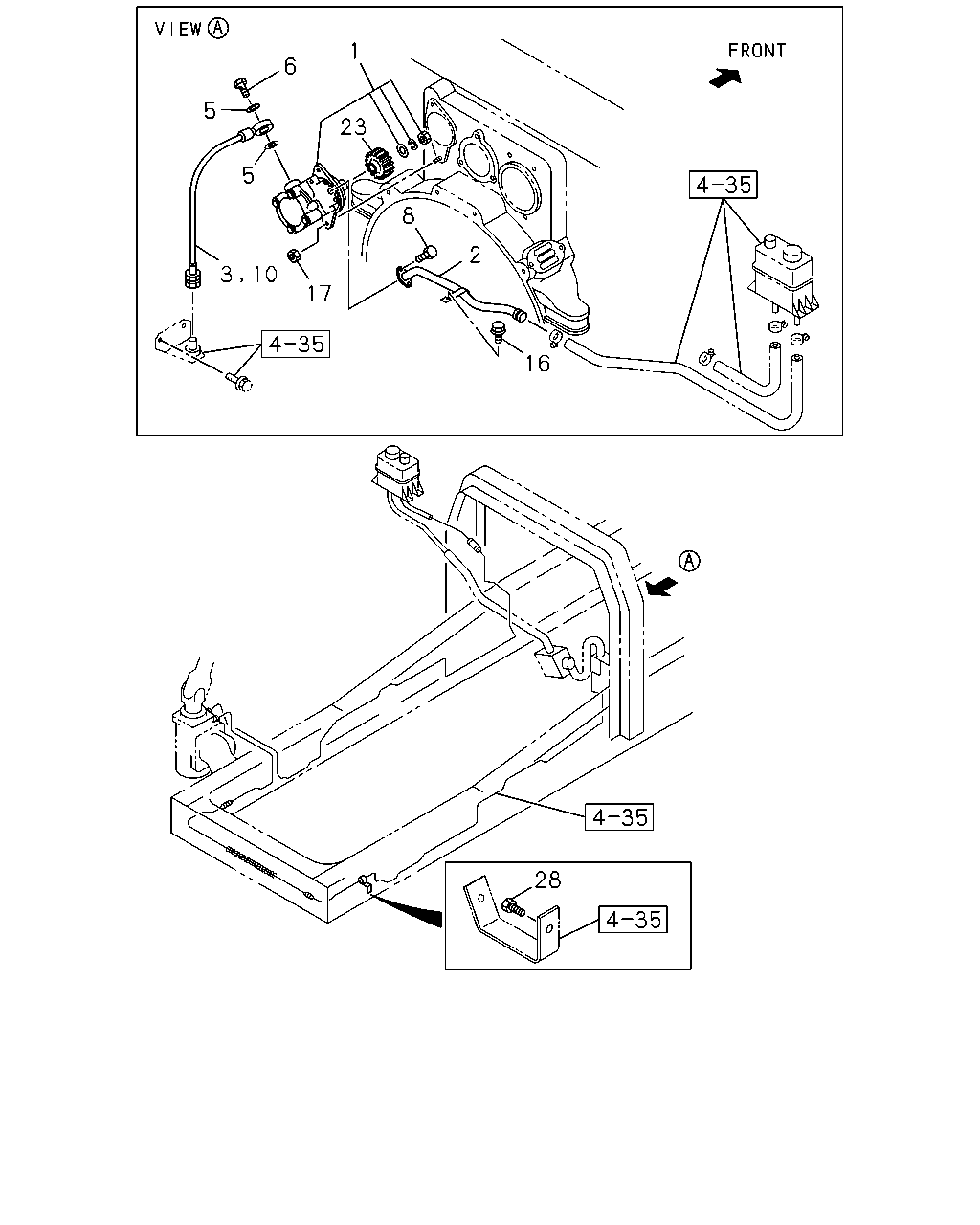

1 6 5 23 5 8 2 3 10 17 16 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT.	1-19500-447-0	01	1	9603-9904	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-N(54L),6WA1 TC-S(56L),8PE1S(59L), 10PE1S(60L),10PE1N(61L),10PE1H(68L),6WG1 TC-C(72L)	1-19500-447-2	01	1	9905-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) EXC. STRG VARIABLE CONTROL<TFY>	1-19500-447-2	01	1	9905-	●	●
1	PUMP ASM; OIL,P/S SEE FIG-NO 4-42 FOR COMPONENT. 6WA1 TC-C(55L) STRG VARIABLE CONTROL<TFY>	1-19500-563-2	01	1	9905-	●	●
2	PIPE ASM; OIL,SUCTION 8PE1S(59L),10PE1S(60L)	1-13313-568-0	01	1	9603-9608	●	●
2	PIPE ASM; OIL,SUCTION 8PE1S(59L),10PE1S(60L)	1-13313-692-0	01	1	9609-9904	●	●
2	PIPE ASM; OIL,SUCTION 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L)	1-13313-692-0	01	1	9905-	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9603-9810	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-9904	●	●
3	PIPE; OIL,CHARGE,P/S 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9905-	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-640-0	01	1	9603-9604		●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L)	1-13313-637-0	01	1	9605-9706	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-13313-637-0	01	1	9707-9904	●	●
3	PIPE; OIL,CHARGE,P/S 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-13313-637-1	01	1	9905-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9606	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-9606		●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9607-9706	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9607-9706	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9904	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9707-9904	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-	●	●
5	GASKET; EYE BOLT,POWER STRG PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) ID=18.2 OD=24.4	1-09630-087-0	02	1	9905-	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L) M18X40	1-09675-153-0	01	1	9603-9904	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M18X40	1-09675-153-0	01	1	9905-9905	●	●
6	BOLT; EYE,P/S PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) ENGINE REAR PTO(SV1) M18X40	1-09675-153-0	01	1	9905-	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9603-9606		●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L) M18X36	1-09675-174-0	01	1	9607-9706	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M18X36	1-09675-174-0	01	1	9707-9904	●	●
6	BOLT; EYE,P/S PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M18X36	1-09675-174-0	01	1	9905-	●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L) M8X12 FLANGE	0-28080-812-0	02	1	9603-9904	●	●
8	BOLT; OIL PIPE 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X12 FLANGE	0-28080-812-0	02	1	9905-	●	●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606		●
8	BOLT; OIL PIPE 6WA1 TC-S(56L) M8X16 FLANGE	0-28080-816-0	02	1	9607-9706	●	●
8	BOLT; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) M8X16 FLANGE	0-28080-816-0	02	1	9707-9904	●	●
8	BOLT; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M8X16 FLANGE	0-28080-816-0	02	1	9905-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09364-893-0	01	1	9603-9810	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL V TYPE ENG<91L> EXC. ENGINE REAR PTO(SV1) L=510	1-09365-044-0	01	1	9811-	●	●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9603-9606		●
10	HOSE; FLEX,P/S OIL PUMP,INL L TYPE ENG<90L> L=430	0-09671-430-0	01	1	9607-	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L) M8X14 FLANGE	0-28080-814-0	01	1	9603-9904	●	●
16	BOLT; STAY,P/S OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) M8X14 FLANGE	0-28080-814-0	01	1	9905-	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9603-9606		●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L) M6X35 FLANGE	0-28680-635-0	02	1	9607-9706	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) M6X35 FLANGE	0-28680-635-0	02	1	9707-9904	●	●
16	BOLT; STAY,P/S OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M6X35 FLANGE	0-28680-635-0	02	1	9905-	●	●
17	NUT; POWER STRG PUMP M10 FLANGE	0-91150-110-0	02	1	9603-	●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L) Z=20	1-19581-011-2	01	1	9603-9904	●	●
23	GEAR; OIL PUMP 8PE1S(59L),10PE1S(60L),10PE1N(61L),10PE1H(68L) Z=20	1-19581-011-2	01	1	9905-	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9603-9606		●
23	GEAR; OIL PUMP 6WA1 TC-S(56L) Z=20	1-19581-023-2	01	1	9607-9706	●	●
23	GEAR; OIL PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L) Z=20	1-19581-023-2	01	1	9707-9904	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20	1-19581-023-2	01	1	9905-9910	●	●
23	GEAR; OIL PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) Z=20	1-19581-038-0	01	1	9911-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X25 FLANGE	0-28080-825-0	02	1	9603-9606	●	●
28	BOLT; BRKT,FLEX HOSE,P/S M8X30 FLANGE	0-28680-830-0	02	1	9607-	●	●
28	BOLT; BRKT,FLEX HOSE,P/S V TYPE ENG<91L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
