Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#40866) — 703 parça

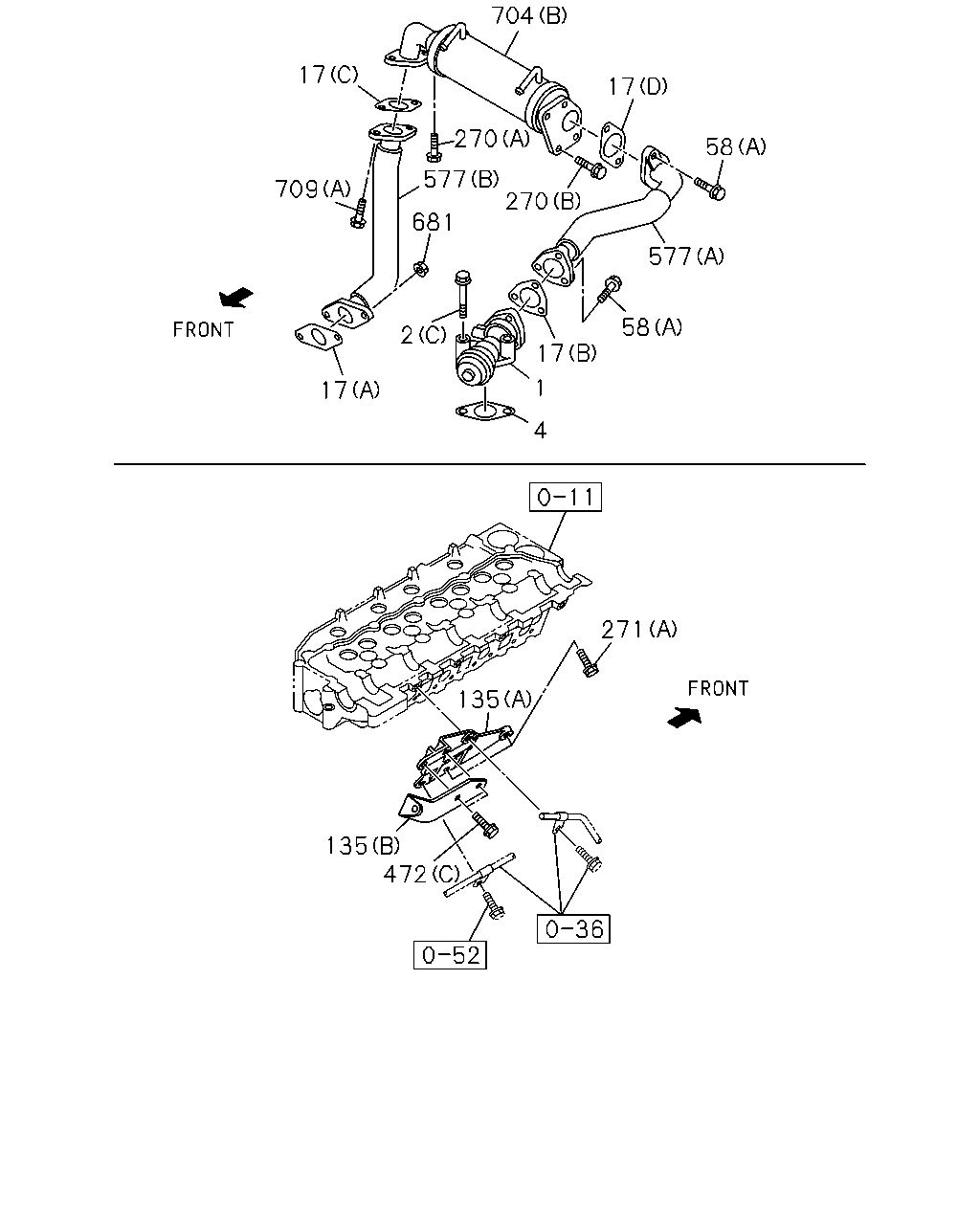

12 2 1 4 16 58 1 17 709 577 135 472 17 709 677 271 271 704 17 709 472 238 704 58 271 17 681 577 780 17 270 8 703 709 271 769 271 710 270 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
2	03.670 BOLT; EGR VLV 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506	●
2	03.670 BOLT; EGR VLV 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0607-							●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0607-							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.417	8-97190-508-0	01	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-							●
8	03.670 BOLT; EGR ADAPTER 00.029 M10X40 FLANGE	0-28751-040-0	02	1	0607-				●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-							●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0302-0506					●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0507-0604						●
16	03.275 STUD; EGR VLV 01.097 (D) M8X55 L=67	0-41010-855-0	02	1	0605-0606						●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 01.428 (C) M8X20 L=32	9-04110-820-0	02	1	0507-0604		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0605-0606		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (J)	8-97601-836-0	01	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (I)	8-98017-551-0	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97189-853-1	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (L)	8-97388-919-0	04	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97357-684-3	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (K)	8-98036-507-0	01	1	0607-				●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	0302-0506	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508		●	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-0606		●	●
58	03.417 BOLT; PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	0607-				●
58	03.417 BOLT; PIPE 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-0606		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0607-				●
135	03.680 BRACKET; EGR (A)	8-97302-225-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (B)	8-97302-226-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0302-0506					●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0507-0606						●
135	03.680 BRACKET; EGR (G)	8-98025-253-2	01	1	0607-				●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0507-0606		●	●
238	03.330 PROTECTOR; HEAT,EGR	8-97386-177-0	01	1	0607-				●
270	03.680 BOLT 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0302-0506	●
270	03.680 BOLT 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●
270	03.680 BOLT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●	●
270	03.680 BOLT 00.683 (D) M10X60 FLANGE	0-28151-060-0	03	1	0607-				●
270	03.680 BOLT 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
472	03.671 BOLT; BRKT 07.633 (C) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.277 (F) M8X25 FLANGE	0-28660-825-0	03	1	0607-				●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	02	1	0607-							●
472	03.671 BOLT; BRKT 00.029 (E) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
577	03.675 PIPE; AIR,EGR (A)	8-97241-002-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601		●	●
577	03.675 PIPE; AIR,EGR (B)	8-97241-004-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-0606		●	●
577	03.675 PIPE; AIR,EGR (F)	8-97386-173-1	01	1	0607-0706				●
577	03.675 PIPE; AIR,EGR (F)	8-98055-858-2	01	1	0707-				●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-0	01	1	0602-0606		●	●
577	03.675 PIPE; AIR,EGR (E)	8-98028-113-2	01	1	0607-				●
677	03.680 PLATE; DUCT	8-98015-035-0	01	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0506	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
703	03.675 DUCT; EGR	8-98028-114-0	01	1	0607-				●
704	03.337 COOLER ASM; EGR (B)	8-97325-128-0	01	1	0302-0506	●
704	03.337 COOLER ASM; EGR (C)	8-97310-496-1	01	1	0507-0606		●	●
704	03.337 COOLER ASM; EGR (E)	8-98028-112-1	01	1	0607-				●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0302-0506					●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0507-0606						●
704	03.337 COOLER ASM; EGR (D)	8-98028-110-1	01	1	0607-				●
709	03.670 BOLT; EGR COOLER (A) M8X23 FLANGE	8-94103-629-2	02	1	0302-0408	●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	02	1	0409-0506	●
709	03.670 BOLT; EGR COOLER 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0507-0606		●	●
709	03.670 BOLT; EGR COOLER 00.780 (D) M10X30 FLANGE	0-28751-030-0	06	1	0607-0808				●
709	03.670 BOLT; EGR COOLER 00.029 (D) M10X35 FLANGE	0-28751-035-0	06	1	0809-				●
709	03.670 BOLT; EGR COOLER 03.604 (C) M10X30 FLANGE	8-98032-158-0	03	1	0607-				●
710	03.337 BRACKET; EGR COOLER	8-98025-254-1	01	1	0607-				●
769	01.750 BOLT; HEAT PROTECTOR 03.604 M6X12 FLANGE	8-97108-669-0	04	1	0607-				●
780	03.671 WASHER; PROTECTOR 00.413 ID=6.4 OD=18	0-91610-706-0	04	1	0607-				●

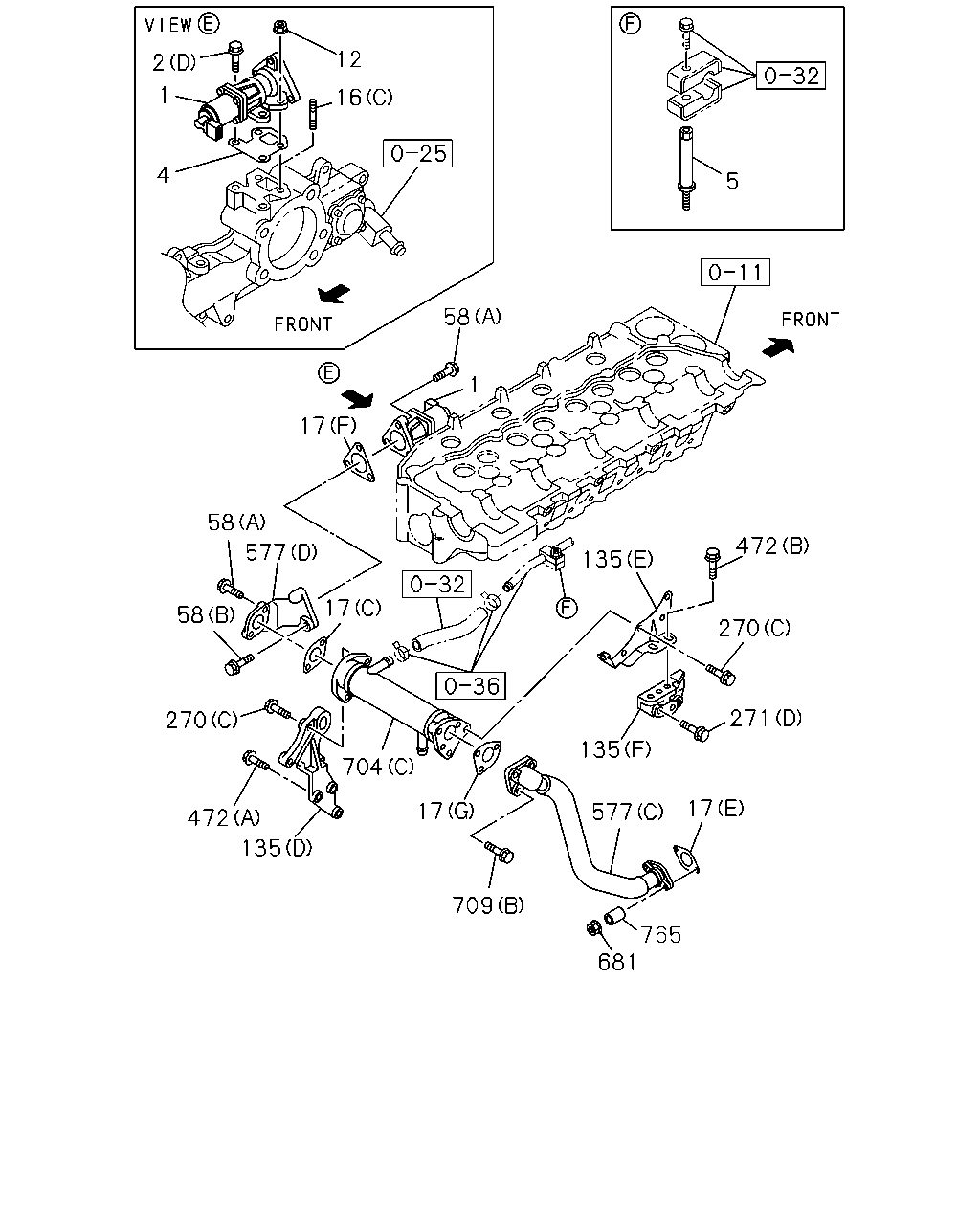

12 2 1 16 4 5 58 1 17 58 472 577 135 17 58 270 271 270 135 704 17 17 577 472 135 709 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
2	03.670 BOLT; EGR VLV 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506	●
2	03.670 BOLT; EGR VLV 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0607-							●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0607-							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.417	8-97190-508-0	01	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-							●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0905-				●
5	03.670 ADAPTER ASM 00.269	8-97377-804-0	01	1	0507-0606		●	●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-							●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0302-0506					●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0507-0604						●
16	03.275 STUD; EGR VLV 01.097 (D) M8X55 L=67	0-41010-855-0	02	1	0605-0606						●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 01.428 (C) M8X20 L=32	9-04110-820-0	02	1	0507-0604		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0605-0606		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (J)	8-97601-836-0	01	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (I)	8-98017-551-0	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97189-853-1	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (L)	8-97388-919-0	04	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97357-684-3	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (K)	8-98036-507-0	01	1	0607-				●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	0302-0506	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508		●	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-0606		●	●
58	03.417 BOLT; PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	0607-				●
58	03.417 BOLT; PIPE 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-0606		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0607-				●

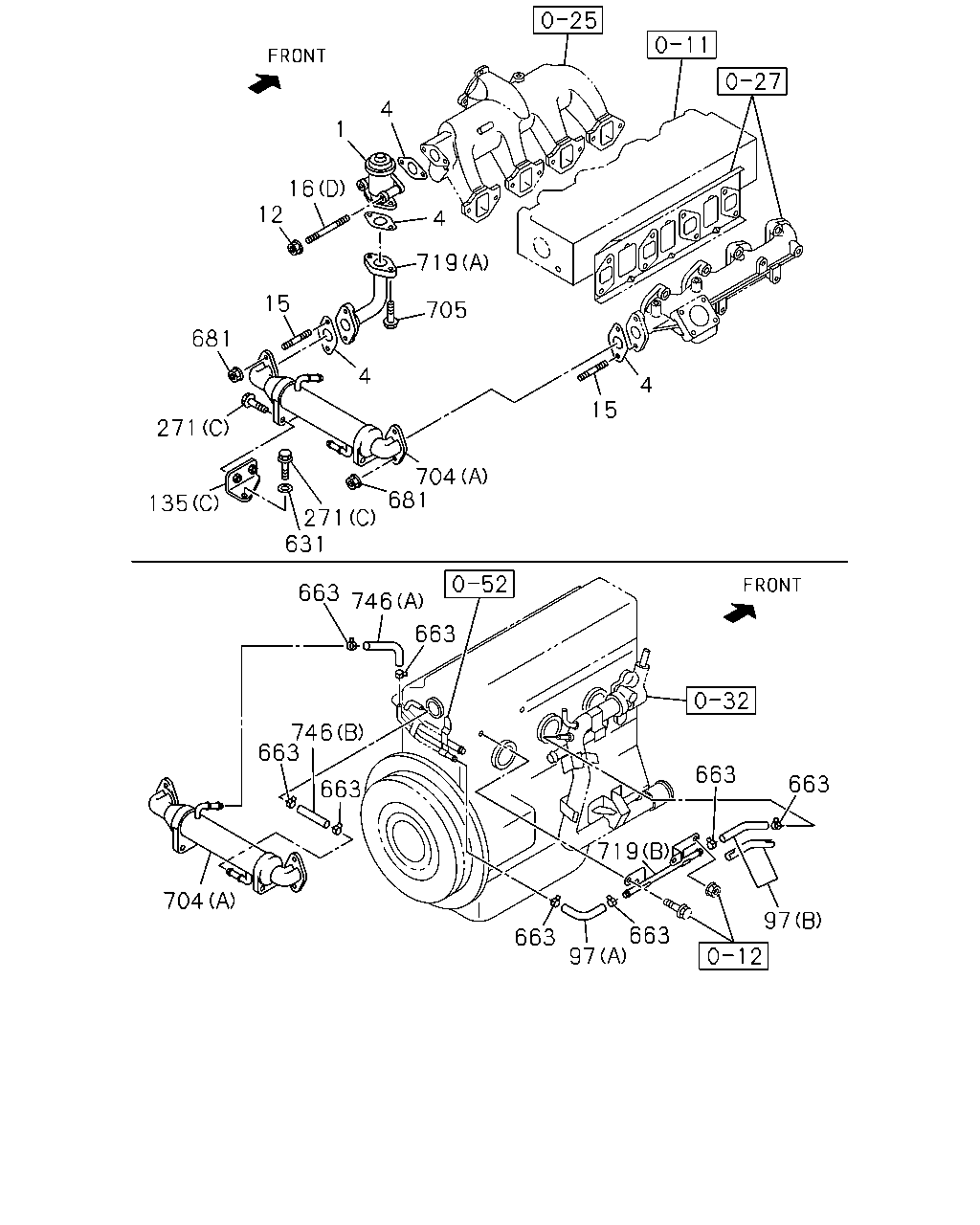

135	03.680 BRACKET; EGR (A)	8-97302-225-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (B)	8-97302-226-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0302-0506					●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0507-0606						●
135	03.680 BRACKET; EGR (G)	8-98025-253-2	01	1	0607-				●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0507-0606		●	●
270	03.680 BOLT 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0302-0506	●
270	03.680 BOLT 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●
270	03.680 BOLT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●	●
270	03.680 BOLT 00.683 (D) M10X60 FLANGE	0-28151-060-0	03	1	0607-				●
270	03.680 BOLT 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
472	03.671 BOLT; BRKT 07.633 (C) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.277 (F) M8X25 FLANGE	0-28660-825-0	03	1	0607-				●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	02	1	0607-							●
472	03.671 BOLT; BRKT 00.029 (E) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●

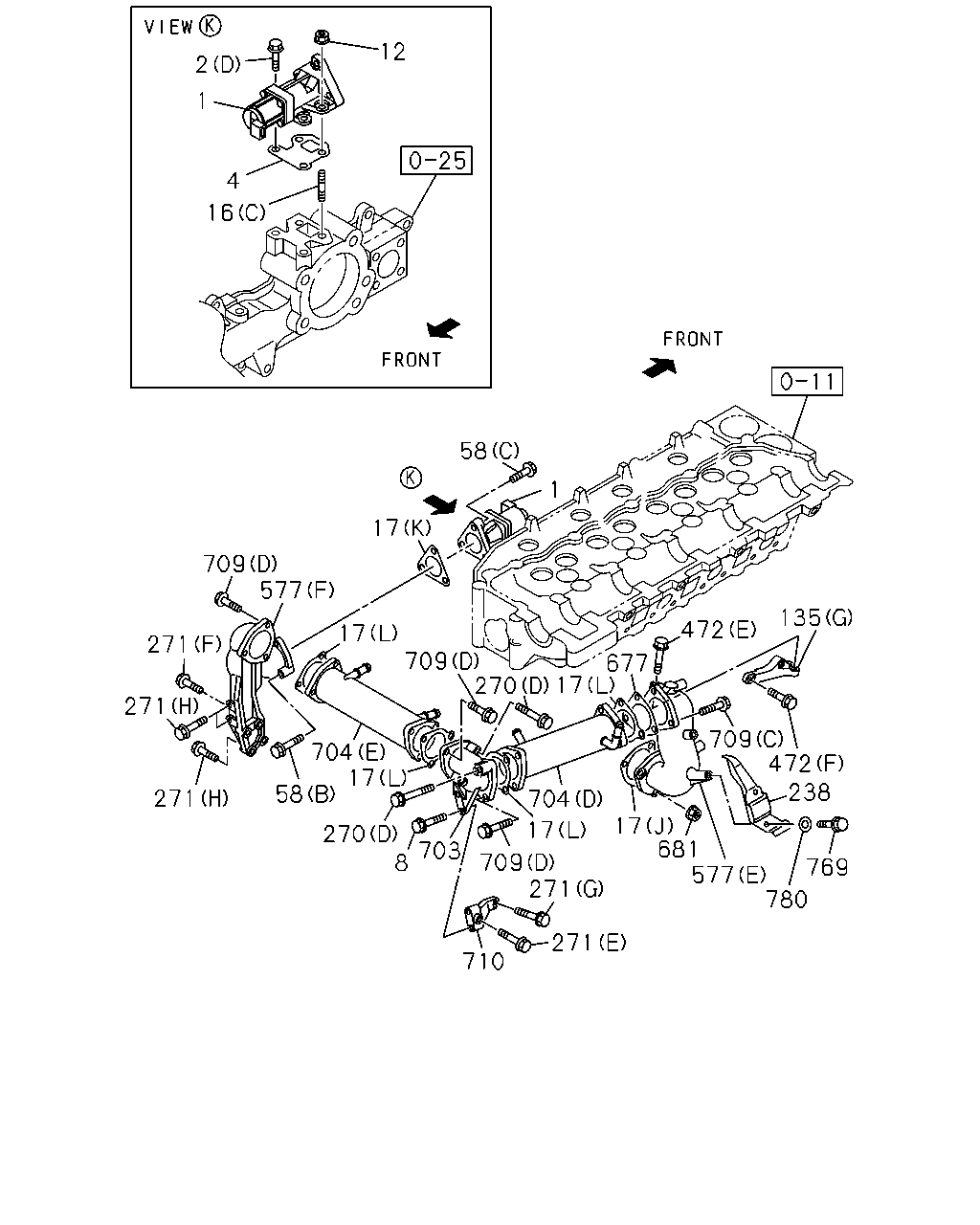

577	03.675 PIPE; AIR,EGR (A)	8-97241-002-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601		●	●
577	03.675 PIPE; AIR,EGR (B)	8-97241-004-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-0606		●	●
577	03.675 PIPE; AIR,EGR (F)	8-97386-173-1	01	1	0607-0706				●
577	03.675 PIPE; AIR,EGR (F)	8-98055-858-2	01	1	0707-				●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-0	01	1	0602-0606		●	●
577	03.675 PIPE; AIR,EGR (E)	8-98028-113-2	01	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0506	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
704	03.337 COOLER ASM; EGR (B)	8-97325-128-0	01	1	0302-0506	●
704	03.337 COOLER ASM; EGR (C)	8-97310-496-1	01	1	0507-0606		●	●
704	03.337 COOLER ASM; EGR (E)	8-98028-112-1	01	1	0607-				●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0302-0506					●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0507-0606						●
704	03.337 COOLER ASM; EGR (D)	8-98028-110-1	01	1	0607-				●
709	03.670 BOLT; EGR COOLER (A) M8X23 FLANGE	8-94103-629-2	02	1	0302-0408	●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	02	1	0409-0506	●
709	03.670 BOLT; EGR COOLER 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0507-0606		●	●
709	03.670 BOLT; EGR COOLER 00.780 (D) M10X30 FLANGE	0-28751-030-0	06	1	0607-0808				●
709	03.670 BOLT; EGR COOLER 00.029 (D) M10X35 FLANGE	0-28751-035-0	06	1	0809-				●
709	03.670 BOLT; EGR COOLER 03.604 (C) M10X30 FLANGE	8-98032-158-0	03	1	0607-				●
765	03.670 SPACER; EGR PIPE 03.613	8-94225-562-0	02	1	0507-0606		●	●

271 697 667 738 472 753 752 779 747 194 82 73 73 194 73 194

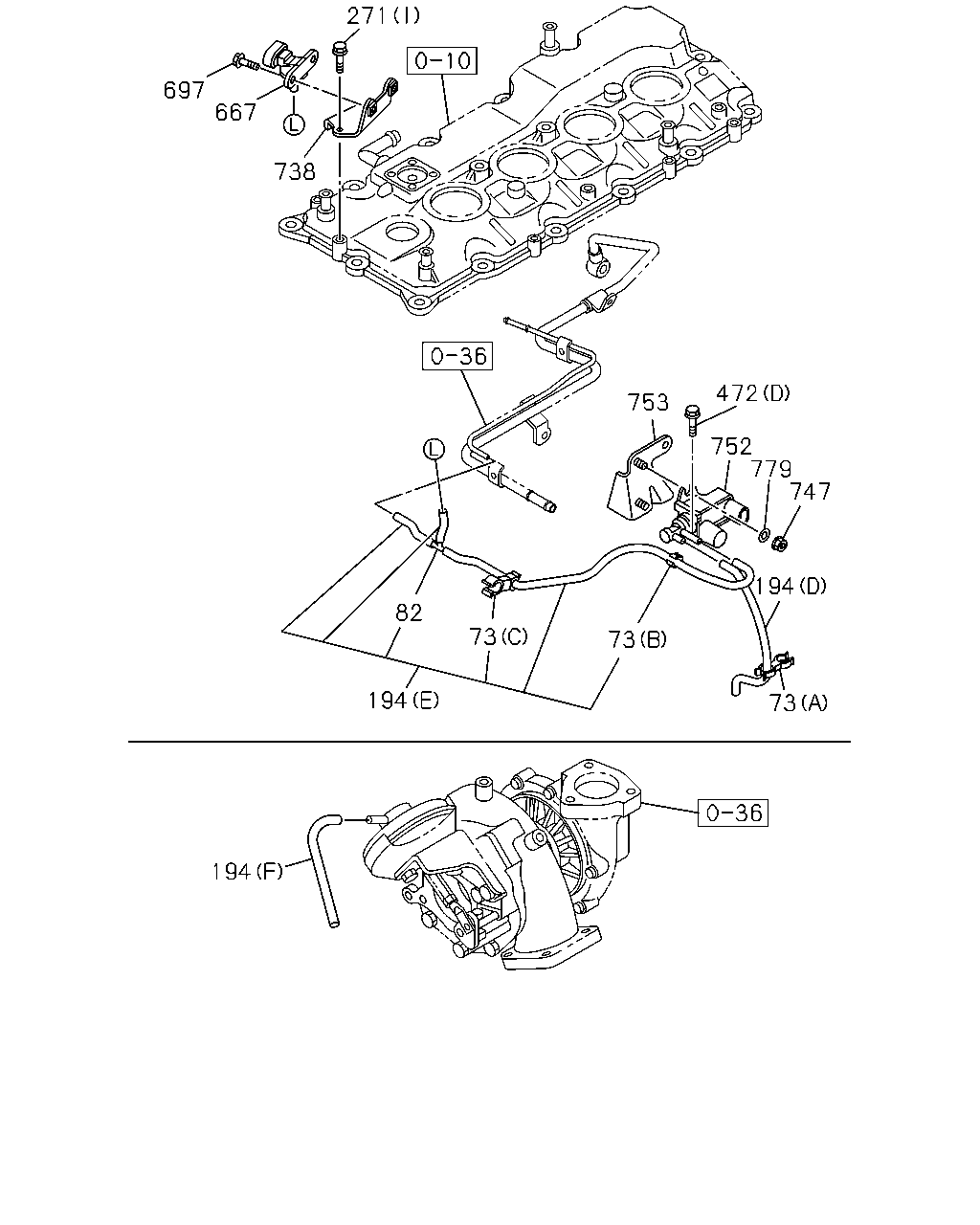

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) 02.559 (D) L=250	5-09707-030-1	02	1	0302-0506	●
73	03.680 CLIP; VAC HOSE EXC. HEATER & DEFROSTER(C41) 03.162 (D) L=140	5-09707-031-1	03	1	0302-0506	●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0607-							●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0607-							●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0607-							●
82	03.680 JOINT; 3 WAY 3WAY	8-98045-385-0	01	1	0607-							●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0302-0506					●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0507-0606						●
194	03.675 HOSE; VAC (D)	0-04420-270-0	01	1	0607-							●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0302-0506					●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0507-0606						●
194	03.675 HOSE; VAC (E)	8-98031-057-1	01	1	0607-0705							●
194	03.675 HOSE; VAC (E)	8-98085-688-0	01	1	0706-							●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0302-0506					●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0507-0606						●
194	03.675 HOSE; VAC (F)	8-98036-856-0	01	1	0607-							●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
472	03.671 BOLT; BRKT 07.633 (C) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.277 (F) M8X25 FLANGE	0-28660-825-0	03	1	0607-				●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	02	1	0607-							●
472	03.671 BOLT; BRKT 00.029 (E) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
667	03.670 SENSOR; VAC	8-98044-520-0	01	1	0607-							●
697	03.680 BOLT; SENSOR 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0607-							●
738	03.675 BRACKET; SENSOR,VAC	8-98044-607-0	01	1	0607-							●
747	03.671 NUT; VAC REG VALVE 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-							●
752	03.670 VALVE; EVRV	8-97184-183-0	01	1	0607-0803							●
752	03.670 VALVE; EVRV	8-98116-259-0	01	1	0804-							●
753	03.670 BRACKET; VALVE	8-97381-571-1	01	1	0607-							●
779	03.671 WASHER; VALVE 06.168 ID=8.4 OD=18	0-91610-608-0	02	1	0607-							●

681 2 17 15 271 718 17 16 16 1 12 16 16 4 2 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G

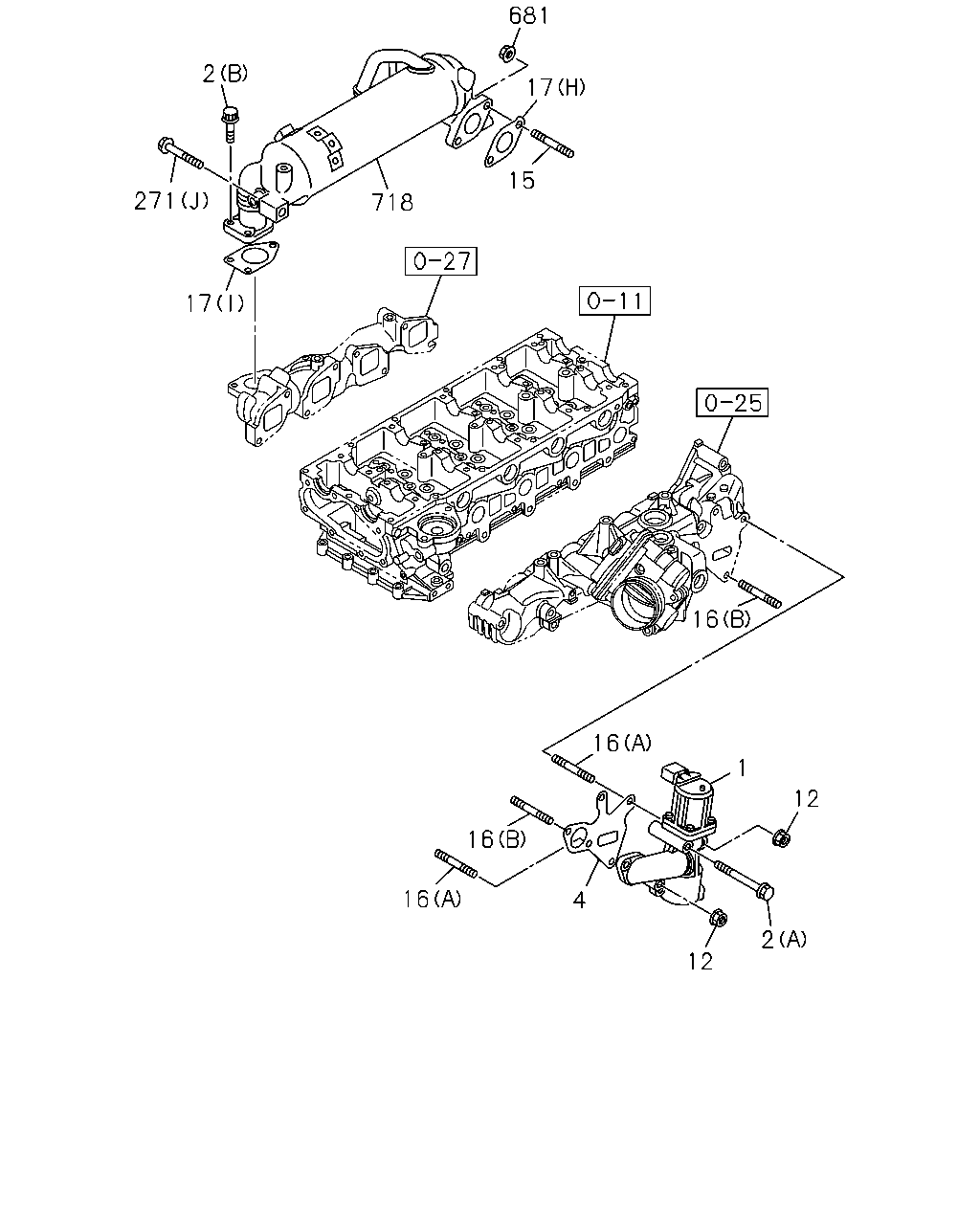

1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
2	03.670 BOLT; EGR VLV 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506	●
2	03.670 BOLT; EGR VLV 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0607-							●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0607-							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.417	8-97190-508-0	01	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-							●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-							●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-1006							●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-							●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0302-0506					●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0507-0604						●
16	03.275 STUD; EGR VLV 01.097 (D) M8X55 L=67	0-41010-855-0	02	1	0605-0606						●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 01.428 (C) M8X20 L=32	9-04110-820-0	02	1	0507-0604		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0605-0606		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (J)	8-97601-836-0	01	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (I)	8-98017-551-0	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97189-853-1	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (L)	8-97388-919-0	04	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97357-684-3	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (K)	8-98036-507-0	01	1	0607-				●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0506	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
718	03.337 COOLER; EGR	8-98011-524-3	01	1	0607-1002							●
718	03.337 COOLER; EGR	8-98164-570-0	01	1	1003-							●

704 17 17 270 58 577 270 709 681 577 58 2 17 1 17 4 271 135 135 472

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
2	03.670 BOLT; EGR VLV 09.171 (C) M8X80 FLANGE	0-28080-880-0	02	1	0302-0506	●
2	03.670 BOLT; EGR VLV 02.559 (D) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
2	03.670 BOLT; EGR VLV 06.216 (D) M8X25 FLANGE	0-28650-825-0	01	1	0607-				●
2	03.670 BOLT; EGR VLV 01.252 (A) M8X80 FLANGE	0-28050-880-0	01	1	0607-							●
2	03.670 BOLT; EGR VLV 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0607-							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.417	8-97190-508-0	01	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94340-670-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (E)	8-97375-980-1	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (J)	8-97601-836-0	01	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97166-993-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (F)	8-97367-062-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (I)	8-98017-551-0	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (D)	8-97189-853-1	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (G)	8-97367-918-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (L)	8-97388-919-0	04	1	0607-				●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0302-0506	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97213-386-0	01	1	0507-0606		●	●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (H)	8-97357-684-3	01	1	0607-							●
17	03.665 GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (K)	8-98036-507-0	01	1	0607-				●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	05	1	0302-0506	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	02	1	0507-0508		●	●
58	03.417 BOLT; PIPE 02.559 (A) M8X25 FLANGE	0-28680-825-0	03	1	0509-0512		●	●
58	03.417 BOLT; PIPE 06.216 (A) M8X25 FLANGE	0-28650-825-0	03	1	0601-0606		●	●
58	03.417 BOLT; PIPE 03.403 (C) M8X30 FLANGE	0-28650-830-0	01	1	0607-				●
58	03.417 BOLT; PIPE 01.540 (B) M8X45 FLANGE	0-28080-845-0	02	1	0507-0512		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0601-0606		●	●
58	03.417 BOLT; PIPE 09.173 (B) M8X45 FLANGE	0-28050-845-0	02	1	0607-				●
135	03.680 BRACKET; EGR (A)	8-97302-225-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (B)	8-97302-226-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0302-0506					●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0507-0606						●
135	03.680 BRACKET; EGR (G)	8-98025-253-2	01	1	0607-				●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0507-0606		●	●
270	03.680 BOLT 01.062 (A) M10X12 FLANGE	0-28181-012-0	01	1	0302-0506	●
270	03.680 BOLT 02.559 (C) M8X25 FLANGE	0-28680-825-0	04	1	0507-0512		●	●
270	03.680 BOLT 06.216 (C) M8X25 FLANGE	0-28650-825-0	04	1	0601-0606		●	●
270	03.680 BOLT 00.683 (D) M10X60 FLANGE	0-28151-060-0	03	1	0607-				●
270	03.680 BOLT 07.633 (B) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
472	03.671 BOLT; BRKT 07.633 (C) M8X28 W/LK&PL WASHER	8-94438-324-1	02	1	0302-0506	●
472	03.671 BOLT; BRKT 00.685 (A) M12X30 FLANGE	0-28181-230-0	03	1	0507-0512		●	●
472	03.671 BOLT; BRKT (A) M12X30 FLANGE	0-28151-230-0	03	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.277 (F) M8X25 FLANGE	0-28660-825-0	03	1	0607-				●
472	03.671 BOLT; BRKT 02.559 (B) M8X25 FLANGE	0-28680-825-0	02	1	0507-0512		●	●
472	03.671 BOLT; BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0601-0606		●	●
472	03.671 BOLT; BRKT 02.343 (D) M8X16 FLANGE	0-28050-816-0	02	1	0607-							●
472	03.671 BOLT; BRKT 00.029 (E) M10X40 FLANGE	0-28751-040-0	01	1	0607-				●
577	03.675 PIPE; AIR,EGR (A)	8-97241-002-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (C)	8-97310-501-3	01	1	0507-0601		●	●
577	03.675 PIPE; AIR,EGR (B)	8-97241-004-2	01	1	0302-0506	●
577	03.675 PIPE; AIR,EGR (D)	8-97329-211-2	01	1	0507-0606		●	●
577	03.675 PIPE; AIR,EGR (F)	8-97386-173-1	01	1	0607-0706				●
577	03.675 PIPE; AIR,EGR (F)	8-98055-858-2	01	1	0707-				●
577	03.675 PIPE; AIR,EGR (C)	8-98032-795-0	01	1	0602-0606		●	●
577	03.675 PIPE; AIR,EGR (E)	8-98028-113-2	01	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0506	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
704	03.337 COOLER ASM; EGR (B)	8-97325-128-0	01	1	0302-0506	●
704	03.337 COOLER ASM; EGR (C)	8-97310-496-1	01	1	0507-0606		●	●
704	03.337 COOLER ASM; EGR (E)	8-98028-112-1	01	1	0607-				●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0302-0506					●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0507-0606						●
704	03.337 COOLER ASM; EGR (D)	8-98028-110-1	01	1	0607-				●
709	03.670 BOLT; EGR COOLER (A) M8X23 FLANGE	8-94103-629-2	02	1	0302-0408	●
709	03.670 BOLT; EGR COOLER 03.417 (A) M8X23 FLANGE	8-97378-077-0	02	1	0409-0506	●
709	03.670 BOLT; EGR COOLER 03.417 (B) M8X23 FLANGE	8-97378-077-0	03	1	0507-0606		●	●
709	03.670 BOLT; EGR COOLER 00.780 (D) M10X30 FLANGE	0-28751-030-0	06	1	0607-0808				●
709	03.670 BOLT; EGR COOLER 00.029 (D) M10X35 FLANGE	0-28751-035-0	06	1	0809-				●
709	03.670 BOLT; EGR COOLER 03.604 (C) M10X30 FLANGE	8-98032-158-0	03	1	0607-				●

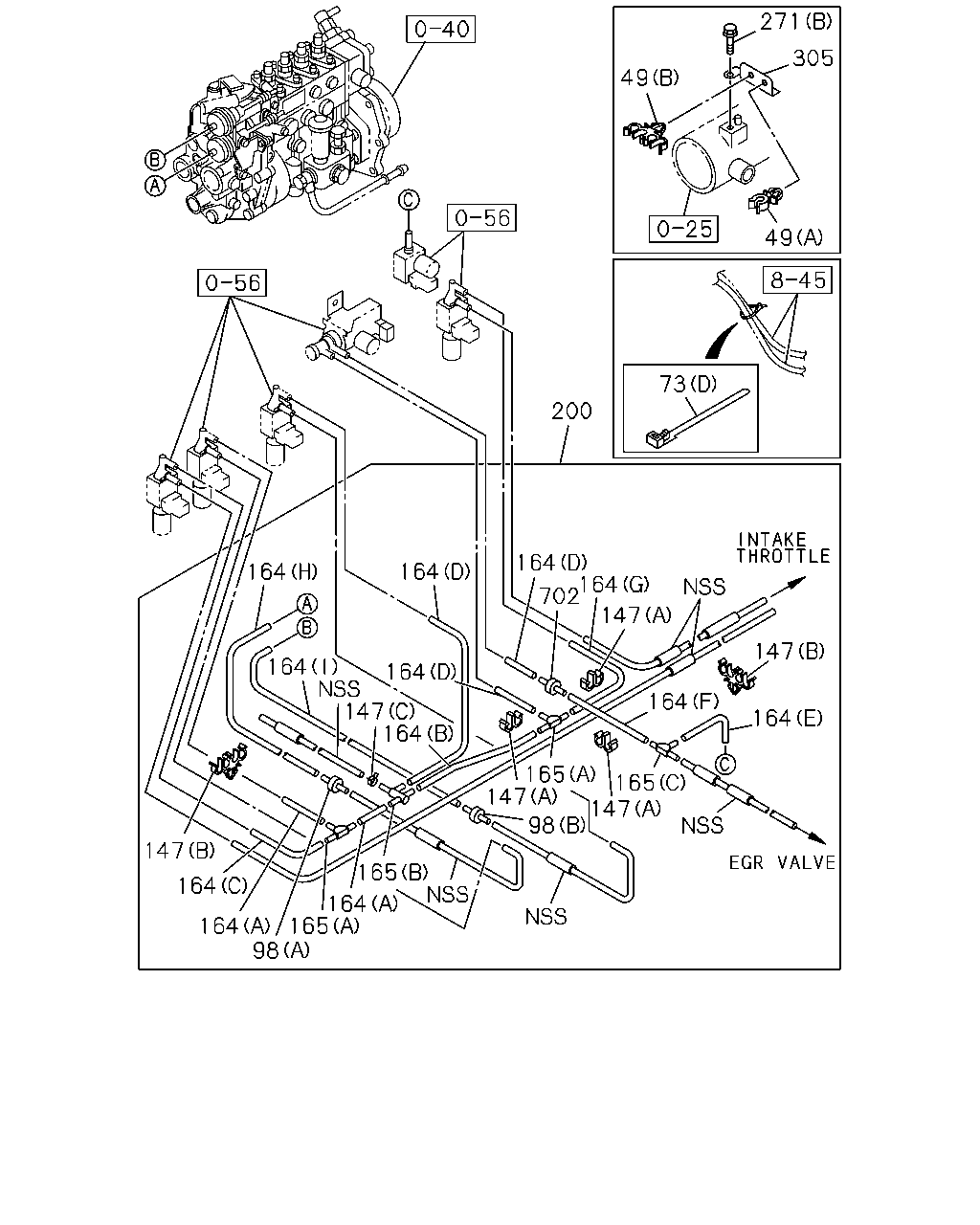

271 305 49 49 73 200 164 164 702 164 164 147 147 164 147 164 164 164 164 165 147 165 147 98 147 165 164 164 164 165 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
49	03.680 CLIP; HOSE 03.162 (A)	8-94253-984-0	01	1	0302-0506	●
49	03.680 CLIP; HOSE (B) 4XID=6.7	8-94315-422-0	01	1	0302-0506	●
73	03.680 CLIP; VAC HOSE HEATER & DEFROSTER(C41) 02.559 (D) L=250	5-09707-030-1	02	1	0302-0506	●
73	03.680 CLIP; VAC HOSE EXC. HEATER & DEFROSTER(C41) 03.162 (D) L=140	5-09707-031-1	03	1	0302-0506	●
73	03.680 CLIP; VAC HOSE 00.854 (A) ID=11.8 & 7.5	1-09709-182-0	01	1	0607-							●
73	03.680 CLIP; VAC HOSE 04.342 (B) ID=8.3 & 10	8-94176-792-0	01	1	0607-							●
73	03.680 CLIP; VAC HOSE 03.162 (C) ID=13.2 & 7.5	8-94315-426-0	01	1	0607-							●
98	03.670 VALVE; DELAY (A)	8-94110-978-0	01	1	0302-0506	●
98	03.670 VALVE; DELAY 03.415 (B) PINK	8-94145-108-0	01	1	0302-0506	●
147	03.680 CLIP; RUBBER HOSE 03.162 (A) ID=6.8X2	8-94126-636-0	03	1	0302-0506	●
147	03.680 CLIP; RUBBER HOSE (C) ID=7	8-94208-596-0	01	1	0302-0506	●
147	03.680 CLIP; RUBBER HOSE (B) 4XID=6.7	8-94315-422-0	02	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (A) L=30 SERVICED BY L=3000	0-04730-300-0	02	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (C) L=40 SERVICED BY L=3000	0-04730-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (D) L=50 SERVICED BY L=3000	0-04730-300-0	03	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (E) L=60 SERVICED BY L=3000	0-04730-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (F) L=80 SERVICED BY L=3000	0-04730-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (B) L=90 SERVICED BY L=3000	0-04730-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (G) L=150 SERVICED BY L=3000	0-04730-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (H) L=250 SERVICED BY L=3000	0-04731-300-0	01	1	0302-0506	●
164	03.675 HOSE; RUBBER 08.962 (I) L=280 SERVICED BY L=3000	0-04732-300-0	01	1	0302-0506	●
165	03.680 JOINT; HOSE 03.670 (B) 4WAY	8-94100-256-0	01	1	0302-0506	●
165	03.680 JOINT; HOSE (A) 3WAY	8-94208-695-0	02	1	0302-0506	●
165	03.680 JOINT; HOSE 03.145 (C) 3WAY	8-94237-690-0	01	1	0302-0506	●
200	03.675 HOSE; VAC	8-97182-709-6	01	1	0302-0506	●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
305	03.675 BRACKET; RUBBER HOSE	8-97182-758-0	01	1	0302-0506	●
702	03.670 VALVE; DERIVERY	8-97145-713-0	01	1	0302-0506	●

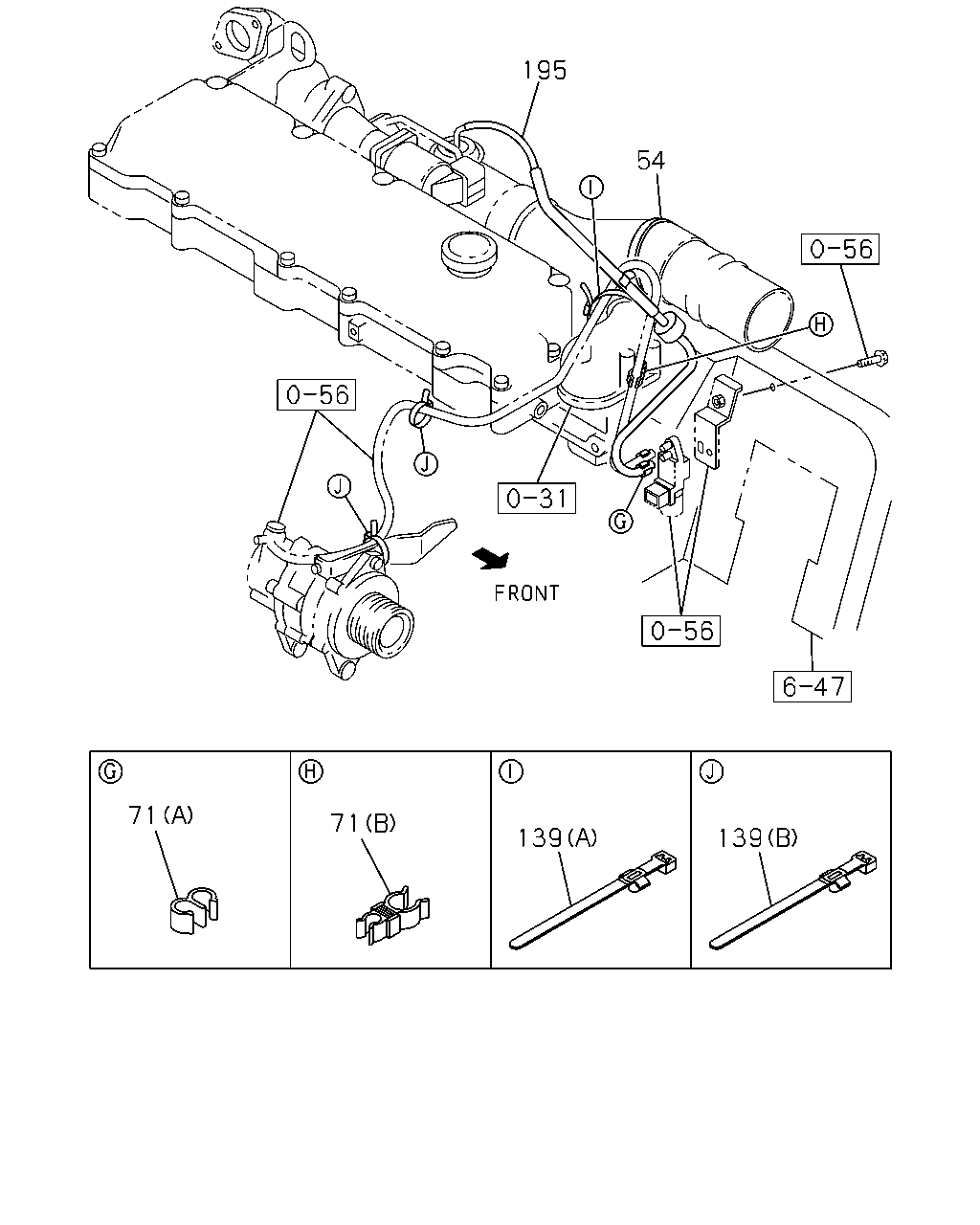

195 54 71 71 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
54	03.680 CLIP; 3 HOSE L=350	8-97373-487-0	01	1	0507-0606	●	●
71	03.680 CLIP; RUBBER HOSE 03.886 (A) ID=7.2	8-94163-380-0	01	1	0507-0606	●	●
71	03.680 CLIP; RUBBER HOSE 03.162 (B) ID=13.2 & 7.5	8-94315-426-0	01	1	0507-0606	●	●
139	02.559 CLIP; HARNESS (A) L=250	5-09707-030-1	01	1	0507-0606	●	●
139	02.559 CLIP; HARNESS 03.162 (B) L=140	5-09707-031-1	01	1	0507-0606	●	●
139	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (B) L=140	5-09707-031-1	01	1	0507-0606	●	●
195	03.675 HOSE; VAC 03.670	8-97373-527-0	01	1	0507-0606	●	●

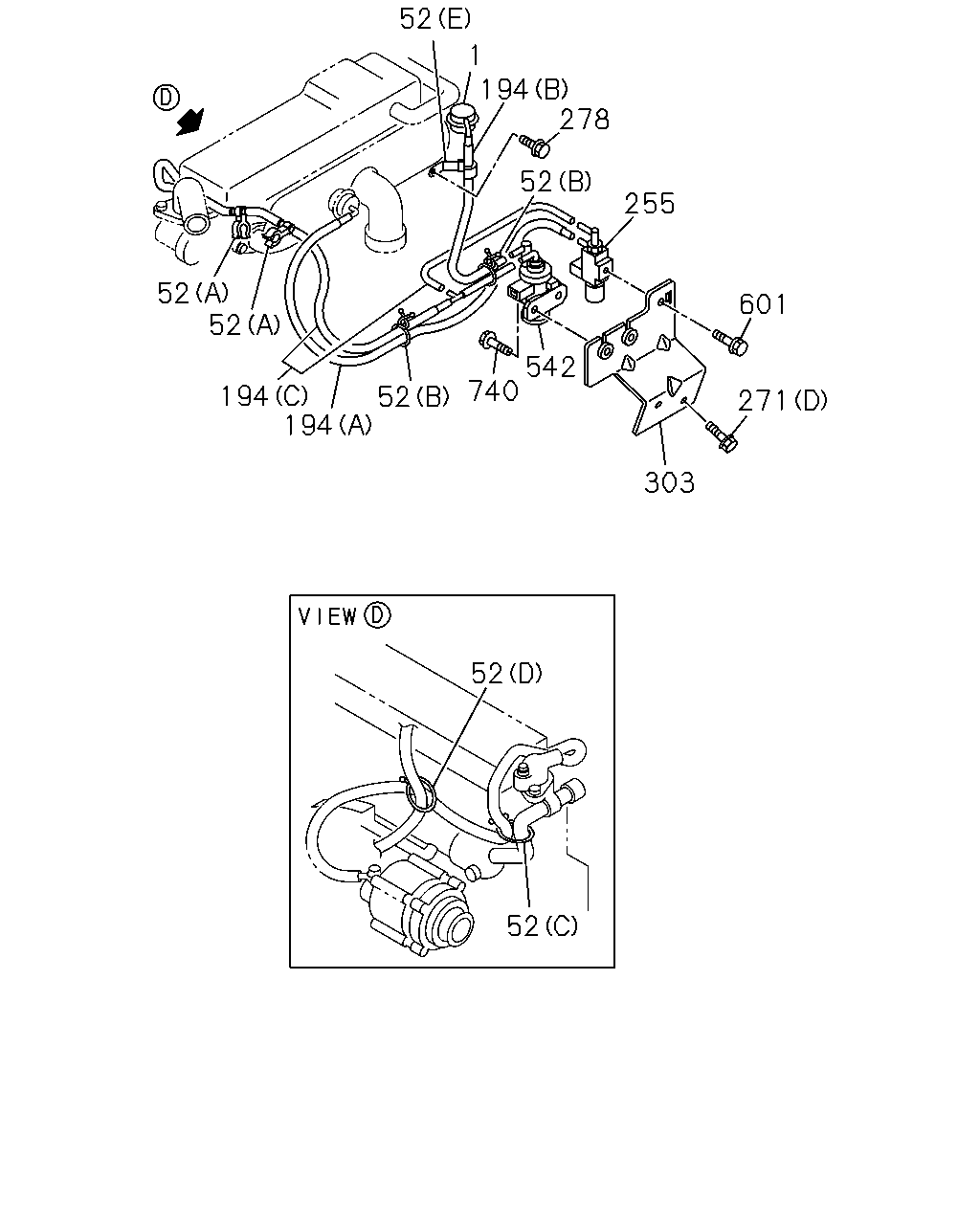

52 1 194 278 52 255 52 52 601 542 740 194 194 52 271 303 52 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0302-0506					●
52	03.680 CLIP; VSV HOSE 03.430 (A) ID=6 & 16.5	8-94165-402-0	02	1	0507-0606						●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0302-0506					●
52	03.680 CLIP; VSV HOSE 01.540 (B) ID=30	8-94315-423-0	02	1	0507-0606						●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0302-0506					●
52	03.680 CLIP; VSV HOSE 03.278 (C) ID=37	8-94481-468-0	01	1	0507-0606						●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0302-0506					●
52	03.680 CLIP; VSV HOSE (D) ID=16.5 & 7	8-97226-171-0	01	1	0507-0606						●
52	03.680 CLIP; VSV HOSE (E)	9-09916-775-0	01	1	0302-0506					●
52	03.680 CLIP; VSV HOSE (E)	9-09916-775-0	01	1	0507-0606						●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0302-0506					●
194	03.675 HOSE; VAC (C)	8-97249-368-2	01	1	0507-0606						●
194	03.675 HOSE; VAC (D)	0-04420-270-0	01	1	0607-							●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0302-0506					●
194	03.675 HOSE; VAC (A)	8-97249-370-2	01	1	0507-0606						●
194	03.675 HOSE; VAC (E)	8-98031-057-1	01	1	0607-0705							●
194	03.675 HOSE; VAC (E)	8-98085-688-0	01	1	0706-							●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0302-0506					●
194	03.675 HOSE; VAC (B)	8-97257-313-1	01	1	0507-0606						●
194	03.675 HOSE; VAC (F)	8-98036-856-0	01	1	0607-							●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0302-0506					●
255	03.675 VALVE; VAC SW,EGR CONT	8-97171-030-0	01	1	0507-0606						●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
278	03.680 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506					●
278	03.680 BOLT; CLIP 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0507-0512						●
278	03.680 BOLT; CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0601-0606						●
278	03.680 BOLT; CLIP 09.190 M6X30 FLANGE	0-28680-630-0	01	1	0507-0606						●
303	03.671 BRACKET; VAC SW	8-97361-242-0	01	1	0302-0506					●
303	03.671 BRACKET; VAC SW	8-97361-242-0	01	1	0507-0606						●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0302-0506					●
542	03.670 VALVE; VAC REGULATING	8-97240-699-0	01	1	0507-0606						●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0302-0506					●
601	03.417 SCREW; VSV 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	0507-0604						●
601	03.417 SCREW; VSV 03.680 M5X10 W/LK+PL WASHER	0-36230-510-0	01	1	0605-0606						●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0302-0506					●
740	03.680 BOLT; VAC REG VALVE 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0507-0512						●
740	03.680 BOLT; VAC REG VALVE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-0606						●

4 1 16 12 4 719 15 705 681 4 4 15 271 704 681 135 271 631 663 746 663 746 663 663 663 663 719 704 97 663 663 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	03.670 VALVE; EGR	8-97135-088-4	01	1	0302-0506	●
1	03.670 VALVE; EGR	8-97379-625-1	01	1	0507-0606		●	●
1	03.670 VALVE; EGR	8-98018-264-1	01	1	0607-0607				●
1	03.670 VALVE; EGR	8-98054-930-0	01	1	0607-0712				●
1	03.670 VALVE; EGR	8-98018-264-5	01	1	0801-				●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0302-0506					●
1	03.670 VALVE; EGR	8-97208-656-3	01	1	0507-0606						●
1	03.670 VALVE; EGR	8-97381-560-7	01	1	0607-							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.417	8-97190-508-0	01	1	0302-0506	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0507-0606		●	●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97306-040-0	01	1	0607-				●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0302-0506					●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 03.665	8-97192-765-0	04	1	0507-0606						●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97384-119-1	01	1	0607-0708							●
4	03.671 GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-98094-528-2	01	1	0709-							●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0302-0506					●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606						●
12	03.671 NUT; EGR VLV 01.540 M8 FLANGE	0-91180-208-0	04	1	0607-							●
12	03.671 NUT; EGR VLV 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
12	03.671 NUT; EGR VLV 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-				●
15	03.670 STUD; EGR PIPE 03.601 M8X25 L=36	8-97378-062-0	02	1	0607-1006							●
15	03.670 STUD; EGR PIPE 03.275 M8X25 L=37	0-41010-825-0	02	1	1007-							●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97104-508-1	04	1	0302-0408					●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0409-0506					●
15	03.670 STUD; EGR PIPE 03.342 M8X20 L=31	8-97378-060-0	04	1	0507-0606						●
16	03.275 STUD; EGR VLV (A) M8X50 L=62	0-40210-850-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0302-0506					●
16	03.275 STUD; EGR VLV 00.413 (D) M8X55 L=67	9-04110-855-0	02	1	0507-0604						●
16	03.275 STUD; EGR VLV 01.097 (D) M8X55 L=67	0-41010-855-0	02	1	0605-0606						●
16	03.275 STUD; EGR VLV (B) M8X25 L=37	0-40210-825-0	02	1	0607-							●
16	03.275 STUD; EGR VLV 01.428 (C) M8X20 L=32	9-04110-820-0	02	1	0507-0604		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0605-0606		●	●
16	03.275 STUD; EGR VLV 02.510 (C) M8X20 L=32	0-41010-820-0	02	1	0607-				●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0302-0506					●
97	03.675 HOSE; RUBBER (A)	8-97240-636-0	01	1	0507-0606						●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0302-0506					●
97	03.675 HOSE; RUBBER (B)	8-97312-730-0	01	1	0507-0606						●
135	03.680 BRACKET; EGR (A)	8-97302-225-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (D)	8-97310-498-2	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (B)	8-97302-226-0	01	1	0302-0506	●
135	03.680 BRACKET; EGR (F)	8-97375-952-0	01	1	0507-0606		●	●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0302-0506					●
135	03.680 BRACKET; EGR (C)	8-97247-717-2	01	1	0507-0606						●
135	03.680 BRACKET; EGR (G)	8-98025-253-2	01	1	0607-				●
135	03.680 BRACKET; EGR (E)	8-97376-723-0	01	1	0507-0606		●	●
271	03.675 BOLT; BRKT 02.500 (B) M6X10 FLANGE	0-28080-610-0	01	1	0302-0506	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28181-245-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 00.685 (D) M12X45 FLANGE	0-28151-245-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 00.685 (F) M12X50 FLANGE	0-28151-250-0	03	1	0607-				●
271	03.675 BOLT; BRKT 00.002 (A) M8X25 FLANGE	0-28690-825-0	02	1	0302-0506	●
271	03.675 BOLT; BRKT 00.002 (D) M8X25 FLANGE	0-28690-825-0	01	1	0507-0512		●	●
271	03.675 BOLT; BRKT 02.277 (D) M8X25 FLANGE	0-28660-825-0	01	1	0601-0606		●	●
271	03.675 BOLT; BRKT 02.277 (G) M8X25 FLANGE	0-28660-825-0	01	1	0607-				●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0302-0506					●
271	03.675 BOLT; BRKT 07.010 (C) M8X20 FLANGE	0-28080-820-0	03	1	0507-0512						●
271	03.675 BOLT; BRKT 04.338 (C) M8X20 FLANGE	0-28050-820-0	03	1	0601-0606						●
271	03.675 BOLT; BRKT 09.181 (J) M10X45 FLANGE	0-28151-045-0	01	1	0607-1002							●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0302-0506					●
271	03.675 BOLT; BRKT 02.664 (D) M8X20 FLANGE	0-28680-820-0	02	1	0507-0512						●
271	03.675 BOLT; BRKT 01.531 (D) M8X20 FLANGE	0-28650-820-0	02	1	0601-0606						●
271	03.675 BOLT; BRKT 02.343 (I) M8X16 FLANGE	0-28050-816-0	01	1	0607-							●
271	03.675 BOLT; BRKT 00.685 (E) M12X60 FLANGE	0-28151-260-0	01	1	0607-				●
271	03.675 BOLT; BRKT 09.181 (H) M12X30 FLANGE	0-28751-230-0	03	1	0607-0804				●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0302-0506					●
631	03.417 WASHER; PL,BRKT 16.716 ID=8.4 OD=18	9-09160-608-0	01	1	0507-0605						●
631	03.417 WASHER; PL,BRKT 06.168 ID=8.4 OD=18	0-91610-608-0	01	1	0606-0606						●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0302-0506					●
663	03.417 CLIP; HOSE 01.153 ID=12.8	8-94367-943-0	08	1	0507-0606						●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	02	1	0302-0506	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91150-208-0	02	1	0507-0602		●	●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606		●	●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97061-401-1	03	1	0607-				●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0302-0506					●
681	03.671 NUT; EGR PIPE 03.613 M8 FLANGE	8-97161-607-0	04	1	0507-0606						●
681	03.671 NUT; EGR PIPE 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-							●
704	03.337 COOLER ASM; EGR (B)	8-97325-128-0	01	1	0302-0506	●
704	03.337 COOLER ASM; EGR (C)	8-97310-496-1	01	1	0507-0606		●	●
704	03.337 COOLER ASM; EGR (E)	8-98028-112-1	01	1	0607-				●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0302-0506					●
704	03.337 COOLER ASM; EGR (A)	8-97239-982-3	01	1	0507-0606						●
704	03.337 COOLER ASM; EGR (D)	8-98028-110-1	01	1	0607-				●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506					●
705	03.675 BOLT; EGR VLV TO EGR PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512						●
705	03.675 BOLT; EGR VLV TO EGR PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606						●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0302-0506					●
719	03.675 PIPE; EGR (B)	8-97240-635-2	01	1	0507-0606						●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0302-0506					●
719	03.675 PIPE; EGR (A)	8-97245-757-2	01	1	0507-0606						●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0302-0506					●
746	03.675 HOSE; WATER,EGR COOLER 01.097 (B) L=90 SERVICED BY L=3000	0-03559-300-0	01	1	0507-0606						●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0302-0506					●
746	03.675 HOSE; WATER,EGR COOLER (A)	8-97313-126-1	01	1	0507-0606						●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
