0-50 — OIL COOLER AND OIL FILTER (#40862) — 165 parça

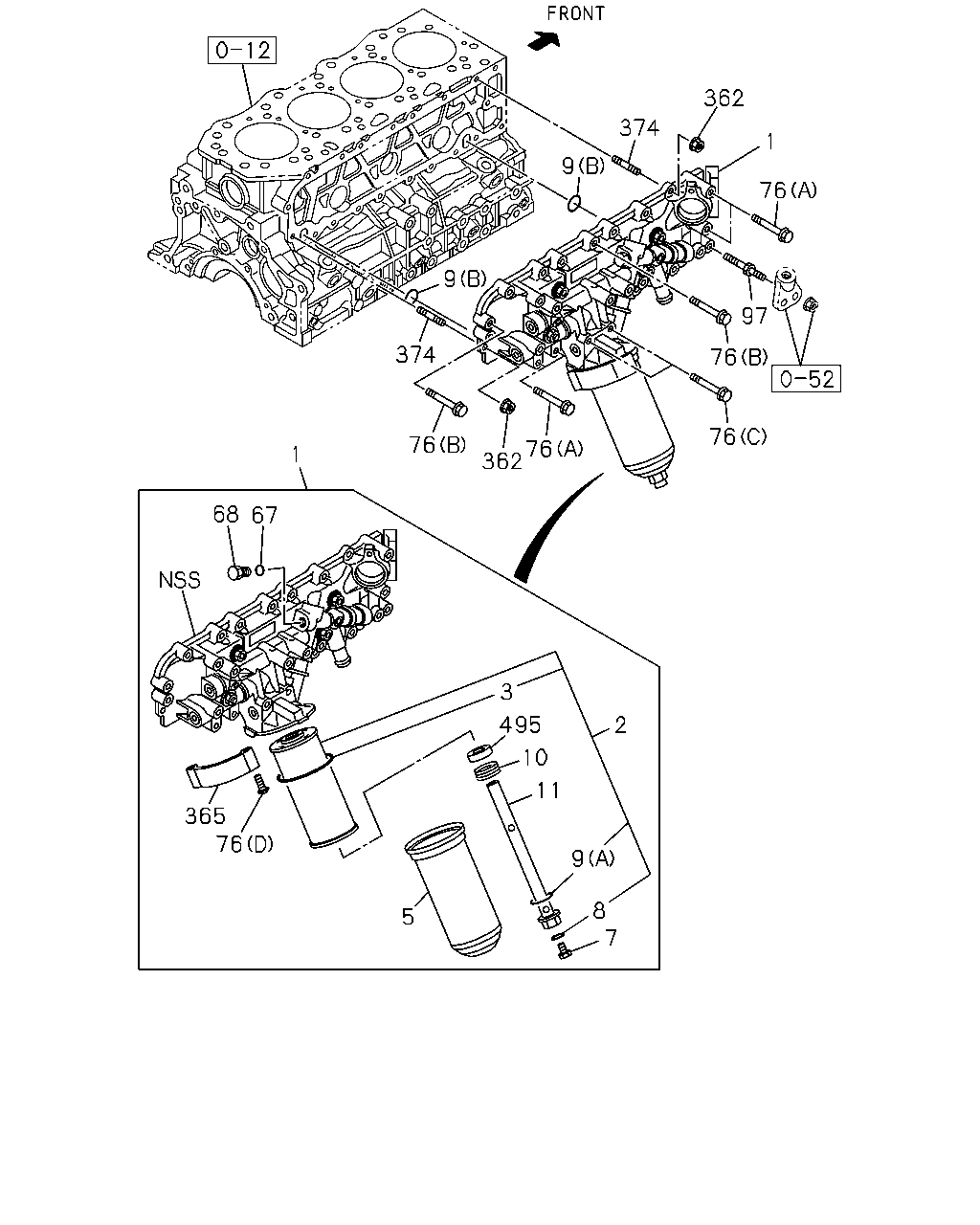

362 374 1 9 76 9 97 374 76 76 76 76 362 1 68 67 3 495 2 10 11 365 76 9 8 7 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0302-0506	●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0507-0606		●
1	01.540 FILTER & COOLER ASM; OIL	8-98003-929-9	01	1	0607-			●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0302-0506				●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0507-0606					●	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0607-							●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0302-0506	●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0507-0606		●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	0607-			●
3	01.540 GASKET	8-98024-708-0	01	1	0607-			●
5	01.837 CASE; OIL FILTER	8-98018-862-0	01	1	0607-			●
7	01.840 PLUG; CENTER BOLT	8-98018-846-0	01	1	0607-			●
8	01.840 GASKET; PLUG 03.417 ID=9.8	1-09623-055-0	01	1	0607-			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97047-000-0	01	1	0302-0506	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97047-000-0	01	1	0507-0606		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	0607-			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (B) ID=26.2	9-09566-226-0	02	1	0607-			●
10	01.840 SPRING; ELEMENT	8-98018-850-0	01	1	0607-			●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0302-0506	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0507-0606		●
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	0607-			●
67	01.550 GASKET; VLV	9-09562-215-0	01	1	0607-			●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0302-0506	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0507-0606		●
68	01.837 PLUG; VLV	8-98063-778-0	01	1	0607-0803			●
68	01.837 PLUG; VLV 01.540	9-13263-010-0	01	1	0804-			●
76	01.840 BOLT; OIL FILTER 00.206 (A) M8X70 FLANGE	0-28050-870-0	04	1	0607-			●
76	01.840 BOLT; OIL FILTER 02.100 (C) M8X90 FLANGE	0-28050-890-0	02	1	0607-			●
76	01.840 BOLT; OIL FILTER 01.060 (B) M8X35 FLANGE	0-28650-835-0	11	1	0607-			●
76	01.840 BOLT; OIL FILTER (D)	8-98041-912-0	02	1	0607-			●
97	01.540 STUD; OIL COOLER BRKT M6X13,M8X35 L=53	8-98045-481-0	01	1	0607-			●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506				●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602					●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606					●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-							●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
365	01.840 PROTECTOR; OIL FILTER	8-98018-857-0	01	1	0607-			●
374	01.840 STUD; OIL FILTER 01.428 M8X18 L=30	0-41010-818-0	02	1	0607-0807			●
374	01.840 STUD; OIL FILTER 02.510 M8X20 L=32	0-41010-820-0	02	1	0808-			●
495	03.680 PLATE; OIL FILTER	8-98018-853-0	01	1	0607-			●

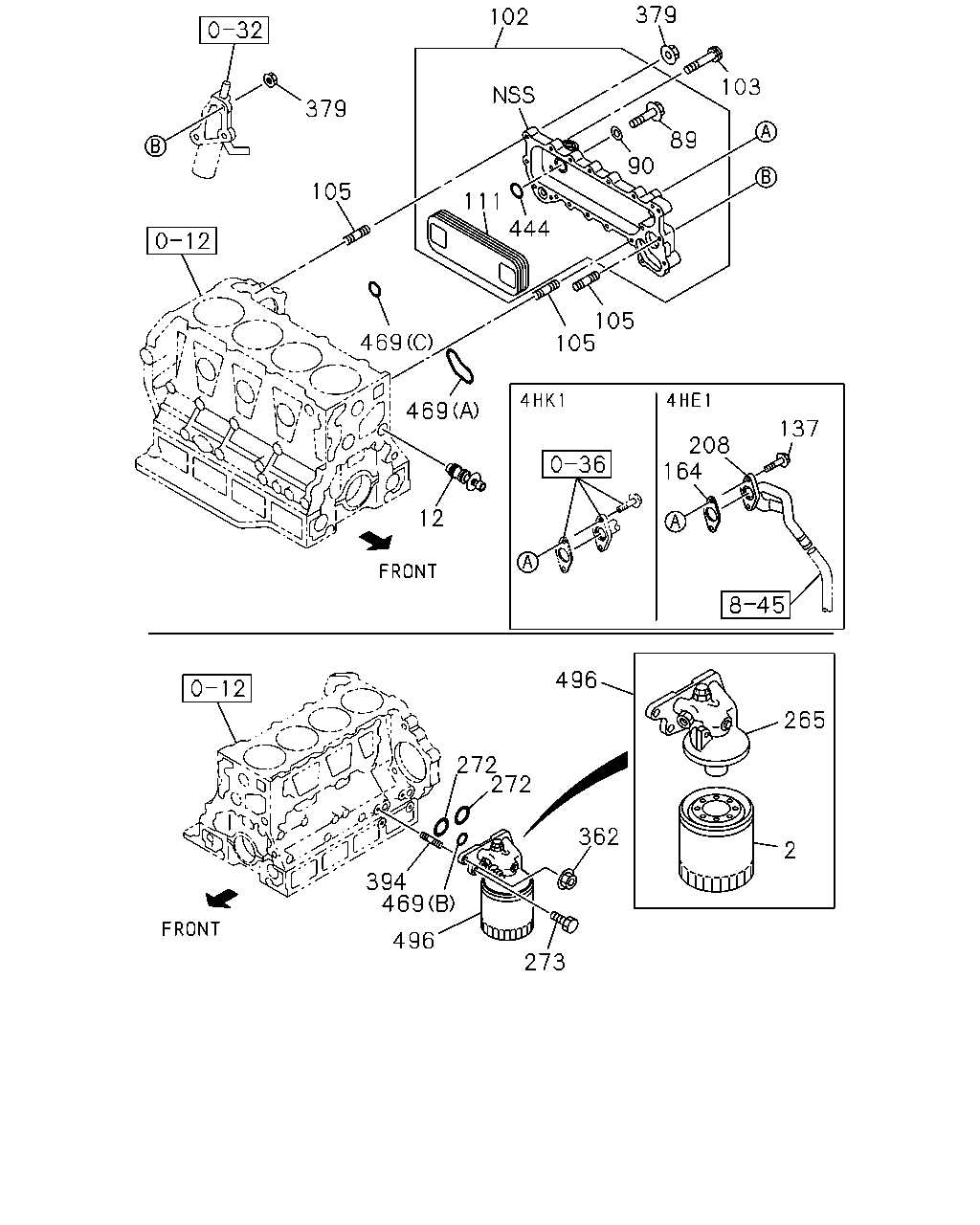

379 102 103 379 89 90 105 111 444 105 105 469 469 137 208 164 12 496 265 272 272 362 2 394 469 496 273

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0302-0506				●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0507-0606					●	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0607-							●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0302-0506	●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0507-0606		●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	0607-			●
12	01.540 VALVE ASM; BYPASS	8-97075-754-0	01	1	0302-0506				●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0507-0606					●	●
12	01.540 VALVE ASM; BYPASS	8-97013-566-2	01	1	0607-							●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0302-0506				●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0507-0606					●	●
89	01.540 BOLT; ELEMENT TO CASE 01.062 M8X16 FLANGE	0-28080-816-0	04	1	0607-0707							●
89	01.540 BOLT; ELEMENT TO CASE 02.343 M8X16 FLANGE	0-28050-816-0	04	1	0708-							●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0302-0506				●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0507-0606					●	●
90	01.540 GASKET; BOLT,OIL COOLER 01.550	1-21729-043-0	04	1	0607-							●
102	01.540 COOLER ASM; OIL	8-97333-877-0	01	1	0302-0406				●
102	01.540 COOLER ASM; OIL	8-97385-201-0	01	1	0407-0506				●
102	01.540 COOLER ASM; OIL	8-97385-201-0	01	1	0507-0606					●	●
102	01.540 COOLER ASM; OIL	8-97385-201-1	01	1	0607-0707							●
102	01.540 COOLER ASM; OIL	8-98085-312-3	01	1	0708-							●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	0302-0506				●
103	01.540 BOLT; OIL COOLER 07.010 M8X20 FLANGE	0-28080-820-0	08	1	0507-0512					●	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0601-0606					●	●
103	01.540 BOLT; OIL COOLER 04.338 M8X20 FLANGE	0-28050-820-0	08	1	0607-							●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	0302-0506				●
103	01.540 BOLT; OIL COOLER 03.415 M8X35 FLANGE	0-28080-835-0	08	1	0507-0512					●	●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	08	1	0601-0606					●	●
103	01.540 BOLT; OIL COOLER 03.162 M8X35 FLANGE	0-28050-835-0	08	1	0607-							●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0302-0506				●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0507-0606					●	●
105	01.540 STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0607-							●
111	01.540 CORE; OIL COOLER	8-97334-100-0	01	1	0302-0506				●
111	01.540 CORE; OIL COOLER	8-97334-100-0	01	1	0507-0606					●	●
111	01.540 CORE; OIL COOLER	8-97334-100-2	01	1	0607-							●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506				●
137	01.840 BOLT 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512					●	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606					●	●
137	01.840 BOLT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-							●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0302-0506				●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0507-0606					●	●
164	01.550 GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0607-							●
208	01.540 PIPE; WATER,HTR	8-97146-519-0	01	1	0302-0506				●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	0302-0506				●
265	01.837 BODY; OIL FILTER	8-97096-677-3	01	1	0507-0606					●	●
265	01.837 BODY; OIL FILTER	8-97096-677-4	01	1	0607-							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0302-0506				●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0507-0606					●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0607-							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0302-0506	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0507-0606		●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0302-0506				●
273	01.840 BOLT; OIL FILTER 08.900 M10X30 FLANGE	0-28781-030-0	02	1	0507-0512					●	●
273	01.840 BOLT; OIL FILTER 00.780 M10X30 FLANGE	0-28751-030-0	02	1	0601-0606					●	●
273	01.840 BOLT; OIL FILTER M10X30	0-59311-030-0	03	1	0607-0805							●
273	01.840 BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	0806-							●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0302-0506				●
362	01.837 NUT; OIL FILTER 04.785 M10 FLANGE	0-91150-110-0	02	1	0507-0602					●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	02	1	0603-0606					●	●
362	01.837 NUT; OIL FILTER 03.162 M10 FLANGE	0-91180-110-0	01	1	0607-							●
362	01.837 NUT; OIL FILTER 01.540 M8 FLANGE	0-91180-208-0	02	1	0607-			●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0302-0506				●
379	01.540 NUT; OIL COOLER 07.633 M8 FLANGE	0-91150-108-0	03	1	0507-0602					●	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0603-0606					●	●
379	01.540 NUT; OIL COOLER 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-							●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0302-0506				●
394	01.837 STUD; OIL FILTER 03.275 M10X25 L=40	0-49841-025-0	02	1	0507-0512					●	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	02	1	0601-0606					●	●
394	01.837 STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	0607-							●
444	01.550 GASKET; ELEMENT TO BODY	8-97028-586-0	02	1	0302-0406				●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0407-0506				●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0507-0606					●	●
444	01.550 GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0607-							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0302-0506				●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0507-0606					●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0607-							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0302-0506				●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0507-0606					●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). 01.844 (B) ID=9.8	8-94399-339-0	01	1	0607-							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0302-0506				●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0507-0606					●	●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) ID=26.2	9-09566-226-0	01	1	0607-0607							●
469	01.550 GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0607-							●
496	01.835 FILTER ASM; OIL	8-97148-268-2	01	1	0302-0506				●
496	01.835 FILTER ASM; OIL	8-97148-268-2	01	1	0507-0606					●	●
496	01.835 FILTER ASM; OIL	8-97148-268-3	01	1	0607-							●

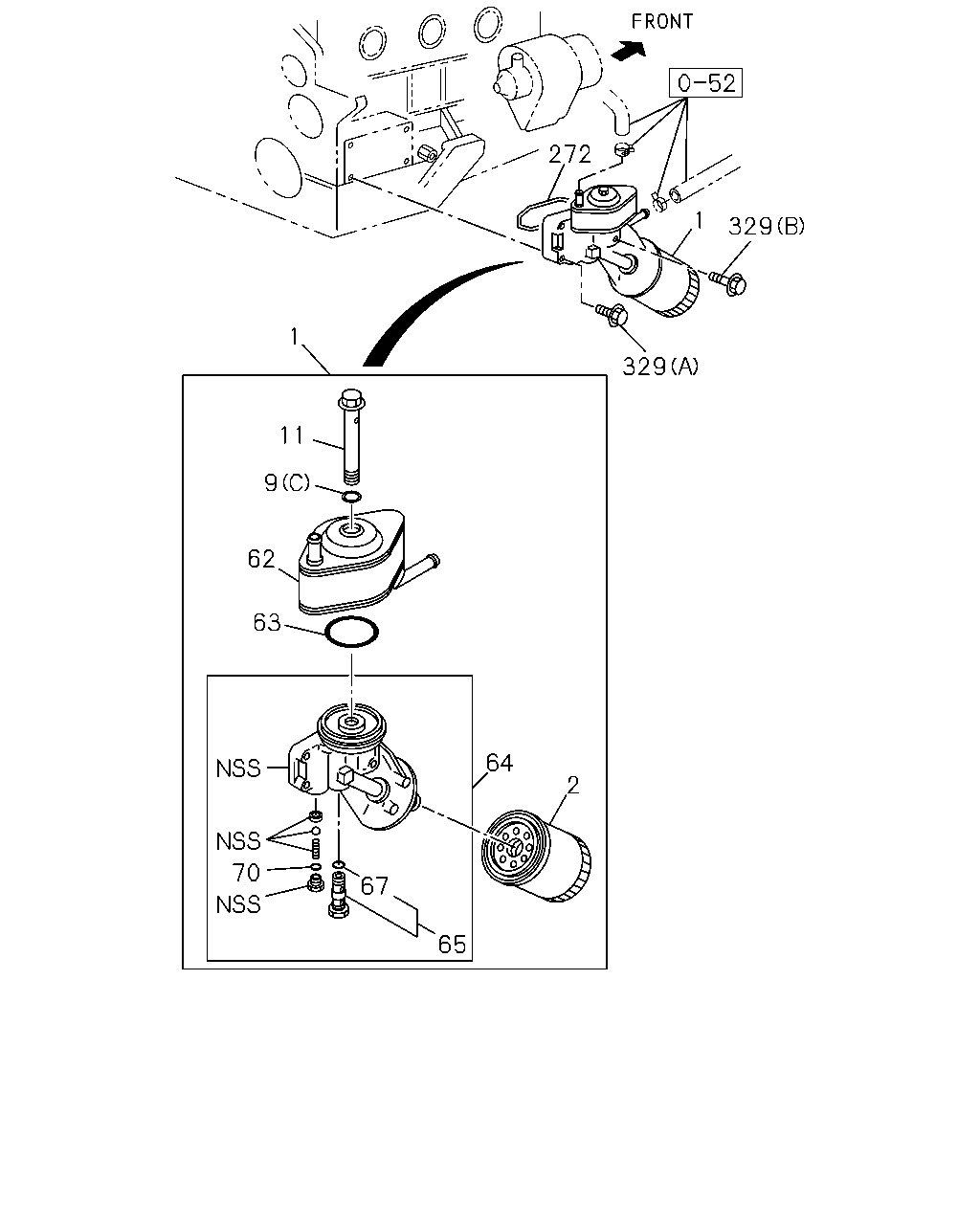

272 1 329 1 329 11 9 62 63 64 2 70 67 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0302-0506	●
1	01.540 FILTER & COOLER ASM; OIL	8-97239-978-1	01	1	0507-0606		●
1	01.540 FILTER & COOLER ASM; OIL	8-98003-929-9	01	1	0607-			●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0302-0506				●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0507-0606					●	●
2	01.836 ELEMENT; OIL FILTER	8-97148-270-1	01	1	0607-							●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0302-0506	●
2	01.836 ELEMENT; OIL FILTER	8-97329-911-0	01	1	0507-0606		●
2	01.836 ELEMENT; OIL FILTER	8-98018-858-0	01	1	0607-			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97047-000-0	01	1	0302-0506	●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (C)	8-97047-000-0	01	1	0507-0606		●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-09623-500-0	01	1	0607-			●
9	01.840 GASKET; CENTER BOLT ALSO INCLUDED IN GASKET SET(ENGINE). 01.550 (B) ID=26.2	9-09566-226-0	02	1	0607-			●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0302-0506	●
11	01.840 BOLT; CENTER	8-97094-724-1	01	1	0507-0606		●
11	01.840 BOLT; CENTER	8-98018-847-0	01	1	0607-			●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0302-0506	●
62	01.540 COOLER ASM; OIL	8-97301-588-0	01	1	0507-0606		●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0302-0506	●
63	01.550 GASKET; COOLER TO BRKT	8-94383-720-0	01	1	0507-0606		●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0302-0506	●
64	01.540 BODY; OIL FILTER & OIL COOLER	8-97313-207-1	01	1	0507-0606		●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0302-0506	●
65	01.540 VALVE; OIL COOLER	8-94450-772-0	01	1	0507-0606		●
67	01.550 GASKET; VLV	9-09562-215-0	01	1	0607-			●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0302-0506	●
67	01.550 GASKET; VLV 01.837	9-09920-975-0	01	1	0507-0606		●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0302-0506	●
70	01.844 GASKET; PLUG,OIL FILTER	9-09921-193-0	01	1	0507-0606		●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0302-0506				●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0507-0606					●	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0607-							●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0302-0506	●
272	01.844 GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97065-983-0	01	1	0507-0606		●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0302-0506	●
329	01.840 BOLT; OIL FILTER 00.004 (A) M8X32 FLANGE	0-28080-832-0	02	1	0507-0606		●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0302-0506	●
329	01.840 BOLT; OIL FILTER 01.251 (B) M8X60 FLANGE	0-28080-860-0	02	1	0507-0512		●
329	01.840 BOLT; OIL FILTER 04.686 (B) M8X60 FLANGE	0-28050-860-0	02	1	0601-0606		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
