0-42 — FUEL PUMP AND PIPE (#40861) — 101 parça

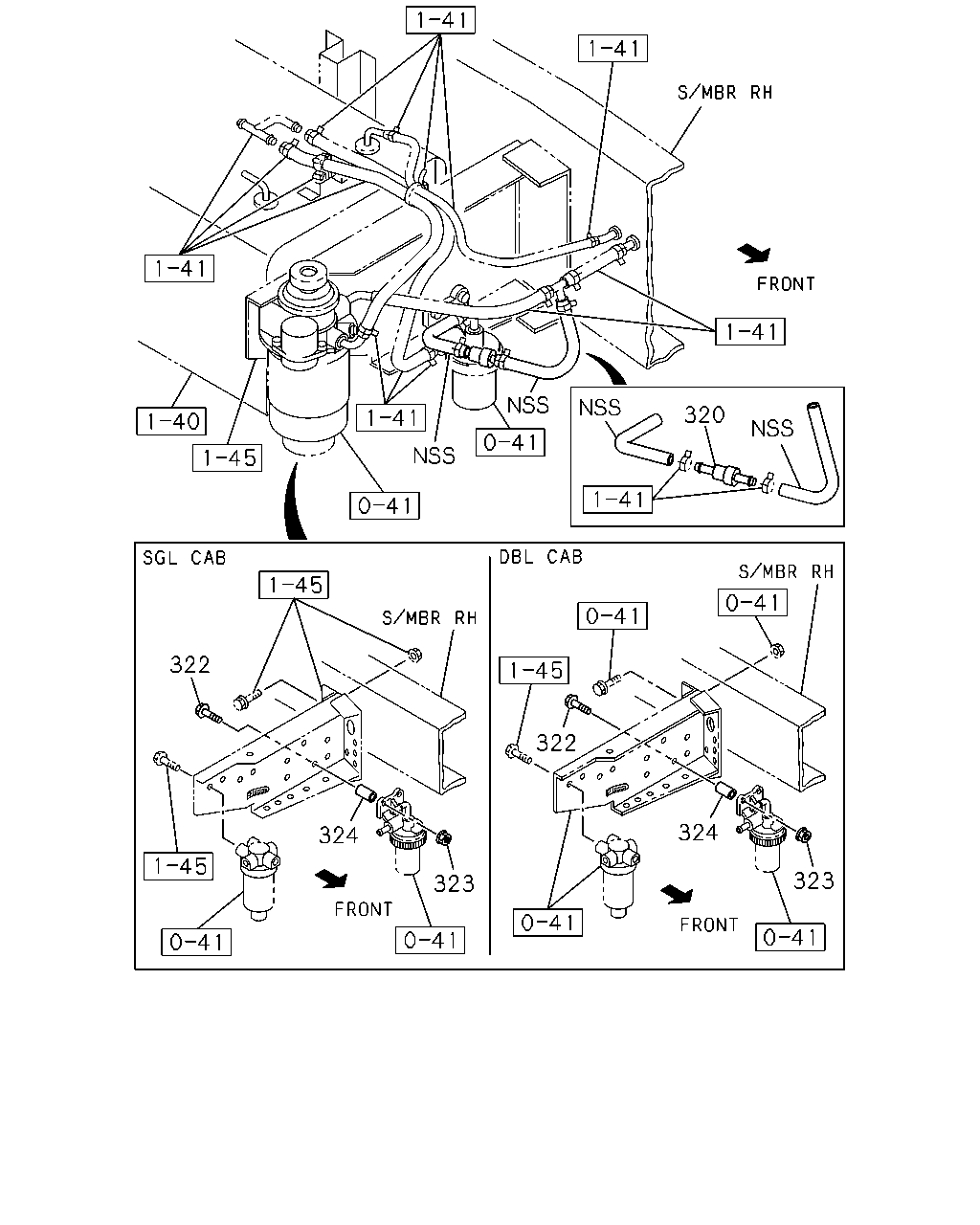

320 322 322 324 324 323 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
320	03.890 VALVE; CHECK FRIGID ZONE VAR.2(W54)	8-97367-794-0	01	1	0308-0606	●
322	03.890 BOLT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.251 M8X60 FLANGE	0-28080-860-0	02	1	0308-0512	●
322	03.890 BOLT; FUEL FILTER FRIGID ZONE VAR.2(W54) 04.686 M8X60 FLANGE	0-28050-860-0	02	1	0601-0606	●
323	03.890 NUT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.540 M8 FLANGE	0-91150-208-0	02	1	0308-0602	●
323	03.890 NUT; FUEL FILTER FRIGID ZONE VAR.2(W54) 01.540 M8 FLANGE	0-91180-208-0	02	1	0603-0606	●
324	03.890 SPACER; DISTANCE,FUEL FILTER FRIGID ZONE VAR.2(W54)	1-13666-052-0	02	1	0308-0606	●

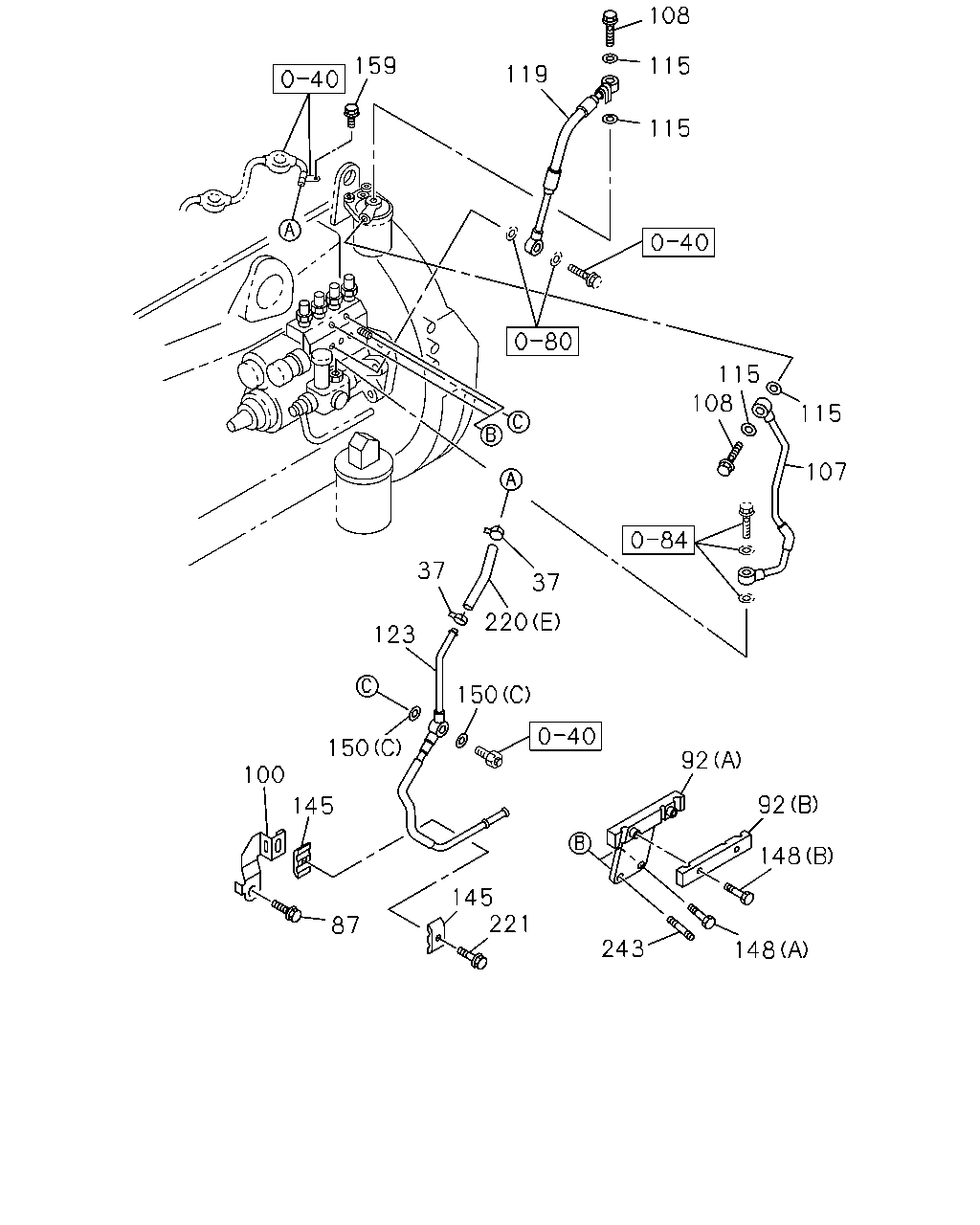

108 159 115 119 115 108 115 107 37 37 220 123 150 150 92 100 92 145 148 145 221 87 243 148 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
37	03.162 CLIP; FUEL HOSE 01.219 ID=12	8-94238-610-0	02	1	0302-0506	●
87	03.162 BOLT; STAY,FUEL PIPE 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0302-0506	●
92	03.162 BRACKET; FUEL PIPE (A)	8-97166-995-1	01	1	0302-0506	●
92	03.162 BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0302-0506	●
92	03.162 BRACKET; FUEL PIPE (C)	8-98033-839-1	01	1	0607-		●
100	03.162 CLIP; "B",FUEL PIPE	8-97108-315-0	01	1	0302-0506	●
107	03.163 PIPE; FUEL,FEED PUMP TO FUEL FIL	8-97148-967-3	01	1	0302-0506	●
108	03.162 BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	02	1	0302-0506	●
115	03.162 GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 ID=14.2 OD=23.0	9-09572-014-0	04	1	0302-0506	●
119	03.163 PIPE; FUEL,FUEL FILTER TO INJ PU	8-97357-237-0	01	1	0302-0506	●
123	03.163 PIPE; FUEL,FUEL FILTER LEAK OFF	8-97148-970-2	01	1	0302-0506	●
145	03.162 CLIP; FUEL PIPE 03.330 ID=6.1 & 9.6	8-97016-323-0	02	1	0302-0506	●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	0302-0506	●
148	03.162 BOLT; BRKT 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0302-0506	●
148	03.162 BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-		●
148	03.162 BOLT; BRKT 02.510 (D) M12X100 FLANGE	0-28151-200-0	01	1	0607-		●
148	03.162 BOLT; BRKT 00.685 (E) M12X45 FLANGE	0-28151-245-0	02	1	0607-		●
148	03.162 BOLT; BRKT 00.206 (F) M12X70 FLANGE	0-28151-270-0	01	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0302-0506	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0607-0908		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0302-0506	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512			●	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-0606			●	●
220	03.163 HOSE; FUEL (E) L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●
220	03.163 HOSE; FUEL (A)	8-98036-178-1	01	1	0607-		●
220	03.163 HOSE; FUEL (B)	8-98036-179-2	01	1	0607-		●
220	03.163 HOSE; FUEL (C)	8-98036-203-1	01	1	0607-0812		●
220	03.163 HOSE; FUEL (C)	8-98126-630-0	01	1	0901-		●
220	03.163 HOSE; FUEL (D)	8-98036-204-1	01	1	0607-		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0302-0506	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-0606			●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0607-		●
243	03.278 STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0302-0506	●
243	03.278 STUD; BRKT 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	0607-		●

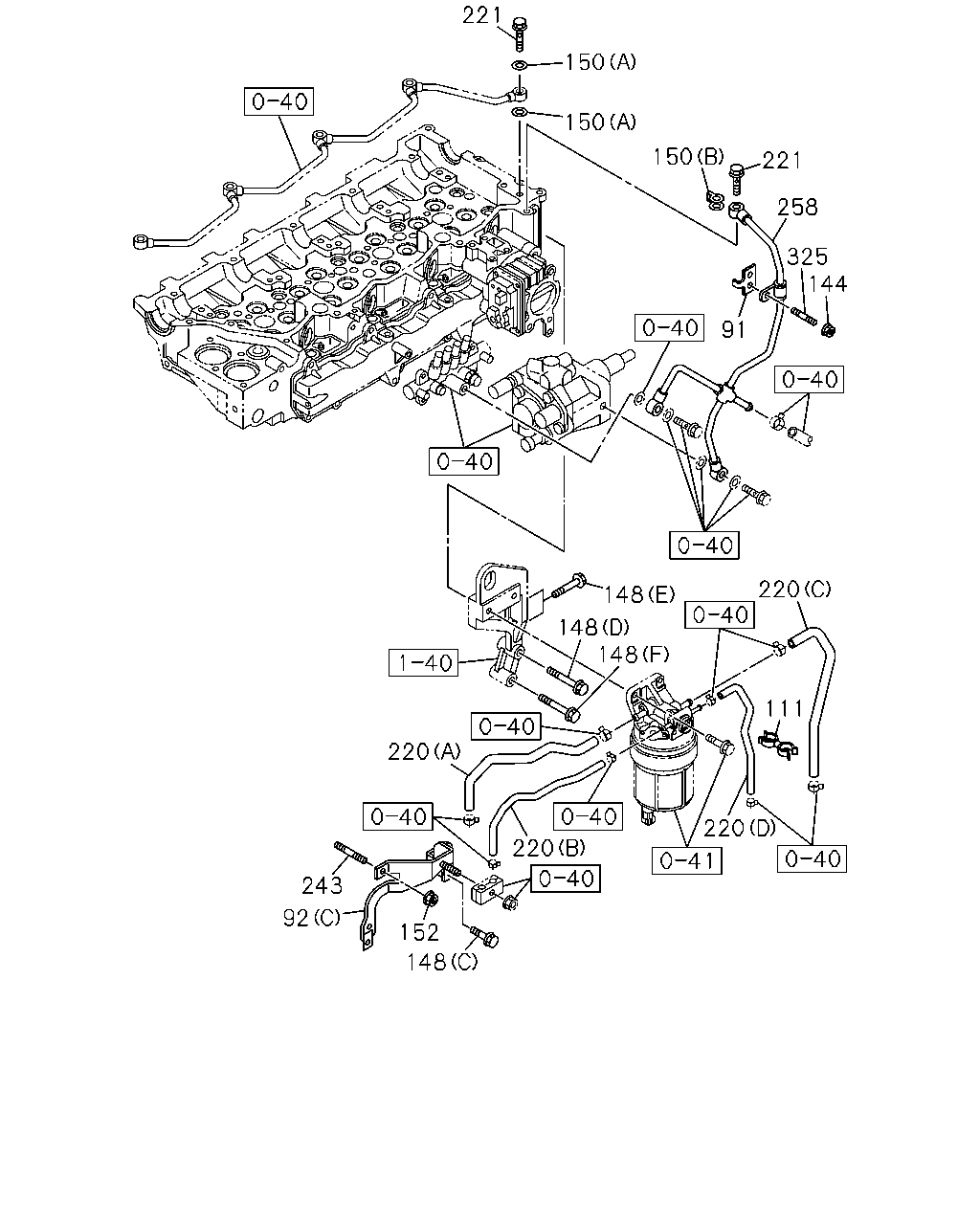

221 150 150 150 221 258 325 144 91 220 148 148 148 111 220 220 220 243 92 152 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
91	03.162 BRACKET; FUEL PIPE TO INL MANIF	8-98033-979-0	01	1	0607-		●
92	03.162 BRACKET; FUEL PIPE (A)	8-97166-995-1	01	1	0302-0506	●
92	03.162 BRACKET; FUEL PIPE (B)	8-97173-465-2	01	1	0302-0506	●
92	03.162 BRACKET; FUEL PIPE (C)	8-98033-839-1	01	1	0607-		●
111	03.162 CLIP; FUEL PIPE 02.589 ID=13 & 16.5	8-94169-028-0	02	1	0607-		●
144	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602			●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606			●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	03	1	0607-		●
148	03.162 BOLT; BRKT 00.724 (A) M8X16 FLANGE	0-28090-816-0	01	1	0302-0506	●
148	03.162 BOLT; BRKT 02.334 (B) M6X25 FLANGE	0-28680-625-0	02	1	0302-0506	●
148	03.162 BOLT; BRKT (C) M6X12 FLANGE	0-28050-612-0	03	1	0607-		●
148	03.162 BOLT; BRKT 02.510 (D) M12X100 FLANGE	0-28151-200-0	01	1	0607-		●
148	03.162 BOLT; BRKT 00.685 (E) M12X45 FLANGE	0-28151-245-0	02	1	0607-		●
148	03.162 BOLT; BRKT 00.206 (F) M12X70 FLANGE	0-28151-270-0	01	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0302-0506	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0607-0908		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-		●
152	03.890 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●
220	03.163 HOSE; FUEL (E) L=180 SERVICED BY L=3000	0-01256-300-0	01	1	0302-0506	●
220	03.163 HOSE; FUEL (A)	8-98036-178-1	01	1	0607-		●
220	03.163 HOSE; FUEL (B)	8-98036-179-2	01	1	0607-		●
220	03.163 HOSE; FUEL (C)	8-98036-203-1	01	1	0607-0812		●
220	03.163 HOSE; FUEL (C)	8-98126-630-0	01	1	0901-		●
220	03.163 HOSE; FUEL (D)	8-98036-204-1	01	1	0607-		●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0302-0506	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-0606			●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0607-		●
243	03.278 STUD; BRKT M6X14,M8X17 L=42	5-09309-006-1	01	1	0302-0506	●
243	03.278 STUD; BRKT 00.413 M8X15,M8X17 L=40	8-98009-913-0	01	1	0607-		●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0507-0606			●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-98033-718-0	01	1	0607-		●
325	03.278 STUD; CLIP 01.453 M6X40 L=50	9-04110-640-0	01	1	0507-0604			●	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-0606			●	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0607-		●

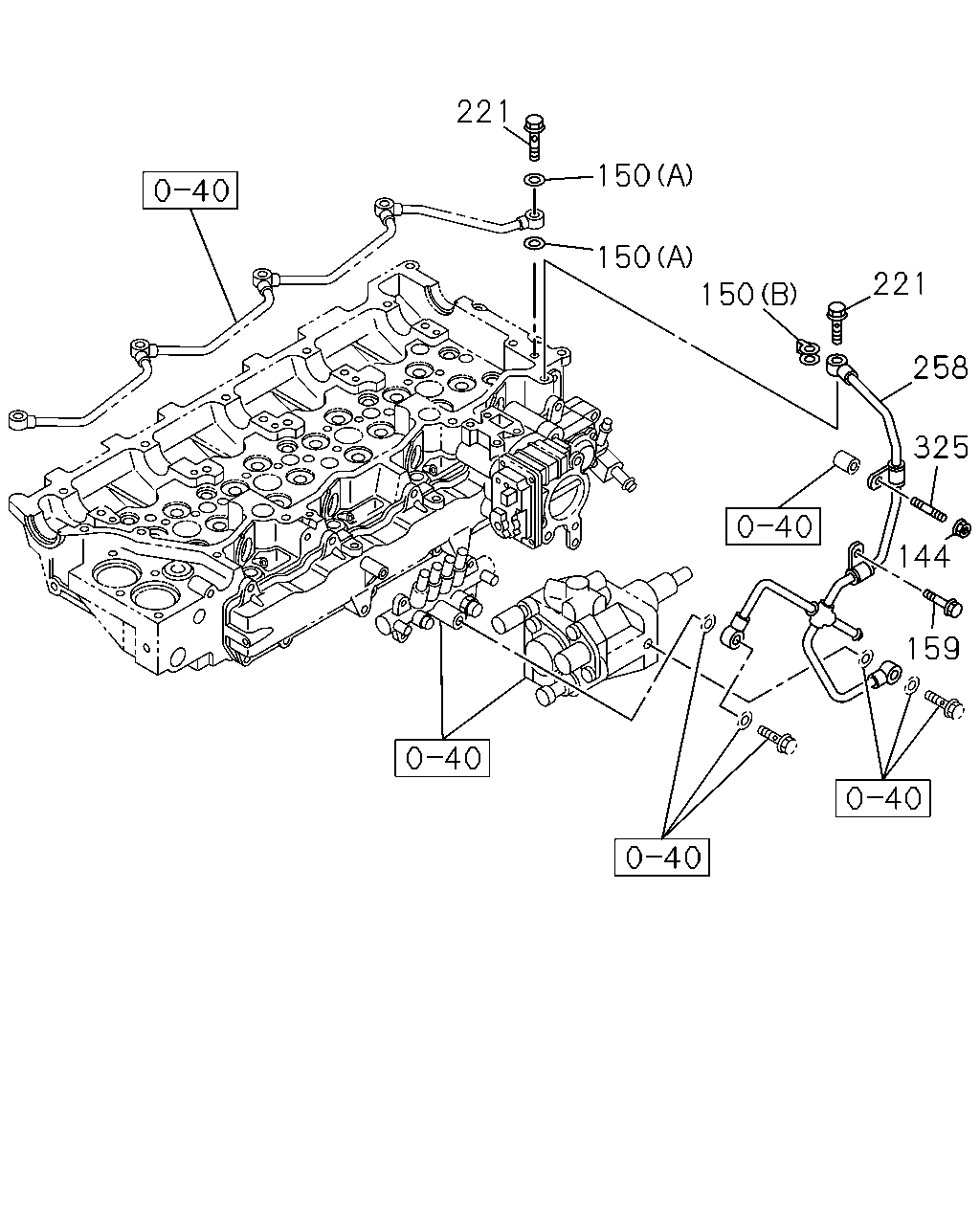

221 150 150 150 221 258 325 144 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D	E
144	03.162 NUT; CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0507-0602			●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606			●	●
144	03.162 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	03	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 03.107 (C) ID=14.2 OD=23.0	9-09572-014-0	02	1	0302-0506	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0607-		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0507-0606			●	●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) 01.531 (B) ID=10.6	8-97240-975-0	01	1	0607-0908		●
150	03.162 GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & H EAD) (B) ID=10.2 OD=17	8-98079-755-0	01	1	0909-		●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0302-0506	●
159	03.162 BOLT; CLIP 01.428 M6X12 FLANGE	0-28080-612-0	01	1	0507-0512			●	●
159	03.162 BOLT; CLIP M6X12 FLANGE	0-28050-612-0	01	1	0601-0606			●	●
221	03.163 BOLT; FUEL PIPE M6X40 FLANGE	0-28680-640-0	01	1	0302-0506	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0507-0606			●	●
221	03.163 BOLT; FUEL PIPE 01.531 M10X21 FLANGE	8-94396-711-0	02	1	0607-		●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-97372-231-0	01	1	0507-0606			●	●
258	03.163 PIPE ASM; FUEL,LEAK OFF	8-98033-718-0	01	1	0607-		●
325	03.278 STUD; CLIP 01.453 M6X40 L=50	9-04110-640-0	01	1	0507-0604			●	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0605-0606			●	●
325	03.278 STUD; CLIP M6X40 L=50	0-41010-640-0	01	1	0607-		●
