Sayfa 4-35 - Isuzu EPC

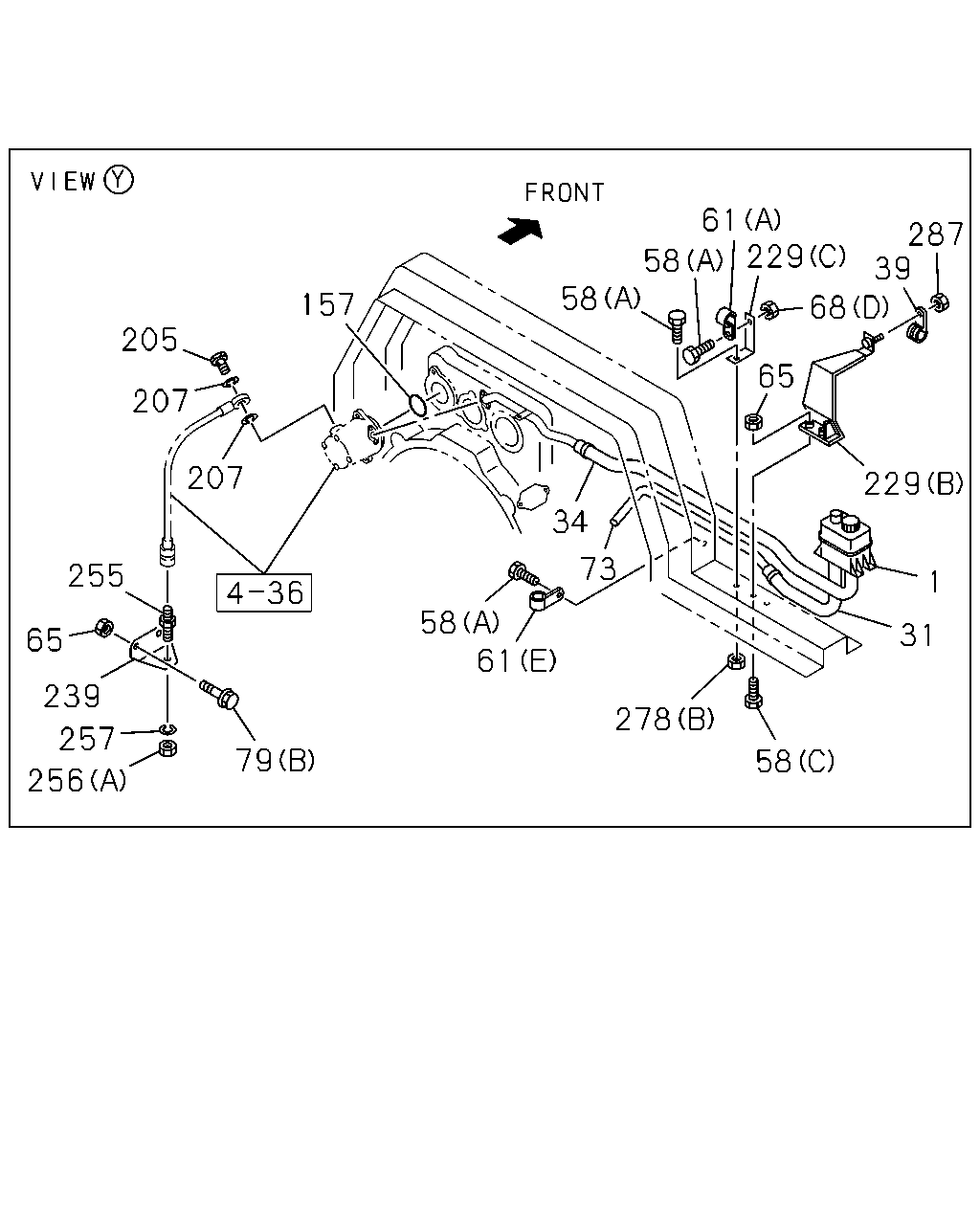

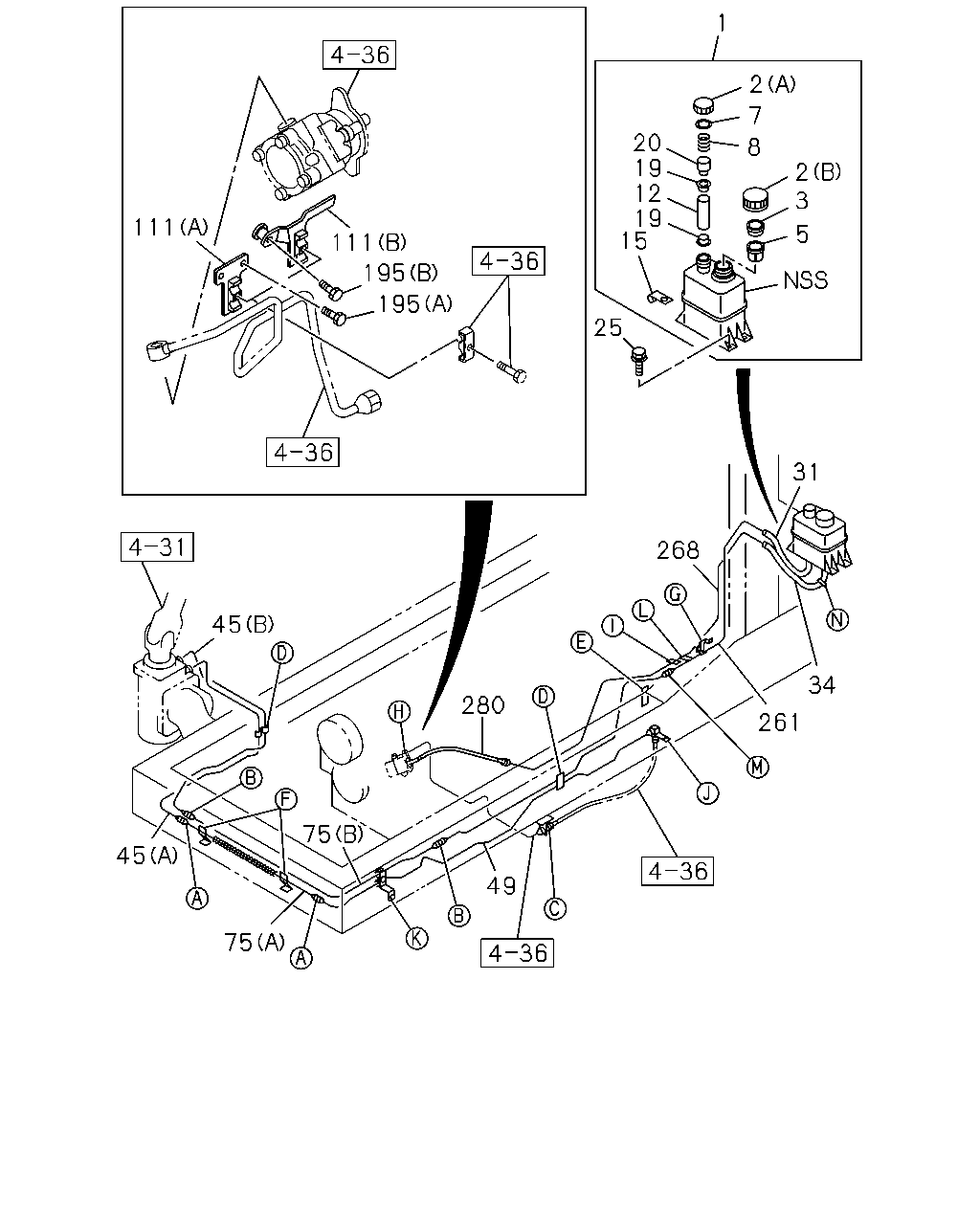

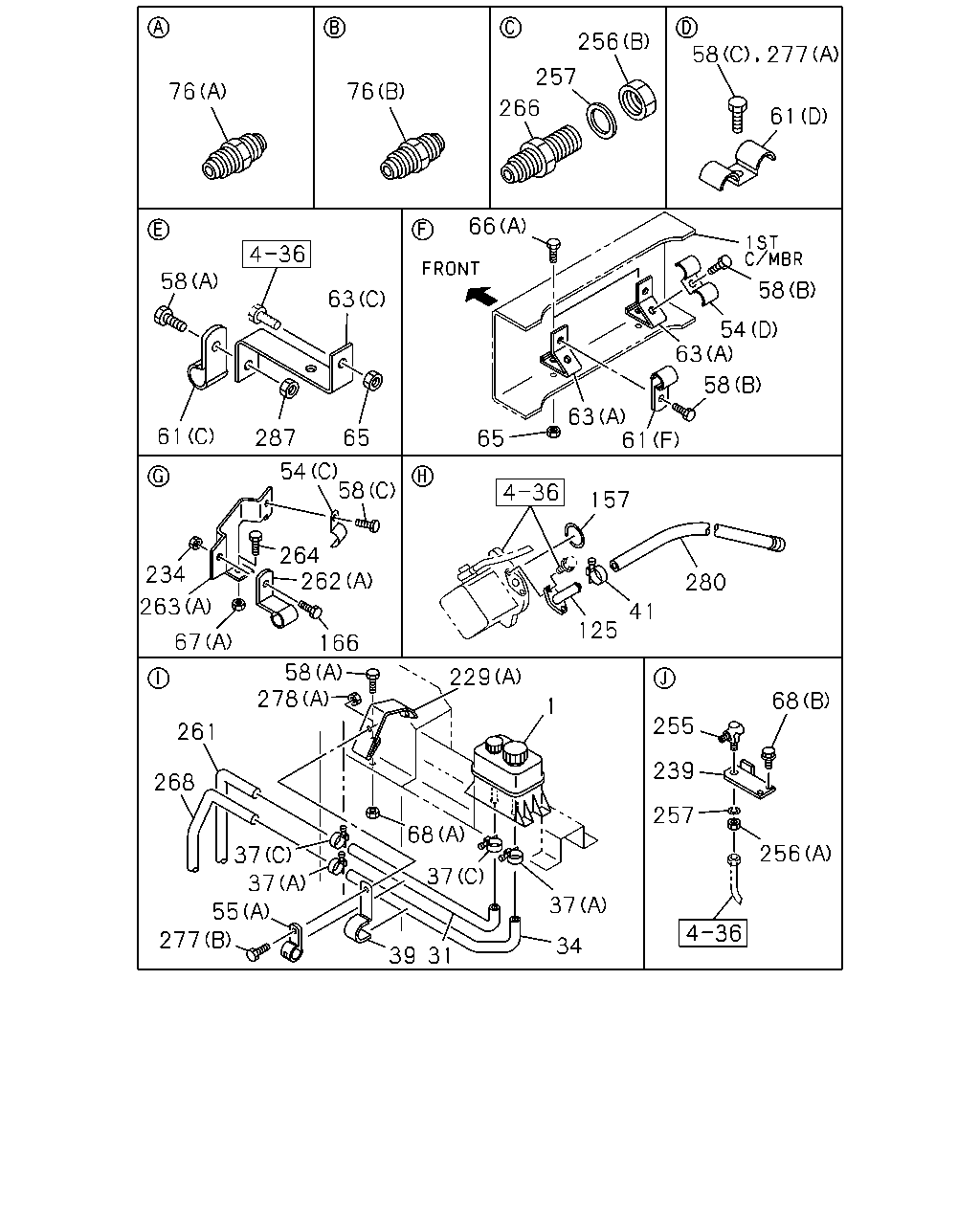

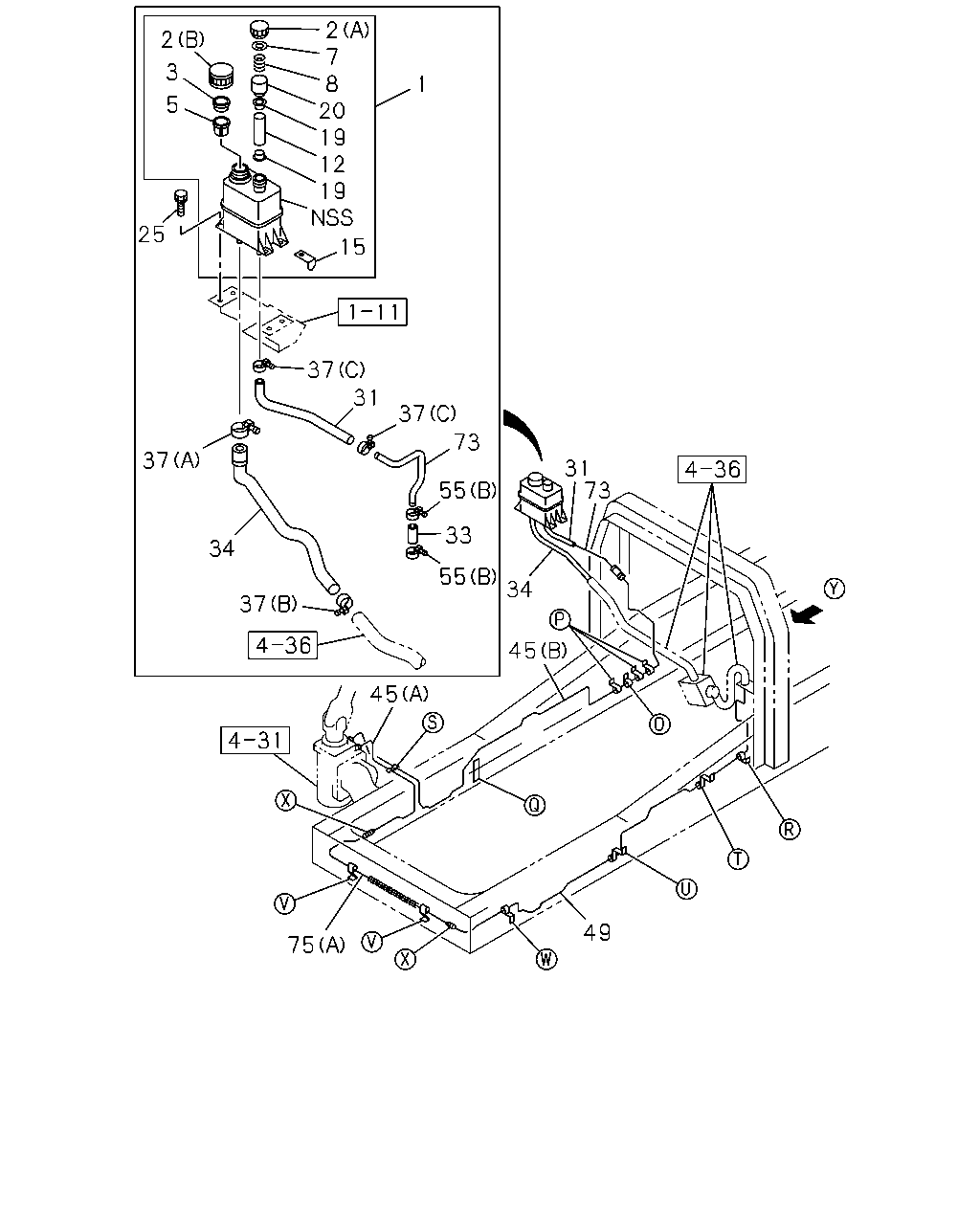

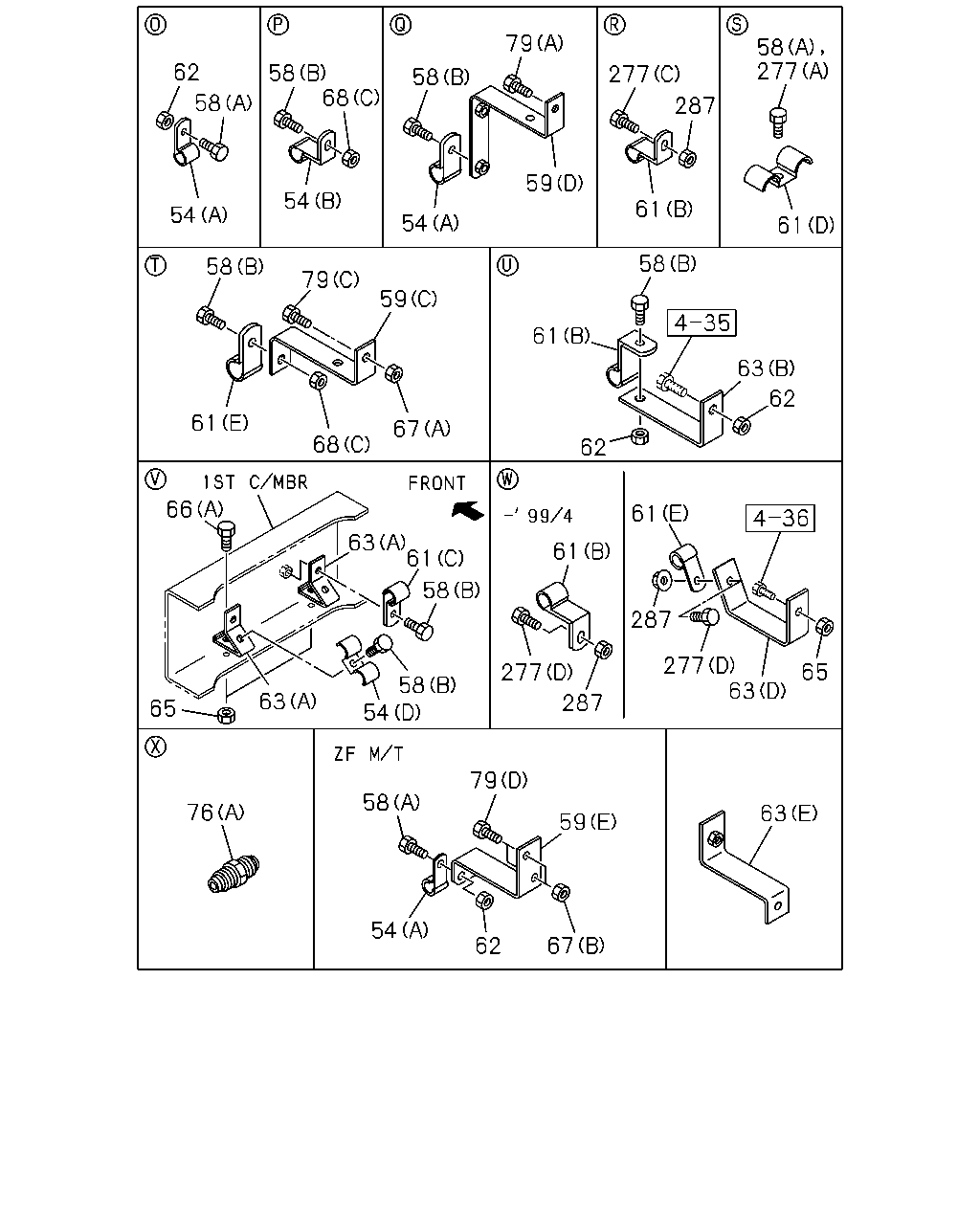

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#4086) — 715 parça

79 58 277 62 58 68 277 58 58 287 59 54 61 54 54 61 58 58 79 59 61 63 62 61 67 68 62 66 61 63 61 61 58 287 277 63 65 277 58 54 65 63 287 79 58 76 63 59 54 67 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9603-9904	●	●
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9603-9606		●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9607-	●	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-	●	●
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9607		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9608-9904	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-833-0	01	1	9607-9904	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-833-0	01	1	9905-	●	●
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9603-	●	●
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	01	1	9603-	●	●
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9603-9712	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9603-9606		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9607-9904	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (F)	1-47477-235-0	01	1	9905-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9603-9606		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9607-9607	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	9607-9904		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	03	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=13 L=20	9-09525-235-0	01	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9607-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9607-9608	●	●
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9607-9702	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	02	1	9703-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	04	1	9905-	●	●
62	NUT; CLIP FIX 10PE1S(60L) ZF M/T<X9E> M8	9-09110-508-0	01	1	9603-9606	●	●
62	NUT; CLIP FIX V TYPE ENG<91L> M8	9-09110-508-0	01	1	9603-9606	●	●
62	NUT; CLIP FIX 10PE1S(60L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
62	NUT; CLIP FIX V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9607-9607	●	●
62	NUT; CLIP FIX 10PE1S(60L) ZF M/T<X9E> M8 FLANGE	0-91150-108-0	01	1	9608-9712	●	●
62	NUT; CLIP FIX V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9608-9712	●	●
62	NUT; CLIP FIX V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9801-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9603-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-47476-712-0	01	1	9603-9608	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9603-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9607-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9607-9904	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9905-	●	●
65	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
67	NUT; BRKT (A) M8	9-09110-508-0	01	1	9603-9606	●	●
67	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10	9-09110-510-0	02	1	9603-9606	●	●
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9712	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-9706	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606		●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606		●
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9603-9904	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712	●	●
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●	●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9707-	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606		●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●
287	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
287	NUT; CLIP L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●

262 59 59 65 263 65 61 66 76 65 63 79 64 59 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9603-9904	●	●
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9603-9606		●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9607-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-833-0	01	1	9607-9904	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-833-0	01	1	9905-	●	●
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (D)	1-47477-434-0	01	1	9603-	●	●
59	BRACKET; CLIP,OIL PIPE V TYPE ENG<91L> (C) L=90	1-82699-856-0	01	1	9603-	●	●
59	BRACKET; CLIP,OIL PIPE 10PE1S(60L) ZF M/T<X9E> (E)	1-47477-630-0	01	1	9603-9712	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9603-9606		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (A)	1-47475-881-0	01	1	9607-9904	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (F)	1-47477-235-0	01	1	9905-	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9603-9606		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> (B)	1-47477-145-0	01	1	9607-9607	●	●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	9607-9904		●
59	BRACKET; CLIP,OIL PIPE L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B)	1-47477-145-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	03	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=13 L=20	9-09525-235-0	01	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9607-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9607-9608	●	●
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9607-9702	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	02	1	9703-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	04	1	9905-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9603-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-47476-712-0	01	1	9603-9608	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9603-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9607-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9607-9904	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9905-	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X20 FLANGE	0-28080-820-0	01	1	0104-	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
64	BOLT; CLIP BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-0103	●	●
64	BOLT; CLIP BRKT L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M8X25 FLANGE	0-28080-825-0	01	1	0104-	●	●
65	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9603-9904	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9606		●
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9607-	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9603-9606		●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9607-9702	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9603-9606		●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9607-	●	●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-2	01	1	9603-9606		●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-3	01	1	9607-	●	●

256 257 76 76 266 61 66 58 58 63 54 63 58 63 61 61 287 65 65 54 58 157 264 262 234 280 263 41 125 67 166 58 278 229 68 1 255 261 239 268 257 68 256 37 37 37 37 55 277 34 39 31 58 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-9606		●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9607-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-9606		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9607-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9603-9806	●	●
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9603-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9603-9806	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9603-9606		●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9607-9806	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-	●	●
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9603-	●	●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9603-9606		●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9607-	●	●
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	01	1	9603-9606		●
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	01	1	9607-9710	●	●
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-666-1	02	1	9711-9806	●	●
41	CLIP; HOSE,P/S L TYPE ENG<90L> ID=38	9-09915-041-1	02	1	9807-	●	●
54	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	9603-9904	●	●
54	CLIP; OIL PIPE (D) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
54	CLIP; OIL PIPE FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
54	CLIP; OIL PIPE ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=15 H=24 L=20	1-09700-606-0	02	1	9603-	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-536-0	02	1	9603-9702	●	●
54	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=16 L=20	9-09525-535-0	02	1	9703-	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
54	CLIP; OIL PIPE 10PE1S(60L) ZF M/T<X9E> (A) ID=16 L=20	9-09525-535-0	01	1	9703-9712	●	●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9603-9606		●
54	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=23.6 L=35	1-09700-634-0	02	1	9607-	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9603-9806	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-	●	●
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9603-9606		●
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9607-	●	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-	●	●
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9607		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9608-9904	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	03	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=13 L=20	9-09525-235-0	01	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9607-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9607-9608	●	●
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9607-9702	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	02	1	9703-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	04	1	9905-	●	●
63	BRACKET; CLIP,P/S (A)	1-47477-621-1	02	1	9603-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-47476-712-0	01	1	9603-9608	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (B)	1-34656-009-0	01	1	9609-	●	●
63	BRACKET; CLIP,P/S V TYPE ENG<91L> (E) L=90	1-82699-856-0	01	1	9603-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (C)	1-47475-963-1	01	1	9607-	●	●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9603-9606		●
63	BRACKET; CLIP,P/S L TYPE ENG<90L> (D)	1-47477-193-0	01	1	9607-9904	●	●
63	BRACKET; CLIP,P/S (D)	1-47477-193-0	01	1	9905-	●	●
65	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
66	BOLT; BRKT,OIL PIPE (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X25 FLANGE	0-28080-825-0	02	1	9603-9606		●
66	BOLT; BRKT,OIL PIPE L TYPE ENG<90L> (B) M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●	●
67	NUT; BRKT (A) M8	9-09110-508-0	01	1	9603-9606	●	●
67	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10	9-09110-510-0	02	1	9603-9606	●	●
67	NUT; BRKT 10PE1S(60L) ZF M/T<X9E> (B) M10 FLANGE	0-91150-210-0	02	1	9607-9712	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-9706	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606		●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606		●
76	UNION; OIL PIPE (A) M20 STRAIGHT	9-09233-012-1	02	1	9603-9904	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9603-9606		●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
76	UNION; OIL PIPE L TYPE ENG<90L> (B) M22	9-09233-015-1	01	1	9607-	●	●
125	CONNECTOR; P/S PUMP 6WA1 TC-S(56L)	1-13313-532-0	01	1	9603-9606		●
125	CONNECTOR; P/S PUMP 6WA1 TC-S(56L)	1-13313-532-0	01	1	9607-9706	●	●
125	CONNECTOR; P/S PUMP 6WA1 TC-S(56L),6WG1 TC-N(71L)	1-13313-532-0	01	1	9707-9904	●	●
125	CONNECTOR; P/S PUMP 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L)	1-13313-532-0	01	1	9905-	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9603-	●	●
166	BOLT; CLIP L TYPE ENG<90L> M8X20 FLANGE	0-28080-820-0	01	1	9603-9606		●
166	BOLT; CLIP L TYPE ENG<90L> M8X25 FLANGE	0-28680-825-0	01	1	9607-	●	●
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9603-	●	●
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9603-	●	●
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9603-9606		●
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9607-	●	●
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8	9-09110-508-0	02	1	9603-9606		●
234	NUT; PIPE CLIP,P/S L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9603-9904	●	●
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-	●	●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9603-9606		●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9607-	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9904	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9603-9606		●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9607-9904	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9603-	●	●
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9603-9606		●
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9607-9706	●	●
256	NUT; UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09111-522-0	01	1	9707-9904	●	●
256	NUT; UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09111-522-0	01	1	9905-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9603-9606	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.5	9-09150-522-0	01	1	9603-9606		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9607-9609	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.5	9-09150-522-0	01	1	9607-9609	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9610-9706	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9610-9706	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9707-9904	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=22.5	9-09150-522-0	01	1	9707-9904	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9905-	●	●
257	WASHER; LK,UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=22.5	9-09150-522-0	01	1	9905-	●	●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9603-9606		●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9607-0104	●	●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1031	1-21117-048-0	01	1	0105-	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9606		●
262	CLIP; P/S PIPE L TYPE ENG<90L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9607-	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9603-9606		●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-536-0	01	1	9607-9702	●	●
262	CLIP; P/S PIPE L TYPE ENG<90L> (B) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9603-9606		●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (A)	1-47476-483-2	01	1	9607-	●	●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-2	01	1	9603-9606		●
263	BRACKET; P/S PIPE L TYPE ENG<90L> (B)	1-47477-597-3	01	1	9607-	●	●
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X25 FLANGE	0-28080-825-0	01	1	9603-9606		●
264	BOLT; PIPE BRKT L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9606		●
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9607-9706	●	●
266	UNION; OIL PIPE,P/S 6WA1 TC-S(56L),6WG1 TC-N(71L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9707-9904	●	●
266	UNION; OIL PIPE,P/S 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M20 & M22 STRAIGHT	1-09654-167-1	01	1	9905-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9905-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9603-9606		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9607-9904	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9905-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-	●	●
277	BOLT; HOSE CLIP (A) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
277	BOLT; HOSE CLIP (A) M8X20 FLANGE	0-28680-820-0	02	1	9607-9904	●	●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (A) M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9607-9706	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (C) M8X25 FLANGE	0-28680-825-0	01	1	9707-	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●	●
277	BOLT; HOSE CLIP V TYPE ENG<91L> (D) M8X20 FLANGE	0-28680-820-0	03	1	9905-	●	●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X20 FLANGE	0-28081-020-0	01	1	9603-9606		●
277	BOLT; HOSE CLIP L TYPE ENG<90L> (B) M10X25 FLANGE	0-28681-025-0	01	1	9607-	●	●
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9603-9606	●	●
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10	9-09110-510-0	01	1	9603-9606		●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-9607		●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9608-	●	●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9603-9606		●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9607-9704	●	●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9705-	●	●
287	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
287	NUT; CLIP L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●

2 7 8 20 19 12 19 2 3 1 5 25 15 37 31 37 73 37 31 73 55 33 34 55 34 37 45 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9603-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9603-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9603-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9603-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9603-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9603-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9603-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9603-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9603-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9603-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-	●	●
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-9606		●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9607-	●	●
33	HOSE; RUBBER,POWER STRG V TYPE ENG<91L> L=80	1-09360-570-0	01	1	9603-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-9606		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9607-	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9603-9806	●	●
37	CLIP; HOSE,P/S (C) ID=30	9-09915-315-1	02	1	9807-9807	●	●
37	CLIP; HOSE,P/S (C) ID=28	9-09915-672-1	02	1	9808-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (B) ID=32	1-09704-085-0	01	1	9603-	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-666-1	01	1	9603-9806	●	●
37	CLIP; HOSE,P/S V TYPE ENG<91L> (A) ID=38	9-09915-041-1	01	1	9807-	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9603-9606		●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-666-1	02	1	9607-9806	●	●
37	CLIP; HOSE,P/S L TYPE ENG<90L> (A) ID=38	9-09915-041-1	02	1	9807-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9603-9904	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9603-9904		●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21115-369-0	01	1	9603-9702	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21115-834-0	01	1	9703-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1106	1-21116-239-0	01	1	9905-0006	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-849-0	01	1	0007-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (A)	1-21115-530-0	01	1	9603-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A)	1-21115-530-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 8PE1S(59L) (A)	1-21115-480-0	01	1	9603-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A)	1-21115-638-0	01	1	9603-9606		●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A)	1-21115-638-0	01	1	9607-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A) L=1234	1-21116-238-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-21115-527-0	01	1	9603-9904		●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-21115-527-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L>	1-21115-571-0	01	1	9603-9604	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L>	1-21115-654-0	01	1	9605-9608	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> ZF M/T<X9E>	1-21115-752-0	01	1	9609-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> ZF M/T<X9E>	1-21116-347-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9603-9606		●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9607-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> L=1663	1-21116-235-0	01	1	9905-9905	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> CAB UP +110MM<TGG> L=1663	1-21116-235-0	01	1	9905-	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9603-9806	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=30	9-09915-315-1	02	1	9807-9807	●	●
55	CLIP; P/S RUBBER HOSE V TYPE ENG<91L> (B) ID=28	9-09915-672-1	02	1	9808-	●	●
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9603-9606		●
55	CLIP; P/S RUBBER HOSE L TYPE ENG<90L> (A) ID=28 L=30	1-09700-607-1	01	1	9607-	●	●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9603-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9603-9904	●	●
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9905-0006	●	●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21115-639-0	01	1	9603-9606		●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21115-639-0	01	1	9607-9904	●	●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B) L=1807	1-21116-404-0	01	1	9905-	●	●

1 2 7 20 19 12 19 15 8 2 3 111 5 111 195 195 25 31 268 45 34 280 261 75 45 49 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-	●	●
2	CAP; OIL TANK,P/S (A) WO/GAUGE	1-21241-003-5	01	1	9603-	●	●
2	CAP; OIL TANK,P/S (B) W/GAUGE	1-21241-006-3	01	1	9603-	●	●
3	GASKET; OIL TANK,P/S	1-21249-006-2	01	1	9603-	●	●
5	STRAINER; OIL TANK,P/S	1-21235-006-1	01	1	9603-	●	●
7	RING; GASKET,OIL TANK,P/S	1-21249-005-0	01	1	9603-	●	●
8	SPRING; OIL TANK,P/S	1-09580-319-1	01	1	9603-	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	9603-	●	●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	9603-	●	●
19	SEAT; OIL TANK	1-21262-001-0	02	1	9603-	●	●
20	HOLDER; FILTER,OIL TANK,P/S	1-21239-001-2	01	1	9603-	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28080-820-0	04	1	9603-9606	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	9607-9802	●	●
25	BOLT; OIL TANK BRKT M8X20 FLANGE	0-28680-820-0	04	1	9803-	●	●
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-9606		●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9607-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-9606		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9607-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9603-9904	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9603-9904		●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) FRAME EQUIPMENT HEAVY DUTY<F03> ISUZU M/T<X9A> (A)	1-21115-529-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21115-369-0	01	1	9603-9702	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21115-834-0	01	1	9703-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B) L=1106	1-21116-239-0	01	1	9905-0006	●	●
45	PIPE; OIL,P/S UNIT TO UNION (B)	1-21116-849-0	01	1	0007-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ZF M/T<X9E> (A)	1-21115-530-0	01	1	9603-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ZF M/T<X9E> (A)	1-21115-530-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 8PE1S(59L) (A)	1-21115-480-0	01	1	9603-	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A)	1-21115-638-0	01	1	9603-9606		●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A)	1-21115-638-0	01	1	9607-9904	●	●
45	PIPE; OIL,P/S UNIT TO UNION L TYPE ENG<90L> (A) L=1234	1-21116-238-0	01	1	9905-	●	●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-21115-527-0	01	1	9603-9904		●
45	PIPE; OIL,P/S UNIT TO UNION 10PE1S(60L),10PE1N(61L),10PE1H(68L) ISUZU M/T<X9A> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A)	1-21115-527-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-457-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L>	1-21115-571-0	01	1	9603-9604	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L>	1-21115-654-0	01	1	9605-9608	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> ZF M/T<X9E>	1-21115-752-0	01	1	9609-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> ZF M/T<X9E>	1-21116-347-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21115-751-0	01	1	9609-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> EXC. ZF M/T<X9E>	1-21116-346-0	01	1	9905-	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9603-9606		●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L>	1-21115-568-0	01	1	9607-9904	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> L=1663	1-21116-235-0	01	1	9905-9905	●	●
49	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> CAB UP +110MM<TGG> L=1663	1-21116-235-0	01	1	9905-	●	●
75	PIPE; OIL,P/S,UNION TO UNION (A)	1-21115-452-0	01	1	9603-9904	●	●
75	PIPE; OIL,P/S,UNION TO UNION (A) L=550	1-21116-307-0	01	1	9905-0006	●	●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21115-639-0	01	1	9603-9606		●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B)	1-21115-639-0	01	1	9607-9904	●	●
75	PIPE; OIL,P/S,UNION TO UNION L TYPE ENG<90L> (B) L=1807	1-21116-404-0	01	1	9905-	●	●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A)	1-13345-186-0	01	1	9603-9606		●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A)	1-13345-186-0	01	1	9607-9607	●	●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (A)	1-13345-186-0	01	1	9608-9706	●	●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (A)	1-13345-186-0	01	1	9707-9904	●	●
111	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A)	1-13345-186-0	01	1	9905-	●	●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-13345-187-0	01	1	9603-9606		●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L) (B)	1-13345-187-0	01	1	9607-9706	●	●
111	BRACKET; OIL PIPE 6WA1 TC-S(56L),6WG1 TC-N(71L) (B)	1-13345-187-0	01	1	9707-9904	●	●
111	BRACKET; OIL PIPE 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B)	1-13345-187-0	01	1	9905-	●	●
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9603-9606		●
195	BOLT; BRKT 6WA1 TC-S(56L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9607-9706	●	●
195	BOLT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9707-9904	●	●
195	BOLT; BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) M8X12 FLANGE	0-28080-812-0	02	1	9905-	●	●
195	BOLT; BRKT 6WA1 TC-S(56L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9603-9606		●
195	BOLT; BRKT 6WA1 TC-S(56L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9607-9706	●	●
195	BOLT; BRKT 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9707-9904	●	●
195	BOLT; BRKT 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M10X35 FLANGE	0-28181-035-0	01	1	9905-	●	●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9603-9606		●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1034	1-21115-588-0	01	1	9607-0104	●	●
261	PIPE; OIL,UNION TO HOSE L TYPE ENG<90L> L=1031	1-21117-048-0	01	1	0105-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> CAB UP +110MM<TGG> L=1305	1-21115-948-0	01	1	9905-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> CAB UP +110MM<TGG> L=1315	1-21116-855-0	01	1	0007-	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9603-9606		●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L>	1-21115-394-0	01	1	9607-9904	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21115-394-0	01	1	9905-0006	●	●
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L TYPE ENG<90L> EXC. CAB UP +110MM<TGG>	1-21116-854-0	01	1	0007-	●	●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9603-9606		●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-191-0	01	1	9607-9704	●	●
280	HOSE; P/S OIL PUMP,INL L TYPE ENG<90L>	1-21115-865-0	01	1	9705-	●	●

61 229 287 39 68 58 58 157 205 65 207 207 229 34 73 255 1 58 61 31 65 239 278 257 79 58 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK ASM; OIL,P/S	1-21210-195-2	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL V TYPE ENG<91L>	1-21114-262-0	01	1	9603-	●	●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9603-9606		●
31	HOSE; P/S OIL TANK,INL L TYPE ENG<90L>	1-21114-284-0	01	1	9607-	●	●
34	HOSE; P/S OIL TANK,OUTLET V TYPE ENG<91L>	1-21114-254-1	01	1	9603-	●	●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9603-9606		●
34	HOSE; P/S OIL TANK,OUTLET L TYPE ENG<90L>	1-21114-283-0	01	1	9607-	●	●
39	CLIP; FLEX HOSE V TYPE ENG<91L> ID=31 L=35	1-09700-329-1	01	1	9603-	●	●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9603-9606		●
39	CLIP; FLEX HOSE L TYPE ENG<90L> ID=32 L=75	1-09700-702-0	01	1	9607-	●	●
58	BOLT; CLIP (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X16 FLANGE	0-28080-816-0	02	1	9603-9606	●	●
58	BOLT; CLIP (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (B) M8X20 FLANGE	0-28680-820-0	02	1	9607-	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	0104-	●	●
58	BOLT; CLIP (C) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
58	BOLT; CLIP (C) M10X25 FLANGE	0-28681-025-0	02	1	9607-	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28080-820-0	03	1	9603-9606	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	03	1	9607-9904	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	01	1	9905-0103	●	●
58	BOLT; CLIP V TYPE ENG<91L> (A) M8X20 FLANGE	0-28680-820-0	03	1	0104-	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP (A) M8X20 FLANGE	0-28080-820-0	01	1	9603-9606	●	●
58	BOLT; CLIP 10PE1S(60L) ZF M/T<X9E> (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9607-9712	●	●
58	BOLT; CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	9801-	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X16 FLANGE	0-28080-816-0	03	1	9603-9606		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9607-9607		●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	03	1	9608-9904	●	●
58	BOLT; CLIP L TYPE ENG<90L> (B) M8X20 FLANGE	0-28680-820-0	04	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	03	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (B) ID=12 H=24 L=20	1-09700-605-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	03	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9603-9904	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (A) ID=15 H=24 L=20	1-09700-606-0	01	1	9905-	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (C) ID=13 L=20	9-09525-235-0	01	1	9603-9608	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-536-0	01	1	9603-9702	●	●
61	CLIP; OIL PIPE V TYPE ENG<91L> (E) ID=16 L=20	9-09525-535-0	01	1	9703-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9607-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> FULLER M/T<X9B>,ZF M/T<X9E> (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE (D) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (C) ID=13 L=20	9-09525-235-0	02	1	9607-9608	●	●
61	CLIP; OIL PIPE (C) ID=13 L=20	9-09525-235-0	02	1	9609-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> ISUZU M/T<X9A> (D) ID=16 & 11 L=21.5 & 21.5	1-09700-924-0	01	1	9905-	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9603-9606		●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-536-0	02	1	9607-9702	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	02	1	9703-9904	●	●
61	CLIP; OIL PIPE L TYPE ENG<90L> (F) ID=16 L=20	9-09525-535-0	04	1	9905-	●	●
65	NUT; BRKT M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●	●
65	NUT; BRKT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
65	NUT; BRKT L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●
65	NUT; BRKT L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8	9-09110-508-0	03	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (C) M8 FLANGE	0-91150-108-0	03	1	9607-	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10	9-09110-510-0	01	1	9603-9606	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9607-9706	●	●
68	NUT; CLIP,OIL PIPE V TYPE ENG<91L> (D) M10 FLANGE	0-91150-210-0	01	1	9905-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8	9-09110-508-0	01	1	9603-9606		●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (A) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
68	NUT; CLIP,OIL PIPE L TYPE ENG<90L> (B) M10	9-09110-510-0	02	1	9603-9606		●
73	PIPE; OIL,FLEX HOSE TO RUBBER HOSE V TYPE ENG<91L>	1-21115-014-1	01	1	9603-	●	●
79	BOLT; BRKT (A) M8X30 FLANGE	0-28080-830-0	02	1	9603-9606	●	●
79	BOLT; BRKT (A) M8X35 FLANGE	0-28680-835-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X20 FLANGE	0-28080-820-0	02	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (B) M8X25 FLANGE	0-28680-825-0	02	1	9607-	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X25 FLANGE	0-28080-825-0	01	1	9603-9606	●	●
79	BOLT; BRKT V TYPE ENG<91L> (C) M8X30 FLANGE	0-28680-830-0	01	1	9607-	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X20 FLANGE	0-28081-020-0	02	1	9603-9606	●	●
79	BOLT; BRKT 10PE1S(60L) ZF M/T<X9E> (D) M10X25 FLANGE	0-28681-025-0	02	1	9607-9712	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=79.6	1-09623-421-0	01	1	9603-	●	●
205	BOLT; EYE,FLEX HOSE,P/S V TYPE ENG<91L> M18X40	1-09675-153-0	01	1	9603-	●	●
207	GASKET; FLEX HOSE,P/S PUMP V TYPE ENG<91L> ID=18.2 OD=24.4	1-09630-087-0	02	1	9603-	●	●
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (B)	1-21464-480-0	01	1	9603-	●	●
229	BRACKET; HOSE,POWER STRG V TYPE ENG<91L> (C)	1-21464-481-0	01	1	9603-	●	●
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9603-9606		●
229	BRACKET; HOSE,POWER STRG L TYPE ENG<90L> (A)	1-21464-407-1	01	1	9607-	●	●
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47477-336-0	01	1	9603-9904	●	●
239	BRACKET; FLEX HOSE V TYPE ENG<91L>	1-47478-471-0	01	1	9905-	●	●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9603-9606		●
239	BRACKET; FLEX HOSE L TYPE ENG<90L>	1-47476-679-4	01	1	9607-	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M20 & M22 STRAIGHT	1-09654-167-1	01	1	9603-9904	●	●
255	UNION; FLEX HOSE V TYPE ENG<91L> M22 & M22 STRAIGHT	1-09654-204-1	01	1	9905-	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9603-9606		●
255	UNION; FLEX HOSE L TYPE ENG<90L> M20 & M22 ELBOW	1-09654-154-1	01	1	9607-9904	●	●
255	UNION; FLEX HOSE L TYPE ENG<90L> M22 & M22 ELBOW	1-09654-163-1	01	1	9905-	●	●
256	NUT; UNION (A) M22	9-09111-422-0	01	1	9603-	●	●
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9603-9606		●
256	NUT; UNION 6WA1 TC-S(56L) (B) M22	9-09111-522-0	01	1	9607-9706	●	●
256	NUT; UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) (B) M22	9-09111-522-0	01	1	9707-9904	●	●
256	NUT; UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) M22	9-09111-522-0	01	1	9905-	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9603-9606	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.5	9-09150-522-0	01	1	9603-9606		●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9607-9609	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=22.5	9-09150-522-0	01	1	9607-9609	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9610-9706	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L) ID=22.5	9-09150-522-0	01	1	9610-9706	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9707-9904	●	●
257	WASHER; LK,UNION 6WA1 TC-S(56L),6WG1 TC-N(71L) ID=22.5	9-09150-522-0	01	1	9707-9904	●	●
257	WASHER; LK,UNION ID=22.5	9-09150-522-0	01	1	9905-	●	●
257	WASHER; LK,UNION 6WA1 TC-N(54L),6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=22.5	9-09150-522-0	01	1	9905-	●	●
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8	9-09110-508-0	01	1	9603-9606	●	●
278	NUT; HOSE CLIP V TYPE ENG<91L> (B) M8 FLANGE	0-91150-108-0	01	1	9607-	●	●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10	9-09110-510-0	01	1	9603-9606		●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9607-9607		●
278	NUT; HOSE CLIP L TYPE ENG<90L> (A) M10 FLANGE	0-91150-210-0	01	1	9608-	●	●
287	NUT; CLIP V TYPE ENG<91L> M8	9-09110-508-0	02	1	9603-9606	●	●
287	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	9607-	●	●
287	NUT; CLIP L TYPE ENG<90L> M8	9-09110-508-0	01	1	9603-9606		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
