◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50958 - TFR/TFS THAI-RUNG ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-26 - ELECTRICAL CONTROL AND OTHER PARTS ▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#40858) — 53 parça

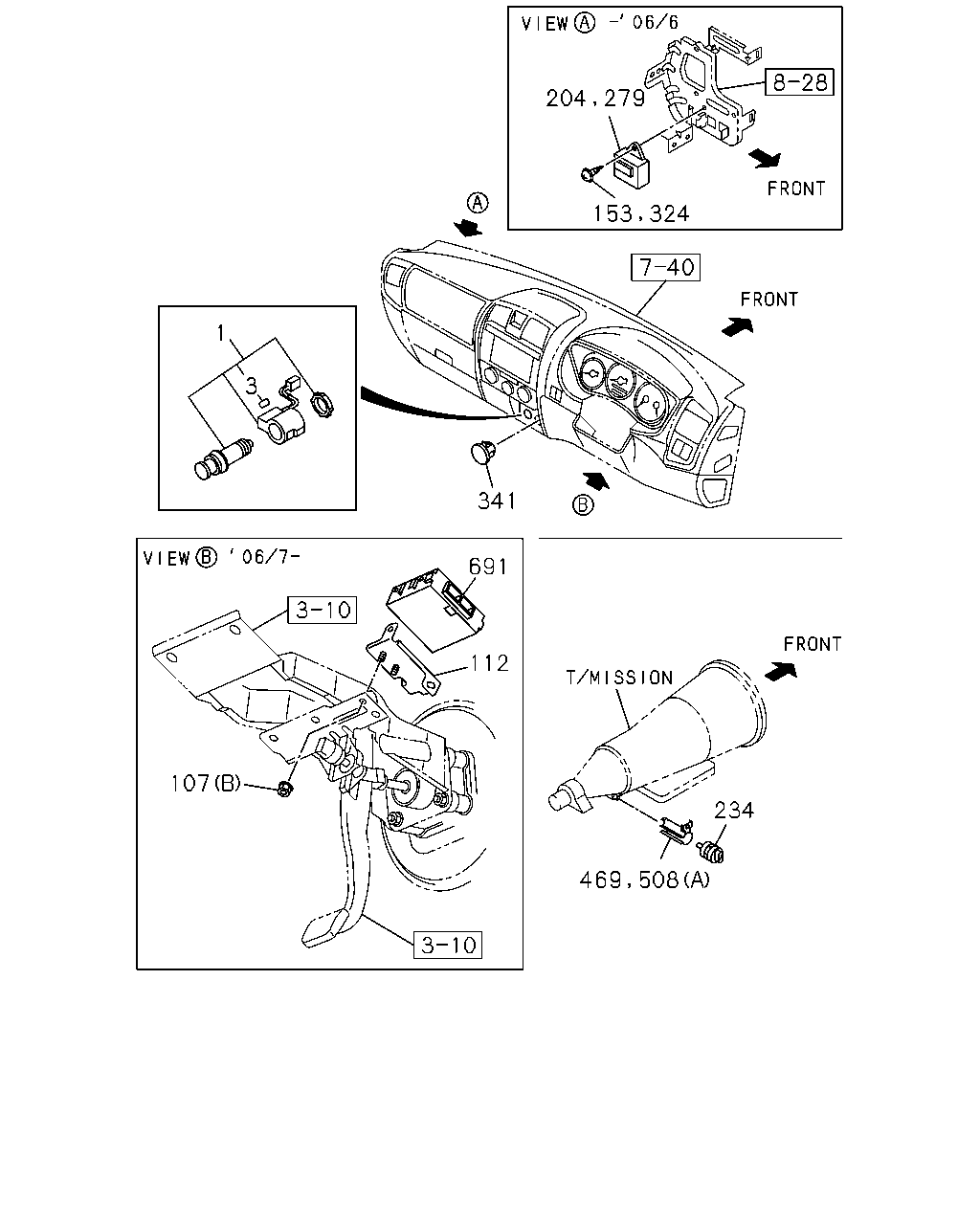

çizim 46254
1 3 341 691 112 107 234 204 279 324 153 508 469
BalonParca AdiParca NoAdetTipApplied Date A B
1 LIGHTER; CIGAR
THA 		8-97329-641-0 01 1 0303- ● ●
3 BULB; CIGAR LIGHTER
14V 1.4W THA 		8-97173-160-0 01 1 0303- ● ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0303- ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
112 BRACKET; CONT UNIT
THA 		8-97945-256-0 01 1 0607- ●
153 BOLT; BUZZER FIX
M5X16 TAPPING THA 		9-09829-323-1 01 1 0409-0606 ● ●
204 BUZZER; KEY REMIND
THA 		8-97135-562-0 01 1 0303-0408 ● ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0303-0406 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN BLACK THA 		8-97129-704-0 01 1 0303-0406 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0407-0408 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED<RMN> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0407-0408 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0409-0412 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0409-0412 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0501-0606 ●
234 SENSOR; VEHICLE SPD
A/T 4 SPEED-JATCO<RMK>,M/T MUA 5 SPEED 5G<RSP> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0501-0606 ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0607- ●
234 SENSOR; VEHICLE SPD
M/T MUA 5 SPEED 5H<MWQ>,A/T 4 SPEED-JATCO<RMK> 4 PULSE PPS RESIN WHITE IMA 		8-97377-920-0 01 1 0607- ●
279 BUZZER ASM; SEAT BELT WARNING
THA 		8-97135-562-0 01 1 0409-0606 ● ●
324 SCREW; TAP WARNING
M5X16 TAPPING THA 		9-09829-323-1 01 1 0303-0408 ● ●
341 COVER ASM
EXC. ACCESSORY SOCKET FRT CONSOLE<KC5> DARK GRAY THA 		8-97390-774-0 01 1 0308-0408 ● ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0409-0412 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ>,M/T MUA 5 SPEED 5G<RSP> THA 		8-97168-308-0 01 1 0501-0606 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> THA 		8-97168-308-0 01 1 0607-0809 ●
469 PROTECTOR; SPEED SENSOR
M/T MUA 5 SPEED 5H<MWQ> IMA 		8-98119-901-0 01 1 0810- ●
508 PROTECTOR
M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0303-0408 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0303-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0303-0307 ●
691 CONTROLLER; TRANSFER
THA 		8-97368-449-0 01 1 0308-0408 ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0508 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ●
çizim 100969
107 101 305 67
BalonParca AdiParca NoAdetTipApplied Date A B
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97234-955-0 01 1 0303-0408 ● ●
67 BRACKET; CONT UNIT
A/T 4 SPEED-JATCO<RMK> THA 		8-97306-829-0 01 1 0409- ● ●
101 CONTROL UNIT; ELEC,A/T
4JH1 ENG<RJX> A/T 4 SPEED-JATCO<RMK> THA 		8-97329-270-0 01 1 0303-0408 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-97374-474-0 01 1 0409-0503 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98012-395-0 01 1 0504-0606 ● ●
101 CONTROL UNIT; ELEC,A/T
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> THA 		8-98041-751-0 01 1 0607-0710 ●
101 CONTROL UNIT; ELEC,A/T
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> FINAL GEAR RATIO 41/11<GT4> THA 		8-98049-042-0 01 1 0711- ●
101 CONTROL UNIT; ELEC,A/T
4JJ1 ENG<LFB> A/T 4 SPEED-JATCO<RMK> THA 		8-98041-750-0 01 1 0607- ●
107 NUT; BRKT,ELEC CONT UNIT
A/T 4 SPEED-JATCO<RMK> (A) M8 FLANGE THA 		0-91180-108-0 02 1 0303- ● ●
107 NUT; BRKT,ELEC CONT UNIT
(B) M6 FLANGE THA 		0-91180-106-0 02 1 0607- ●
305 NUT; CONT UNIT
A/T 4 SPEED-JATCO<RMK> M6 FLANGE THA 		0-91180-106-0 03 1 0303- ● ●
çizim 100986
263 508 691
BalonParca AdiParca NoAdetTipApplied Date A B
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28680-616-0 02 1 0303-0601 ●
263 BOLT; CONT UNIT
M6X16 FLANGE THA 		0-28650-616-0 02 1 0602-0606 ●
508 PROTECTOR
M/T MUA 5 SPEED<RMN> (A) THA 		8-97168-308-0 01 1 0303-0408 ●
508 PROTECTOR
(B) THA 		8-97324-594-1 01 1 0303-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-97351-102-0 01 1 0303-0307 ●
691 CONTROLLER; TRANSFER
THA 		8-97368-449-0 01 1 0308-0408 ●
691 CONTROLLER; TRANSFER
THA 		8-97374-038-0 01 1 0409-0508 ●
691 CONTROLLER; TRANSFER
THA 		8-97386-320-0 01 1 0509-0512 ●
691 CONTROLLER; TRANSFER
THA 		8-98021-885-0 01 1 0601-0606 ●
691 CONTROLLER; TRANSFER
THA 		8-98024-663-0 01 1 0607- ●
